Using Sun ZFS Storage Appliance iSCSI LUNs in a Microsoft Windows Server 2008 R2 Environment

October 2011

by By Andrew Ness

How to configure iSCSI LUNs in a Sun ZFS Storage Appliance and integrate them into a Microsoft Windows Server 2008 R2 environment.


Introduction

If your server is running out of internal storage capacity, you can quickly allocate just the right amount of storage from resilient storage pools on the Sun ZFS Storage Appliance from Oracle. This article describes how to use Sun ZFS Storage Appliance iSCSI LUNs in a Microsoft Windows 2008 R2 environment. Windows Server 2008 R2 comes with a software iSCSI initiator package that can be configured to integrate iSCSI LUNs presented by the Sun ZFS Storage Appliance into the Windows environment.

OTN is all about helping you become familiar enough with Oracle technologies to make an informed decision. Articles, software downloads, documentation, and more. Join up and get the technical resources you need to do your job.

This article first describes how to enable the Windows iSCSI initiator on a Windows Server 2008 R2 host. Then it describes how to configure an iSCSI LUN on the Sun ZFS Storage Appliance so the LUN can be accessed by the Windows host using the iSCSI protocol. Procedures are provided for configuring the LUN using either the appliance's browser user interface (BUI) or the appliance's command line interface (CLI). Finally, the article shows how to prepare the LUN for use by the Windows host.

The procedures in this article assume the following:

  • The root password for the Sun ZFS Storage Appliance is known.
  • The IP address or host name of the Sun ZFS Storage Appliance is known.
  • The network used by the Sun ZFS Storage Appliance has been configured.
  • The Sun ZFS Storage Appliance has pools configured with sufficient free space available.
  • The password of an administrator account on the Windows host is known.

Enabling the Windows iSCSI Initiator

The first step is to enable the Microsoft iSCSI Initiator. By default, the Microsoft iSCSI Initiator is not enabled, so it is necessary to enable the initiator and gather the host iSCSI details.

  1. Log on to the Windows host as a systems administrator.
  2. Select Start > Control Panel and choose Large icons or Small icons, as shown in Figure 1, to display the necessary control applet.

  3. Figure 1

    Figure 1. Control Panel Icons

  4. Select iSCSI Initiator, as shown in Figure 2.

  5. Figure 2

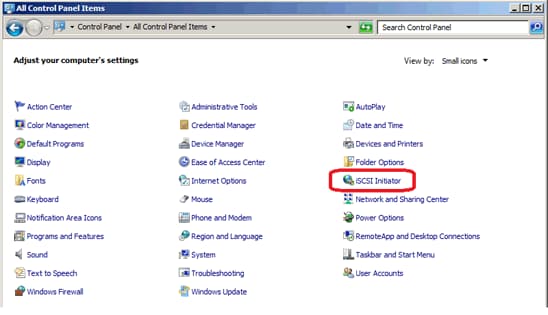

    Figure 2. iSCSI Initiator Icon

    If the iSCSI initiator has not been previously enabled, the warning shown in Figure 3 is displayed.

    Figure 3

    Figure 3. iSCSI Service Warning

  6. Click Yes.
  7. The iSCSI Initiator Properties dialog box opens, as shown as in Figure 4.

    Figure 4

    Figure 4. iSCSI Initiator Properties Dialog Box

  8. In the iSCSI Initiator Properties dialog box, select the Configuration tab to view the iSCSI Qualified Name (IQN), as shown in Figure 5. The IQN is used to identify the Windows host to the Sun ZFS Storage Appliance.

  9. Figure 5

    Figure 5. iSCSI Initiator Properties Dialog Box Showing the IQN

    Note: It is possible to change the IQN (shown here as the Initiator Name). However, changing the IQN is not advisable under normal circumstances.

  10. If Challenge-Handshake Authentication Protocol (CHAP) is to be used to authenticate the initiator to the target, click the CHAP button. (CHAP can also be used to authenticate the target to the initiator.)
  11. The iSCSI Initiator Mutual CHAP Secret prompt is displayed, as shown in Figure 6.

    Figure 6

    Figure 6. iSCSI Initiator Mutual CHAP Secret Prompt

  12. Enter a CHAP secret that is memorable but not easily guessed. The level of complexity should be similar to that of a user password. For the password to be a valid CHAP secret, it must be at least 96 bits (12 bytes) long. Otherwise, the warning shown in Figure 7 is displayed.

  13. Figure 7

    Figure 7. Warning Message for Short CHAP Secret

Configuring the Sun ZFS Storage Appliance Using the Browser User Interface

As a unified storage platform, the Sun ZFS Storage Appliance supports access to block-protocol LUNs using iSCSI and Fibre Channel protocols. This section describes how to use the Sun ZFS Storage Appliance BUI to configure the Sun ZFS Storage Appliance to recognize the Windows Server 2008 R2 host and present iSCSI LUNs to it.

To open the Sun ZFS Storage Appliance BUI, do the following:

  1. In the address field of a Web browser, enter an address that includes the IP address or host name of the Sun ZFS Storage Appliance, as shown below:
  2. https://<appliance IP address or host name>:215


    The login dialog shown in Figure 8 is displayed.

    Figure 8

    Figure 8. Sun ZFS Storage Appliance Login

  3. Enter a user name and password and click LOGIN.

To identify the Windows Server 2008 R2 host to the Sun ZFS Storage Appliance, an iSCSI target group must be created and iSCSI initiator and initiator groups must be defined. These steps are described in the following sections.

Defining an iSCSI Target Group

A target group is created on the Sun ZFS Storage Appliance to define the ports and the protocol by which the LUN to be presented to the Windows Server 2008 R2 host is accessed. For this example, an iSCSI target group is created that contains the LUN as an iSCSI target that is identified by the default IQN for the Sun ZFS Storage Appliance and presented over default appliance interfaces. Since CHAP will be used for authentication between the storage and the host, CHAP parameters are also specified in this example.

To define an iSCSI target group on the Sun ZFS Storage Appliance, complete these steps:

  1. Click Configuration > SAN to display the Storage Area Network (SAN) screen, as shown in Figure 9.
  2. Click the Targets tab at the right and then select iSCSI Targets at the top of the left panel, as shown in Figure 9.

  3. Figure 9

    Figure 9. iSCSI Target Configuration Tab in Sun ZFS Storage Appliance

  4. Click the + icon to the left of iSCSI Targets to display the New iSCSI Target dialog box shown in Figure 10.
  5. Enter an Alias for the target and select the Initiator authentication mode (for this example, CHAP is selected).
  6. Enter the Target CHAP name and a Target CHAP secret that is different from the secret used for the iSCSI initiator. For this example, chapuser and CHAPsecret22 are used.

  7. Figure 10

    Figure 10. New iSCSI Target Dialog Box

  8. Click OK to confirm.
  9. To create an iSCSI target group that includes the iSCSI target just defined, place the cursor over the new iscsi-Targets entry in the left panel. The Move icon () appears to the left of the entry, as shown in Figure 11.

  10. Figure 11

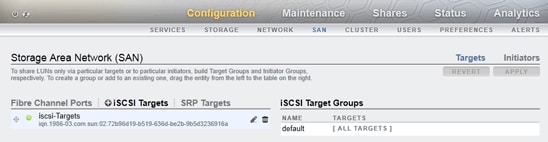

    Figure 11. Move Icon Displayed to the Left of the Selected iSCSI Target

  11. Click the Move icon and drag it to the iSCSI Target Groups panel on the right. A new entry appears at the bottom of the iSCSI Target Groups panel, as shown in Figure 12 (highlighted in yellow).

  12. Figure 12

    Figure 12. Creating the iSCSI Target Group

  13. Move the cursor over the new target group and release the mouse button. A new iSCSI target group is created with a name targets-n, where n is an integer (shown in Figure 13).
  14. Move the cursor over the entry for the new target group. Two icons appear to the right of the target group box, as shown in Figure 13.

  15. Figure 13

    Figure 13. Selecting the Target Group for Editing

  16. Click the Edit icon () to display the dialog box shown in Figure 14.
  17. In the Name field, replace the default name with the name to be used for the iSCSI target group and click OK. For this example, the name iscsi-TG is used.

  18. Figure 14

    Figure 14. Renaming the iSCSI Target Group

  19. Click APPLY. The changes are shown in the iSCSI Targets panel on the left, as shown in Figure 15.

  20. Figure 15

    Figure 15. New iSCSI Target Group with Changes Applied

Defining an iSCSI Initiator

An iSCSI initiator is defined to allow access from one or more servers to particular volumes. Access to volumes should be configured so that a minimum number of iSCSI initiators are allowed to access a particular volume. If more than one host can write to a given volume concurrently and a non-shared file system is used, inconsistencies might occur in file system caches on the hosts, which can ultimately lead to corruption of the on-disk image. Typically, a single initiator is given access to a volume, unless a specialized cluster file system is being used.

The iSCSI initiator defines the "host" from the point of view of the Sun ZFS Storage Appliance. The iSCSI initiator definition contains the host IQN. To identify the Windows server to the Sun ZFS Storage Appliance, the Windows Server 2008 R2 iSCSI initiator IQN must be registered with the appliance by completing the following steps:

  1. Click Configuration > SAN to display the Storage Area Network (SAN) screen shown in Figure 16.
  2. Click the Initiators tab at the right and then select iSCSI Initiators at the top of the left panel, as shown in Figure 16.

  3. Figure 16

    Figure 16. Selecting the SAN Configuration

  4. Click the + icon to the left of iSCSI Initiators to display the New iSCSI Initiator dialog box shown in Figure 17.
  5. Enter the Initiator IQN for the Windows server (see the previous section Enabling the Windows iSCSI Initiator for how to obtain the initiator IQN).
  6. Enter a more meaningful symbolic name in the Alias field.
  7. If CHAP authentication has been set up (see the previous section Enabling the Windows iSCSI Initiator), select the Use CHAP check box. Enter the CHAP name in the Initiator CHAP name field and enter the password in the Initiator CHAP secret field, as shown in Figure 17. The CHAP name and password must be identical to those defined in the host configuration.

  8. Figure 17

    Figure 17. New iSCSI Initiator Definition

  9. Click OK.

Defining the iSCSI Initiator Group

Related iSCSI initiators can be combined into logical groups to allow single commands to be executed on multiple iSCSI initiators, for example, assigning LUN access to all iSCSI initiators in a group by using one command. For this example, the iSCSI initiator group contains one initiator, but in a cluster, where multiple servers are treated as a single logical entity, the initiator group may contain multiple initiators.

To create an iSCSI initiator group, complete these steps:

  1. Select Configuration > SAN to display the Storage Area Network (SAN) screen.
  2. Select the Initiators tab at the right and the click iSCSI Initiators at the top of the left panel.
  3. Place the cursor over the entry for the iSCSI initiator created in the previous section. The Move icon () appears to the left of the entry, as shown in Figure 18.

  4. Figure 18

    Figure 18. Displaying the Move Icon for a New iSCSI Initiator

  5. Click the Move icon and drag it to the iSCSI Initiator Groups panel on the right. A new entry appears at the bottom of the iSCSI Initiators Groups panel, as shown in Figure 19 (highlighted in yellow).

  6. Figure 19

    Figure 19. Creating the iSCSI Initiator Group

  7. Move the cursor over the new entry box and release the mouse button. A new iSCSI initiator group is created with a name initiators-n, where n is an integer, as shown in Figure 20.
  8. Move the cursor over the entry for the new initiator group. Several icons appear to the right of the target group box, as shown in Figure 20.

  9. Figure 20

    Figure 20. Selecting the iSCSI Initiator Group

  10. Click the Edit icon () to display the dialog box shown in Figure 21.
  11. In the Name field, replace the default name with the name to be used for the iSCSI initiator group and click OK. For this example, the name win2k8-servers is used.

  12. Figure 21

    Figure 21. Renaming the iSCSI Initiators Group

  13. Click APPLY on the SAN configuration screen to confirm all the modifications, as shown in Figure 22.

  14. Figure 22

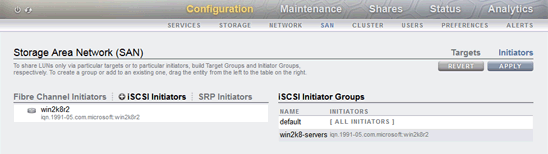

    Figure 22. iSCSI Initiator Configuration Completed

Defining a ZFS Storage Appliance Project

A project can be defined in the Sun ZFS Storage Appliance to group related volumes. A project allows inheritance of properties for file systems and LUNs presented from the project and also allows quotas and reservations to be applied.

To create a project, complete the following steps:

  1. Select Shares > Projects to display the Projects screen, as shown in Figure 23. If necessary, click the Projects icon () on the left of the screen.

  2. Figure 23

    Figure 23. Viewing a Project

  3. Click the + icon to the left of Projects at the top of the left panel to display the Create Project dialog box shown in Figure 24.

  4. Figure 24

    Figure 24. Create Project Dialog Box

  5. To create a new project, enter a Name for the project and click APPLY. A new project appears in the Projects list in the left panel.
  6. Select the new project to view the components that comprise the project, as shown in Figure 25.

  7. Figure 25

    Figure 25. Displaying the New w2k8-project Project

Defining a Sun ZFS Storage Appliance LUN

A LUN must now be created from an existing pool of storage resources, which the Windows Server 2008 R2 host will access. For this example, a thin-provisioned 64 GB LUN called DocArchive1 is created.

The target group will be the iSCSI target group created in the Defining an iSCSI Target Group section to ensure that this LUN can be accessed using iSCSI protocol. The initiator group defined in the Defining the iSCSI Initiator Group section will be used to ensure that only the server(s) defined in the win2k8-servers group can access this LUN (in this example, this group contains only one server).

To create a target group, complete the following steps:

  1. Select Shares > Projects to display the Projects screen.
  2. In the Projects panel at the left, select the project. Then select LUNs at the top of the panel at the right, as shown in Figure 26.

  3. Figure 26

    Figure 26. Selecting Shares > Project > LUNs

  4. Click the + icon to the left of LUNs to display the Create LUN dialog box shown in Figure 27.
  5. Enter values, as appropriate, to set up the LUN. For this example, set the Name field to DocArchive1, set the Volume size field to 64 GB, and select the Thin provisioned check box. Set the Target Group to the iSCSI target group iscsi-TG and the Initiator Group to win2k8-servers. Set the Volume block size to 32K because the volume will hold a ZFS file system.

  6. Figure 27

    Figure 27. Create LUN Dialog Box

  7. Click APPLY to create the LUN and make it available to the Windows server.

Configuring the Sun ZFS Storage Appliance Using the Command Line Interface

As a unified storage platform, the Sun ZFS Storage Appliance supports access to block-protocol LUNs using iSCSI and Fibre Channel protocols. This section describes how to use the Sun ZFS Storage Appliance CLI to configure the appliance to recognize the Windows Server 2008 R2 host and present iSCSI LUNs to it.

The CLI must be accessed using an SSH-enabled terminal session. On a host that has an SSH client available, enter the following:

user@host> ssh root@<appliance IP address or host name>
login as: root
Using keyboard-interactive authentication.
Password: XXXXX
Last login: Mon Jul XX XX:XX:XX XXXX from desktop
zfssa:>

Navigation follows a similar pattern in the CLI as in the BUI with paths used in commands often corresponding to paths through tabs and screens in the BUI.

Defining the iSCSI Target Group

In the example in Listing 1, a target group is defined on the Sun ZFS Storage Appliance to specify which ports and protocols will be used to access the LUN. The LUN can be assigned to a particular target group when it is created, or it can be added later by editing the target group. In the example below, an iSCSI target group consisting of a single iSCSI target is defined, using a default IQN, to allow a LUN to be presented through the appliance's default ports using iSCSI protocol.

Since CHAP will be used for authentication between the storage and the host, CHAP parameters are also specified in this example.

Listing 1: Defining an iSCSI Target Group
zfssa:>
configuration san targets
zfssa:configuration san targets>
iscsi

zfssa:configuration san targets iscsi>
create
zfssa:configuration san targets iscsi target (uncommitted)>
set alias=iscsi-Target
                         alias = iscsi-Target (uncommitted)
zfssa:configuration san targets iscsi target (uncommitted)>
commit
zfssa:configuration san targets iscsi>
list
TARGET     ALIAS
target-000 iscsi-Target
           |
           +-> IQN
            iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881

zfssa:configuration san targets iscsi>
select target-000
zfssa:configuration san targets iscsi target-000>
list
Properties:
                         alias = iscsi-Target
      iqn = iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881
                          auth = none
                targetchapuser = (unset)
              targetchapsecret = (unset)
                    interfaces = nge0

zfssa:configuration san targets iscsi target-000>
set targetchapuser=
   iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881
                targetchapuser = iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881 (uncommitted)

zfssa:configuration san targets iscsi target-000>
set targetchapsecret=CHAPsecret11
              targetchapsecret = ************ (uncommitted)
zfssa:configuration san targets iscsi target-000>
commit
zfssa:configuration san targets iscsi target-000>
list
Properties:
                         alias =
                           iqn =
                          auth =
                targetchapuser = iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881
              targetchapsecret = ************
                    interfaces =

zfssa:configuration san targets iscsi target-000>
cd ..
zfssa:configuration san targets iscsi>
list
TARGET     ALIAS
target-000 iscsi-Target
           |
           +-> IQN
            iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881

zfssa:configuration san targets iscsi>
group
zfssa:configuration san targets iscsi groups>
create
zfssa:configuration san targets iscsi group (uncommitted)>
set name=iscsi-TG
                          name = iscsi-TG (uncommitted)
zfssa:configuration san targets iscsi group (uncommitted)>
set targets=iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881
                       targets = iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881 (uncommitted)

zfssa:configuration san targets iscsi group (uncommitted)>
commit
zfssa:configuration san targets iscsi groups>
list
GROUP     NAME
group-000 iscsi-TG
          |
          +-> TARGETS
            iqn.1986-03.com.sun:02:e8589be5-144d-c9b2-89d4-f7fe4e887881
zfssa:configuration san targets iscsi groups>
cd /
zfssa:>

Defining the iSCSI Initiator

An iSCSI initiator is defined to restrict which servers have access to a particular volume. If more than one host can write to a given volume concurrently, inconsistency in file system caching between hosts can cause corruption in the on-disk image. Typically, a single initiator is given access to a volume, unless a specialized cluster file system is being used.

The iSCSI initiator is the "host," as defined from the point of view of the Sun ZFS Storage Appliance. To define the Windows Server 2008 R2 host as an iSCSI initiator with an alias win2k8r2, the iSCSI IQN for the Windows host must be registered with the appliance, as shown in the example in Listing 2.

Listing 2: Defining an iSCSI Initiator
zfssa:>
configuration san initiators
zfssa:configuration san initiators>
iscsi
zfssa:configuration san initiators iscsi>
ls
Children:
                           groups => Manage groups

zfssa:configuration san initiators iscsi>
create
zfssa:configuration san initiators iscsi initiator (uncommitted)>
set alias=win2k8r2
                         alias = win2k8r2 (uncommitted)
zfssa:configuration san initiators iscsi initiator (uncommitted)>
set initiator= iqn.1991-05.com.microsoft:win2k8r2
           initiator = iqn.1991-05.com.microsoft:win2k8r2 (uncommitted)
zfssa:configuration san initiators iscsi initiator (uncommitted)>
set chapuser= iqn.1991-05.com.microsoft:win2k8r2
                      chapuser = iqn.1991-05.com.microsoft:win2k8r2 (uncommitted)
zfssa:configuration san initiators iscsi initiator (uncommitted)>
set chapsecret=CHAPsecret11
                    chapsecret = ************ (uncommitted)
zfssa:configuration san initiators iscsi initiator (uncommitted)>
commit
zfssa:configuration san initiators iscsi> ls
Initiators:

NAME          ALIAS
initiator-000 win2k8r2
              |
              +-> INITIATOR
                  iqn.1991-05.com.microsoft:win2k8r2
Children:
                           groups => Manage groups

zfssa:configuration san initiators iscsi>

Defining the iSCSI Initiator Group

Related iSCSI initiators can be combined into logical groups to allow single commands to be executed on multiple iSCSI initiators, for example, assigning LUN access to all iSCSI initiators in a group by using one command. In the example in Listing 3, the iSCSI initiator group contains one initiator. However, in a cluster, where multiple servers are treated as a single logical entity, the initiator group may contain multiple initiators.

Listing 3: Defining an iSCSI Initiator Group
zfssa:configuration san initiators iscsi>
groups
zfssa:configuration san initiators iscsi groups>
create
zfssa:configuration san initiators iscsi group (uncommitted)>
set name=win2k8-servers
                          name = win2k8-servers (uncommitted)
zfssa:configuration san initiators iscsi group (uncommitted)>
set initiators= iqn.1991-05.com.microsoft:win2k8r2
      initiators = iqn.1991-05.com.microsoft:win2k8r2 (uncommitted)
zfssa:configuration san initiators iscsi group (uncommitted)>
commit
zfssa:configuration san initiators iscsi groups >
	ls
Groups:

GROUP     NAME
group-000 win2k8-servers
          |
          +-> INITIATORS
              iqn.1991-05.com.microsoft:win2k8r2

zfssa:configuration san initiators iscsi groups>
	cd /
zfssa:>

Defining a Sun ZFS Storage Appliance Project

A project can be defined in the Sun ZFS Storage Appliance to group related volumes. A project allows inheritance of properties for file systems and LUNs presented from the project and also allows quotas and reservations to be applied.

Define a project as shown in the example below:

zfssa:>
shares
zfssa:shares>
project w2k8-project
zfssa:shares w2k8-project (uncommitted)>
commit
zfssa:shares>
	cd /
zfssa:>

Defining a Sun ZFS Storage Appliance LUN

A LUN, which the Windows Server 2008 R2 host will access, must now be created from an existing pool of storage resources. In the example in Listing 4, a thin-provisioned 64 GB LUN called DocArchive1 is created. The LUN is set up for a ZFS file system.

The target group is the iSCSI target group created in the Defining the iSCSI Target Group section to ensure that this LUN can be accessed using iSCSI protocol. The initiator group defined in the Defining the iSCSI Initiator Group section is used to ensure that only the server(s) defined in the win2k8-servers group can access this LUN (in this example, this group contains only one server).

Listing 4: Defining a Sun ZFS Storage Appliance LUN
zfssa:shares> select w2k8-project
zfssa:shares w2k8-project> lun DocArchive1
zfssa:shares w2k8-project/DocArchive1 (uncommitted)> set volsize=64G
                       volsize = 64G (uncommitted)
zfssa:shares w2k8-project/DocArchive1 (uncommitted)>
set targetgroup=iscsi-TG
                   targetgroup = iscsi-TG (uncommitted)
zfssa:shares w2k8-project/DocArchive1 (uncommitted)>
set initiatorgroup=win2k8-servers
                initiatorgroup = win2k8-servers (uncommitted)
zfssa:shares w2k8-project/DocArchive1 (uncommitted)> list
Properties:
                      checksum = fletcher4 (inherited)
                   compression = off (inherited)
                         dedup = false (inherited)
                        copies = 1 (inherited)
                       logbias = latency (inherited)
                secondarycache = all (inherited)
                  volblocksize = 8K (default)
                       volsize = 64G (uncommitted)
                        sparse = false (default)
                      exported = true (inherited)
                   targetgroup = iscsi-TG (uncommitted)
                initiatorgroup = win2k8-servers (uncommitted)
                      lunumber = (default)
                assignednumber = (default)
                        status = (default)
                   fixednumber = (default)
                       lunguid = (default)
                canonical_name = (default)
                     nodestroy = (default)

Children:
                        snapshots => Manage snapshots
                      replication => Manage remote replication

zfssa:shares w2k8-project/DocArchive1 (uncommitted)>
set volblocksize=32k
                  volblocksize = 32K (uncommitted)
zfssa:shares w2k8-project/DocArchive1 (uncommitted)> commit
zfssa:shares w2k8-project> cd /
zfssa:shares>

Configuring the LUN for Use by the Windows 2008 R2 Server

Once the iSCSI LUN has been prepared, the Windows Server 2008 R2 environment must be configured to access the allocated storage, as described in the following steps:

  1. On the control panel, select iSCSI Initiator to display the iSCSI Initiator Properties dialog box (see Enabling the Windows iSCSI Initiator for details).
  2. Select the Discovery tab and click Discover Portal to display the dialog box shown in Figure 28.

  3. Figure 28

    Figure 28. iSCSI Initiator Discover Target Portal Dialog Box

  4. Click OK to set up the target.
  5. The Target portals box now contains the newly added target, as shown in Figure 29.

    Figure 29

    Figure 29. Newly Added iSCSI Target

  6. Select the Targets tab. The IQN of the Sun ZFS Storage Appliance is displayed, as shown in Figure 30.

  7. Figure 30

    Figure 30. IQN of the New Target

  8. Click the Connect button on the Targets tab to display the Connect To Target dialog box, as shown in Figure 31.

  9. Figure 31

    Figure 31. Connect to Target Dialog Box

  10. Click the Advanced button to display the Advanced Settings dialog box shown in Figure 32.

  11. Figure 32

    Figure 32. Specifying the CHAP Details

  12. Select the Enable CHAP log on check box. In the Name field, enter the IQN of the Windows Server 2008 R2 host, and in the Target Secret field, enter the target secret selected in the Enabling the Windows iSCSI Initiator section.
  13. Click the OK button to save the settings and close the Advanced Settings dialog box.
  14. In the iSCSI Initiator Properties dialog box, click Connect.
  15. If the connection is successful, an entry appears in the Discovered Targets box showing the IQN of the Sun ZFS Storage Appliance with a Connected status, as shown in Figure 33. Click OK to continue.

    If an Authentication Failure warning is displayed, check that the same CHAP password (CHAP target secret) is used in each of the following places (you may need to re-enter hidden passwords to ensure consistency):

    • In the Microsoft Windows iSCSI Initiator configuration properties (see Figure 6 in the "Enabling the Windows iSCSI Initiator" section)
    • In the Sun ZFS Storage Appliance iSCSI Initiator definition (see Figure 17 (BUI "Defining an iSCSI Initiator" section) or Listing 2 (CLI "Defining an iSCSI Initiator" section)
    • In the Microsoft Windows iSCSI Initiator Advanced Settings (see Figure 32 in this section)

    Figure 33

    Figure 33. Successful Connection

  16. To initialize the LUN for use by Windows, select Start and right-click Computer. In the menu that is displayed, select Manage, as shown in Figure 34.

  17. Figure 34

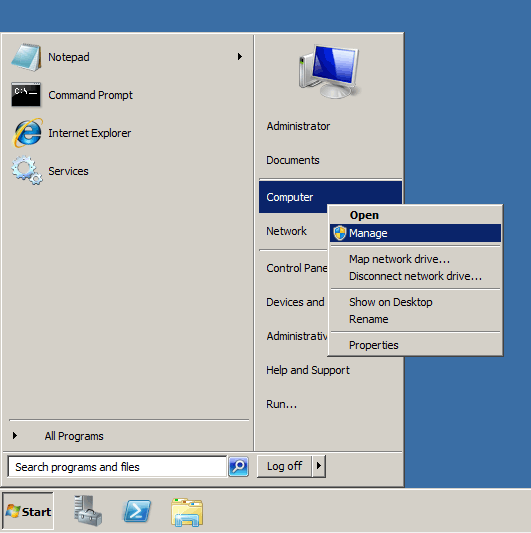

    Figure 34. Selecting the Management Utility for the Computer

  18. Select Storage > Disk Management to display the Initialize Disk dialog box, as shown in Figure 35.
  19. Click Cancel to close the Initialize Disk dialog box and display the Disk Management dialog box.
  20. Note: If you're absolutely sure that this is the correct disk to be initialized, you can click OK and skip steps 13 through 15.

    Figure 35

    Figure 35. Initialize Disk Dialog Box

  21. To verify that you are about to initialize the correct disk, find the disk corresponding to the new iSCSI LUN in the list of available disks. Check that the size of the disk is the same as the size that was allocated in the "Defining a ZFS Storage Appliance LUN" section (see Figure 27). The disk should also be shown as Not Initialized.
  22. To prepare the new iSCSI LUN for use by the Windows Server 2008 R2 host, right-click the entry corresponding to the disk to display the menu shown in Figure 36 and click Initialize Disk.

  23. Figure 36

    Figure 36. Initializing the Disk

  24. The Initialize Disk dialog box shown in Figure 35 will be displayed again. This time, click OK to initialize the disk.
  25. When the disk is finished initializing, the status of the disk in the Disk Management dialog box will change from Not Initialized to Online.

  26. To the right of the identifier for the disk, select the area representing the disk. When selected, the area appears cross-hatched. Right-click this area and select New Simple Volume.
  27. The New Simple Volume Wizard is displayed, as shown in Figure 37.

    Figure 37

    Figure 37. Wizard for Creating a New Simple Volume

  28. Click Next to continue.
  29. The Specify Volume Size dialog box appears, as shown in Figure 38. This dialog box allows you to create a partition on the unallocated space.

    Figure 38

    Figure 38. Selecting the Size of the Partition

  30. For this example, a single 64 GB volume is created for archived documents, so click Next.
  31. The Assign Letter Drive or Path dialog box is displayed, as shown in Figure 39. Options offered are to assign a drive letter to the new "disk," mount the new disk as an NTFS subfolder (which must be empty), or create the volume without assigning a drive or mounting the disk.

    Figure 39

    Figure 39. Assigning a Drive Letter

  32. For this example, select Assign the following drive letter and then, from the drop-down menu to the right, select an unused drive letter.
  33. Click Next to continue. The Format Partition dialog box is displayed with options for formatting or not formatting the volume, as shown in Figure 40. If the volume is to be formatted, a volume label, a file system type, and an allocation unit size can be specified. Options are provided for performing a quick format or enabling file and folder compression.
  34. For this example, format the volume with the options shown in Figure 40.

  35. Figure 40

    Figure 40. Formatting the Volume

  36. Click Next to continue.
  37. A summary of the selected options is displayed, as shown in Figure 41.

    Figure 41

    Figure 41. Summary of Selected Options

  38. Click Finish to apply the options and to format the iSCSI volume.
  39. On the Disk Management screen, the volume status is shown as Formatting until the formatting process is complete, as shown in Figure 42.

    Figure 42

    Figure 42. Disk Formatting

    The status then changes to Healthy, as shown in Figure 43.

    Figure 43

    Figure 43. Formatting Complete

    The new iSCSI LUN is now available for use, as shown in Figure 44.

    Figure 44

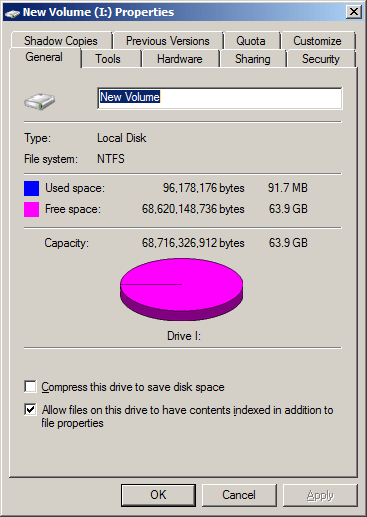

    Figure 44. iSCSI LUN Now Available

Conclusion

This article described how to configure the software iSCSI initiator package supplied with Microsoft Windows Server 2008 R2 to enable a Windows server to access iSCSI LUNs presented by Oracle's Sun ZFS Storage Appliance.

Revision 1.0, 10/26/2011
