Oracle Device Detection Tool helps you to detect whether the Oracle Solaris 10 Operating System (OS) can be installed on your x86, x64, or SPARC systems. This tool indicates whether the Oracle Solaris 10 OS supports the devices that are detected in your x86, x64, or SPARC system. If your devices are already shown on the Oracle Solaris OS Hardware Compatibility List (HCL), then you do not need to use this tool.

This page provides the following information about Oracle Device Detection Tool 2.3:

• Product Description
• System Prerequisites
• Using Oracle Device Detection Tool
• FAQ
• Help

When you invoke Oracle Device Detection Tool, it generates a report that shows whether a Oracle Solaris device driver exists for each device that the tool detects. This report also indicates whether the driver is built-in with the Oracle Solaris OS or whether a corresponding third-party driver exists. You can save the report in the HTML format.

Note: Oracle does not warrant the behavior of any third-party driver.

Oracle Device Detection Tool is updated periodically to include new drivers in the driver database that the tool uses. The current version has a driver database that contains information about the Oracle Solaris OS built-in drivers and the third-party drivers. If the tool detects that one of your devices does not have the supported drivers, rerun Oracle Device Detection Tool after the release of a newer version of the Oracle Solaris OS to determine whether there exist any latest drivers that support the device.

The current version of Oracle Device Detection Tool is designed to detect and run in the default language on your system. The GUI of the tool and the reports are generated in the corresponding language. The supported languages are English, Simplified Chinese, German, French, Japanese, Korean, Italian, Traditional Chinese, Russian, Portuguese, and Spanish.

Oracle Device Detection Tool 2.3 enables you to submit system information to Oracle. The submissions from Oracle Solaris 10 OS are sent to HCL. The submissions from other OS are sent to Oracle for data mining.

Click the following link if you want to install the Oracle Solaris OS.

• Get Oracle Solaris 10 OS

Oracle Device Detection Tool supports the following operating systems:

• Oracle Solaris 10 release on x86, x64, or SPARC systems
• Microsoft Windows on x86 or x64 systems
  • Windows Vista
  • Windows XP
  • Windows Server 2003
  • Windows 2000
  • Windows Server 2008
  • Windows 7
• Linux version 2.6 kernel on x86 or x86_64 systems
• Mac OS X on x86 or x86_64 systems
• FreeBSD 6 and 7 on x86 or x86_64 systems

Note: Oracle Device Detection Tool supports both 32-bit and 64-bit systems for Oracle Solaris, Linux, Windows, Mac, and FreeBSD OS on x86 or x64 platforms.

To run Oracle Device Detection Tool, your system must have installed Java 2 Platform Standard Edition (J2SE) software and at least Java Runtime Environment (JRE) version 1.5. The JRE enables you to run Java applications.

Click here JRE Free Download – to install JRE.

Install the J2SE software from Java Downloads.

For Mac OS X users, download at least JRE version 1.5 from the web site www.apple.com/support/downloads/

FreeBSD OS users need to install Java 2 Platform and at least Diablo Java Runtime Environment (JRE) version 1.5, downloaded from www.freebsdfoundation.org/downloads/java.shtml.

Note: Oracle does not warrant the behavior of any third-party JVM.

Invoking Oracle Device Detection Tool

To start Oracle Device Detection Tool 2.3, ensure that you have met the System Prerequisites listed above. Click the link below to invoke Oracle Device Detection Tool 2.3:

Start Oracle Device Detection Tool 2.3

Note:The submission process in ODDT 2.3 has now been updated to one of the following methods:

1. Submit the system information manually at http://www.oracle.com/webfolder/technetwork/hcl/submittal/submit.html
2. Save the report and email it as an attachment to device-detect-feedback_ww_grp@oracle.com

The Oracle Device Detection Tool 2.3 download window is displayed. Click Accept to agree with the license agreement.

Note: Oracle Device Detection Tool is a Java Web Start application that runs automatically as soon as you click Accept. You do not need to install the Oracle Device Detection Tool on your system.

After the tool is invoked, the main window is displayed.

The main window of Oracle Device Detection Tool displays the driver information for the latest releases of the Oracle Solaris 10 OS. Select the OS for which you want to know whether the Oracle Solaris device drivers exist from the Target Operating System drop-down list of the main window.

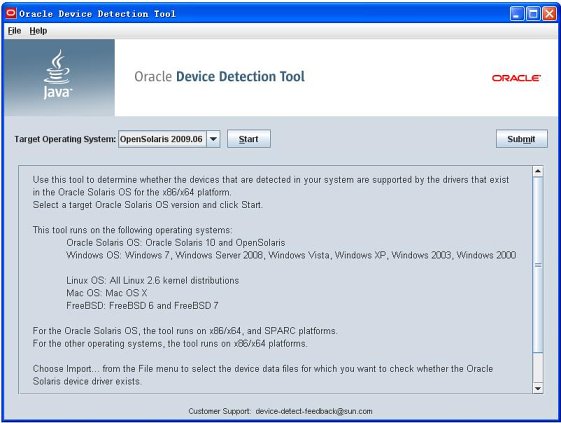

The example below shows the Oracle Device Detection Tool 2.3 main window.

Detecting Native System

To proceed with detecting your native system, click the Start button. Oracle Device Detection Tool searches for the devices on your system and compares the detected devices with a database of devices that are supported in the target Oracle Solaris OS. Oracle Device Detection Tool detects the PCI controllers automatically on all the systems. The Oracle Solaris OS driver availability report for your native system is generated.

Note: The root log in is necessary for detecting the PCI controllers automatically on FreeBSD and SPARC Solaris systems.

Importing Device Data Files

Apart from testing the current system on which Oracle Device Detection Tool is invoked, you can also test the device data files that are generated from the external systems. To test the external device data files, print the PCI configuration of the external systems to a text file by using the following commands:

• prtconf -pv on Solaris OS.
• lspci -vv -n on Linux OS.
• reg query hklm\system\currentcontrolset\enum\pci /s on Windows OS.

To import external device data file, perform the following steps:

1. Gather the system information using one of the commands listed in the above section, to create a text file. For example:

       c:\> reg query hklm\system\currentcontrolset\enum\pci /s > register-1.txt

   The PCI controller information is stored in a plain text file.

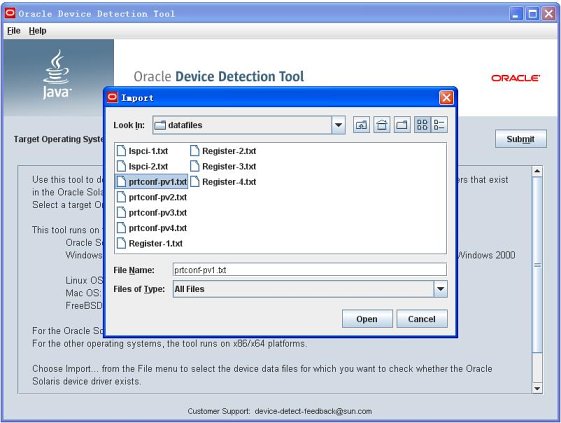

2. Select Import from the File menu of the main window. A file chooser dialog box is displayed.

3. Select one or more device data files for which you want to check whether the Oracle Solaris device driver exists from the file chooser and click open.


4. Click Start. If you select multiple files, you are prompted to type the directory path where the generated HTML files are be stored.

The tool scans the imported device data files.

After the reports are generated for the imported device data files, select either one of the following options:

• Select the Check compatibility with previously-imported files radio button to re-scan the imported device data files either for the specified Oracle Solaris OS release or for another target OS. Click Run Again or Start.
• Select the Check compatibility with the system radio button to scan your native system for the specified Oracle Solaris OS release or for another target OS. Click Start.

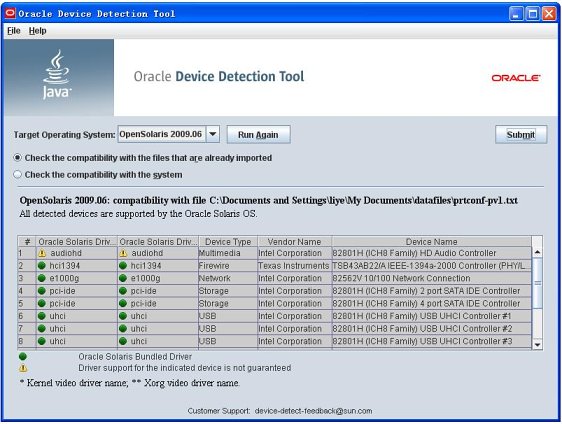

Overview of the Report

Oracle Device Detection Tool generates a tabular report of the existing Oracle Solaris device drivers for your system. The table contains a row for each device that is detected. If you have selected multiple device data files, the reports are generated for each device data file individually one after the other.

Results are displayed for both 32-bit and 64-bit versions of the Oracle Solaris OS. If you are working on the SPARC Solaris platform, the device driver table displays the driver status information only for the 64-bit versions since the SPARC platform exists only as the 64-bit versions.

The report window has colored indicators for which the explanation is as given below:

•  (Solaris Bundled Driver) — The target version of Oracle Solaris OS has the driver bundled.
•  (Third Party Driver) — The target version of Oracle Solaris OS does not have a bundled driver but a third party driver is available. Visit the link provided on the page to get more information on the third party drivers.
• (No Solaris Driver) — The target version of Oracle Solaris OS does not have a bundled driver and there is not a known third party driver.
•  (No Dedicated Xorg Driver supporting Graphic Interface) — Only kernel video driver is available for the video device and there is no Xorg video driver available to support Oracle Solaris graphic interface.

A tool tip appears when you roll over the mouse on each PCI device that is displayed in the report table. This tool tip provides device data information such as vendor ID, device ID, class code, subsystem vendor ID, subsystem ID, and the revision ID of the respective PCI device.

Oracle Device Detection Tool detects both the kernel video driver and the Xorg video driver for each video device. Not all video devices have both of the two types of video drivers. Some video devices have only the kernel driver. For example, the ATI RV280[Radeon 9200 PRO] video device has only a kernel video driver named vgatext.

In the table, if the first two fields of a video device displays two names, then Oracle Device Detection Tool has found a dedicated kernel and Xorg video driver for the device. For example, the S3 Unichrome Pro VGA Adapter has a kernel video driver named vgatext and an Xorg video driver named via.

For a video device that does not have a dedicated Xorg driver, you can try to attach the vesa driver on the device. The vesa driver is a generic Xorg video driver. For more information, see the vesa(7D) man page.

Note -  also means that a driver can be associated with the corresponding device, but can not be guaranteed for the device to work properly. In such a scenario, the message displayed after the yellow indicator will be 'Driver support for indicated device not guaranteed'.

Saving the Report

You can also save the report in an HTML format by performing the following steps:

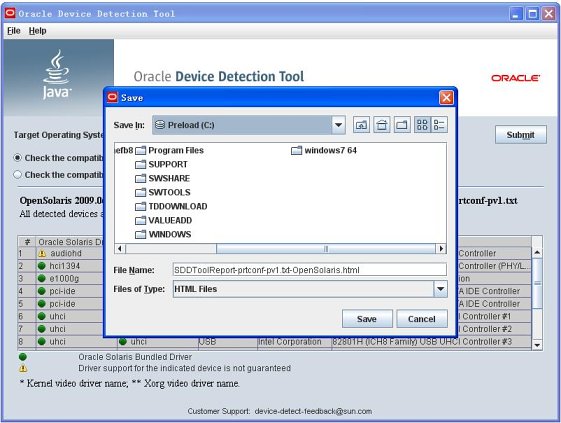

1. Select Save from the File menu of the main window. A dialogue box appears that prompts you for the path where you want to save the HTML report.
2. Type the path to the report directory to save the HTML report.
3. Click Save.

Note - If a single device data file is imported, the report will be shown in a tabular format. Only when multiple device data files are imported, the reports are saved as HTML files in the specified directory.

Analyzing the Logs

Oracle Device Detection Tool generates log files for troubleshooting purpose. Whenever the tool fails to function normally, the error details are included in the log files. You need to enable logs to create the log files. By default, logging is disabled.

You can enable Logging by performing the following steps:

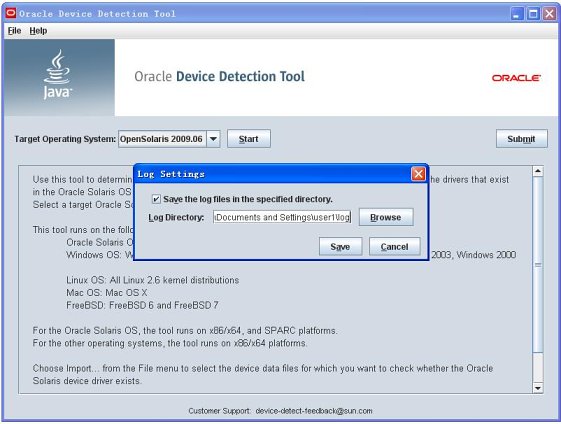

1. Select Log Settings from the File menu. The Log Settings pop-up window is displayed.
2. Enable Save log files in specified directory check box.
3. Type the directory name in the Log Directory text box.
4. Click Save.
5. Click the Start button to scan the native system or imported device data files. The logs are generated.

In the log directory, Oracle Device Detection Tool creates a file with name of the format: running-MMDDhhmmXX.log.

Other Information Collected

Apart from the system information you have provided, other system information is automatically collected and sent.
This additional system information includes:

1. BIOS information
2. Manufacturer information
3. Motherboard information
4. Processor information
5. Memory information
6. PCI device data information
7. Attached driver name for each detected PCI device

The following example provides a summary of information detected and sent along with the report:

Configuration Summary:

System Type: Desktop System
Manufacturer Name: Dell Inc.
Model: Dell DXC061
OS Bit 64: false
OS Version: Solaris 10 8/07
CPU Type: Intel(R) Core(TM)2 CPU 6300 @ 1.86GHz
CPU Number: 1
Patches Tested: No add-in patches
BIOS Maker and Version: Dell Inc.; Version: 2.2.1; Release Date: 03/23/2007; BIOS Revision: 2.2
Non-Standard BIOS Settings:
Board Revision Level:
General Notes:

System Information
Manufacturer: Dell Inc.
Product: Dell DXC061

BIOS Information
Vendor: Dell Inc.
Version: 2.2.1
Release Date: 03/23/2007
BIOS Revision: 2.2
Firmware Revision:

MotherBoard Information
Product: 0WG860
Manufacturer: Dell Inc.
Version:
On-board Device: [Video,Disabled]Intel Graphics Media Accelerator 950

CPU Information
Number of physical processors: 1
Number of virtual processors configured: 2
Number of virtual processors online: 2
Processor Name: Intel(R) Core(TM)2 CPU 6300 @ 1.86GHz
Processor Identifiers(Family, Model, Stepping): 0x6,0xf,0x2
Virtual Machine Extensions Support: Yes
Number of cores: 2
Number of threads: 2
Processor Socket Information
Processor Socket 0
Processor Socket Type: Microprocessor
Processor Type: Central Processor
Processor Manufacturer: Intel
Current Voltage: 1.8V
External Clock: 1066MHZ
Max Speed: 5200MHZ
Current Speed: 1866MHZ

Memory Information
Memory Subsystem 0
Array Used Function: System memory
Memory Error Correction Supported: Single-bit ECC
Maximum Array Capacity: 4096M
Number of Memory Devices: 4
Memory Device 0
Memory Device Locator: DIMM_1
Total Width: 64
Data Width: 64
Installed Size: 1024M
Memory Device Type: DDR
Speed: 667MHZ
Memory Device 1
Memory Device Locator: DIMM_2
Total Width: 64
Data Width: 64
Installed Size: 1024M
Memory Device Type: DDR
Speed: 667MHZ
Memory Device 2
[Not Installed]
Memory Device 3
[Not Installed]

PCI Controllers Information:
PCI Controller 0:
Vendor ID: 1002
Device ID: 7187
Class Code: 00030000
Sub VID: 1028
Sub DID: 0402
Revision ID: 00
Attached Driver Name: vgatext

PCI Controller 1:
Vendor ID: 8086
Device ID: 104c
Class Code: 00020000
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: e1000g

PCI Controller 2:
Vendor ID: 8086
Device ID: 2834
Class Code: 000c0300
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: uhci

PCI Controller 3:
Vendor ID: 8086
Device ID: 2835
Class Code: 000c0300
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: uhci

PCI Controller 4:
Vendor ID: 8086
Device ID: 283a
Class Code: 000c0320
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: ehci

PCI Controller 5:
Vendor ID: 8086
Device ID: 284b
Class Code: 00040300
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: audiohd

PCI Controller 6:
Vendor ID: 8086
Device ID: 2830
Class Code: 000c0300
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: uhci

PCI Controller 7:
Vendor ID: 8086
Device ID: 2831
Class Code: 000c0300
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: uhci

PCI Controller 8:
Vendor ID: 8086
Device ID: 2832
Class Code: 000c0300
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: uhci

PCI Controller 9:
Vendor ID: 8086
Device ID: 2836
Class Code: 000c0320
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: ehci

PCI Controller 10:
Vendor ID: 104c
Device ID: 8023
Class Code: 000c0010
Sub VID: 1028
Sub DID: 01dc
Revision ID: 00
Attached Driver Name: hci1394

PCI Controller 11:
Vendor ID: 8086
Device ID: 2820
Class Code: 0001018f
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: pci-ide

PCI Controller 12:
Vendor ID: 8086
Device ID: 2825
Class Code: 00010185
Sub VID: 1028
Sub DID: 01dc
Revision ID: 02
Attached Driver Name: pci-ide

As you can infer, some sections are repeated signifying the number of hardware resources in the system. For instance, there can be more than one processor in the system.


Note - While Oracle Device Detection Tool tries to collect the above mentioned information, it may not be possible to collect complete information about the system on all platforms.

1. Does Oracle Device Detection Tool modify any configuration or data on the system?
2. How do I identify the JRE version installed?
3. What should I do if the system does not meet system prerequisites?
4. Does Oracle Device Detection Tool have a minimum resolution requirement?
5. When I click Start Oracle Device Detection Tool 2.3 link on the web page, a jnlp file is downloaded, instead of the tool getting invoked. Can I still invoke the tool by using this jnlp file?
6. Oracle Device Detection Tool does not invoke on my system.
7. Why is the Start button being disabled in the Oracle Device Detection Tool window when invoked in my system?
8. How should I run the registry query command on the Windows OS? Where is the register.txt file saved?
9. What does Note-1 indicate in the driver report?
10. I installed a third-party driver for my device and it is functioning properly. Why is the status of this device No Solaris Driver in the driver report?
11. The status of the device in the driver report is No Solaris Driver. Can this device still work on the Oracle Solaris 10 OS?
12. Where can I get more information about third-party drivers?
13. Is Oracle Device Detection Tool scheduled to work on systems other than x86 or x64 systems such as SPARC, PowerPC, or Macintosh in the future?
14. Unable to find the Submit button while running Oracle Device Detection Tool 2.3 on a system that has FreeBSD OS versions 6.0 and 6.1 with the Diablo JRE 1.6 software installed.
15. Why do characters displayed in the Oracle Device Detection Tool 2.3 GUI appear garbled whenever Oracle Device Detection Tool is started by selecting Simplified Chinese as the default language?
16. Unable to switch focus among the GUI components such as buttons and check boxes by using hot keys or the Tab key.
17. Why is system information such as Manufacturer, Model, CPU type, CPU number, architecture, and BIOS/Firmware maker not detected automatically on the Windows OS?

1. Does Oracle Device Detection Tool modify any configuration or data on the system?

   Oracle Device Detection Tool does not modify any configuration or data on your system.

2. How do I identify the JRE version installed?

   To verify that at least JRE version 1.5 installed on your system, use the -version option with the java command, as shown in the following example:

   % java -version
   java version "1.5.2_13"
   Java(TM) 2 Runtime Environment, Standard Edition (build 1.5.2_13-b06)
   Java HotSpot(TM) Client VM (build 1.5.2_13-b06, mixed mode)

3. What should I do if the system does not meet system prerequisites?

   If your system does not meet the system prerequisites for the Oracle Device Detection Tool 2.3, collect the device data information of your system and send it to device-detect-feedback_ww_grp@oracle.com. Alternately, you can also compare the device data information of your system with the latest Solaris for x86: PCI Device Support list.

   • For Oracle Solaris systems, prtconf -pv
   • For Linux systems, lspci -vv -n
   • For Windows systems, reg query hklm\system\currentcontrolset\enum\pci /s

   If these commands do not work, check the OS documentation to know the commands for collecting device data. For each device on your system, send the device ID, vendor ID, class code, subsystem vendor ID, and subsystem ID to device-detect-feedback_ww_grp@oracle.com.

4. Does Oracle Device Detection Tool have a minimum resolution requirement?

   A resolution higher than 800x600 is ideal to run Oracle Device Detection Tool. However, this tool can run under any resolution.

5. When I click Start Oracle Device Detection Tool 2.3 link on the web page, a jnlp file is downloaded, instead of the tool getting invoked. Can I still invoke the tool by using this jnlp file?

   Ensure that you have at least JRE version 1.5 installed on your system. See system prerequisites. If you have at least JRE version 1.5 installed, you can manually invoke Oracle Device Detection Tool with the jnlp file that is downloaded in your system.

   If you are working on the Windows OS, perform the following steps to invoke Oracle Device Detection Tool manually:

   1. Open the Start menu on the desktop and click Run.
      The Run window is displayed.

   2. Type the cmd command in the text field.
      A terminal window is displayed.

   3. In the terminal window, type the cd command and navigate to the directory where the jnlp file is located.
   4. Type javaws jnlp_filename in the same terminal under the respective directory.

   Perform the following steps if you are on the Oracle Solaris OS or Linux OS to invoke Oracle Device Detection Tool manually:

   1. In a terminal window, type the cd command to navigate to the directory where the jnlp file is located.
   2. Type javaws jnlp_filename in the same terminal under the respective directory.

   Note: Ensure that the Internet connectivity is functioning during this period.

6. Oracle Device Detection Tool does not invoke on my system.

   If Oracle Device Detection Tool does not invoke, check the following in your system.

   • Ensure that Firewall is not blocking Oracle Device Detection Tool.
   • Ensure that you are using at least JRE version 1.5 on your system.

   If the above described conditions are proper, you need to make some manual changes to the settings in your system's Java Control Panel. Perform the following steps for setting the Java Control Panel.

   1. Open the Java Application Control Panel Reviewer window. The method of invoking this window is different for various OS as explained in the following section:
      • For Oracle Solaris OS or Linux OS, open a terminal window and type ControlPanel.
      • For Windows OS, click the Java icon in Control Panel.
   2. On the General tab of Java Control Panel, click the Network Settings button.
      The Network Settings window is displayed.

   3. Select the Use proxy server radio button. Type the address and the port information in the given fields. If you do not need the proxy server, select the Direct Connection radio button.
   4. Click OK.
   5. Close the Java Application Control Panel Reviewer window.
   6. Type javaws jnlp_filename in the terminal after navigating into the directory where the jnlp file is downloaded.
   Oracle Device Detection Tool invokes.

7. Why is the Start button being disabled in the Oracle Device Detection Tool window when invoked in my system?

   If the Start button is disabled, you might be running Oracle Device Detection Tool on a system that does not meet System Prerequisites. If your system does not meet system prerequisites, collect the device information yourself and send it to Oracle as described in FAQ 3.

8. How should I run the registry query command on the Windows OS? Where is the register.txt file saved?

   To run the registry query command on a Windows system, perform the following steps:

   1. Open the Start menu in the desktop and click Run.
   2. In the Run window, type the cmd command in the field provided.
      A terminal window is displayed.

   3. In the terminal window, type the following command:

      reg query hklm\system\currentcontrolset\enum\pci /s > register.txt

   The register.txt file is saved in the current directory in which you are working.

9. What does Note-1 indicate in the driver report?

   Note-1 indicates that the device has a third-party driver and the respective download link of the third-party driver is mentioned below the report table and is labeled Note-1. For example, if more than one device on your system has a third-party driver, the first device is labeled Note-1, the second is labeled Note-2.

10. I installed a third-party driver for my device and it is functioning properly. Why is the status of this device No Solaris Driver in the driver report?

    This device might have drivers for the other operating systems, but not for the latest releases of the Oracle Solaris 10 OS. Oracle Device Detection Tool 2.3 reports whether the latest Oracle Solaris drivers exist for your detected devices. The detected drivers for your devices can exist as a part of the latest releases of Oracle Solaris 10 OS. The drivers might also exist in the third-party web sites.

    If you have a driver for a device that works with the latest releases of Oracle Solaris 10 OS, send an email to device-detect-feedback_ww_grp@oracle.com.

11. The status of the device in the driver report is No Solaris Driver. Can this device still work on the Oracle Solaris 10 OS?

    A device with the status No Oracle Solaris Driver in the driver report might work with the Oracle Solaris 10 OS if one of the following conditions is true:

    • A third-party driver exists for this device, but that third-party driver is not yet included in the Oracle Device Detection Tool database. Check this web page periodically to make sure that you are using the most current release of Oracle Device Detection Tool.
    • The device is not supported but might work with the driver that is included in the Oracle Device Detection Tool database. For example, the iprb driver is known to work on most Intel 100M network controllers, but only a few of these network controllers are listed as supported.

12. Where can I get more information about third-party drivers?

    The following sources provide more information about third-party drivers.

    • Oracle and Third-Party HCL Resources page on the HCL web site
    • Solaris Developer Center on the Oracle Technology Network (OTN)

    Note: Oracle does not warrant the behavior of any third-party driver.

13. Is Oracle Device Detection Tool scheduled to work on systems other than x86 or x64 systems such as SPARC, PowerPC, or Macintosh in the future?

    Currently, Oracle Device Detection Tool supports only the x86 and x64 systems. To see the hardware that is supported by the Solaris OS on SPARC platforms, see the Solaris 10 Hardware Platform Guide or the Solaris OS Hardware Compatibility Lists.

14. Unable to find the Submit button while running Oracle Device Detection Tool 2.3 on a system that has FreeBSD OS versions 6.0 and 6.1 with the Diablo JRE 1.6 software installed.

    The submission function is disabled when the tool is run with the Diablo JRE 1.6 software. To submit your system configuration to Oracle from a FreeBSD OS versions 6.0 or 6.1, you need to run Oracle Device Detection Tool with the Diablo JRE 1.5 software.

15. Why do characters displayed in the Oracle Device Detection Tool 2.3 GUI appear garbled whenever Oracle Device Detection Tool is started by selecting Simplified Chinese as the default language?

    Ensure that your system has installed the Simplified Chinese package successfully. If not, install the language package before invoking Oracle Device Detection Tool.

    If you are on Oracle Solaris OS, ensure that your language code is GB18030. Otherwise, log out of your system and log in again by selecting the Simplified Chinese GB18030 language, and rerun Oracle Device Detection Tool 2.3.

    If you are on Linux OS, perform the following steps:

    1. If there is fonts directory under /lib, make directory fallback under /lib/fonts/. Otherwise, make two level directory fonts/fallback under /lib
    2. Copy the simsun.ttf file to the fonts and the fallback directories.
    3. Reboot the system to rerun Oracle Device Detection Tool 2.3.

16. Unable to switch focus among the GUI components such as buttons and check boxes by using hot keys or the Tab key.

    Ensure that the window on which you want to switch focus among the components is focused. Click the window with your mouse or press Alt + Tab to focus on it. If the report table on the main window is focused, use Ctrl + Tab to defocus it.

17. Why is system information such as Manufacturer, Model, CPU type, CPU number, architecture, and BIOS/Firmware maker not detected automatically on the Windows OS?

    If you start Oracle Device Detection Tool on the Windows OS, Manufacturer, Model, CPU type, CPU number, architecture, and BIOS/Firmware maker might not be detected automatically. In such cases, type the Manufacturer, Model, CPU type, and BIOS/Firmware maker information manually. Type the information of CPU number and architecture in the General Notes field.
