Create Applications Using the Google Apps Connector

1Download and Unzip the Connector Installation Package

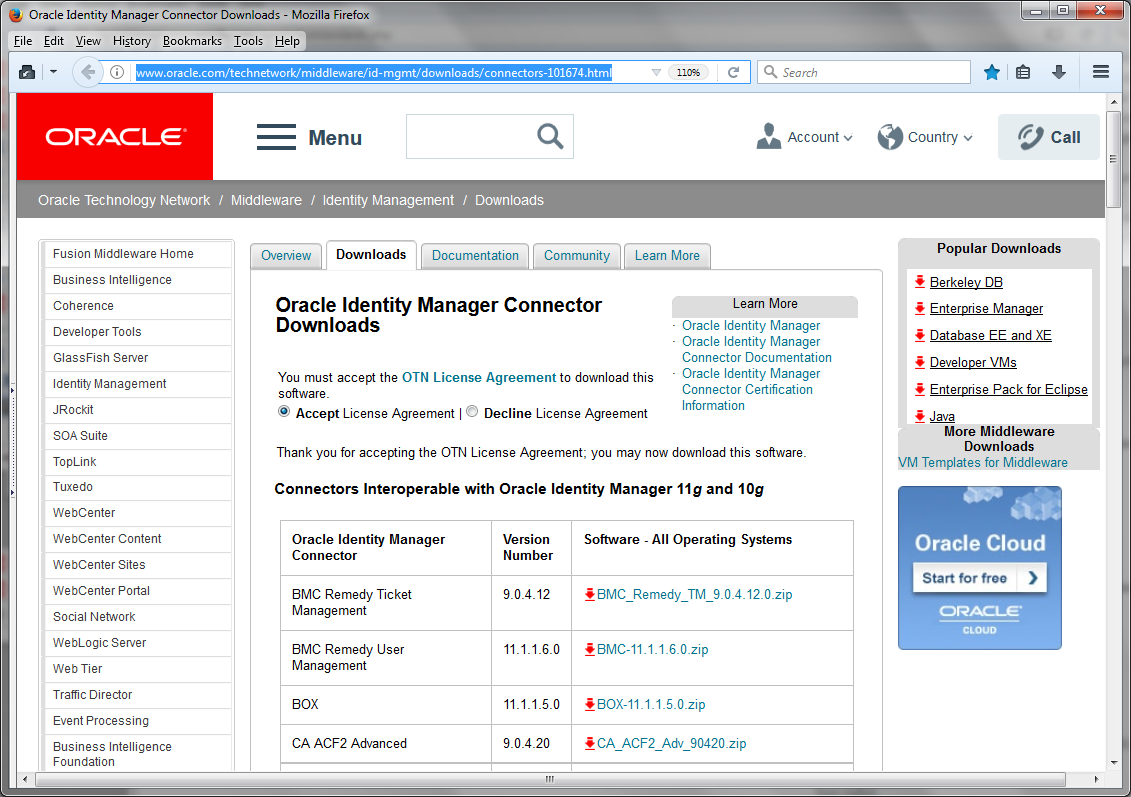

Navigate to the OTN website at http://www.oracle.com/technetwork/middleware/id-mgmt/ downloads/connectors-101674.html.

Click OTN License Agreement, and read and select the Accept License Agreement option.

Download and save the installation package to any directory on the computer hosting Oracle Identity Governance.

Extract the contents of the installation package to any directory on the computer hosting Oracle Identity Governance.

This creates a directory named googleapps-RELEASE_NUMBER. For example, googleapps-12.2.1.3.0.

Copy the googleapps-RELEASE_NUMBER directory to the OIG_HOME/server/ConnectorDefaultDirectory directory.

2Download and Copy Third-Party JAR Files

Download the following JAR files to a temporary location:

	 httpclient-4.5.2.jar
	 httpcore-4.4.6.jar
	 jackson-core-2.9.4.jar


Navigate to the Google Developers website at https://developers.google.com/.

Search for and download the ZIP for Admin Directory API directory_v1 Client Library for Java, and then extract the following libraries to the temporary location used earlier:

	 google-api-client-1.23.0.jar
	 google-api-services-admin-directory_v1-rev91-1.23.0
	 google-http-client-1.23.0.jar
	 google-http-client-jackson2-1.23.0.jar
	 google-oauth-client-1.23.0.jar


Similarly, search for and download the ZIP for Groups Settings API Client Library for Java, and then extract the google-api-services-groupssettings-v1-rev67-1.23.0.jar library to the temporary location used earlier.

Note:You can either use the specified JAR file versions mentioned in the preceding procedure or any latest, stable, and secure version.

On the computer hosting Oracle Identity Governance, create a directory named googleapps-RELEASE_NUMBER under the OIG_HOME/server/ConnectorDefaultDirectory/targetsystems-lib/ directory.

Copy all the third-party libraries (JAR files) listed earlier to the OIG_HOME/server/ConnectorDefaultDirectory/targetsystems-lib/googleapps-RELEASE_NUMBER directory.

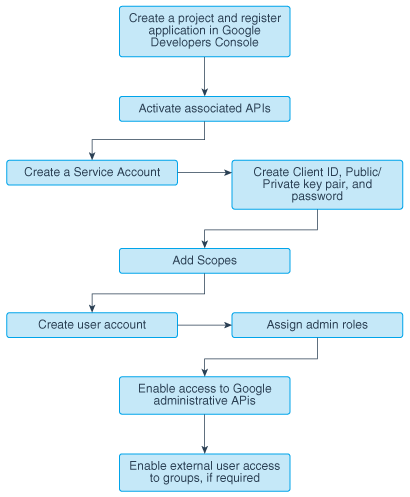

3Configure the Target System

Create a project and register your client application with the Google Apps Cloud platform in the Google Developers Console.

Activate the associated API services such as adding custom information, enable billing, and page monitoring services, for your client application. While activating the associated API services ensure that the statuses of the Admin SDK and Group Settings APIs are set to ON.

Create a service account and enable your client application to access the activated APIs. Additionally, create a Client ID, Public/Private key pair, and password for the earlier created service account. After the service account creation, note down the Client ID, Public/Private key pair and password information.

Add scopes and authorize the registered client application.

Create a user account on the target system. Post account creation, assign the Groups Admin and User Management Admin admin roles to the newly created account.

Enable access to various Google administrative APIs available in the Google Apps Business Domain.

Enable external user access to groups in Google Apps. Perform this step only if you want external users to access groups in Google Apps.

4Select the Application Type

Log in to Identity Self Service either by using the System Administration account or an account with the ApplicationInstanceAdministrator admin role.

Click the Manage tab and then click the Applications box to open the Applications page.

Click Create on the toolbar, and select the type of application to create - Target.

5Enter Basic Information

On the Basic Information page, select Connector Package.

From the Select Bundle list, select the relevant connector package bundle. For example, GoogleApps Connector 12.2.1.3.0.

Enter the Application Name, Display Name, and a Description.

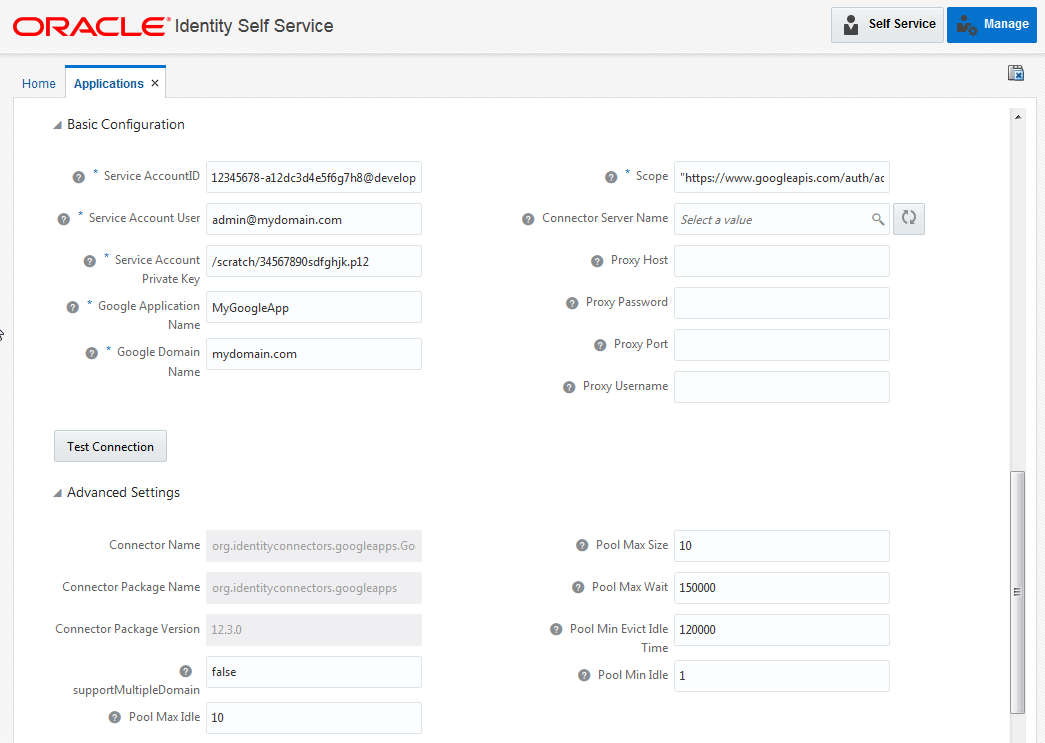

In the Basic Configuration section, enter the values to include connectivity-related information.

(Optional) In the Advanced Settings section, update configuration entries related to connector operations.

Click Next.

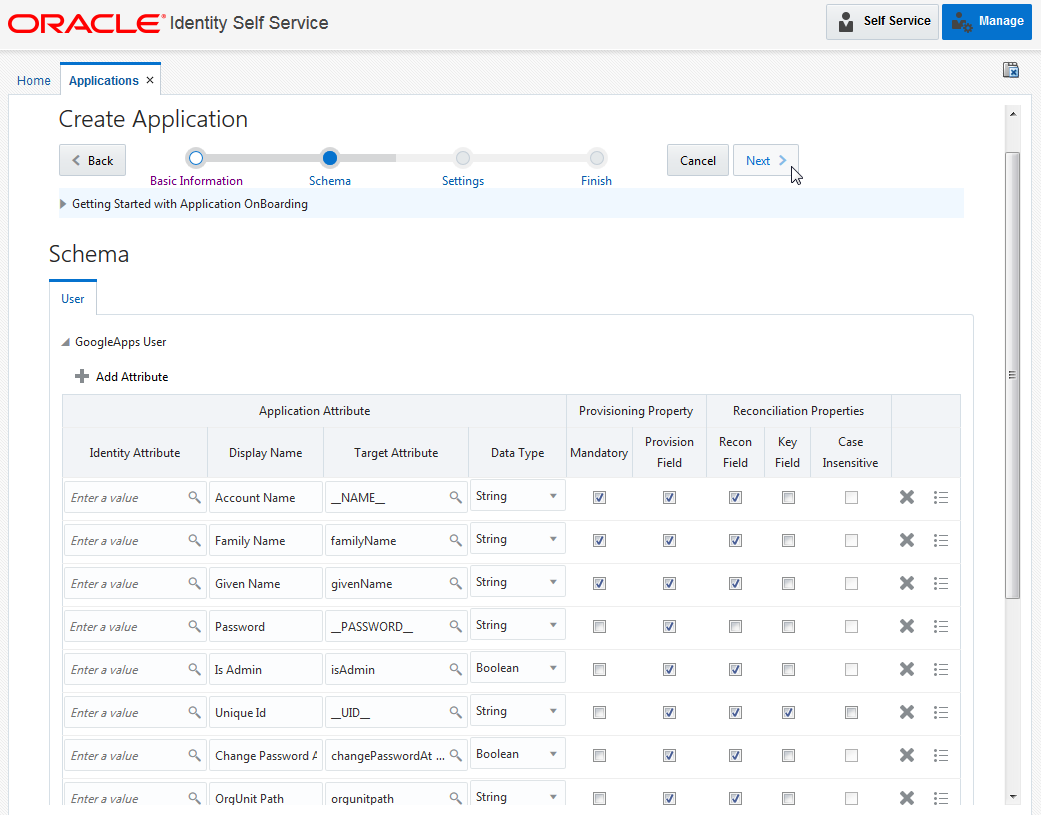

6Review the Default Schema Mapping

On the Schema page, review the default schema mapping between Oracle Identity Governance and your target system.

To add attributes to the default schema, click Add Attribute and then enter values for the Identity Attribute, Display Name, Target Attributes, and Data Type fields and the Mandatory, Provision Field, Recon Field, Key Field, and Case Insensitive properties.

To delete attributes from the default schema, click the Delete icon corresponding to the attribute.

Click Next.

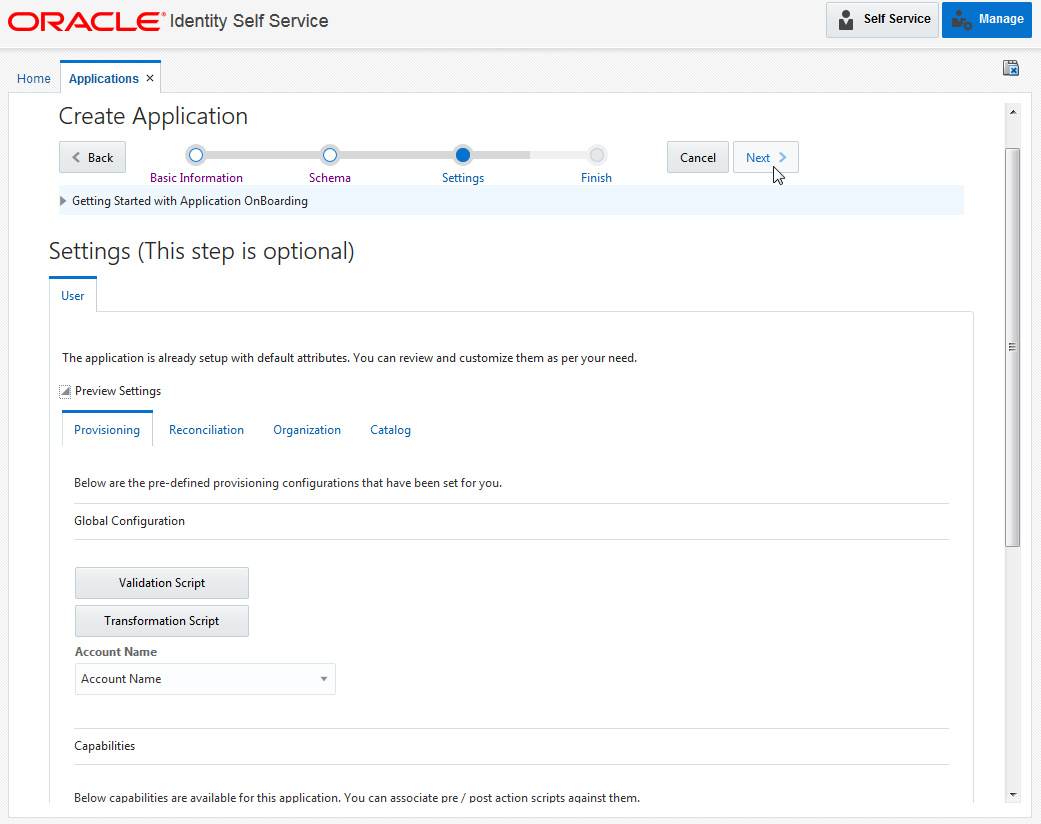

7Review and Configure the Application Settings

On the Settings page, expand Preview Settings to review the settings for your application.

On the Provisioning tab, review any predefined provisioning configurations such as Transformation, Validation, and Action scripts and edit them if required.

On the Reconciliation tab, review and edit (if required) the predefined identity correlation rules and situations and responses.

In addition, review the predefined reconciliation jobs and edit them if required.

On the Organization tab, review the default organizations to which the application must be published.

If required, click the Add or Delete icons to add or remove organizations.

On the Catalog tab, if required, configure the settings to make the application available in the request catalog.

Click Next.

8Review and Submit Application Details

On the Review Summary page, review the details of the application being created.

If you want to save use the same settings for onboarding multiple applications, click Save As Template to save all the settings as an application template.

Click Finish.

The application is onboarded and you can search for and view it on the Applications page.
