Configuring Oracle Enterprise Pack for Eclipse for Oracle Cloud

Overview

    Purpose

    This tutorial covers how to set up the Oracle Enterprise Pack for Eclipse (OEPE) integrated development environment (IDE) for use with Oracle Cloud.

    Time to Complete

    Approximately 30 minutes

    Introduction

    Oracle Cloud is a public, enterprise, platform-as-a-service (Paas) offering. Two services provided by Oracle Cloud are particularly interesting to Java applications developers: Oracle Java Cloud Service and Oracle Database Cloud Service. You can configure these services through a web interface, a command-line tool, or an IDE such as OEPE.

    Scenario

    In this tutorial, you configure OEPE with a local instance of Oracle WebLogic Server 11g (10.3.6) and with a remote instance of Oracle Cloud. Next, you deploy a simple Java Platform, Enterprise Edition (Java EE) application locally, and then you deploy the same application to Oracle Cloud.

    Prerequisites

    Before starting this tutorial, you should:

Adding WebLogic Server 11g to OEPE

    Oracle Java Cloud Service is powered by WebLogic Server 11g with some specific additions and exclusions (white-listed APIs and services). As an application developer, you may want to create and test applications locally before deploying the application to Oracle Java Cloud Service.

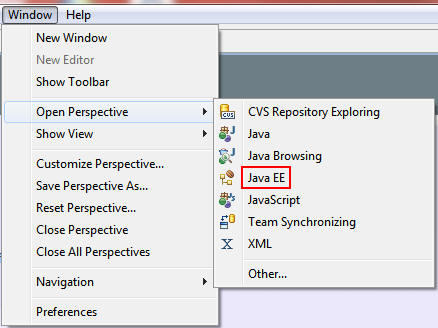

    In OEPE, select Window > Open Perspective > Java EE.

    On the Welcome tab, click the x to close the window and increase the visible space of the center edit panel.

    Click the Servers tab to open the Servers panel.

    In the Servers panel, click the link to open the New Server Wizard.

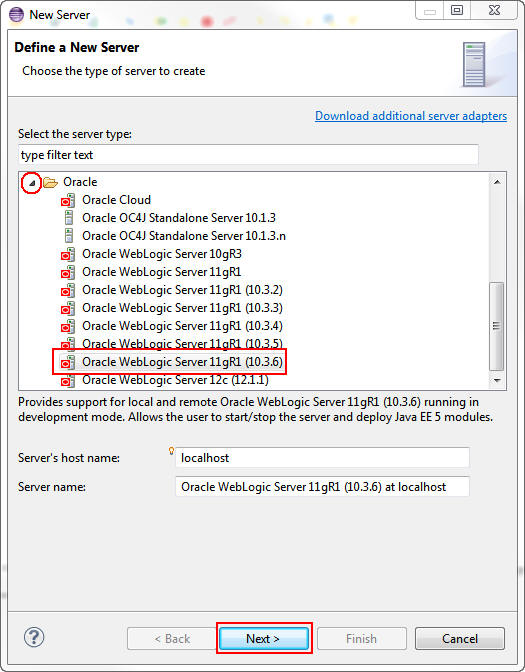

    On the “Choose the type of server to create” page, perform the following steps:

    a. Scroll down and expand Oracle.

    b. Select Oracle WebLogic Server 11gR1 (10.3.6).

    c. Click Next.

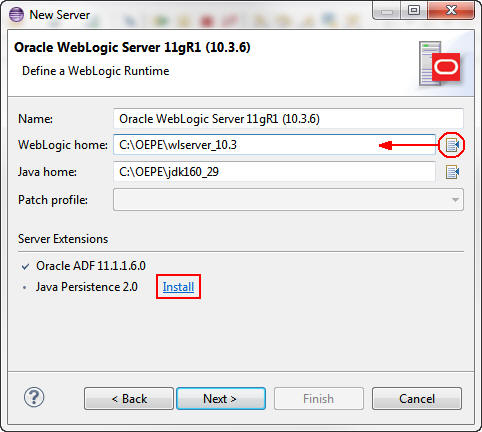

    On the Define a WebLogic Runtime page, perform the following steps:

    a. For WebLogic home, browse to the location of your WebLogic Server 11g installation. Look for the wlserver_10.3 directory below the installed OEPE. If you installed OEPE in C:\OEPE, the full path to the directory is C:\OEPE\wlserver_10.3.

    b. Click Install to install the Java Persistence 2.0 server extension.

    Note: The Java Development Kit is included in the OEPE bundle installation, and Oracle ADF11.1.1.6.0 is already installed.

    The Progress Information dialog box indicates the progress of the installation. When the installation is completed, the dialog box closes automatically.

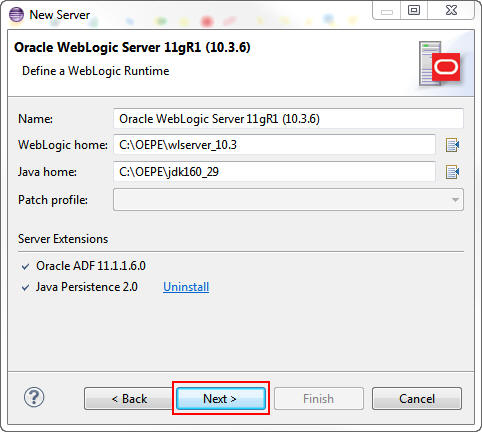

    On the Define a WebLogic Runtime page, click Next.

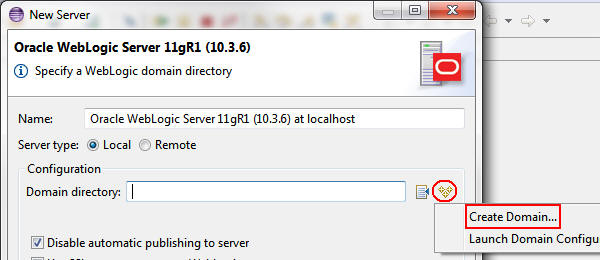

    On the “Specify a WebLogic domain directory” page, click the Create icon and select Create Domain.

    In the New WebLogic Domain dialog box, perform the following steps:

    a. Enter domain as the name.

    b. Make sure Oracle JRF is selected.

    c. Click Finish.

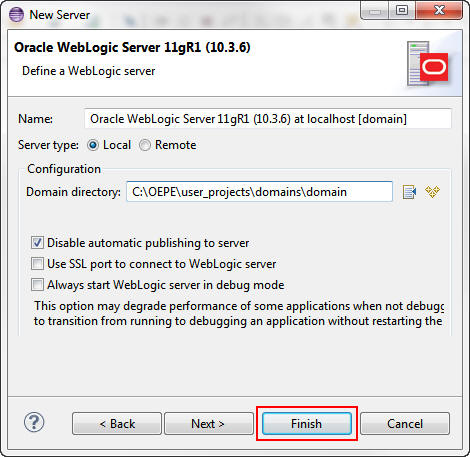

    On the “Define a WebLogic server” page, click Finish.

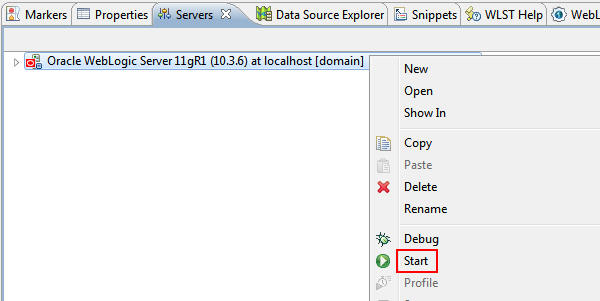

    In the Servers panel, right-click  the new server instance and select Start.

    The Console panel displays progress messages.

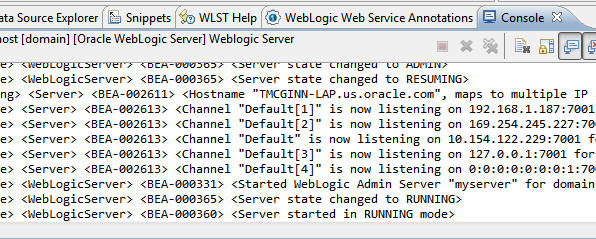

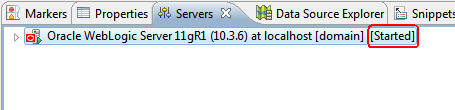

    When the server has completed startup, the WebLogic Server instance shows the status of Started in the Servers panel.

(Optional) Configuring OEPE to Use a Proxy

    This section is optional. If your machine is behind a firewall or inside a corporate network, you must configure OEPE to communicate with the Internet through a proxy.

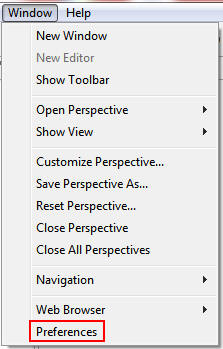

    Select Window > Preferences.

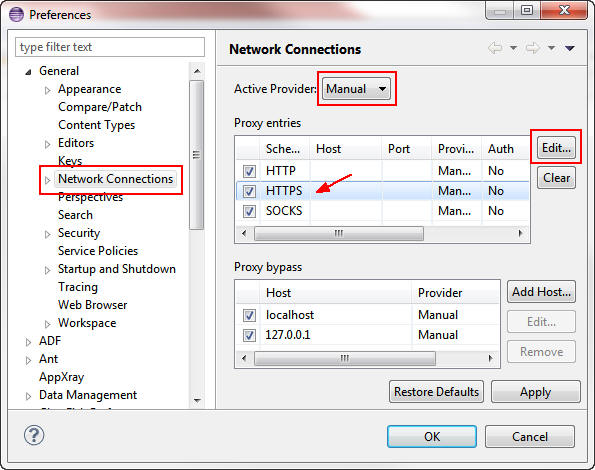

    In the Preferences dialog box, perform the following steps:

    a. Expand General.

    b. Select Network Connections.

    c. Select Manual as the active provider.

    d. Select HTTPS.

    e. Click Edit.

    In the Edit Proxy Entry dialog box, enter your proxy host and port number and click OK.

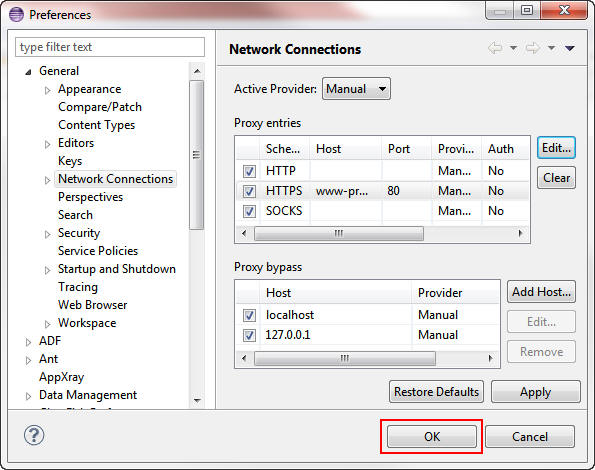

    In the Preferences dialog box, click OK.

Adding an Oracle Java Cloud Service Instance to OEPE

    In this section, you add your Oracle Java Cloud Service instance to OEPE.

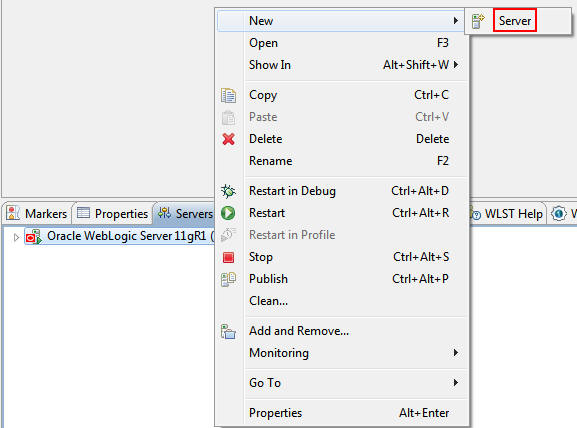

    Right-click in the Servers panel and select New > Server to open the New Server Wizard.

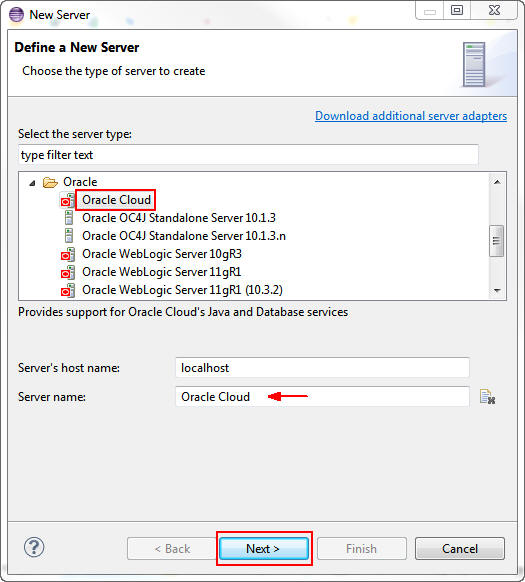

    On the “Choose the type of server to create” page, perform the following steps:

    a. Select Oracle Cloud.

    b. Enter Oracle Cloud as the server name.

    c. Click Next.

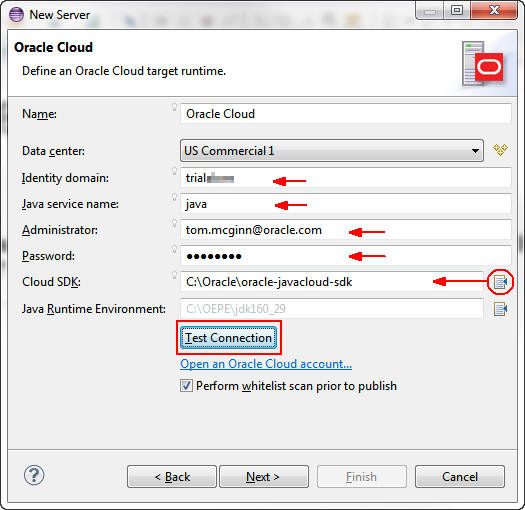

    On the "Define an Oracle Cloud target runtime" page, perform the following steps:

    a. Select the data center of your Oracle Java Cloud Service instance.

    b. Enter the identity domain name provided in your Oracle Cloud trial account.

    c. Enter java as the Java service name.

    d. Enter your Oracle Cloud administrator user name.

    e. Enter your Oracle Cloud administrator password.

    f. Browse to the location where you installed the SDK.

    g. Click Test Connection.

    If you entered the data correctly, the Connection Test dialog box indicates that the connection was successful.

    Click OK to close the Connection Test dialog box.

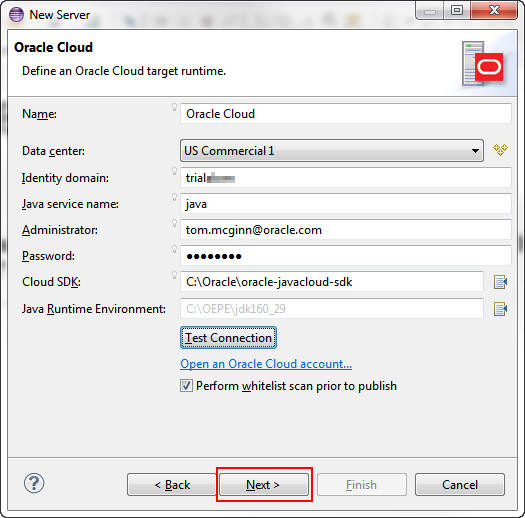

    Click Next.

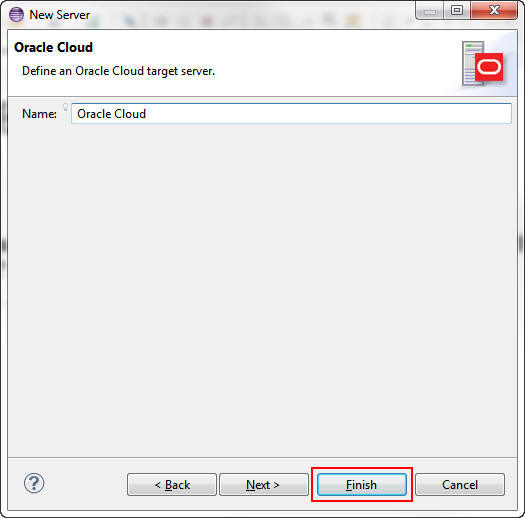

    On the "Define an Oracle Cloud target server" page, click Finish.

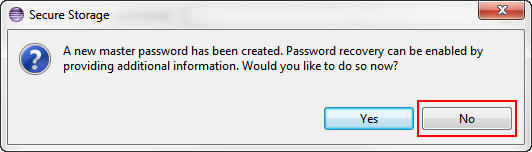

    In the Secure Storage dialog box, click No.

Deploying and Running the Sample Application Locally

    Select File > Import.

    In the Import dialog box, perform the following steps:

    a. Expand General.

    b. Select Existing Projects into Workspace.

    c. Click Next.

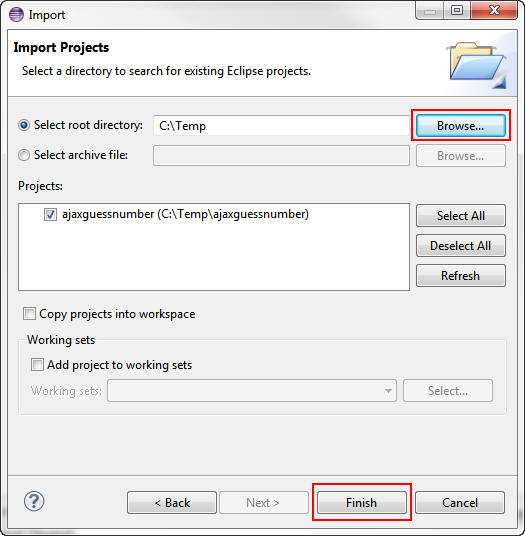

    On the “Select a directory to search for existing Eclipse projects” screen, perform the following steps:

    a. Browse to the directory where you unzipped the ajaxguessnumber.zip file.

    b. Select the ajaxguessnumber project. (If it is the only project in the directory, it is selected by default.)

    c. Click Finish.

    In the Project Explorer, right-click the ajaxguessnumber project folder and select Run As > Run On Server.

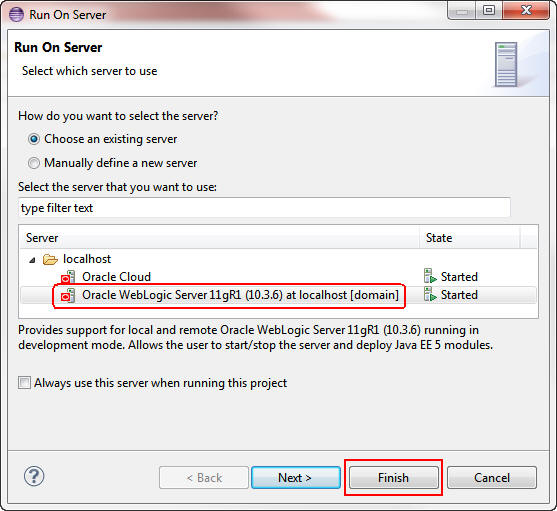

    In the Run On Server dialog box, select Oracle WebLogic Server 11gR1 and click Finish.

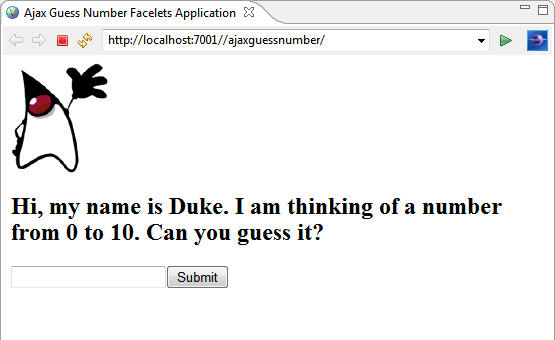

    The application opens in the browser built into OEPE.

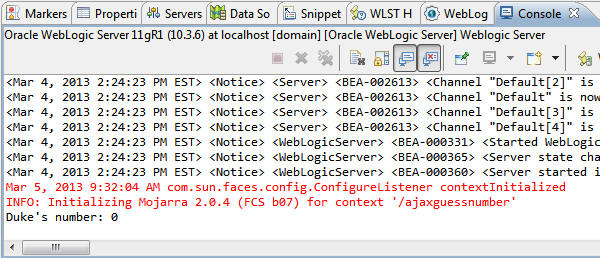

    Click the Console tab to see the output of the ajaxguessnumber project.

    Note: The number is randomly generated.

Deploying the Sample Application to Your Oracle Cloud Instance

    In this section, you deploy the ajaxguessnumber project to your Oracle Cloud instance.

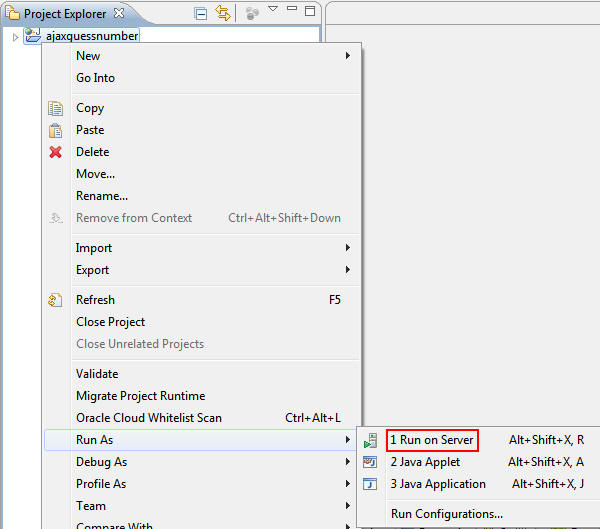

    In the Project Explorer, right-click the ajaxguessnumber project folder and select Run As > Run On Server.

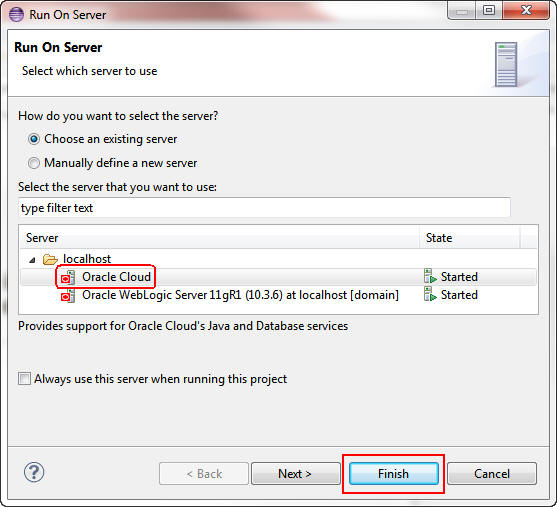

    In the Run On Server dialog box, select Oracle Cloud as the server and click Finish.

    The lower-left corner of the OEPE IDE indicates the progress of the deployment. The application opens in the default browser built into OEPE, but you must first sign in to your Oracle Cloud account.

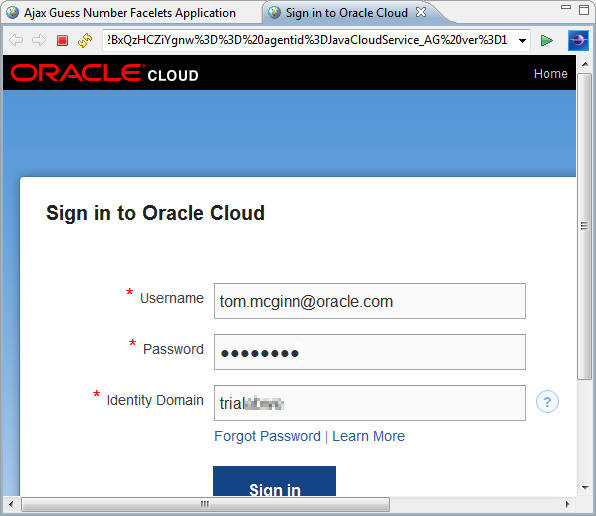

    Enter your user name, password, and identity domain and click Sign in.

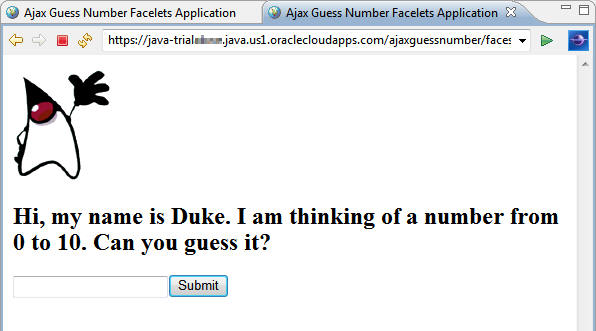

    The application opens in the same browser window.

Monitoring Your Oracle Java Cloud Service from OEPE

    Through OEPE, you can monitor your Oracle Java Cloud Service.

    In the Servers panel, right-click your Oracle Cloud server and select Java Cloud Service Jobs.

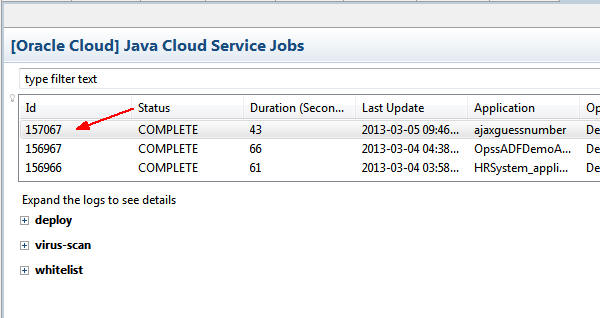

    Select a job to load the detailed logs for this job.

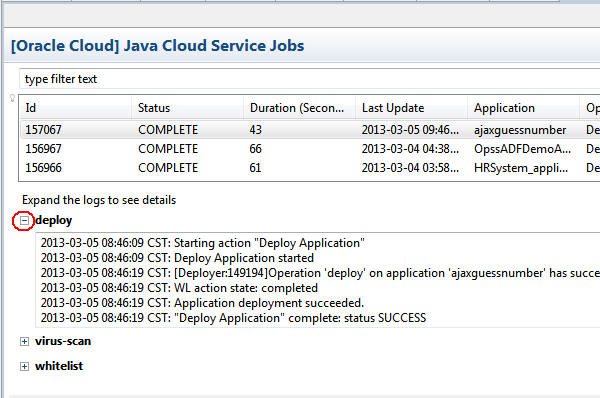

    Expand deploy to see the detailed results of this application deployment.

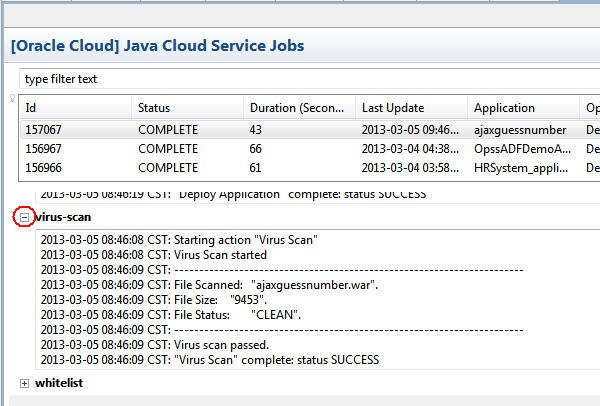

    Expand virus-scan to see the detailed results of the virus-scan test for this application.

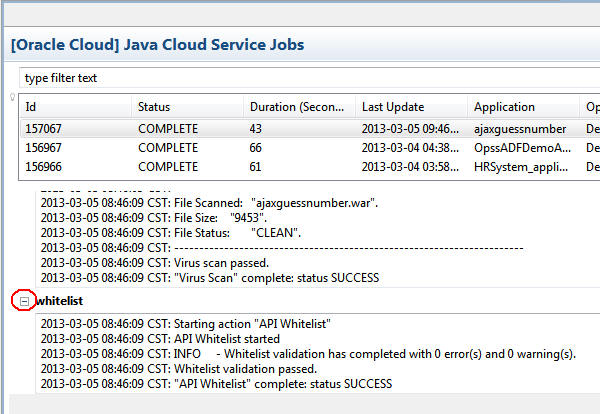

    Expand whitelist to see the detailed results of the white-list test for this application.

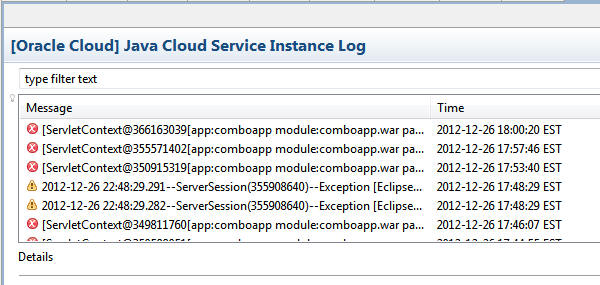

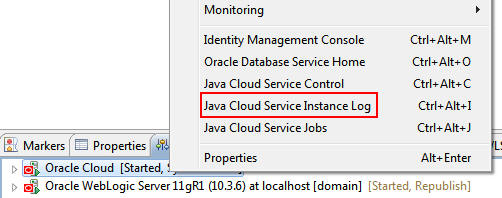

    In the Servers panel, right-click your Oracle Cloud Server and select Java Cloud Service Instance Log.

    All errors and warnings generated by the Oracle Java Cloud Service are displayed in the instance log. They are ordered by the event time stamp.

Summary

    In this tutorial, you learned how to:

    • Add a local instance of WebLogic Server 11g to OEPE
    • Configure OEPE to use a proxy host
    • Add your Oracle Java Cloud Service to OEPE
    • Deploy a sample application locally to your WebLogic Server instance and remotely to your Oracle Java Cloud Service
    • Use OEPE tools to access your Oracle Java Cloud Service job and instance logs
