Using Transactional Coherence in Enterprise Applications

Purpose

This tutorial covers using Coherence caches in the context of a transaction.

Time to Complete

Approximately 1 hour

Overview

Coherence provides a transaction framework. The framework itself is made up of a number of elements, including:

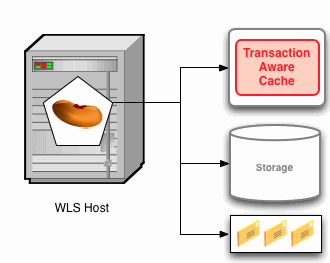

Scenario

Coherence supports transactions with EJB, JMS, and so on, as such it is only normal to combine any into a single transaction. In this OBE, you will follow the steps to create and deploy a simple web application which itself accesses a transaction-aware cache, as well as possibly one or more other transaction-aware resources.



Software and Hardware Requirements (Optional)

The following is a list of software required:

Prerequisites

Before starting this tutorial, you should:

.

Download and install WebLogic Server 10.3.4, including Coherence 3.6 and Eclipse with Oracle Enterprise Pack for Eclipse. You can download WebLogic Server packaged with Coherence 3.6 here.


There is a tutorial that discusses setting up a development environment for Oracle Coherence and Oracle WebLogic Server (and uses the Eclipse IDE). You should complete that tutorial before this one. (It covers the information needed to install Oracle Coherence and Oracle WebLogic Server as well as the setup of a WebLogic domain that you will need for this tutorial.) You can find it by following this link: Oracle Coherence and Oracle WebLogic Server: Setting Up an Eclipse Development Environment.

Although you can install the products in locations of your choice, the following generic labels refer to these locations in the tutorial instructions:

  • $MIDDLEWARE_HOME: The product installation location for Oracle WebLogic Server (The current installation documentation refers to this as BEA_HOME.)
  • $WORKSPACE: The location of the Eclipse workspace that you will create
  • $COHERENCE_HOME: The location of your Oracle Coherence installation
  • $DOMAIN_HOME:The location of the WebLogic Server domain that you will create

.

Refer to the following documentation:

Create a WebLogic Server Domain to House an Application

Applications require a place to execute. In the following steps, you will create a simple WebLogic domain which can be used from Eclipse to house applications.

.

Read the documentation on creating an Oracle WebLogic Server domain with the Domain Configuration Wizard.  Documentation on creating domains can be found here.



.

Execute the WebLogic Domain Configuration Wizard by selecting Start > All Programs > Oracle WebLogic > WebLogic Server 11gR11 > Tools > Configuration Wizard.

.

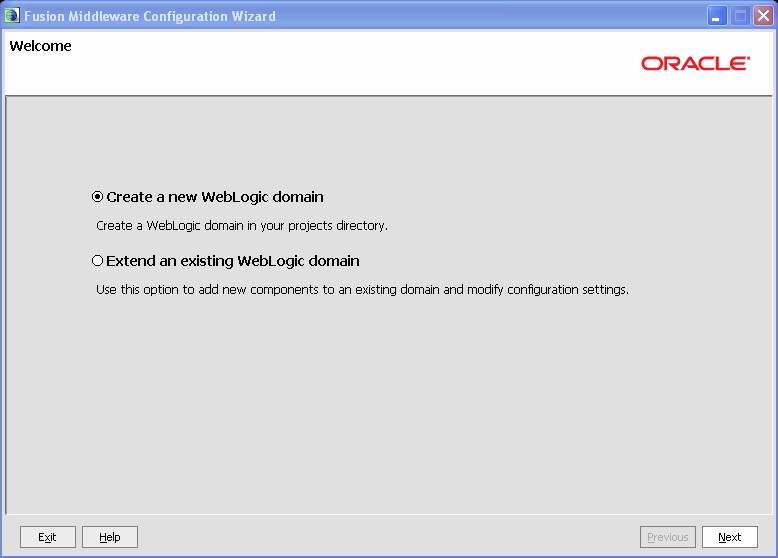

In the Welcome dialog box, select Create a new WebLogic domain and click Next.



.

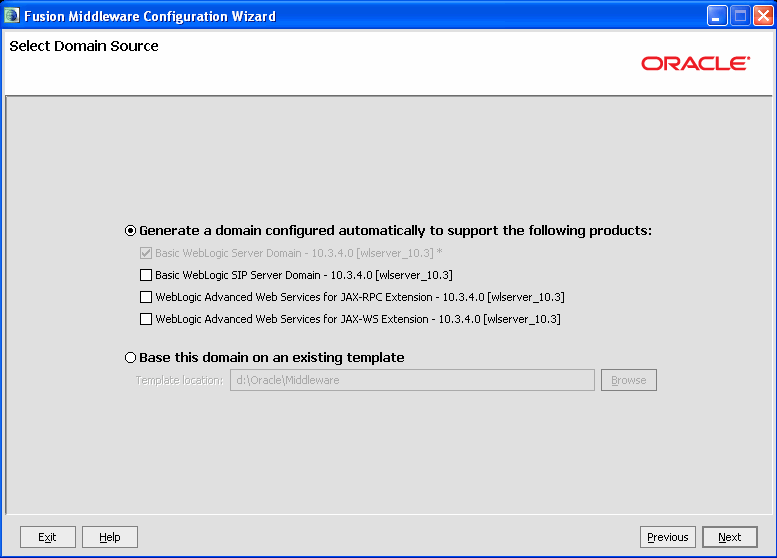

In the Select Domain Source dialog box, leave all options deselected and click Next.



.

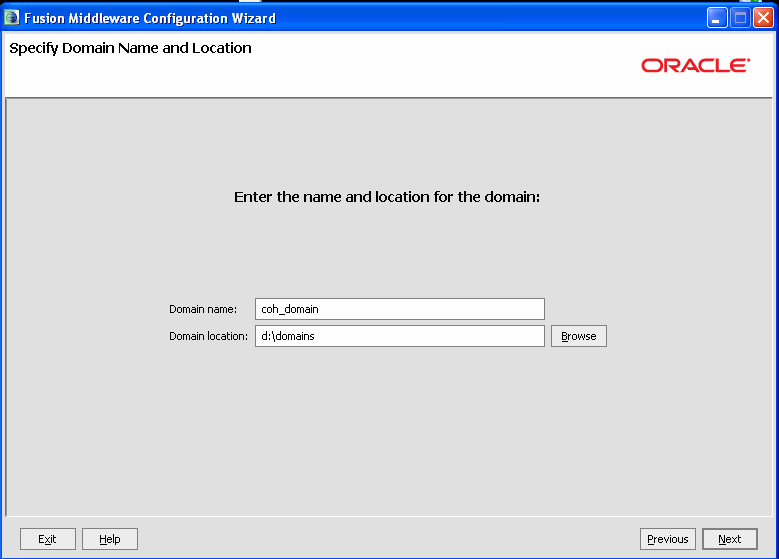

In the Specify Domain Name and Location dialog box, enter an appropriate name for the domain in the Domain name field. In the Domain location field, enter the path to a directory to house the domain,  and click Next. Note that for the purposes of this tutorial, the domain is named coh_domain and placed in d:\domains.



.

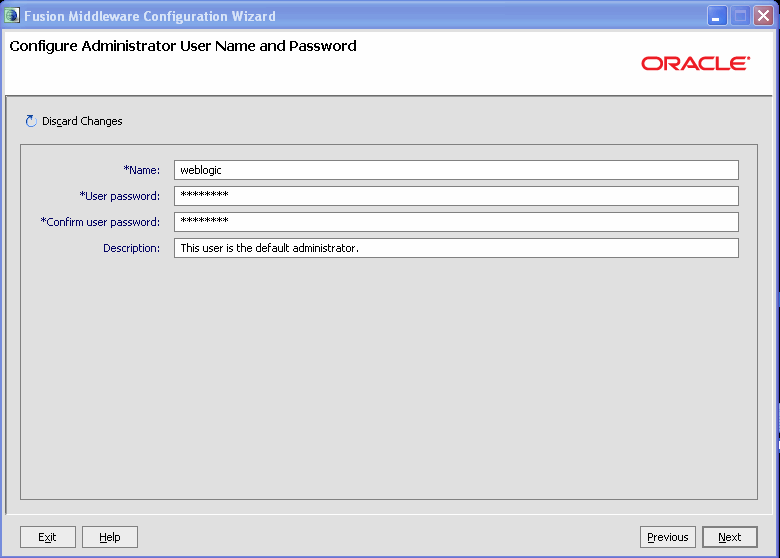

In the Configure Administrator User Name and Password dialog box enter an appropriate password. For the purposes of this tutorial, Welcome1 was used. Ensure that both passwords match and click Next.



.

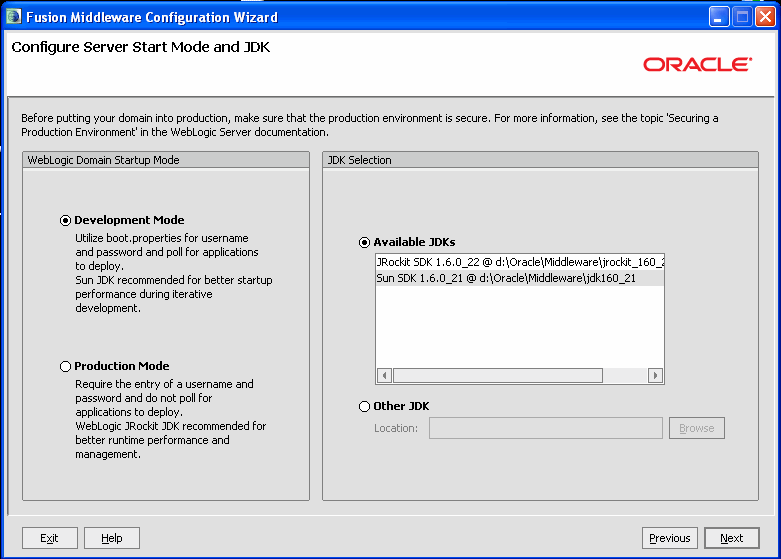

In the Configure Server Start Mode and JDK dialog box, click Next. For the purposes of this tutorial, the Sun JDK was chosen. However, you may want to consider JRockit.



.

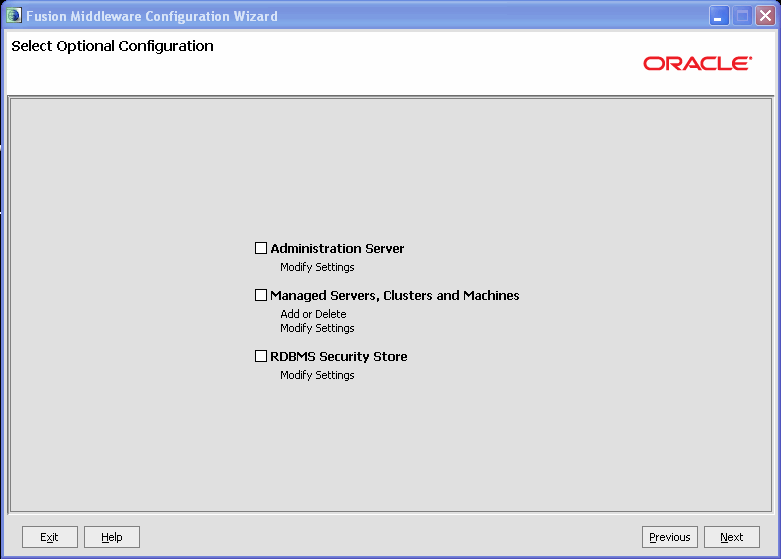

In the Select Optional Configuration dialog box, leave all check boxes deselected and click Next.



.

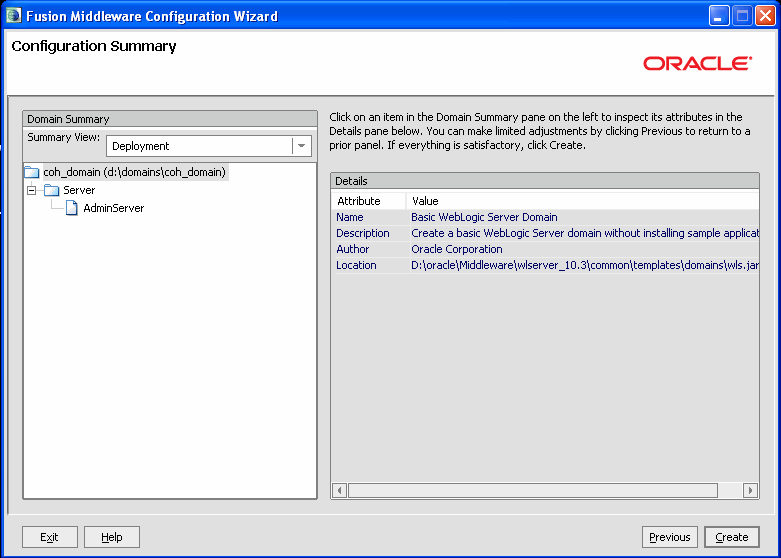

In the Configuration Summary dialog box, confirm the values and click Next.



.

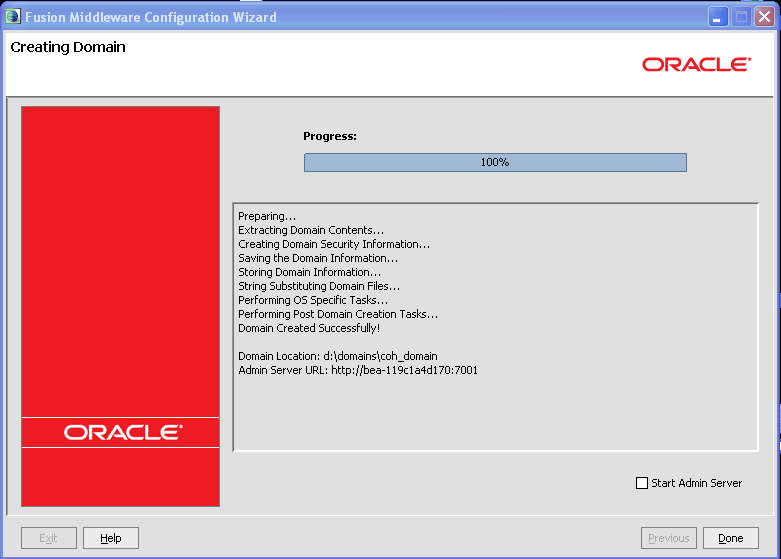

The Creating Domain dialog box appears. Ensure that the Start Admin Server check box is deselected and when the process reaches 100%, click Done.



Upgrade Eclipse with Oracle Enterprise Pack for Eclipse


Eclipse version 3.6.1 (code named Helios) comes prepackaged with the WebLogic Server installation. The prepackaged Eclipse installation includes the Oracle Enterprise Pack for Eclipse, or OEPE. However, those who cannot use the prepackaged version of  Eclipse will need to upgrade to the latest version of OEPE. To install OEPE into an existing version of Eclipse, follow the instructions below. Note that these instructions describe the installation for the Helios version of Eclipse. Support also exists for earlier versions, however, installation may vary. For those using the prepackaged version may skip the upgrade process, or partially follow the steps to verify that the most up-to-date version of OEPE is installed.

To choose an Eclipse workspace location, perform the following:


.

Launch Eclipse.

Note that for this tutorial, Eclipse can be launched from the command line using a command similar to:

D:\oracle\Middleware\oepe_11gR1PS3\eclipse.exe

or via All Programs > Oracle WebLogic > Oracle Enterprise Pack For Eclipse.

.

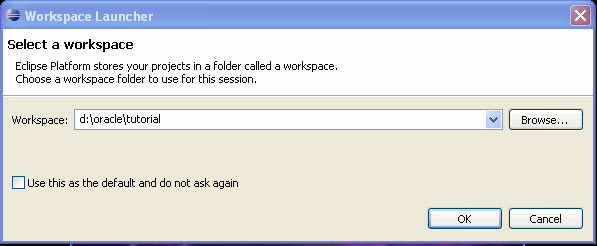

When presented with the Eclipse Workspace Launcher, choose a location for your workspace. This tutorial uses D:\oracle\tutorial. This location will be referred to as $WORKSPACE hereafter.

Click OK.

To install or update Oracle Enterprise Pack for Eclipse, perform the following:

Note: You can find more information about Oracle Enterprise Pack for Eclipse here.

.

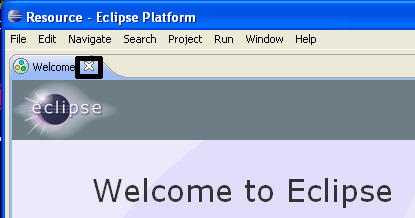

With your Eclipse workspace open, close the Welcome screen that is displayed by clicking X.


.

 From the Eclipse Help menu, select Install New Software.

.

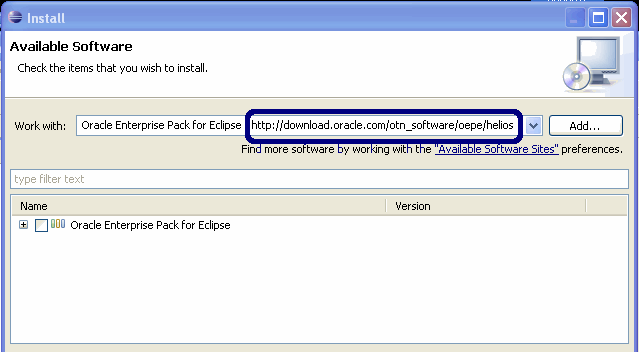

Enter the following URL: http://download.oracle.com/otn_software/oepe/helios, and press Enter. You will be presented with all available updates for Eclipse Helios.


.

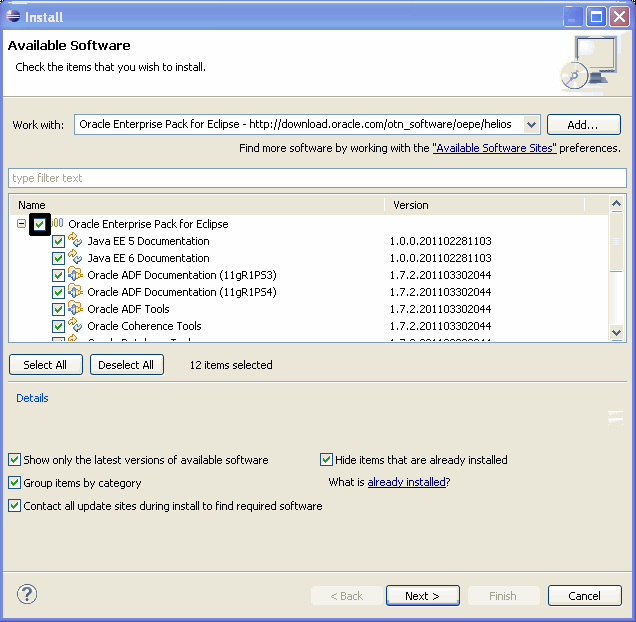

Select Oracle Enterprise Pack for Eclipse (shown expanded), and click Next.

.

Follow the prompts to complete the installation. Note that OEPE comes preinstalled with WebLogic Server 10.3.4 when a complete installation is performed.

Create an Enterprise Application and All Its Required Projects


Eclipse packages Enterprise applications (that is, those that include web applications, EJBs, and so on) into an Enterprise Application Project. Such projects consist of web applications, enterprise java beans, resources, JAR files and other esources.

Creating an Enterprise Application consists of:

Create an Enterprise Application Project and a Runtime Environment


.

Start Eclipse

.

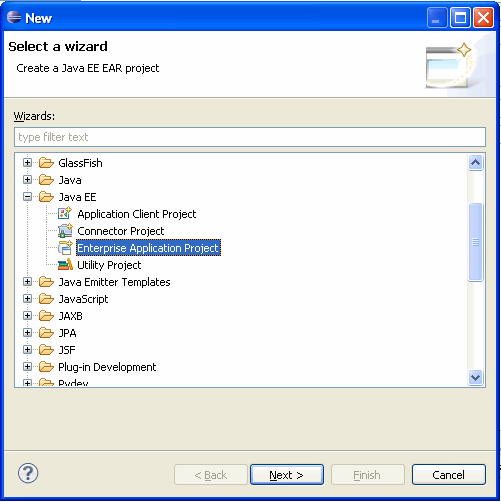

Start by creating an enterprise application project. Select File > New, select Project (or alternatively, press
Ctrl + N) and in the pop-up window, select Enterprise Application Project in Java EE category.


Click Next.

Note that you may need to scroll the window to show the Java EE category.

.

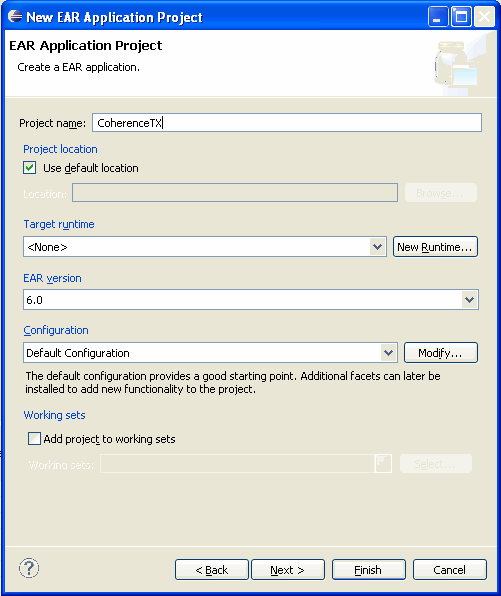

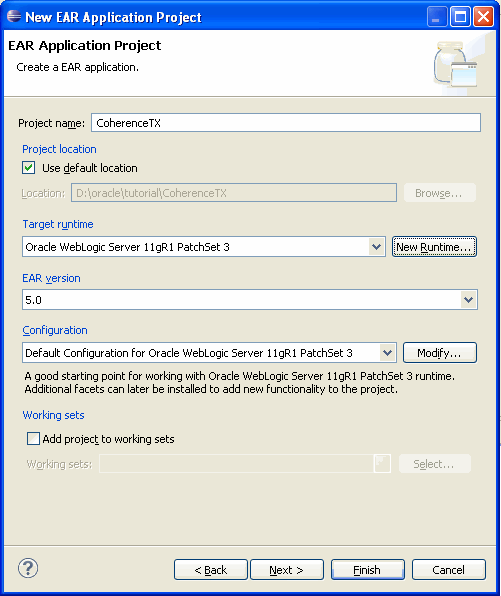

 Enter a project name to the Project Name field. For this tutorial, the project was named CoherenceTX.  Before clicking the Next button, click the New Runtime button.


Note: If you have previously created a run time, you may simply select it rather than creating a new run time.

.

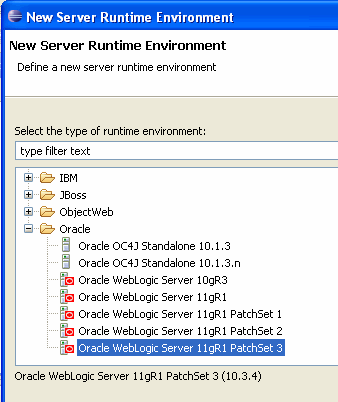

In the Define a new server runtime environment dialog box, select Oracle WebLogic Server 11gR1 PatchSet3.



Then click Next.

.

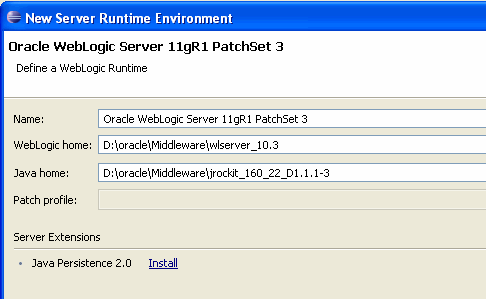

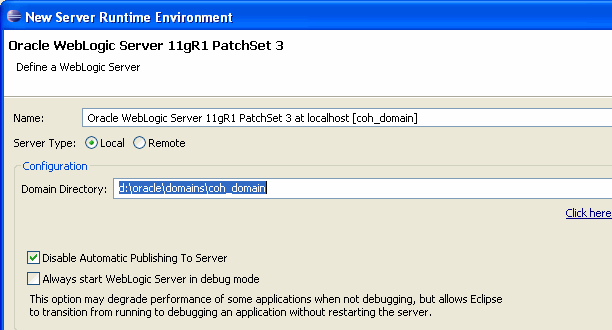

In the Define a WebLogic Runtime dialog box, enter the fully qualified path to a WebLogic Server instance in the WebLogic home field. For this tutorial, WebLogic was installed in D:\oracle\Middleware and the Browse button was used to locate the installed instance. Note that the Java home field will be automatically filled. Leave this field blank.


Then click Next.

.
In the Domain Directory field of the Configuration section, enter the fully qualified path of the domain created earlier. For this tutorial, the domain was created in D:\oracle\domains\coh_domain.


Then click Finish.

.
The EAR Application Project, with completed Target runtime should now resemble:



Click Next.

.

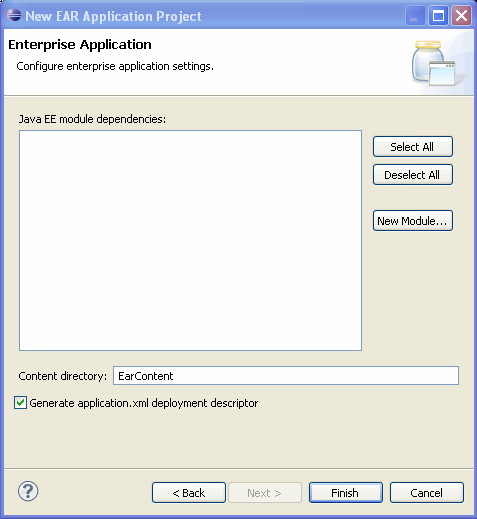

In the Configure enterprise application settings dialog box, ensure that the Generate application.xml deployment descriptor check box is selected.



Click Finish.

Note: If the Open Associated Perspective dialog box is displayed, suggesting opening a Java EE perspective, click Yes.

.
The Project Explorer pane of Eclipse will now show an empty Enterprise application which when expanded should resemble:



Note that the application shows a number of errors. This is a result of Enterprise applications being dependent on EJB, Web Applications, and other artifacts.

Create a Dynamic Web Project

.

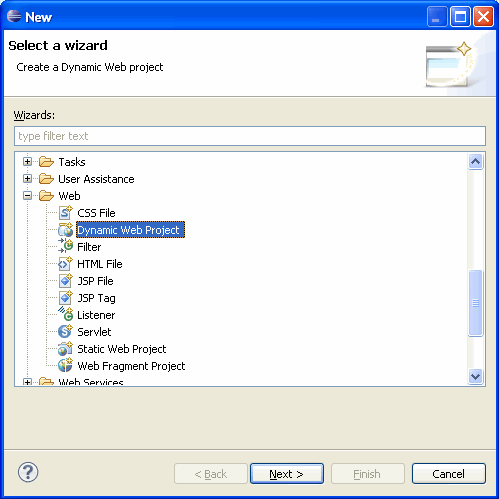

Start by creating an enterprise application project. Select File > New, select Project (or alternatively, press Ctrl + N) and in the pop-up window, select Dynamic Web Project in the Web category.

.

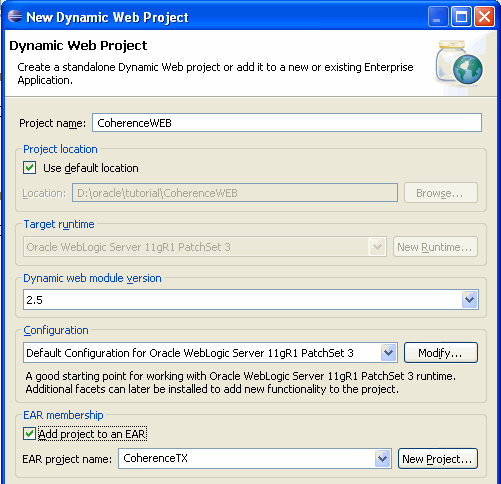

Enter a Project name. For this tutorial, the project was named CoherenceWEB.  In the EAR membership section, ensure that the Add project to an EAR check box is selected. Note that the CoherenceTX ear project name should be automatically selected. If there are other EAR projects in the workspace, select the CoherenceTX project.

.

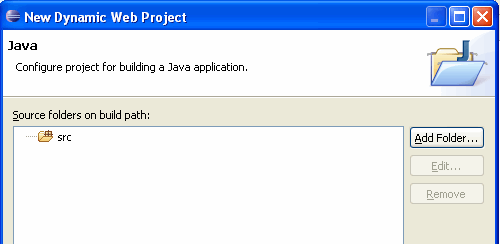

In the Java dialog box, make no changes and click Next.

.

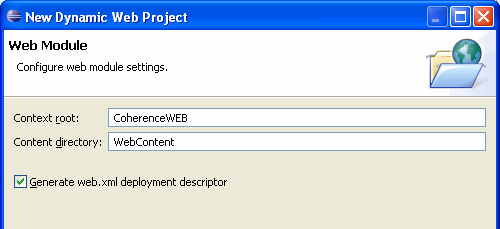

In the Web Module dialog box, make no changes and click Finish. Note that the Generate web.xml deployment descriptor check box is selected. Click Finish.

Configuring an Enterprise Application for Transactional Coherence

Coherence supports transaction using a resource adapter. Using the resource adapter requires that a number of application settings and files be modified. These changes include:

Prepare Enteprise Application


The Enterprise application must be prepared for use with coherence in three ways:

.

Download the support materials. These materials are a combination of code, XML snippet files, and other convenient resources. These resources can be downloaded here.

.

Unzip the files to a temporary location. For this tutorial, the files were downloaded and expanded to the desktop into the coh_tx_obe_support directory.

.

Expand the CoherenceTx application and find the CoherenceTX\EarContent folder.

.

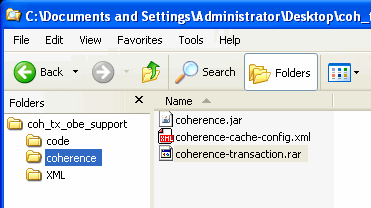

From the coh_tx_obe_support\coherence directory, drag the coherence-transaction.rar file to the CoherenceTX\EarContent directory. When prompted to Copy or Link, choose Copy and click OK. The updated application should resemble:



Note the addition of the Coherence transaction adapter, which must be registered as a connector with the application.

.

Navigate to the CoherenceTX\EarContent\META-INF directory and open application.xml.

.

On the Design tab, select the last module entry. Right-click and select Add After. Then in the new connector, replace the word token with coherence-transaction.rar, the name of the connector RAR file.

.

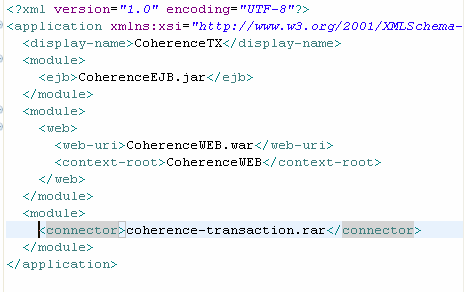

 In the Source view, the updated application.xml file should now resemble:



Save your changes.

.

 Lastly, navigate to the CoherenceTX/EarContent/APP-INF/lib directory.

.

 From the download directory coh_tx_obe_support/coherence, drag coherence.jar to the classes directory.

When prompted to Copy or Link, ensure that Copy files is selected and click OK.

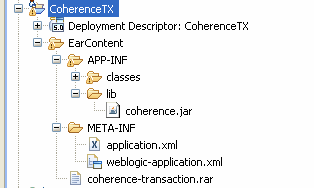

The final result should resemble:

Prepare Coherence Cache Configuration


The Coherence cache configuration must be prepared by:

.
Expand the CoherenceTX\EarContent\APP-INF\classes folder.

.

 From the download directory coh_tx_obe_support/coherence, drag coherence-cache-config.xml to the classes directory.

When prompted to Copy or Link, ensure that Copy files is selected and click OK.

.
Open the file and in source view, scroll down to find the <caching-scheme-mapping> section.

.

 Immediately after the caching-scheme-mapping element, add a new cache mapping resembling:

<cache-mapping>
      <cache-name>tx-*</cache-name>
      <scheme-name>example-transactional</scheme-name>
</cache-mapping>

 Note that a snippet of pastable XML, resembling this addition, can be found in the coh_tx_obe_support/xml/coherence-cache-config.snippet.txt file.

.

 The completed addition should resemble, with new code in bold.

 <caching-scheme-mapping>
    <cache-mapping>
        <cache-name>tx-*</cache-name>
        <scheme-name>example-transactional</scheme-name>
    </cache-mapping>
<cache-mapping>

.

 Find the <caching-schemes> section.

.

 Immediately after the <caching-schemes> element, add a new scheme resembling:

<transactional-scheme>
      <scheme-name>example-transactional</scheme-name>
      <scheme-ref>base-transactional</scheme-ref>
      <thread-count>10</thread-count>
 </transactional-scheme>
 <transactional-scheme>
      <scheme-name>base-transactional</scheme-name>
      <service-name>TransactionalCache</service-name>
      <request-timeout>30000</request-timeout>
      <autostart>true</autostart>
</transactional-scheme>

 Note that a snippet of pastable XML, resembling this addition, can be found in the coh_tx_obe_support/xml/coherence-cache-config.snippet.txt file.

.
Save your changes and close the editor.

Prepare Web Application


Depending on the application and how it is structured, the web application may or may not access the Coherence directory. However, it is not uncommon and as such the required configuration is presented here. The tutorial application does in fact reference Coherence.

.
Select the previously created CoherenceWEB application.

.
Right-click and choose Properties.

.

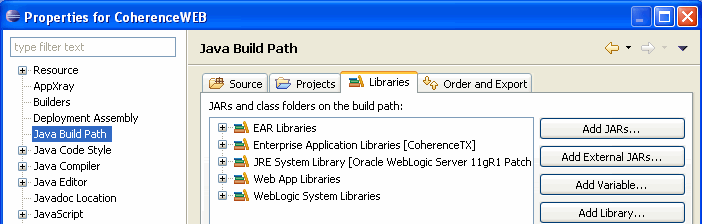

In the Properties dialog box, choose Java Build Path and click the Libraries tab.

.

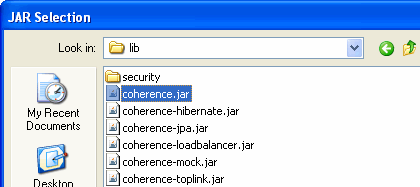

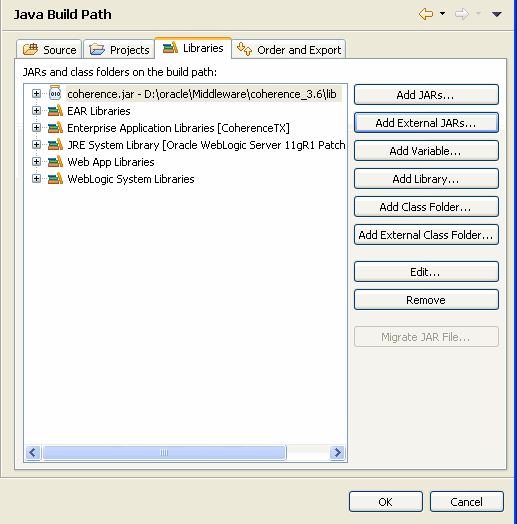

Click Add External JARs and in the JAR selection dialog box, navigate to the d:\oracle\Middleware\coherence3.6\lib folder, selecting the coherence.jar file.



Click Open

.
The Java Build Path dialog box will now show the coherence.jar file.



Click OK.

.
From the menu, choose File > Import.

.

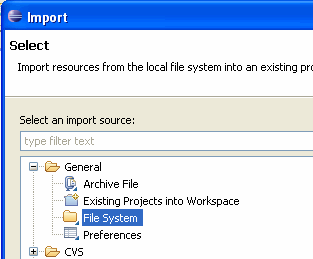

In the Import dialog box, expand General and choose File System.


Click Next.

.

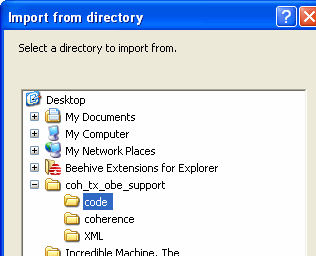

Using the Browse button, select the code folder of the coherence obe support directory.



Click OK.

.
Select the Tests.java class.

.
Using the Into folder Browse button, choose CoherenceWEB/src.



Click Finish.

.

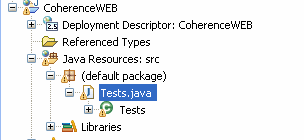

  The new class will be added to the CoherenceWEB application.



The newly added Tests class is a Java servlet and must be registered with the web application.

.

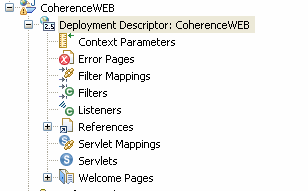

Expand the Deployment Descriptor: CoherenceWeb folder.

.
Select Servlets, right-click and choose New > Servlet.

.

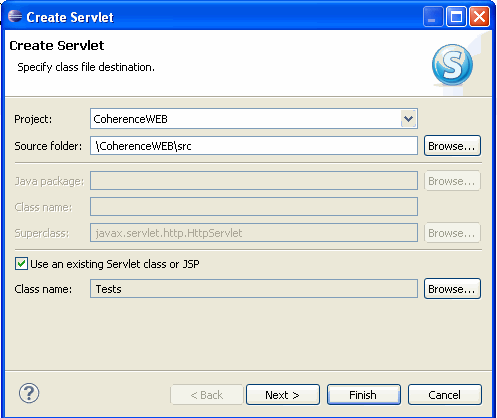

In the Create Servlet dialog box, select Use an existing Servlet class or JSP, and then browse to the imported class Tests.



Click Finish.

.
Note that the class generated a default mapping for the servlet using the class name all in lowercase.


Add Resource References

Most often environment settings in web applications are accessed externally via environment references. Coherence applications are no different and use an environment reference to access to create connections to transaction caches. To add an environment reference, the application must:

.
Navigate to the CoherenceWEB/WebContent/WEB-INF folder.

.
Open the web.xml file, click the Source tab and after the <servlet- mapping> element, add a resource reference resembling:

<resource-ref>
    <res-ref-name>eis/CoherenceTxCF</res-ref-name>
    <res-type>com.tangosol.coherence.transaction.ConnectionFactory</res-type>
    <res-auth>Container</res-auth>
</resource-ref>

Save your changes.

For convenience, a snippet file, named webapp.snippet.web.txt, is provided in the XML directory of the provided source which contains this resource reference.

.
Open the weblogic.xml , select the Source tab and after the <wls:context-root> element, add a resource description resembling:

<wls:resource-description>
    <wls:res-ref-name>eis/CoherenceTxCF</wls:res-ref-name>
    <wls:jndi-name>tangosol.coherenceTx</wls:jndi-name>
</wls:resource-description>

Save your changes.

For convenience, a snippet file, named webapp.snippet.weblogic.txt, is provided in the XML directory of the provided source which contains this resource description.

Deploy and Test

Eclipse can package and deploy applications to running instances of application servers. However, when packaging a resource adapter, Eclipse omits any RAR files. As such the next steps package the application via export, and deploy using the WebLogic Server Console.

  1. Define the environment reference in web.xml
  2. Specify the JNDI name of the reference in weblogic.xml

.
Select the CoherenceTX application.

.

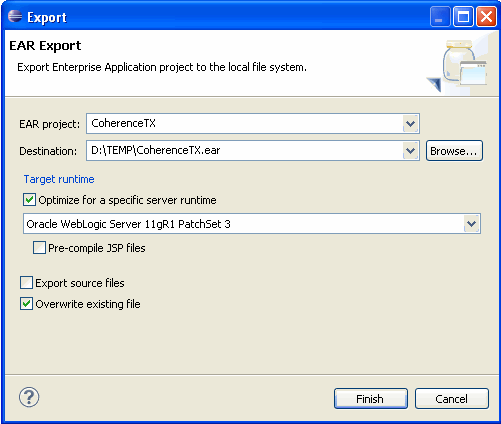

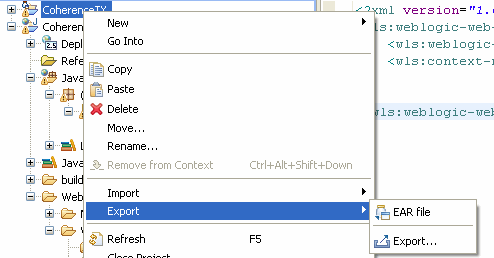

Right-click and choose Export > EAR file.

.
Enter an export file name. For this tutorial, the D:\temp\CoherenceTX.ear file was used.



Click Finish.

.
Minimize Eclipse.

.
Open a command prompt and change directory to the directory where the Coherence domain was created. For this tutorial, that was d:\oracle\domains\coh_domain.

.
Start WebLogic server using a command similar to:

start d:\oracle\domains\coh_domain\startWebLogic.cmd

Note that the start command is purely a convenience.

.
Open Firefox or a convenient browser and enter the URL: http://localhost;:7001/console

.

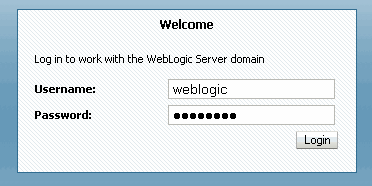

Log in to the Weblogic Console using the username and password used when creating the domain.

.
Click the Preferences button.



.

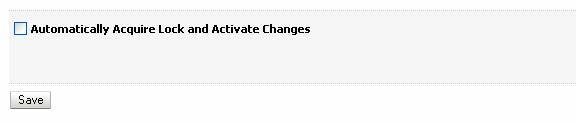

Deselect Automatically Acquire Lock and Activate Changes.





Click Save.

.
In the Domain Structure pane, click Deployments.

.

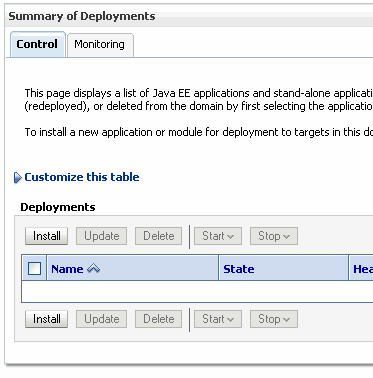

In the Summary of Deployments pane, click Install in the Deployments section.

.

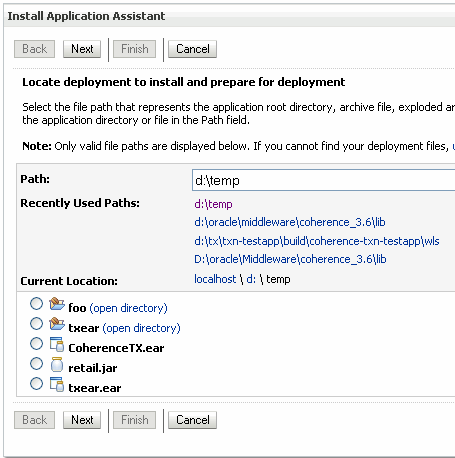

In path, specify the directory where the Enterprise application was exported and choose the application from the list. If more than one exists, be sure to choose the correct application. For this tutorial, the file name used was CoherenceTX.ear.



Click Next.

.
In the Install Application Assistant pane, ensure that Install this deployment as an application is selected.



Click Next.

.

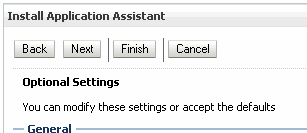

In the Optional Settings pane, make no changes.



Click Finish.

.
In Change Center, click Activate Changes.

.
In a different tab, execute the application by entering the URL: http://localhost:7001/CoherenceWEB/tests.

.

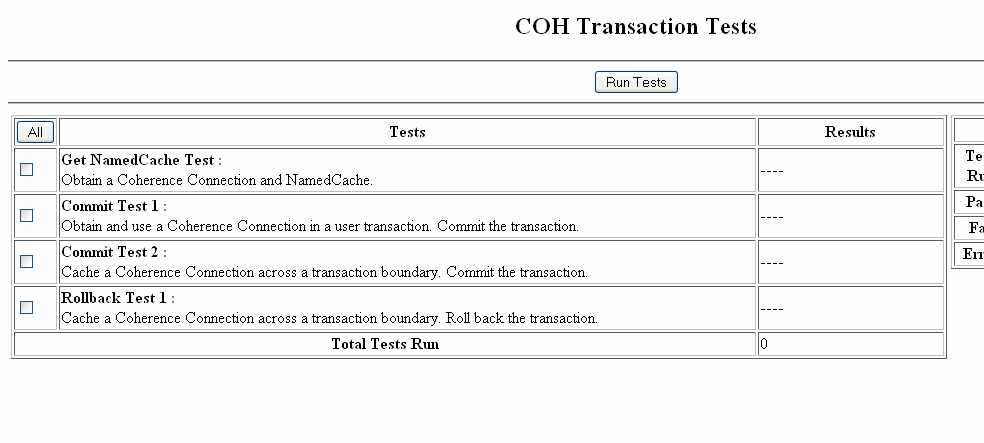

Experiment with the provided tests. Compare each test with the code which implements it.

Summary

During this tutorial, you explored how to create an Enterprise application with Eclipse and enable that application to use Coherence via a resource adapter.

In this tutorial, you have learned how to:
