Deploying an Application from Oracle Developer Cloud Service to Oracle Java Cloud Service


Options



Before You Begin

Purpose

In this tutorial, you will learn how to set up and create a deployment target in Oracle Developer Cloud Service to deploy an application artifact to Oracle Java Cloud Service instance Virtual Machine (VM).

Time to Complete

Approximately 30 minutes

Background

To deploy your application artifact to an Oracle Java Cloud Service instance, you must first authenticate Oracle Developer Cloud Service to connect and access the Oracle Java Cloud Service instance VM.

Context

You can deploy your application from Oracle Developer Cloud Service to Oracle Java Cloud Service using the Oracle WebLogic REST API protocol or the SSH Tunnel. You can use any of the protocols to deploy to the Oracle WebLogic Server 12c of Oracle Java Cloud Service. However, it is recommended to use the Oracle WebLogic REST API to deploy to Oracle WebLogic Server 12c of Oracle Java Cloud Service as it does not require any additional configuration that SSH Tunnel requires.

You must use the SSH Tunnel to deploy to Oracle WebLogic Server 11g (10.3.x) of Oracle Java Cloud Service. To use the SSH Tunnel, you must first authenticate Oracle Developer Cloud Service connection with the Oracle Java Cloud Service instance VM and upload the Oracle Developer Cloud Service SSH public key to the Oracle Java Cloud Service instance VM. After the SSH public key is uploaded, you can deploy to Oracle Java Cloud Service. This tutorial assumes that you are using a UNIX machine to connect and upload the Oracle Developer Cloud Service SSH public key to the Oracle Java Cloud Service instance VM.

What Do You Need?

  • A subscription to an Oracle Developer Cloud Service instance

  • A subscription to an Oracle Java Cloud Service instance

  • Access to the Oracle Java Cloud Service instance VM

  • Public IP Address of the Oracle Java Cloud Service instance VM

  • User name of the Oracle Java Cloud Service instance VM

  • Private key of the Oracle Java Cloud Service instance VM

  • User name and password of the Oracle Java Cloud Service instance WebLogic Administration Console

  • Port number of the Oracle Java Cloud Service instance WebLogic Administration Console

  • One of the following supported browsers:

    • Internet Explorer 11 or 12

    • Firefox 31 or later

    • Chrome 37 (also for Android)

    • Safari 7 or 8

    • Safari Mobile 5 (iOS)

  • cURL

    You will require cURL if you are using the SSH Tunnel to deploy to Oracle Java Cloud Service. cURL is a command line tool used to transfer data using various protocols. For more information, see http://curl.haxx.se/.

Generate the Application Artifacts

If necessary, run a build and genearte the artifacts that you want to deploy to Oracle Java Cloud Service.

  1. Log in to the Oracle Developer Cloud Service web interface.

  2. Open the project that contains the application.

  3. In the navigation bar, click Build.

    Oracle Developer Cloud Service navigation bar
    Description of this image

  4. In the Jobs table, click the job name that generates the artifacts.

    Job name link in the Jobs table
    Description of this image

  5. Click Build Now.

    Build Now button in the Job Details page
    Description of this image

  6. Wait for the build to complete and generate artifacts.

Deploying to Oracle Java Cloud Service using the Oracle WebLogic REST API

You can use the Oracle WebLogic REST API to deploy to Oracle WebLogic Server 12c of Oracle Java Cloud Service. You can also use the SSH Tunnel, but Oracle WebLogic REST API is recommended as no pre-configuration is required.

Creating a Deployment Configuration in Oracle Developer Cloud Service

To deploy the artifacts to Oracle Java Cloud Service, you must first create a deployment configuration in your Oracle Developer Cloud Service instance.

  1. Open the Oracle Developer Cloud Service web interface and click Deploy in the navigation bar.

    Deploy tab of Oracle Developer Cloud Service

    Description of this image

  2. Click New Configuration.

    New Configuration button in the Deploy tab
    Description of this image

  3. In the New Deployment Configuration page, enter a deployment configuration name in Configuration Name. The Application Name will be auto-filled.

  4. Click the New drop-down list next to Deployment Target and select Java Cloud Service.

    Java Service drop-down list
    Description of this image

  5. In the Connection Details page of the Deploy to Java Cloud Service wizard, enter the following information:

    • Version: Select the Oracle Weblogic Server 12c (12.2.x or higher) option.

      You can also select the Oracle Weblogic Server 12c (12.1.x) option if you want to.

    • Protocol: Select Oracle WebLogic RESTFul Management Interface.

    • Host: Enter the host name or the public IP address of the Oracle Java Cloud Service instance VM.

    • HTTPS Port: Enter the HTTPS port number of the WebLogic Server that runs on the Oracle Java Cloud Service instance.

    • Username: Enter the user name of the Oracle Java Cloud Service WebLogic Administration console.

    • Password: Enter the password of the Oracle Java Cloud Service WebLogic Administration console.

    Deploy to Remote Target dialog
    Description of this image

  6. Click Find Targets.

  7. In the Available Targets page of the wizard, select the servers or the clusters you want to deploy the application to. You can select more than one option.

    Deploy to Remote Target dialog
    Description of this image

  8. Click OK.

  9. Click Type and select the deployment type as On Demand or Automatic.

    An On Demand deployment is triggered when you save the deployment configuration or redeploy the deployment configuration.

    An Automatic deployment is triggered after the associated build is complete.

  10. Select the Deploy Stable Builds only check box to deploy stable builds only. The check box is available if you selected Automatic as the Type.

  11. In the Job list, select the job that you want to deploy.

  12. In the Build list, select the build number that you want to deploy. The list is available if you selected On Demand as the Type.

  13. In the Artifact list, select the artifact to deploy.

  14. If you selected On Demand as the Type, click Save and Deploy. If you selected Automatic as the Type, click Save.

    New Deployment Configuration page
    Description of this image

After you save the deployment configuration, it appears in the Deploy page.

Current deployment configurations in the Deploy tab
Description of this image

Note: If you selected Automatic as the Type, run a build to deploy the specified artifact automatically. To deploy the artifact manually, click the Gear icon, and select Start.

Deploying to Oracle Java Cloud Service using the SSH Tunnel

You can deploy to all Oracle WebLogic Server versions available using the SSH Tunnel. To use the SSH tunnel, you would need access to the Oracle Java Cloud Service Console and set up an authenticated connection between Oracle Developer Cloud Service and Oracle Java Cloud Service VM.

Downloading the Oracle Developer Cloud Service SSH Public Key

Use the Oracle Developer Cloud Service REST API to get the Oracle Developer Cloud Service SSH public key.

  1. Get the host name and the organization name of your Oracle Developer Cloud Service instance.

    If the base URL of the of your Oracle Developer Cloud Service environment is https://developer.us2.oraclecloud.com/my-org/, then your host name is developer.us2.oraclecloud.com and the organization name is my-org.

  2. Open the terminal window.

  3. Use the following URL syntax with cURL to get the Oracle Developer Cloud Service SSH public key:

    https://<host-name>/<organization-name>/api/deployment/sshkey

    URL example:

    https://developer.us2.oraclecloud.com/my-org/api/deployment/sshkey

    Note: Do not enter the URL in the address bar of the web browser. Use cURL or a browser REST plugin to view and download the SSH public key.

    cURL command example:

    $ curl -u jdoe:mypassword https://developer.us2.oraclecloud.com/my-org/api/deployment/sshkey
    {"string":"    ssh-rsa AAAABfsietnt36GHhgertASdffyt88tYdtlp3Gdaswwer6+sdfasetKsadJUYaswedsrt78xdsfasaweGJsasqkyujdXLerazfgr6t3dfggggggWcsdfeJ8afdgyrRdwe8fghiE/xk+7h6GHdzdrf5tDefgjiydPLf/em/ger534fhaswdF5dcf&qasdf2asxwQdedGJyujkONMrfrsIoewad+mnhjGTd46sfgt81dthymFgHIScgvfrdrrhbdwwklpuFhjponnmSdjjyt6ejnd+h56rdfgtjedysdbcjr57msgsdlj21mlopwd65FTjndgfUObdfrtewd4DjhokjsretBjegddlkOdhdvfdDgunmnfJivdf OracleDCS:my-org\n"}

  4. Copy the string value of the key to a text file and save the text file as odcskey.pub on your machine.

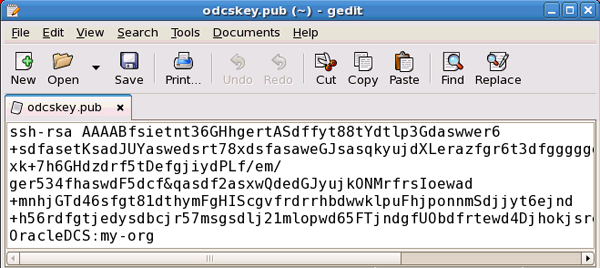

    Oracle Developer Cloud Service public key in a text editor
    Description of this image

    Instead of copying the string value, you may also redirect the cURL command output to the odcskey.pub file.

    $ curl -u jdoe:mypassword https://developer.us2.oraclecloud.com/my-org/api/deployment/sshkey > odcskey.pub
      % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   210    0   210    0     0    784      0 --:--:-- --:--:-- --:--:--     0

    5. After transferring the output, edit the file in a text editor to keep the string value of the key.

Uploading the Oracle Developer Cloud Service SSH Public Key to the Oracle Java Cloud Service Instance VM

After you have copied and saved the Oracle Developer Cloud Service SSH public key, upload it to the Oracle Java Cloud Service instance VM.

Uploading the Oracle Developer Cloud Service SSH Public Key to Oracle Java Cloud Service Instance VM

You can upload the Oracle Developer Cloud Service SSH Public Key from the Overview page of the Oracle Java Cloud Service console.

  1. In the Oracle Java Cloud Service web user interface, open the Overview page of the service instance.

    Oracle Java Cloud Service Application Console

    Description of this image

  2. In the header of the Overview page, click Menu next to the Oracle Java Cloud Service instance name and select SSH Access.

    Oracle Java Cloud Service console menu

  3. In the Add New Key dialog, with Upload a new SSH Public Key value from file selected, click Browse.

    Add New Key dialog

  4. Select the Oracle Developer Cloud Service SSH public key file that you saved and click Add New Key.

    Add New Key dialog

  5. In the Add New Key dialog, click Submit.

The Oracle Developer Cloud Service SSH public key is added to the authorized_keys file of the Oracle Java Cloud Service VM. After adding the public key, the VM will restart automatically. This will take some time. You can track the restart activity in the Activity Summary section of the Overview page. When the instance has restarted and the activity is complete, you will see the Add SSH Key is Completed in Activity Summary.

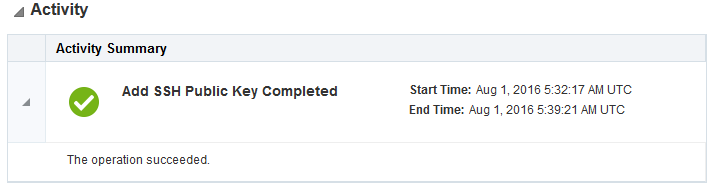

Activiy Summary section of the Oracle Java Cloud Service Overview page

Creating a Deployment Configuration in Oracle Developer Cloud Service

After you have uploaded the publick key to the target Oracle Java Cloud Service instance VM, create a deployment configuration in Oracle Developer Cloud Service to deploy the application artifact.

  1. In the navigation bar, click Deploy.

    Deploy tab of Oracle Developer Cloud Service
    Description of this image

  2. Click New Configuration.

    New Configuration button in the Deploy tab
    Description of this image

  3. In the New Deployment Configuration page, enter a deployment configuration name in Configuration Name. The Application Name will be auto-filled.

  4. Click the New drop-down list next to Deployment Target and select Java Cloud Service.

    Java Service drop-down list
    Description of this image

  5. In the Connection Details page of the Deploy to Java Cloud Service wizard, enter the following information:

    • Version: Select the version of the Oracle Java Cloud Service WebLogic instance that you are subscribed to.

    • Protocol: Select SSH Tunnel.

    • Host: Enter the host name or the public IP address of the Oracle Java Cloud Service instance VM.

    • HTTPS Port: Enter the HTTPS port number of the WebLogic Server that runs on the Oracle Java Cloud Service instance.

    • Administration Port: Enter the admin port number of the WebLogic Admin Server that runs on the Oracle Java Cloud Service instance. The default port number is 9001.

    • Username: Enter the user name of the Oracle Java Cloud Service WebLogic Administration console.

    • Password: Enter the password of the Oracle Java Cloud Service WebLogic Administration console.

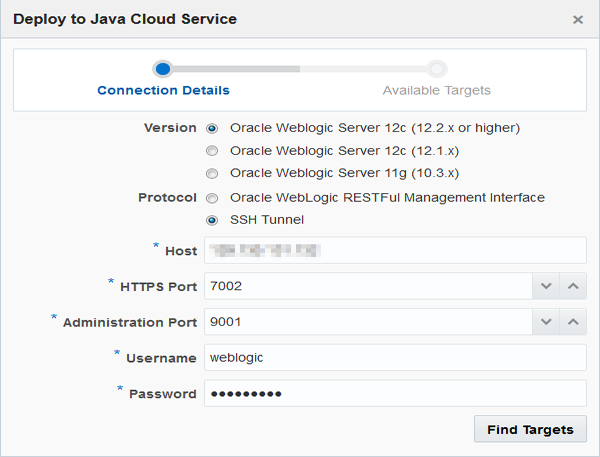

    Deploy to Remote Target dialog
    Description of this image

  6. Click Find Targets.

  7. In the Available Targets page of the wizard, select the servers or the clusters you want to deploy the application to. You can select more than one option.

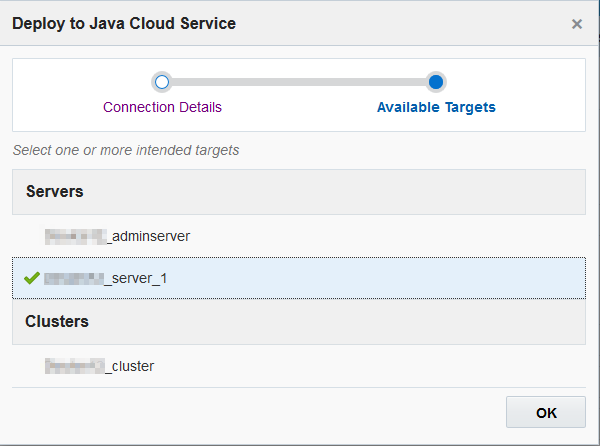

    Deploy to Remote Target dialog
    Description of this image

  8. Click OK.

  9. Click Type and select the deployment type as On Demand or Automatic.

    An On Demand deployment is triggered when you save the deployment configuration or redeploy the deployment configuration.

    An Automatic deployment is triggered after the associated build is complete.

  10. Select the Deploy Stable Builds only check box to deploy stable builds only. The check box is available if you selected Automatic as the Type.

  11. In the Job list, select the job that you want to deploy.

  12. In the Build list, select the build number that you want to deploy. The list is available if you selected On Demand as the Type.

  13. In the Artifact list, select the artifact to deploy.

  14. If you selected On Demand as the Type, click Save and Deploy. If you selected Automatic as the Type, click Save.

    New Deployment Configuration page
    Description of this image

After you save the deployment configuration, it appears in the Deploy page.

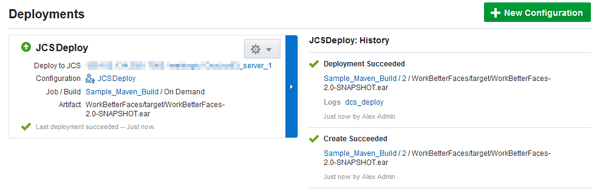

Current deployment configurations in the Deploy tab
Description of this image

Note: If you selected Automatic as the Type, run a build to deploy the specified artifact automatically. To deploy the artifact manually, click the Gear icon, and select Start.

Accessing the Deployed Application

To access the deployed application, you would need the content URL of the Oracle Java Cloud Service instance VM and the context root of the of the deployed application.

  1. Use the Oracle Java Cloud Service REST API to get the content URL of the Oracle Java Cloud Service instance VM. The content_url attribute shows the VM's content URL.

    Example:

    $ curl -i -X GET -u jdoe:mypassword -H "X-ID-TENANT-NAME:exampleidentitydomain" https://jaas.oraclecloud.com/jaas/api/v1.1/instances/exampleidentitydomain/exampleservice
    HTTP/1.1 200 OK
Date: Wed, 05 Aug 2015 10:34:44 GMT
Server: Oracle-Application-Server-11g
Content-Length: 1551
.
.
.
{
  "service_name": "MyJCS04",
  "version": "12cR3",
.
.
.
  "num_ip_reservations": 1,
  "wls_admin_url": "https:\/\/129.130.131.132:7002\/console",
  "fmw_control_url": "https:\/\/129.130.131.132:7002\/em",
  "content_url": "http:\/\/129.130.131.132",
  "secure_content_url": "https:\/\/129.130.131.132",
  "wls_deployment_channel_port": 9001
}

  2. Get the context root of the application from the application.xml deployment descriptor for EAR deployments and from the web.xml deployment descriptor for WAR deployments.

    If there is no such descriptor, get the context root from the Oracle Java Cloud Service WebLogic Administration console.

    1. Open the Oracle Java Cloud Service WebLogic Administration console.

      Oracle Java Cloud Service WebLogic Administration console
      Description of this image

    2. Click Deployments in Domain Structure.

      Domain Structure pane in WebLogic Administration Console
      Description of this image

    3. Click the deployed application name.

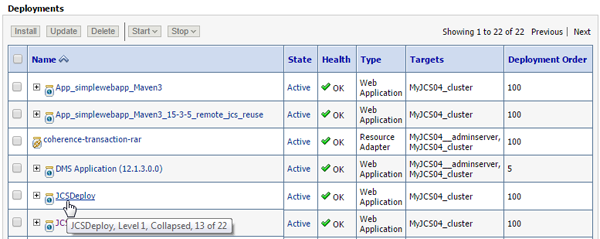

      Deployments table in the WebLogic Administration Console
      Description of this image

    4. In the Overview tab, copy the context root.

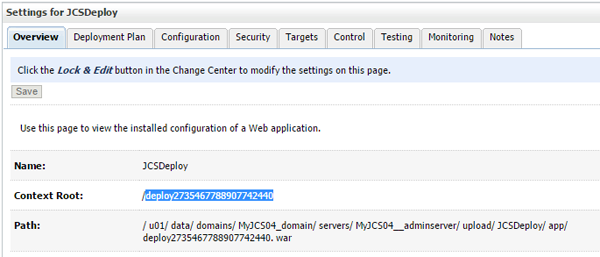

      Overview tab of the deployed application
      Description of this image

    5. To construct the application's access URL, use the content URL and the context root.

      For example, if the content URL is http://129.130.131.132 and the context root is deploy2735467788907742440, the application's access URL would be http://129.130.131.132/deploy2735467788907742440/.

    6. Enter the generated URL in the address bar of the browser to access the application.

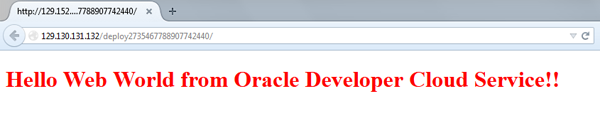

      URL and output of the deployed application
      Description of this image
