Integrating data between Planning and Strategic Models using Groovy

Before you begin

This 60-minute tutorial introduces you to Strategic Modeling concepts and shows you how to integrate data between strategic models and planning applications using Groovy scripts.

Background

Strategic Modeling, available as a module in EPBCS, is a feature-rich financial forecasting and modeling solution. With Strategic Modeling, you can model long-range planning, treasury and funding options, and mergers and acquisitions, among other things.

What do you need?

An EPM Enterprise Cloud Service instance allows you to deploy and use one of the supported business processes. To deploy another business process, you must request another EPM Enterprise Cloud Service instance or remove the current business process.

  • Have Service Administrator access to EPM Enterprise Cloud Service. The instance should not have a business process created.
  • If you haven't already, register for a free Oracle Cloud Customer Connect account so you can access the required files. Upload and import this Planning snapshot into your environment. If you've previously uploaded the snapshot for another Groovy tutorial, you can continue using the same snapshot.

For more information on uploading and importing snapshots, refer to the Administering Migration for Oracle Enterprise Performance Management Cloud documentation.

The scripts you need for this tutorial are linked as text files within each section.

Understanding Strategic Modeling

The primary artifact in Strategic Modeling is a Model. Models have the following dimensions:

  • Model (Entity)
  • Version
  • Measure
  • Business Case / Scenario
  • Currency
  • Time
  • Account
  • Custom Dimensions

Because the dimensions between your Strategic Model and your Planning application are not the same, to map data between the two you must first understand how and where the dimensions on each side of the transaction align.

Model (Entity)

The Model dimension in Strategic Modeling is hierarchical. Each Model represents a single entity—for example, a company, business unit, project, and so on—that is being modeled in the product. A Model stores a full set of data and metadata for each saved version of the model.

Version

The Version dimension is flat. This dimension enables you to specify a particula snapshot of model data that you'd like to work with. The most current version of a model's data is referred to as the Tip.

Measure

The Measure dimension is flat. It contains two members: Output and Input. The Output measure enables you to refer to calculated results in Strategic Modeling, and is what you most commonly map to and from between your Planning application. The Input measure enables you to refer to input values, but is not usually useful for mapping to Planning because the relationships that transform input values to output values (forecast methods) in Strategic Modeling can be changed by the user.

Business Case / Scenario

The Business Case / Scenario dimension is flat. Business Cases and Scenarios are closely related in Strategic Modeling. Any given mapping will work with one or the other, depending on what the user is intending to do with the data. Strategic Modeling data is stored in scenarios.

Currency

The Currency dimension is flat. Each model in Strategic Modeling works with a particular currency.

Time

The Time dimension is hierarchical. Unlike Planning, Strategic Modeling contains a single continuous Time dimension, with years stored immediately beneath the root of the Time dimension. Each year can contain a varying level of detail in Halves, Quarters, Months, and Weeks.

Account

The Account dimension is hierarchical. Each account represents an accounting concept such as Sales or Cost of Goods sold. Usually, these are line items—for example, an Output value exists for Sales in all time periods and all scenarios in the model.

You can extend the Account dimension by creating subaccounts beneath the Account structure, almost always for accounts that accept input.

Custom Dimensions

You can create an arbitrary number of hierarchical custom dimensions. Custom dimensions can represent concepts such as Products or Regions.

Understanding the Strategic Models and Planning application for this tutorial

To integrate data between Strategic Modeling and Planning, you must understand how their respective dimensions map to each other. In this tutorial, you'll be syncing data between the Operations US entities in the OEP_FS Planning cube and the strategic models in the Operations US model hierarchy.

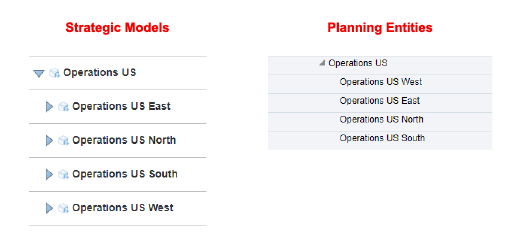

Stategic Models and Planning Entities

The strategic models Operations US, Operations US East, Operations US North, Operations US South, and Operations US West, map directly to the similarly named entities in the Planning entity structure.

We'll explain the rest of the specific dimensional mappings for each exercise in this tutorial, as they differ depending on what type of integration you're trying to accomplish.

Setting up for testing

Entering test Planning data

In this section, you use a form to enter test data in the OEP_Working version in Planning. Later in this tutorial, you create Groovy scripts to push this data to Strategic Modeling.

  1. From the Planning Home page, click Data, then expand the Strategic Modeling folder to display data entry forms. Click Enter Data Form Working to open the form. Notice that the data will be written to the OEP_Working version in Planning.
  2. Verify that the entity selected in the POV is Operations US West. Enter the following data in the form for Dec, FY17:
    Account Value
    OFS_Product Revenue 5000
    OFS_Services Revenue 5000
    OFS_Support Revenue 5000
    OFS_Other Revenue 5000
    OFS_Discounts 500
    OFS_Salaries 100000
    OFS_Selling Expense 3000

    Enter the following data in the form for Dec, FY18:

    Account Value
    OFS_Product Revenue 4000
    OFS_Services Revenue 4000
    OFS_Support Revenue 4000
    OFS_Other Revenue 4000
    OFS_Discounts 400
    OFS_Salaries 120000
    OFS_Selling Expense 1000

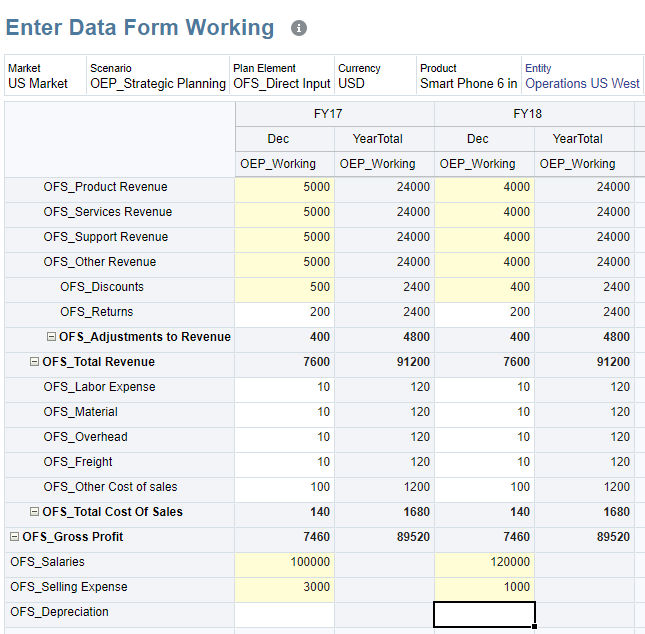

    Enter Data Form Working after entering data
  3. Click Save. Notice that the Year Total column is updated automatically when you save.
    Enter Data Form Working form after saving
  4. In the toolbar, click Edit Members icon (Edit Members) and select Operations US East. Click Apply to change the POV.
  5. Repeat steps 2 and 3 to enter test data into Operations US East.
  6. Repeat this process for the entities Operations US North and Operations US South.
  7. Click Close to return to the list of data entry forms.

Clearing Planning data

In this section, you use a form to clear data from the Target version in Planning. Later in this tutorial, you create Groovy scripts to push data from Strategic Modeling to Planning.

  1. Click Enter Data Form Target to open the form.
  2. Verify that the entity selected in the POV is Operations US South.
  3. Select the first cell in the form (OFS_Product Revenue for FY17, Dec, Target) and press [Delete] to clear the cell.
  4. Click and drag the selection handle to cover the entire grid in the form, or repeat the previous step for every cell in both Dec columns to clear all input cells.

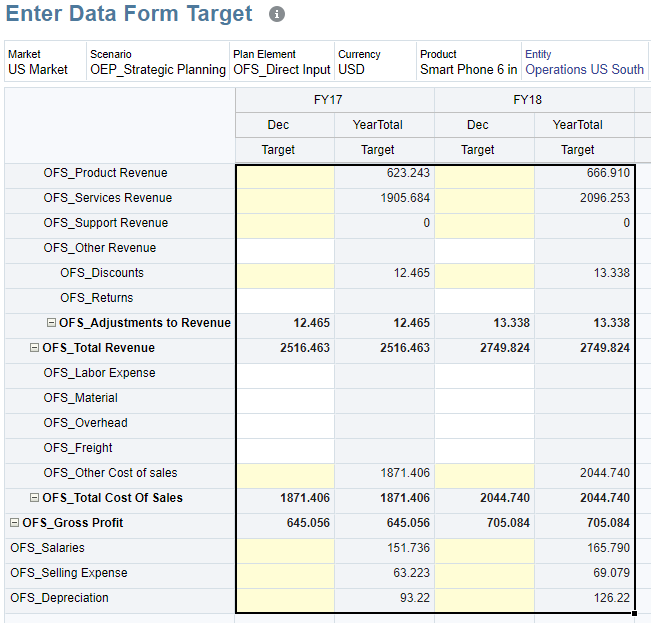

    Enter Data Form Target form after clearing data
  5. Click Save. Notice that the calculated cells update automatically when you save.

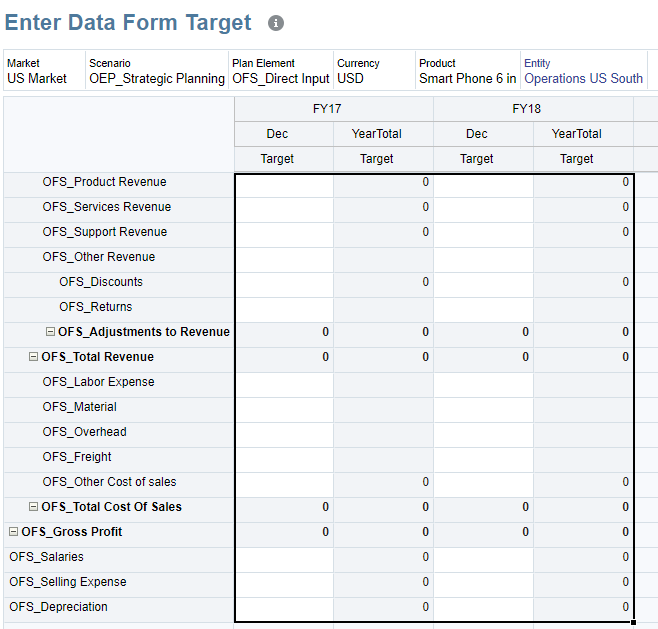

    Enter Data Form Target form after saving
  6. In the toolbar, click Edit Members icon (Edit Members) and select Operations US West. Click Apply to change the POV.
  7. Repeat steps 3–5 for Operations US West, Operations US East, and Operations US North.
  8. Click Close to return to the list of data entry forms, then return to the Home page.

Selecting a navigation flow in Planning

In this section, you change your navigation flow to work with specific cards in the Strategic Modeling cluster.

  1. From the Planning Home page, click Strategic Modeling to view the cards in the cluster by default. The default navigation flow does not display the custom set of cards you need to view or test your integration scripts. Close the cluster.

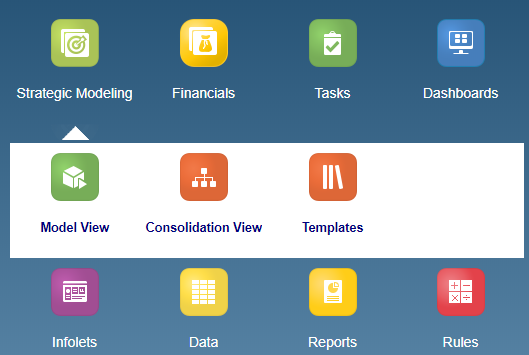

    Strategic Modeling Cluster

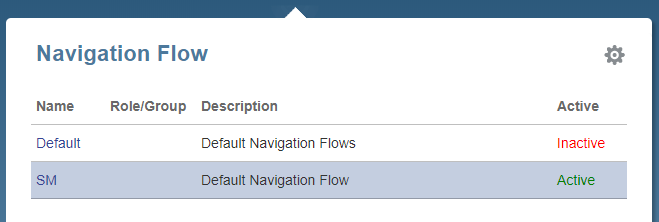

  2. From the Planning Home page, click Tools, then click Navigation Flows.
  3. In the Active column, click the link for the SM navigation flow to make it the active navigation flow.
    New Object dialog box
  4. Return to the Planning Home page.
  5. From the User menu drop down, select Reload Navigation Flow.
    Reload navigation flow

    The Strategic Modeling cluster now includes the cards you'll use to test your Groovy scripts in this tutorial: Sync Bottom Up Plan, Push Targets, Push Bottom Up Plan Multi, and Push Targets Multi Entity.

    Strategic Modeling Cluster

    You cannot associate rules with Strategic Models to be executed on check-in. In this tutorial, all data movement from and to Strategic Models will be executed from Planning forms

Syncing bottom-up Planning data with Strategic Forecast

In this section, you create a Groovy rule to move data from Planning to a Strategic Model. After deploying the rule, you add it to the Strategic Modeling form, then you test it in the form.

Understanding the source and target intersections

  1. The following table shows the source intersections for Planning and the target intersections for the Strategic Model:

    Planning (Source) Strategic Modeling (Target)
    Entity: Operations US Model: Operations US
    POV:
    Scenario: OEP_Strategic Planning
    Market: US Market
    Plan Element: OFS_Direct Input
    Currency: USD
    Product: Smart Phone 6 in
    POV:
    Scenario: Forecast




    Column:
    Years: FY17
    Period: YearTotal
    Version: OEP_Working
    Column:
    Period: 2017


    Rows: Accounts Rows: Accounts
    OFS_Product Revenue v1000:010 (Product Sales)
    OFS_Services Revenue v1000:020 (Service Revenue)
    OFS_Support Revenue
    OFS_Other Revenue
    v1000:030 (Other Revenues)

    OFS_Adjustments to Revenue v1020 (Discounts & Returns)
    OFS_Total Cost of Sales v1040 (Cost of Goods Sold)

Creating the Groovy rule

  1. Open Calculation Manager and create a rule named SM - Sync Bottom-Up Plan with Strategic Forecast in the OEP_FS cube.
    New Rule

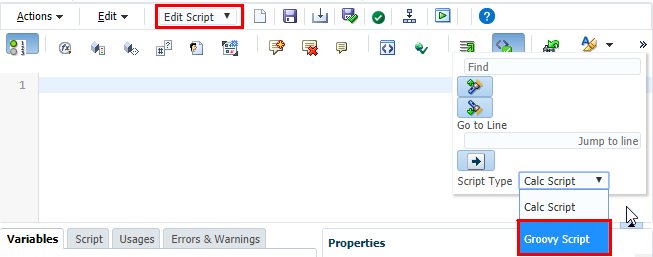

  2. In the Rule Editor, change the Designer option to Edit Script and set the Script Type to Groovy Script.
    Rule Editor Options
  3. Copy this script and paste it into the editor:
    Rule Editor Options
  4. On the toolbar, click Save (Save) to save the script.
  5. Click Validate and Deploy (Validate and Deploy). Click OK at the confirmation message.

Explaining the script logic

In this section, we'll describe the script logic one section at a time.

  1. Create the Planning grid.
  2. Cube cube = operation.application.getCube("OEP_FS") 1

    DataGridDefinitionBuilder defBuilder = cube.dataGridDefinitionBuilder() 2

    defBuilder.addPov(['Years', 'Scenario', 'Currency', 'Version', 'Entity', 'Market',
    'Plan Element', 'Product'], [ ['FY17'], ['OEP_Strategic Planning'], ['USD'], ['OEP_Working'],
     ['Operations US'], ['US Market'], ['OFS_Direct Input'], ['Smart Phone 6 in'] ])

    defBuilder.addColumn(['Period'], [ ['YearTotal'] ])

    defBuilder.addRow(['Account'], [ ['OFS_Product Revenue', 'OFS_Services Revenue',
    'OFS_Support Revenue','OFS_Adjustments to Revenue','OFS_Total Cost Of Sales',
    'OFS_Other Revenue'] ])

    DataGridDefinition gridDefinition = defBuilder.build() 3
    DataGrid grid = cube.loadGrid(gridDefinition, true)

    double millionsScalingFactor = 0.000001 4


    1 Get the OEP_FS cube.

    2 Get a DataGridDefinitionBuilder for the cube. Use the builder to construct a region from which to load the data by adding the POV members, column members and rows.

    3 Build the DataGridDefinition object.

    4 Define the scaling factor. We need this because in our example we are working with a Strategic Model whose units are in millions.

  3. Push data to Strategic Modeling.
  4. def data = [] 5
    grid.dataCellIterator().each{
        data << it.data / millionsScalingFactor
        println("$it.memberNames, cell data: $it.data")
    }

    // Create the SM model grid 6
    operation.application.getStrategicModel('Operations US').withCloseable { smModel->
        DataGridBuilder gridBuilder = smModel.dataGridBuilder()
        gridBuilder.addPov('Forecast')
        gridBuilder.addColumn('2017')
        println("Pushing " + data[0] + "to Product Sales")
        gridBuilder.addRow(['v1000:010'], [data[0]])
        println("Pushing " + data[1] + "to Service Revenue")
        gridBuilder.addRow(['v1000:020'], [data[1]])
        println("Pushing " + data[3] + "to Discounts & Returns")
        gridBuilder.addRow(['v1020'], [data[3]])
        println("Pushing " + data[4] + "to Cost of Goods Sold")
        gridBuilder.addRow(['v1040'], [data[4]])
        double supportRevenue = data[2]
        double otherRevenue = data[5]
        double totalSupportOtherRevenue = supportRevenue + otherRevenue
        println("Pushing " + totalSupportOtherRevenue + "to Other Revenues")
        gridBuilder.addRow(['v1000:030'], [totalSupportOtherRevenue])

        DataGridBuilder.Status status = new DataGridBuilder.Status()
        grid = gridBuilder.build(status)
        println("Total number of cells accepted: $status.numAcceptedCells")
        println("Total number of cells rejected: $status.numRejectedCells")
        println("First 100 rejected cells: $status.cellsRejected")

        smModel.saveGrid(grid) 7
    }


    5 Iterate over the grid object and retrieve the cell values one cell at a time. Store the values in the data array.

    6 Construct the Strategic Model grid similar to how it was done in Planning. Push the cell values to the Strategic Model grid object.

    7 Save the Strategic Model grid. This checks in the model with the new values.

Adding the rule to the testing form

  1. From the Planning Home page, open the Navigator and click Forms (under Create and Manage).
  2. Expand the Library folder, and select Strategic Modeling.

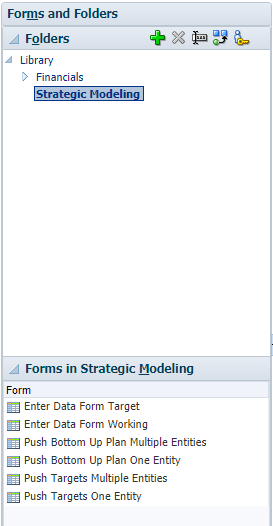

    Strategic Modeling Forms
  3. Select the Push Bottom Up Plan One Entity form, and click Edit (Edit).
  4. Select the Business Rules tab. Add the SM - Sync Bottom-Up Plan with Strategic Forecast rule to the Selected Business Rules list.

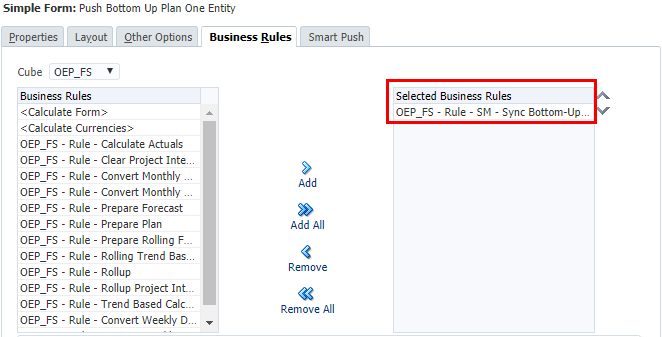

    Business Rules Tab with Sync Bottom-up rule added
  5. Click Finish to save the changes to the form.

Testing the Groovy rule

  1. From the Planning Home page, click Strategic Modeling, then select the Sync Bottom Up Plan card. Select the Sync Bottom Up Plan horizontal tab.

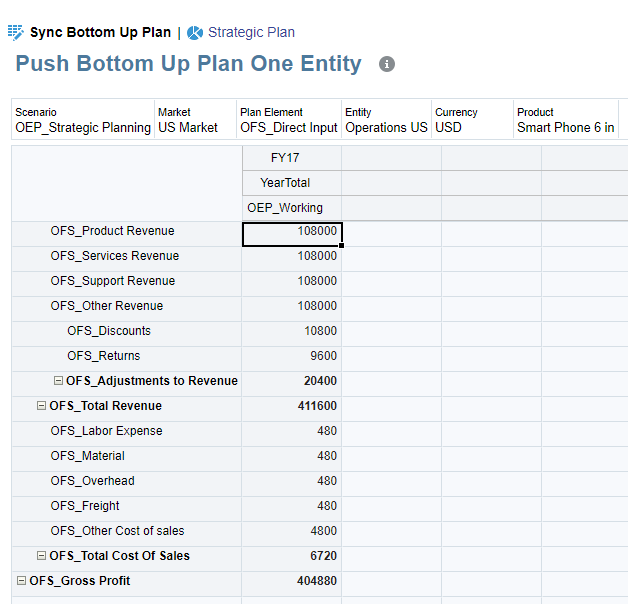

    Push Bottom Up Plan One Entity form before calculating
  2. Click Actions, then select Business Rules. Click the SM - Sync Bottom-Up Plan with Strategic Forecast rule to launch it. Click OK at the confirmation message.
  3. Select the Strategic Plan horizontal tab. In the 2017 column, verify that the data was pushed from the expected accounts (for example, OFS_Product Revenue was pushed to v1000:010 Product Sales).
    Strategic Model one entity after calculating

Adjusting targets in a bottom-up plan

In this section, you create a Groovy rule to move data from the Model Operations US East to the Planning entity Operations US East. After deploying the rule, you add it to the Planning form, then you test it in the form.

Understanding the source and target intersections

  1. The following table shows the source intersections for the Strategic Model and the target intersections for Planning:

    Strategic Modeling (Source) Planning (Target)
    Entity: Operations US East Model: Operations US East
    POV:
    Scenario: Forecast





    POV:
    Scenario: OEP_Strategic Planning
    Period: Dec
    Market: US Market
    Plan Element: OFS_Direct Input
    Currency: USD
    Version: Target
    Product: Smart Phone 6 in
    Column:
    Period: 2017, 2018
    Column:
    Years: FY17, FY18
    Rows: Accounts Rows: Accounts
    v1000:010 (Product Sales) OFS_Product Revenue
    v1000:020 (Service Revenue) OFS_Services Revenue
    v1000:030 (Other Revenues) OFS_Support Revenue
    v1020 (Discounts & Returns) OFS_Adjustments to Revenue
    v1040 (Cost of Goods Sold) OFS_Other Cost of Sales
    v1080:010 (Salary Expense) OFS_Salaries
    v1080:020 (Selling Expense) OFS_Selling Expense
    v1110 (Depreciation Expenses) OFS_Depreciation

Creating the Groovy rule

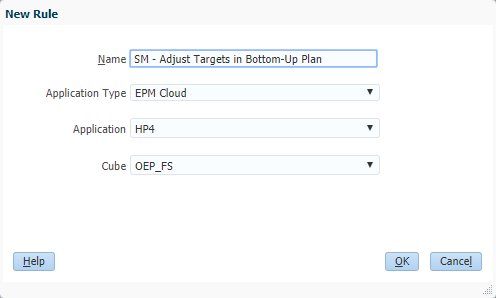

  1. Open Calculation Manager and create a rule named SM - Adjust Targets in Bottom-Up Plan in the OEP_FS cube.
    New Rule
  2. In the Rule Editor, change the Designer option to Edit Script and set the Script Type to Groovy Script.
    Rule Editor Options
  3. Copy this script and paste it into the editor:

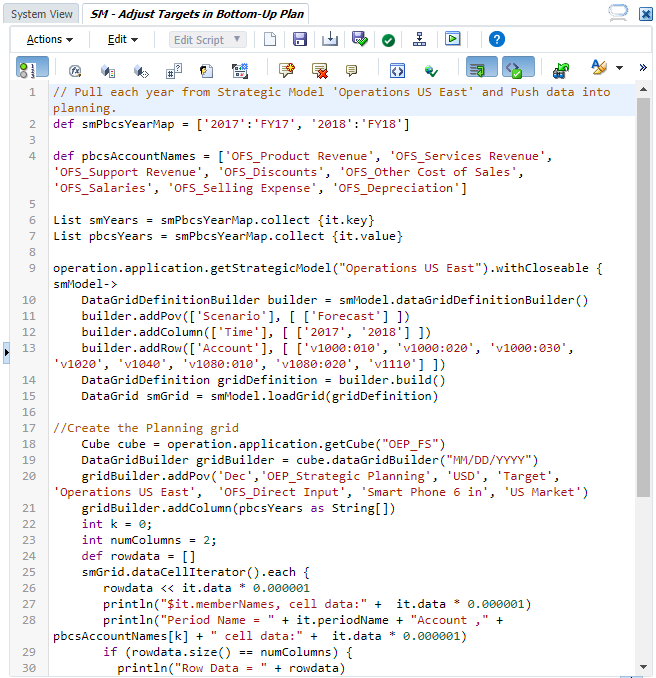

    Adjust Targets in Bottom-Up Plan in Calculation Manager
  4. On the toolbar, click Save (Save) to save the script.
  5. Click Validate and Deploy (Validate and Deploy). Click OK at the confirmation message.

Explaining the script logic

In this section, we'll describe the script logic one section at a time.

  1. Pull 2017 and 2018 from the Strategic Model Operations US East and push data into Planning.
  2. def smPbcsYearMap = ['2017':'FY17', '2018':'FY18'] 1

    def pbcsAccountNames = ['OFS_Product Revenue', 'OFS_Services Revenue', 'OFS_Support Revenue',
    'OFS_Discounts', 'OFS_Other Cost of Sales', 'OFS_Salaries', 'OFS_Selling Expense',
    'OFS_Depreciation'] 2

    List smYears = smPbcsYearMap.collect {it.key} 3
    List pbcsYears = smPbcsYearMap.collect {it.value} 4

    operation.application.getStrategicModel("Operations US East").withCloseable
    { smModel-> 5

    DataGridDefinitionBuilder builder = smModel.dataGridDefinitionBuilder() 6
        builder.addPov(['Scenario'], [ ['Forecast'] ])
        builder.addColumn(['Time'], [ ['2017', '2018'] ])
        builder.addRow(['Account'], [ ['v1000:010', 'v1000:020', 'v1000:030', 'v1020', 'v1040', 'v1080:010', 'v1080:020', 'v1110'] ])
        DataGridDefinition gridDefinition = builder.build()
        DataGrid smGrid = smModel.loadGrid(gridDefinition)



    1 Define the year dimension mappings between Strategic Modeling and Planning.

    2 Define the Planning account names where you're pushing the data.

    3 Get the list of Strategic Modeling year names from the year map defined in 1

    4 Get the list of Planning years from the year map.

    5 Construct the Strategic Model object and use the withCloseable construct. This will close the model when that block of code completes execution. This ensures that the rule does not leave the model open in memory after operations on the model are completed.

    6 Get a DataGridDefinitionBuilder for the Strategic Model. Use the builder to construct a region from which to load the data by adding the POV members, column members, and rows. Construct the grid.

  3. Create the Planning grid and close the Strategic Model.
  4. Cube cube = operation.application.getCube("OEP_FS") 7
    DataGridBuilder gridBuilder = cube.dataGridBuilder("MM/DD/YYYY")
        gridBuilder.addPov('Dec','OEP_Strategic Planning', 'USD', 'Target', 'Operations US East',  'OFS_Direct Input', 'Smart Phone 6 in', 'US Market')
        gridBuilder.addColumn(pbcsYears as String[])
        int k = 0;
        int numColumns = 2;
        def rowdata = []

        smGrid.dataCellIterator().each { 8
           rowdata << it.data * 0.000001
           println("$it.memberNames, cell data:" +  it.data * 0.000001)
           println("Period Name = " + it.periodName + "Account ," + pbcsAccountNames[k] + " cell data:" +  it.data * 0.000001)
           if (rowdata.size() == numColumns) {
           	 println("Row Data = " + rowdata)
             gridBuilder.addRow([pbcsAccountNames[k]], rowdata)
             k++
             rowdata = []
           }
        } 9
        DataGridBuilder.Status status = new DataGridBuilder.Status()
        DataGrid planningGrid = gridBuilder.build(status)
        println("Size of the grid: " + planningGrid.size())
        println("Total number of cells accepted: $status.numAcceptedCells")
        println("Total number of cells rejected: $status.numRejectedCells")
        println("First $status.numRejectedCells rejected cells: $status.cellsRejected")
        cube.saveGrid(planningGrid)
    } //close SM model. 10


    7 Get the OEP_FS Planning cube.

    8 Construct an iterator that iterates over the grid one row at a time and saves the value in a data array.

    9 Close the Strategic Modeling grid iterator.

    10 Close the Strategic Model opened in 5.

Adding the rule to the testing form

  1. From the Planning Home page, open the Navigator and click Forms (under Create and Manage).
  2. Expand the Library folder, and select Strategic Modeling.
    Strategic Modeling Forms
  3. Select the Push Targets One Entity form, and click Edit (Edit).
  4. Select the Business Rules tab. Add the SM - Adjust Targets in Bottom-Up Plan rule to the Selected Business Rules list.

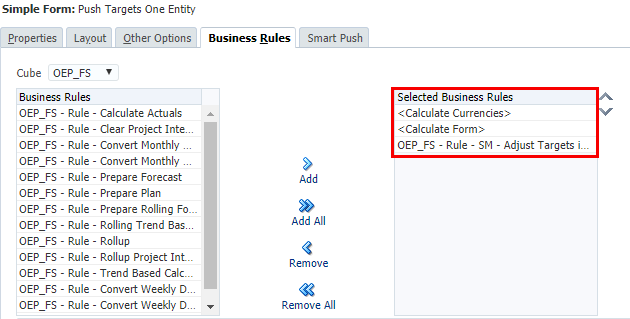

    Business Rules Tab with Adjust Targets rule added
  5. Click Finish to save the changes to the form.

Testing the Groovy rule

  1. From the Planning Home page, click Strategic Modeling, then select the Push Targets card. Select the Push Targets horizontal tab.
    Push Bottom Up Plan One Entity form before calculating
  2. Click Actions, then select Business Rules. Click the SM - Adjust Targets in Bottom-Up Plan rule to launch it. Click OK at the confirmation message.
  3. Compare the resulting data to the Strategic Model horizontal tab to verify that the data was pushed from the expected accounts (for example, v1000:010 Product Sales was pushed to OFS_Product Revenue).
    Push Targets one entity after calculating

Pushing bottom-up Planning data to Strategic Forecast for multiple entities

In this section, you create a Groovy rule to move data from multiple Planning entities to multiple Strategic Models with the same name. After deploying the rule, you add it to the Strategic Modeling form, then you test it in the form.

Understanding the source and target intersections

  1. The following table shows the source intersections for Planning and the target intersections for the Strategic Model:

    Planning (Source) Strategic Modeling (Target)
    Entity:
    Operations US East
    Operations US West
    Operations US North
    Operations US South
    Model:
    Operations US East
    Operations US West
    Operations US North
    Operations US South
    POV:
    Scenario: OEP_Strategic Planning
    Market: US Market
    Plan Element: OFS_Direct Input
    Currency: USD
    Product: Smart Phone 6 in
    POV:
    Scenario: Forecast




    Column:
    Years: FY17, FY18
    Period: YearTotal
    Version: OEP_Working
    Column:
    Period: 2017, 2018


    Rows: Accounts Rows: Accounts
    OFS_Product Revenue v1000:010 (Product Sales)
    OFS_Services Revenue v1000:020 (Service Revenue)
    OFS_Support Revenue
    OFS_Other Revenue
    v1000:030 (Other Revenues)

    OFS_Adjustments to Revenue v1020 (Discounts & Returns)
    OFS_Total Cost of Sales v1040 (Cost of Goods Sold)

Creating the Groovy rule

  1. Open Calculation Manager and create a rule named SM - Push Bottom-Up Plans for Multiple Entities in the OEP_FS cube.
    New Rule
  2. In the Rule Editor, change the Designer option to Edit Script and set the Script Type to Groovy Script.
    Rule Editor Options
  3. Copy this script and paste it into the editor:

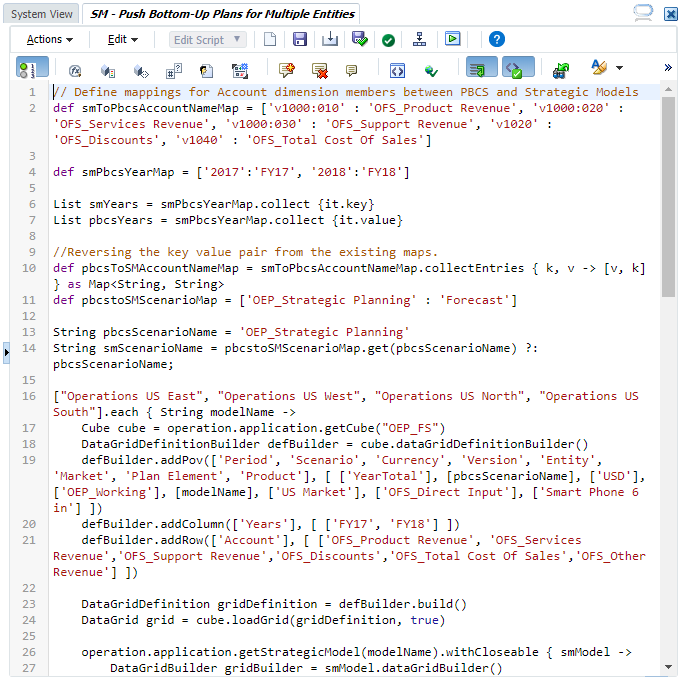

    Push Bottom-Up Plans for Multiple Entites in Calculation Manager
  4. On the toolbar, click Save (Save) to save the script.
  5. Click Validate and Deploy (Validate and Deploy). Click OK at the confirmation message.

Explaining the script logic

In this section, we'll describe the script logic one section at a time.

  1. Define mappings between Planning and Strategic Modeling.
  2. // Define mappings for Account dimension members between PBCS and Strategic Models
    def smToPbcsAccountNameMap = ['v1000:010' : 'OFS_Product Revenue', 'v1000:020' : 'OFS_Services Revenue',
    'v1000:030' : 'OFS_Support Revenue', 'v1020' : 'OFS_Discounts',
    'v1040' : 'OFS_Total Cost Of Sales'] 1

    def smPbcsYearMap = ['2017':'FY17', '2018':'FY18'] 2

    List smYears = smPbcsYearMap.collect {it.key} 3
    List pbcsYears = smPbcsYearMap.collect {it.value} 4

    //Reversing the key value pair from the existing maps.
    def pbcsToSMAccountNameMap = smToPbcsAccountNameMap.collectEntries
    { k, v -> [v, k] } as Map<String, String> 5

    def pbcstoSMScenarioMap = ['OEP_Strategic Planning' : 'Forecast']

    String pbcsScenarioName = 'OEP_Strategic Planning'
    String smScenarioName = pbcstoSMScenarioMap.get(pbcsScenarioName) ?: pbcsScenarioName; 6



    1 Define the Account mappings between Planning and Strategic Modeling.

    2 Define the Year dimension mappings between Planning and Strategic Modeling.

    3 Get the list of Strategic Modeling year names from the year map we defined in 2.

    4 Get the list of Planning years from the year map.

    5 Define the Planning to Strategic Modeling account mappings by reversing the array defined in 1. This is will be used later in the script.

    6 This line demonstrates how to get scenario names from the Scenario map. This can be extended to use multiple scenarios.

  3. Push data from Planning to Strategic Modeling.
  4. ["Operations US East", "Operations US West", "Operations US North", "Operations US South"].each
    { String modelName -> 7
        Cube cube = operation.application.getCube("OEP_FS") 8
        DataGridDefinitionBuilder defBuilder = cube.dataGridDefinitionBuilder()
        defBuilder.addPov(['Period', 'Scenario', 'Currency', 'Version', 'Entity', 'Market', 'Plan Element', 'Product'], [ ['YearTotal'], [pbcsScenarioName], ['USD'], ['OEP_Working'], [modelName], ['US Market'], ['OFS_Direct Input'], ['Smart Phone 6 in'] ])
        defBuilder.addColumn(['Years'], [ ['FY17', 'FY18'] ])
        defBuilder.addRow(['Account'], [ ['OFS_Product Revenue', 'OFS_Services Revenue','OFS_Support Revenue','OFS_Discounts','OFS_Total Cost Of Sales','OFS_Other Revenue'] ])

        DataGridDefinition gridDefinition = defBuilder.build()
        DataGrid grid = cube.loadGrid(gridDefinition, true)

        operation.application.getStrategicModel(modelName).withCloseable { smModel -> 9
            DataGridBuilder gridBuilder = smModel.dataGridBuilder()
            gridBuilder.addPov(smScenarioName)
            gridBuilder.addColumn(smYears as String[])

            double millionsScalingFactor = 0.000001

            // Push to Strategic Model
            grid.dataCellIterator('OFS_Product Revenue', 'FY17').each { 10
    			DataCell productRevenue18 = it.crossDimCell('OFS_Product Revenue', 'FY18')
                gridBuilder.addRow([pbcsToSMAccountNameMap[it.accountName]], [it.data /
                millionsScalingFactor, productRevenue18.data / millionsScalingFactor])
                println(it.yearName + ", " + pbcsToSMAccountNameMap[it.accountName] + ", " +
                it.data / millionsScalingFactor + ", " + productRevenue18.data / millionsScalingFactor)

                DataCell servicesRevenue = it.crossDimCell('OFS_Services Revenue', 'FY17') 11
                DataCell servicesRevenue18 = it.crossDimCell('OFS_Services Revenue', 'FY18')
                gridBuilder.addRow([pbcsToSMAccountNameMap[servicesRevenue.accountName]], [servicesRevenue.data / millionsScalingFactor, servicesRevenue18.data / millionsScalingFactor])
                println(it.yearName + ", " + pbcsToSMAccountNameMap[servicesRevenue.accountName] + ", " + servicesRevenue.data / millionsScalingFactor + ", " + servicesRevenue18.data / millionsScalingFactor)

                DataCell adjRevenue = it.crossDimCell('OFS_Discounts', 'FY17')
                DataCell adjRevenue18 = it.crossDimCell('OFS_Discounts', 'FY18')
                gridBuilder.addRow([pbcsToSMAccountNameMap[adjRevenue.accountName]], [adjRevenue.data / millionsScalingFactor, adjRevenue18.data / millionsScalingFactor])
                println(it.yearName + ", " + pbcsToSMAccountNameMap[adjRevenue.accountName] + ", " + adjRevenue.data / millionsScalingFactor + ", " + adjRevenue18.data / millionsScalingFactor)

                DataCell cosRevenue = it.crossDimCell('OFS_Total Cost Of Sales', 'FY17')
                DataCell cosRevenue18 = it.crossDimCell('OFS_Total Cost Of Sales', 'FY18')
                gridBuilder.addRow([pbcsToSMAccountNameMap[cosRevenue.accountName]], [cosRevenue.data / millionsScalingFactor, cosRevenue18.data / millionsScalingFactor])
                println(it.yearName + ", " + cosRevenue.accountName + ": " + pbcsToSMAccountNameMap[cosRevenue.accountName] + ", " + cosRevenue.data / millionsScalingFactor  + ", " + cosRevenue18.data / millionsScalingFactor)

                DataCell supportRevenue = it.crossDimCell('OFS_Support Revenue', 'FY17')
                DataCell otherRevenue = it.crossDimCell('OFS_Other Revenue', 'FY17')
                DataCell supportRevenue18 = it.crossDimCell('OFS_Support Revenue', 'FY18')
                DataCell otherRevenue18 = it.crossDimCell('OFS_Other Revenue', 'FY18')
                def totalRev17 = (supportRevenue.data / millionsScalingFactor) + (otherRevenue.data / millionsScalingFactor)
                def totalRev18 = (supportRevenue18.data / millionsScalingFactor) + (otherRevenue18.data / millionsScalingFactor)
                gridBuilder.addRow([pbcsToSMAccountNameMap[supportRevenue.accountName]], [totalRev17, totalRev18])
                println(it.yearName + ", " +  pbcsToSMAccountNameMap[supportRevenue.accountName] + ", " + totalRev17 + "," + totalRev18)
            }

            DataGridBuilder.Status status = new DataGridBuilder.Status() 12
            gridBuilder.build(status).withCloseable { smGrid ->
                println("Total number of cells accepted: $status.numAcceptedCells")
                println("Total number of cells rejected: $status.numRejectedCells")
                println("First 10 rejected cells: $status.cellsRejected")
                smModel.saveGrid(smGrid)
            }


    7 Iterate over multiple models using the withCloseable construct when getting the model name. The block of code within braces will be executed for each model in the array.

    8 Construct the Planning grid to retrieve values which will be pushed to the Model.

    9 For each Strategic Model, create the DataGridBuilder which will be used to construct the Strategic Modeling grid.

    10 Construct an iterator that iterates over all data cells containing the “OFS_Product Revenue” member in the current input grid.

    11 Cross dim into each of the Accounts in the grid and retrieve the value. Call the addRow method on the Strategic Modeling DataGridBuilder for each Account to add a row to the Strategic Modeling grid.

    12 Create the Strategic Modeling grid and save the grid to check in the Model with the new data values pushed from Planning.

Adding the rule to the testing form

  1. From the Planning Home page, open the Navigator and click Forms (under Create and Manage).
  2. Expand the Library folder, and select Strategic Modeling.
    Strategic Modeling Forms
  3. Select the Push Bottom Up Plan Multiple Entities form, and click Edit (Edit).
  4. Select the Business Rules tab. Add the SM - Push Bottom-Up Plans for Multiple Entities rule to the Selected Business Rules list.

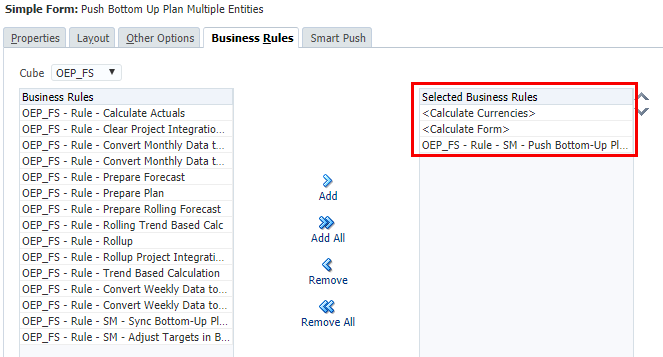

    Business Rules Tab with Push Bottom-up Plans rule added
  5. Click Finish to save the changes to the form.

Testing the Groovy rule

  1. From the Planning Home page, click Strategic Modeling, then select the Push Bottom Up Plan Multi card. Select the Push Bottom Up Plan Multi Entity horizontal tab.
    Push Bottom Up Plan Multi Entity form before calculating
  2. Click Actions, then select Business Rules. Click the SM - Push Bottom-Up Plans for Multiple Entities rule to launch it. Click OK at the confirmation message.
  3. Select the US Operations East horizontal tab. In the 2017 and 2018 columns, verify that the data was pushed from the expected accounts (for example, OFS_Product Revenue was pushed to v1000:010 Product Sales).

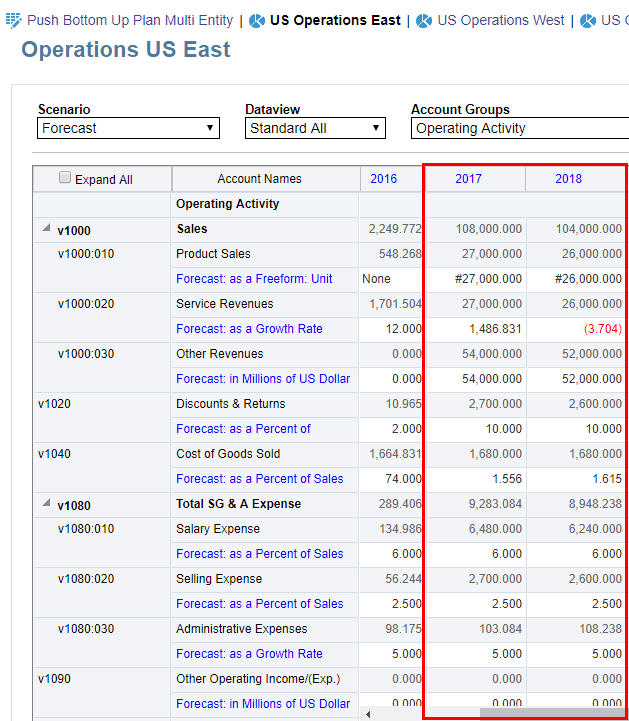

    US Operations East Strategic Model after calculating
  4. Repeat the verification for each of the remaining Strategic Model tabs: US Operations West, US Operations North, and US Operations South.

Pushing multiple Strategic Models to multiple Planning entities

In this section, you create a Groovy rule to move data from multiple Strategic Models to Planning entities with the same name. After deploying the rule, you add it to the Planning form, then you test it in the form.

Understanding the source and target intersections

  1. The following table shows the source intersections for the Strategic Model and the target intersections for Planning:

    Strategic Modeling (Source) Planning (Target)
    Model:
    Operations US East
    Operations US West
    Operations US North
    Operations US South
    Entity:
    Operations US East
    Operations US West
    Operations US North
    Operations US South
    POV:
    Scenario: Forecast





    POV:
    Scenario: OEP_Strategic Planning
    Market: US Market
    Plan Element: OFS_Direct Input
    Currency: USD
    Version: Target
    Product: Smart Phone 6 in
    Column:
    Period: 2017, 2018

    Column:
    Years: FY17, FY18
    Period: Dec
    Rows: Accounts Rows: Accounts
    v1000:010 (Product Sales) OFS_Product Revenue
    v1000:020 (Service Revenue) OFS_Services Revenue
    v1000:030 (Other Revenues) OFS_Support Revenue
    v1020 (Discounts & Returns) OFS_Adjustments to Revenue
    v1040 (Cost of Goods Sold) OFS_Other Cost of Sales
    v1080:010 (Salary Expense) OFS_Salaries
    v1080:020 (Selling Expense) OFS_Selling Expense
    v1110 (Depreciation Expenses) OFS_Depreciation

Creating the Groovy rule

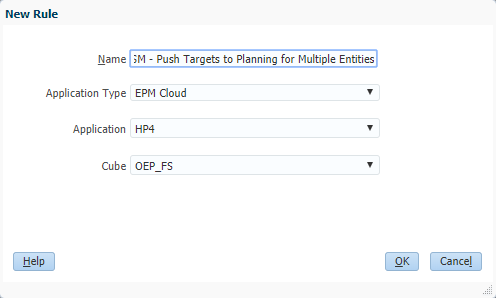

  1. Open Calculation Manager and create a rule named SM - Push Targets to Planning for Multiple Entities in the OEP_FS cube.
    New Rule
  2. In the Rule Editor, change the Designer option to Edit Script and set the Script Type to Groovy Script.
    Rule Editor Options
  3. Copy this script and paste it into the editor:
    Push Targets to Planning for Multiple Entities in Calculation Manager
  4. On the toolbar, click Save (Save) to save the script.
  5. Click Validate and Deploy (Validate and Deploy). Click OK at the confirmation message.

Explaining the script logic

In this section, we'll describe the script logic one section at a time.

  1. Define the mappings between Strategic Modeling and Planning.
  2. // Define mappings for Account dimension members between PBCS and Strategic Models
    def smToPbcsAccountNameMap = ['v1000:010' : 'OFS_Product Revenue',
    'v1000:020' : 'OFS_Services Revenue', 'v1000:030' : 'OFS_Support Revenue',
    'v1020' : 'OFS_Discounts', 'v1040' : 'OFS_Other Cost of sales',
    'v1080:010' : 'OFS_Salaries', 'v1080:020' : 'OFS_Selling Expense',
    'v1110' : 'OFS_Depreciation'] 1

    def smToPbcsScenarioNameMap = ['Forecast' : 'Target'] 2
    def smPbcsYearMap = ['2017':'FY17', '2018':'FY18'] 3



    1 Define the Account mappings between Strategic Modeling and Planning.

    2 Define the Scenario dimension mappings between Strategic Modeling and Planning.

    3 Define the Year dimension mappings between Strategic Modeling and Planning.

  3. Load data from Strategic Models to Planning entities.
  4. ["Operations US East", "Operations US West", "Operations US North",
    "Operations US South"].each { String modelName -> 4
        def pbcsEntityName = modelName
        operation.application.getStrategicModel(modelName).withCloseable { smModel ->
            String smScenarioName = 'Forecast' 5
            def pbcsScenarioName = smToPbcsScenarioNameMap.get(smScenarioName) ?: smScenarioName

            DataGridDefinitionBuilder builder = smModel.dataGridDefinitionBuilder()
            builder.addPov(['Scenario'], [ [smScenarioName] ])
            builder.addColumn(['Time'], [ smYears ])
            println("SM Scenario Name: " + smScenarioName)
            println("Time: " + smYears)
            println("Accounts: " + smToPbcsAccountNameMap.collect {"""\"$it.key\""""})
            builder.addRow(['Account'], [ ['v1000:010', 'v1000:020', 'v1000:030', 'v1020',
            'v1040', 'v1080:010', 'v1080:020', 'v1110'] ]) 6

            DataGridDefinition gridDefinition = builder.build()
            DataGrid smGrid = smModel.loadGrid(gridDefinition);

            // Construct Planning grid
            Cube cube = operation.application.getCube("OEP_FS") 7
            DataGridBuilder gridBuilder = cube.dataGridBuilder("MM/DD/YYYY")
            gridBuilder.addPov('Dec','OEP_Strategic Planning', 'USD', pbcsScenarioName, pbcsEntityName,  'OFS_Direct Input', 'Smart Phone 6 in', 'US Market')
            gridBuilder.addColumn(pbcsYears as String[])

            def numDataCols = 2;
            def rowData = []
            smGrid.dataCellIterator().each { 8
                rowData << it.data * 0.000001
                if (rowData.size() == numDataCols) {
                    def pbcsAccountName = smToPbcsAccountNameMap[it.accountName] ?: it.accountName
                    println "${it.memberNames}: $rowData"
                    gridBuilder.addRow([ pbcsAccountName], rowData)
                    rowData = []
                }
            }

    		smGrid.close()

            DataGridBuilder.Status status = new DataGridBuilder.Status() 9
            gridBuilder.build(status).withCloseable { DataGrid pbcsGrid ->
                println("Total number of cells accepted: $status.numAcceptedCells")
                println("Total number of cells rejected: $status.numRejectedCells")
                println("First 100 rejected cells: $status.cellsRejected")
                cube.saveGrid(pbcsGrid)
            }
        }// withCloseable
    }// for each model


    4 Iterate over multiple models using the withCloseable construct when getting the model name. The block of code within braces will be executed for each model in the array.

    5 Define the Scenario name.

    6 Create the Strategic Modeling grid for each of the models.

    7 Construct the Planning grid.

    8 Iterate over the Strategic Modeling grid to retrieve data values and addRow on the Planning grid.

    9 Create the Planning grid and save the grid with values pushed from Strategic Modeling.

Adding the rule to the testing form

  1. From the Planning Home page, open the Navigator and click Forms (under Create and Manage).
  2. Expand the Library folder, and select Strategic Modeling.
    Strategic Modeling Forms
  3. Select the Push Targets Multiple Entities form, and click Edit (Edit).
  4. Select the Business Rules tab. Add the SM - Push Targets to Planning for Multiple Entities rule to the Selected Business Rules list.
    Business Rules Tab with Push Targets to Planning for Multiple Entities rule added
  5. Click Finish to save the changes to the form.

Testing the Groovy rule

  1. From the Planning Home page, click Strategic Modeling, then select the Push Targets Multi Entity card. Select the Push Targets Multi Entity horizontal tab.

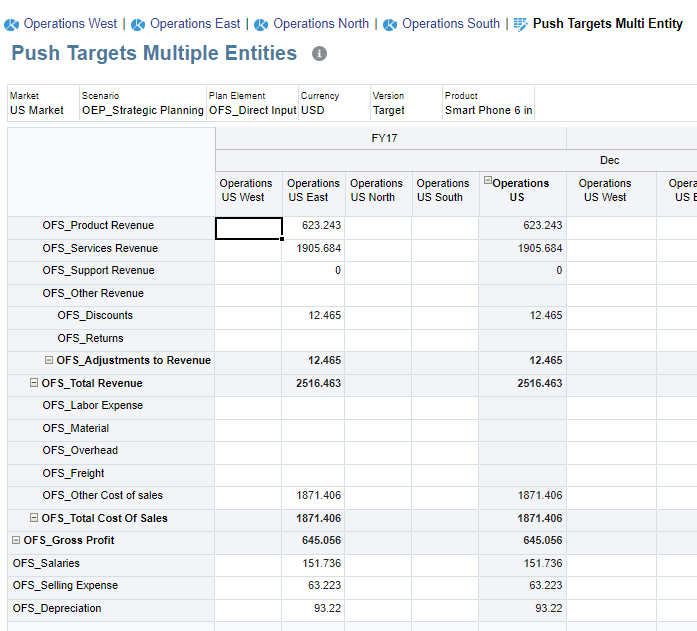

    Push Targets Multiple Entities form before calculating

    Notice that there is already data in Operations US East, which was pushed from Strategic Modeling when you ran the SM - Adjust Targets in Bottom-Up Plan rule earlier.

  2. Click Actions, then select Business Rules. Click the SM - Push Targets to Planning for Multiple Entities rule to launch it. Click OK at the confirmation message.
  3. Compare the resulting data in the form to the data in the Strategic Modeling horizontal tabs (Operations West, Operations East, Operations North, and Operations South) to verify that the data was pushed from the expected accounts (for example, v1000:010 Product Sales was pushed to OFS_Product Revenue).

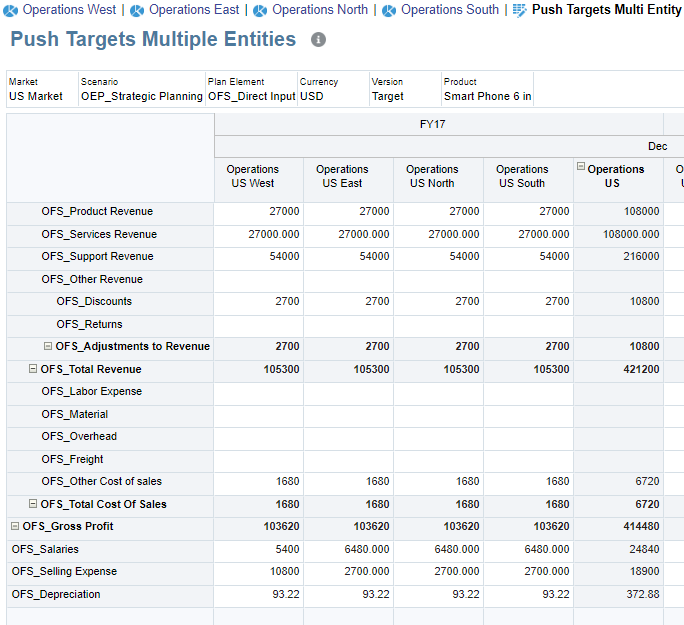

    Push Targets Multiple Entities form after calculating

Want to learn more?



Copyright © 1995, 2020, Oracle and/or its affiliates.
