Auditing with Unified Auditing

Overview

Purpose

This tutorial covers how to audit operations of all RDBMS and other components like RMAN, Oracle Data Pump using the new 12c Unified Auditing feature, consolidating all audit trails into a single unified audit trail table.

Time to Complete

Approximately 30 minutes

Introduction

The unified auditing facility addresses the following challenges:

Simplicity

Grouping audit options into a simple audit policy
Allowing simpler action-based audit configurations
Setting condition-based audit configurations
Exempting users from being audited

Consolidation

Merging all audit trails into a single unified audit trail table

Security

Relying on a read-only audit trail table
Auditing any operation related to audit configuration
Auditing any SYS user auditable action
Separating audit administration duties with audit administration roles, AUDIT_ADMIN and AUDIT_VIEWER

Performance

Negligible overhead using System Global Area (SGA) queues for accumulating audit records

Scenario

In this tutorial, you perform the following:

Use the mixed auditing mode.
Enable the unified auditing mode.
Audit RMAN operations like backup, restore and recover.
Audit Oracle Data Pump operations like export and import.
Create audit policies to audit privileges, actions and roles under defined conditions.
Use data dictionary views to display the audit policies and the audited data.
Disable audit policies.
Clean up audit data.

Prerequisites

Before starting this tutorial, you should:

Ensure that Oracle Database 12c is installed.
A database is started.

Using Mixed Auditing Mode

In this topic, you will use the mixed auditing mode.

When a database is upgraded from a previous release, before you decide to switch to the unified auditing mode, you can use the mixed mode by creating a policy with CREATE AUDIT POLICY command and then enabling it with AUDIT command. If you do not wish to create a new policy, you can simply enable one of the predefined policies - ORA_SECURECONFIG or ORA_ACCOUNT_MGMT or ORA_DATABASE_PARAMETER. Either of this puts the database is mixed auditing mode. The old audit syntax continues to work and the old audit destinations continues to be written to.
When a database is created, mixed auditing mode is used by default through the predefined enabled policy ORA_SECURECONFIG. But unified auditing mode is not yet enabled.

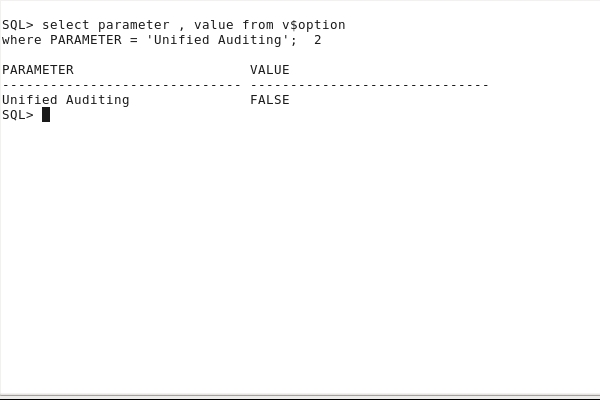

Verify that unified auditing is not enabled by default. A new database orcl has been recently created.

Check the existence of the predefined ORA_SECURECONFIG audit policy.

col POLICY_NAME format A20
col AUDIT_OPTION format A40
set PAGES 100
select POLICY_NAME, AUDIT_OPTION
from AUDIT_UNIFIED_POLICIES
where policy_name = 'ORA_SECURECONFIG' order by 2 ;

Verify that the predefined ORA_SECURECONFIG audit policy is enabled by default.

Verify all AUDIT parameters at instance level.

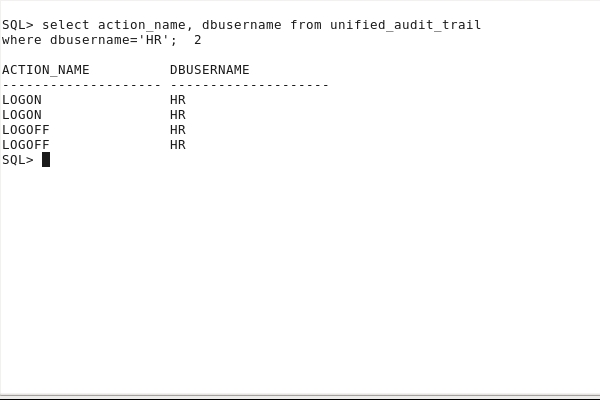

Is user connection still audited? Verify that audit data is recorded as it is in an 11g Oracle Database although the CREATE SESSION privilege is only audited for LBACSYS, DVSYS and DVF users.

Enabling the Unified Auditing Mode

In this topic, you enable the unified auditing mode.

Stop all Oracle processes: databases, listener and Enterprise Manager.

shutdown immediate
exit

ps -ef | grep pmon

. oraenv

[enter cdb1 at the prompt]

sqlplus / as sysdba
shutdown immediate
exit

lsnrctl stop

cd /u01/app/oracle/product/middleware/oms
export OMS_HOME=/u01/app/oracle/product/middleware/oms
$OMS_HOME/bin/emctl stop oms

. oraenv

[enter emrep at the prompt]

sqlplus / as sysdba
shutdown immediate
exit

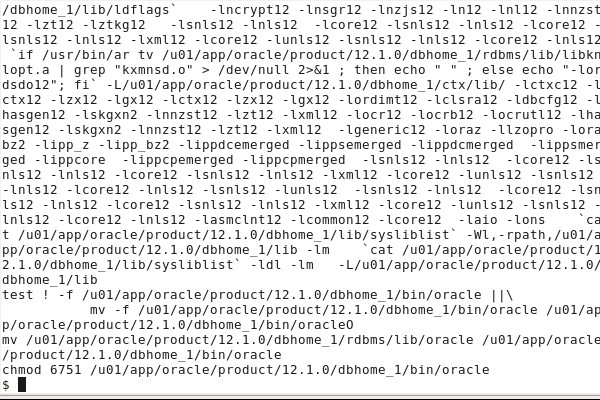

Relink Oracle with the uniaud_on option.

cd $ORACLE_HOME/rdbms/lib
make -f ins_rdbms.mk uniaud_on ioracle

Restart all Oracle processes: Enterprise Manager, listener, databases.For the purpose of the demonstration, only the orcl database instance needs to be started and the listener.

. oraenv

[enter orcl at the prompt]

sqlplus / as sysdba
startup
exit

lsnrctl start

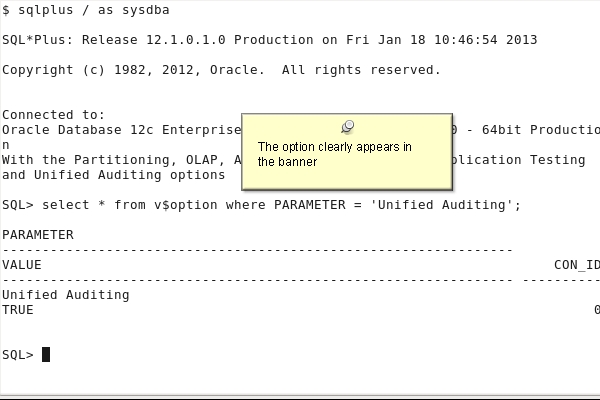

Verify that unified auditing is now enabled.

Auditing RMAN and Oracle Data Pump Operations

In this topic, you audit Oracle Data Pump and Recovery Manager operations.

Oracle Data Pump Auditing

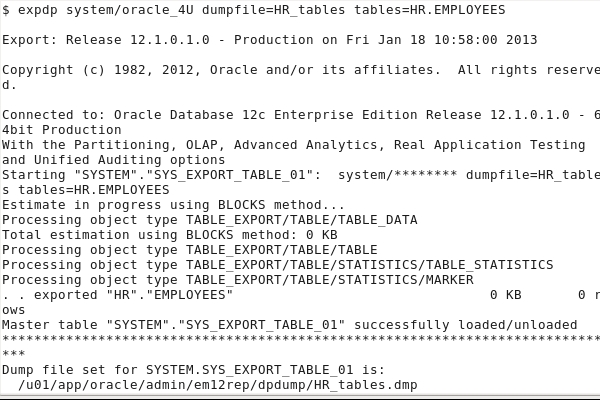

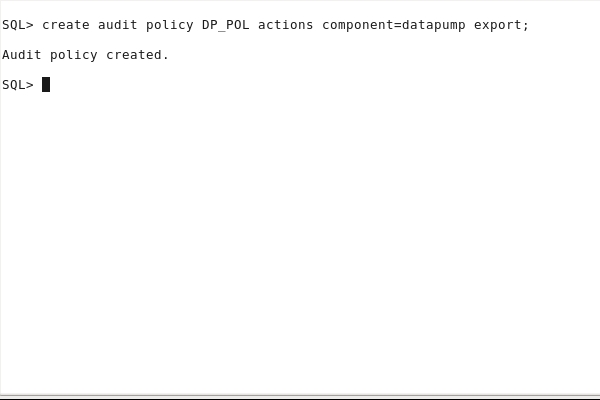

Create a DP_POL for the Oracle Data Pump component , and more specifically for export operations.

create audit policy DP_POL actions component=datapump export;

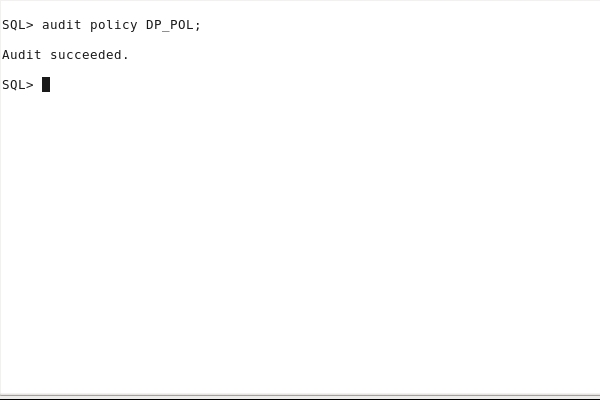

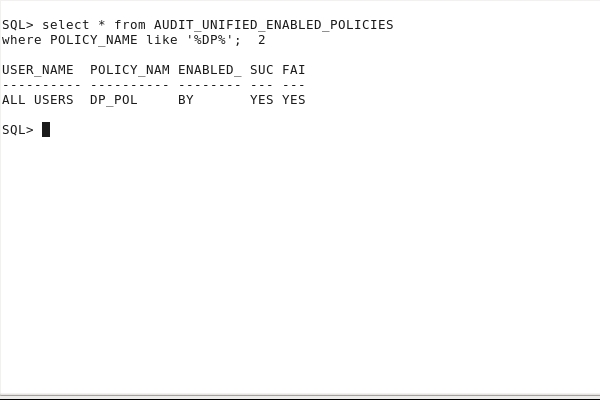

Verify that the audit policy is enabled.

If the audited data is still in memory, you cannot see it. We do not want to wait until the background process flushes the data to disk.

EXEC SYS.DBMS_AUDIT_MGMT.FLUSH_UNIFIED_AUDIT_TRAIL

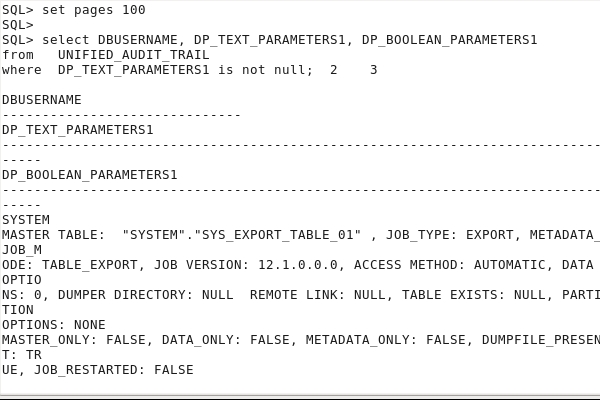

Now you can view the resulting audit data.

select DBUSERNAME, DP_TEXT_PARAMETERS1, DP_BOOLEAN_PARAMETERS1
from UNIFIED_AUDIT_TRAIL
where DP_TEXT_PARAMETERS1 is not null;

exit

RMAN Auditing

You want to audit Recovery Manager backup, restore and recover operations.You do not have to create any audit policy for RMAN operations. RMAN is audited by default.

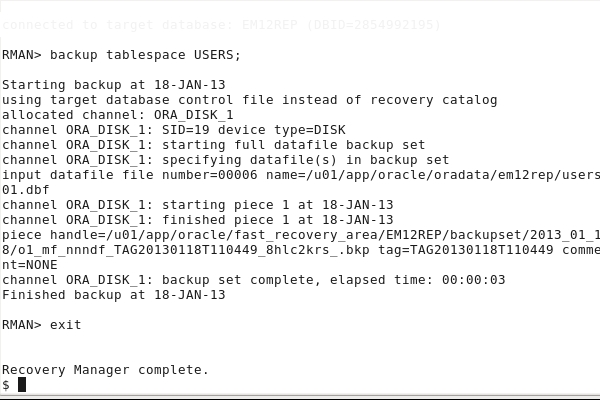

Backup any of the tablespaces of the database.

rman target /
backup tablespace USERS;

exit;

Remove the USERS tablespace datafile.

sqlplus / as sysdba
select file_name from dba_data_files where tablespace_name='USERS';
!rm /u01/app/oracle/oradata/em12rep/users01.dbf

alter tablespace users offline immediate;
exit

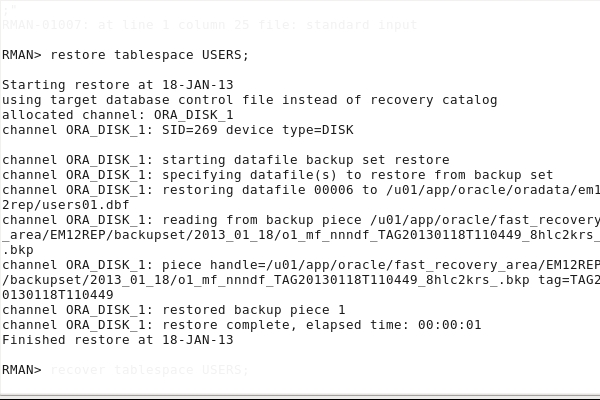

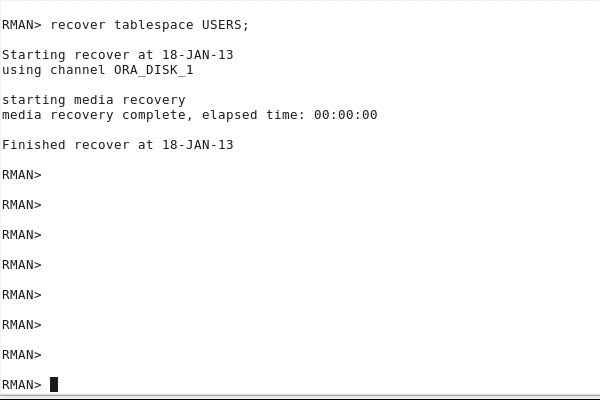

Restore and recover the USERS tablespace datafile.
rman target /
restore tablespace USERS;

recover tablespace USERS;

exit;

If the audited data is still in memory, you cannot see it. We do not want to wait until the background process flushes the data to disk.

exec SYS.DBMS_AUDIT_MGMT.FLUSH_UNIFIED_AUDIT_TRAIL

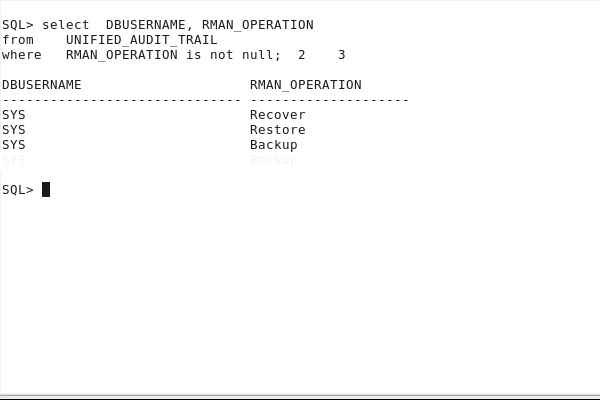

Now you can view the resulting audit data.

select DBUSERNAME, RMAN_OPERATION
from UNIFIED_AUDIT_TRAIL
where RMAN_OPERATION is not null;

Creating Audit Policies to Audit Privileges, Actions and Roles

Creating a Privilege Audit Policy

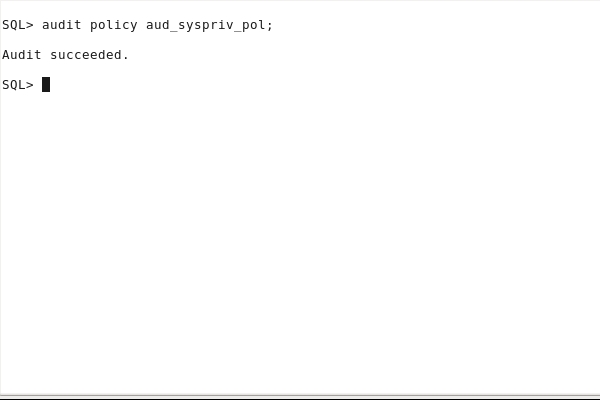

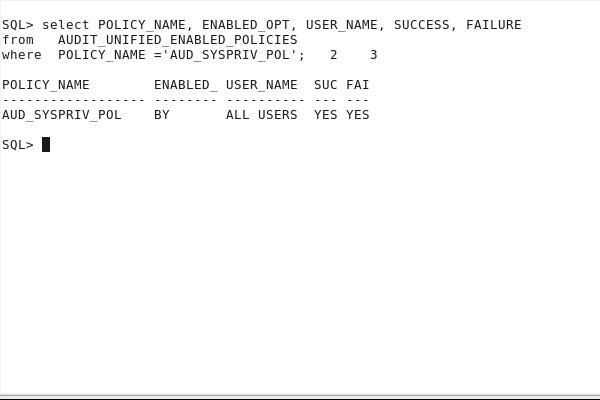

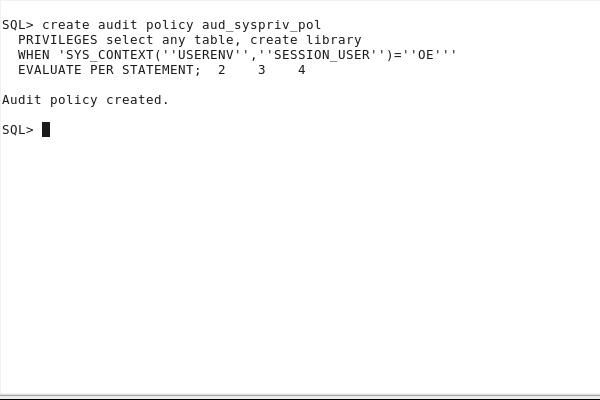

Create an audit policy that will audit the user OE using the SELECT ANY TABLE or CREATE LIBRARY system privileges and this for each statement executed. Grant the SELECT ANY TABLE to the user OE.

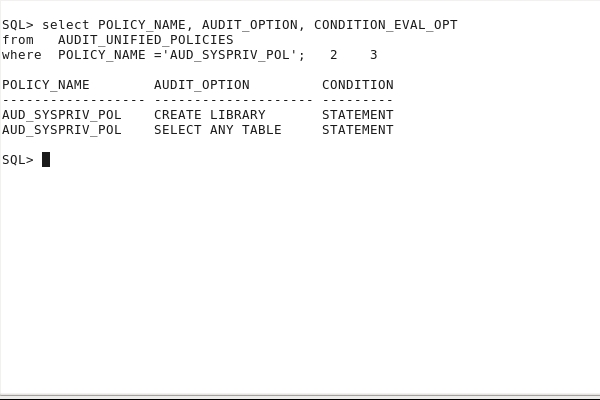

create audit policy aud_syspriv_pol
PRIVILEGES select any table, create library
WHEN 'SYS_CONTEXT(''USERENV'',''SESSION_USER'')=''OE'''
EVALUATE PER STATEMENT;

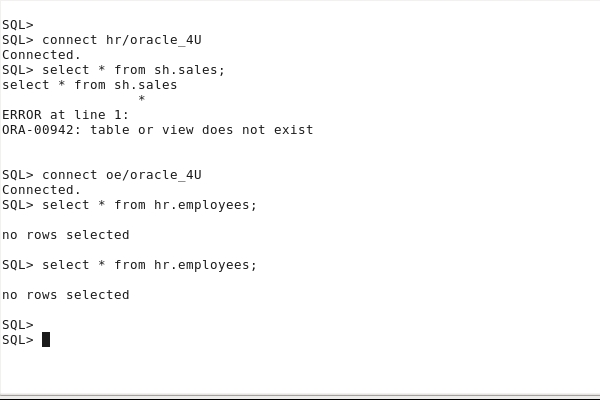

grant SELECT ANY TABLE to oe;

If the audited data is still in memory, you cannot see it. We do not want to wait until the background process flushes the data to disk.

exec SYS.DBMS_AUDIT_MGMT.FLUSH_UNIFIED_AUDIT_TRAIL

Now you can view the resulting audit data.

select DBUSERNAME, ACTION_NAME, SYSTEM_PRIVILEGE_USED
from unified_audit_trail
where DBUSERNAME in ('HR','OE');

Creating an Action Audit Policy

Create an audit policy that will audit any user performing any select or update operation on any object using an object or system privilege, or deleting rows from the HR.EMPLOYEES table.

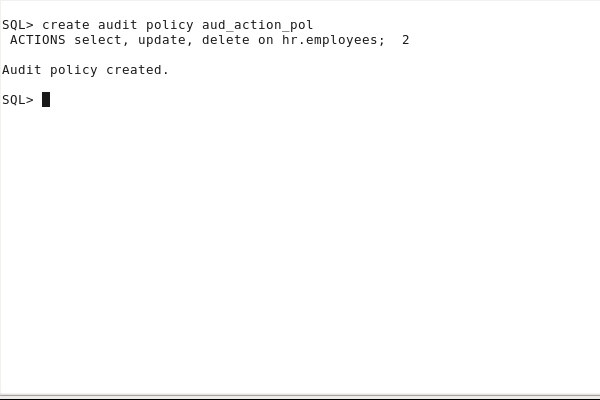

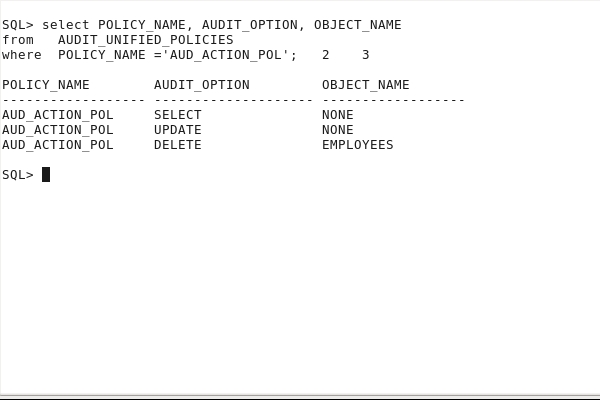

create audit policy aud_action_pol
ACTIONS select, update, delete on hr.employees;

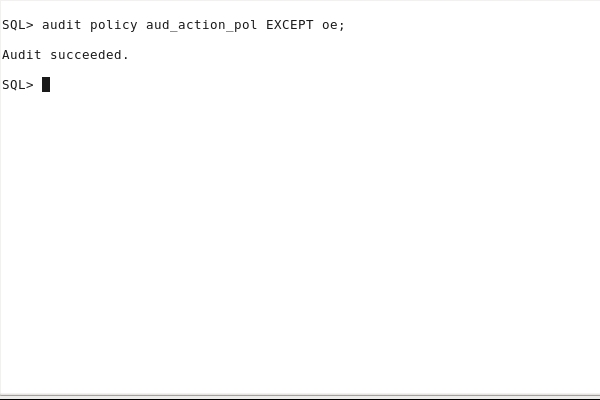

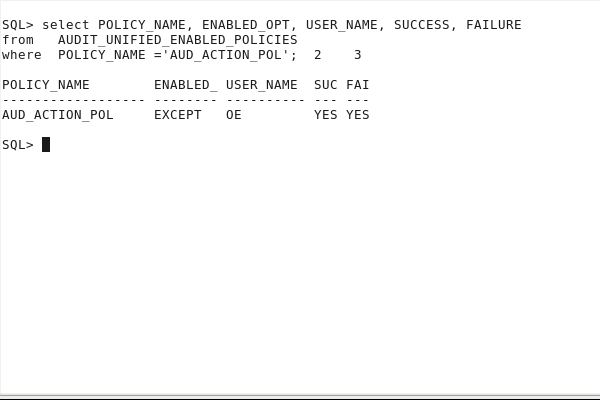

Enable the audit policy for all users except OE.

Perform an audited operation. First create a new user DEV and grant appropriate privileges to DEV to execute operations.

If the audited data is still in memory, you cannot see it. We do not want to wait until the background process flushes the data to disk.

exec SYS.DBMS_AUDIT_MGMT.FLUSH_UNIFIED_AUDIT_TRAIL

Now you can view the resulting audit data.

select UNIFIED_AUDIT_POLICIES, DBUSERNAME, ACTION_NAME,
       SYSTEM_PRIVILEGE_USED,
       to_char(EVENT_TIMESTAMP,'DD-MON-YY HH:MI') "DATE"
from unified_audit_trail
where DBUSERNAME in ('DEV','OE')
and    ACTION_NAME not in ('LOGON', 'LOGOFF')
order by 4;

Creating a Role Audit Policy

Create an audit policy that will audit all users while using the MGR_ROLE role.

create user JIM identified by oracle_4U;

create role MGR_ROLE;
grant create tablespace to MGR_ROLE;
grant MGR_ROLE, create session to JIM;

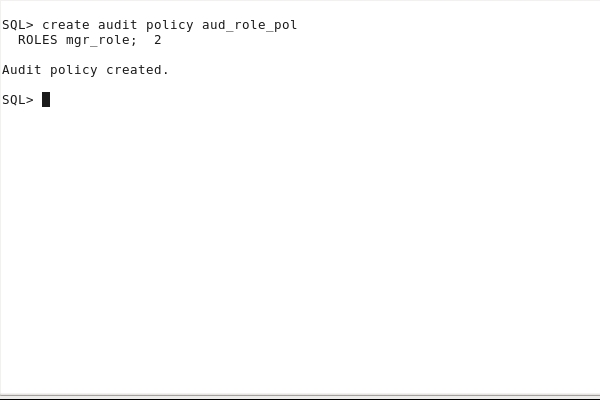

create audit policy aud_role_pol
ROLES mgr_role;

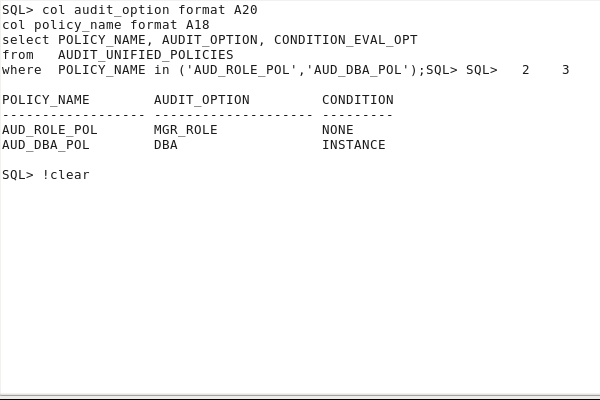

Create an audit policy that will audit all users as soon as these users use the DBA role. Create a DBA_JUNIOR user granted the DBA role.

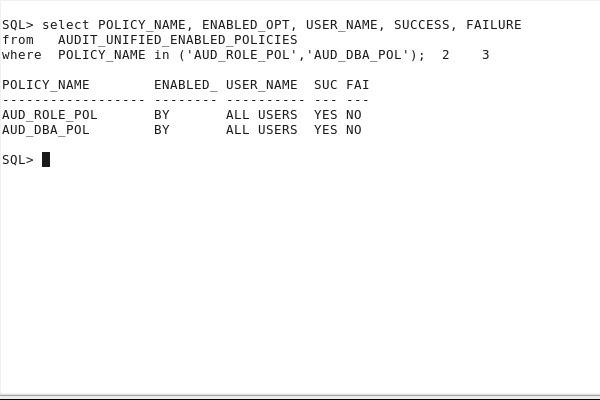

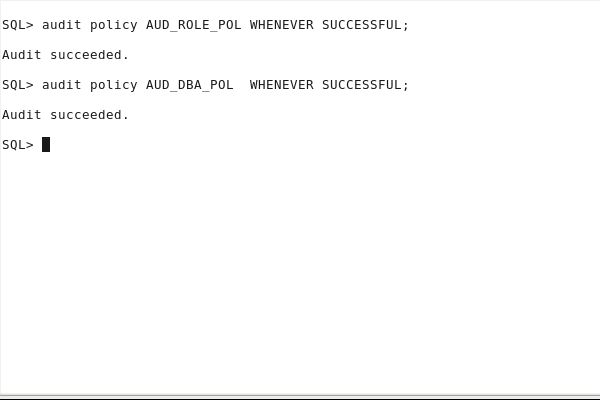

Enable the audit policies whenever the execution completed successfully only.

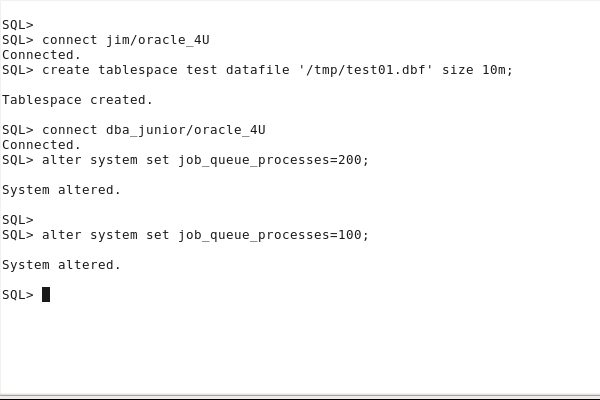

Perform an audited operation for both role type audited policies.

If the audited data is still in memory, flush the data to disk.

exec SYS.DBMS_AUDIT_MGMT.FLUSH_UNIFIED_AUDIT_TRAIL

Now you can view the resulting audit data.

select UNIFIED_AUDIT_POLICIES, DBUSERNAME,
       ACTION_NAME, SYSTEM_PRIVILEGE_USED
from unified_audit_trail
where DBUSERNAME in ('JIM','DBA_JUNIOR')
and    ACTION_NAME not in ('LOGON', 'LOGOFF')
and    (UNIFIED_AUDIT_POLICIES like '%AUD_ROLE_POL%'
        or UNIFIED_AUDIT_POLICIES like '%AUD_DBA_POL%');

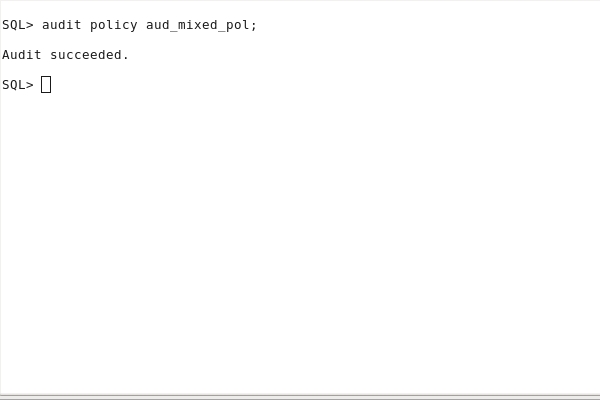

Creating a Mixed Audit Policy

Create an audit policy that will audit all users while using the STORAGE_ROLE role or performing any action related to tables.

create role storage_role;
grant drop tablespace to storage_role;
grant storage_role to dev;

grant drop any table to jim;

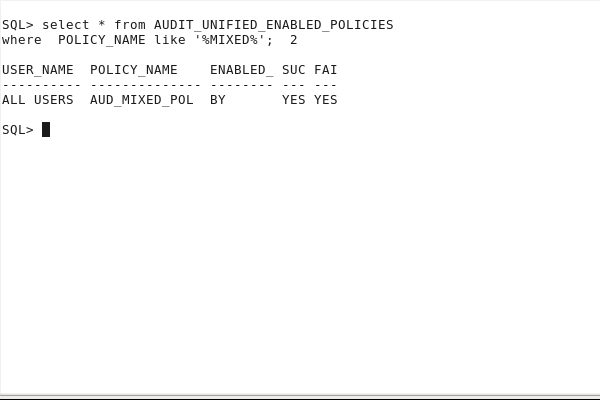

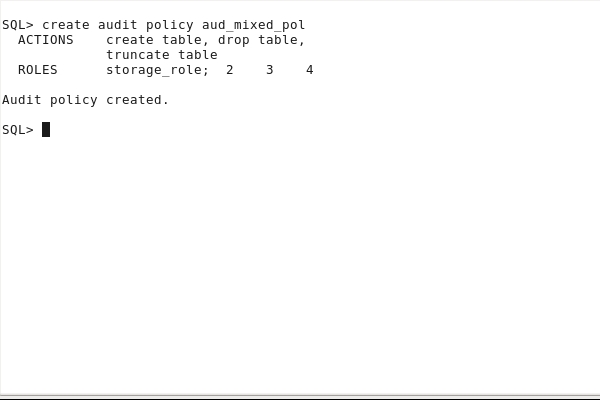

create audit policy aud_mixed_pol
ACTIONS    create table, drop table,
             truncate table
ROLES      storage_role;

If the audited data is still in memory, flush the data to disk.

exec SYS.DBMS_AUDIT_MGMT.FLUSH_UNIFIED_AUDIT_TRAIL

Now you can view the resulting audit data.

sqlplus system/oracle_4U

col action_name format A16
col policy_name format A18
col role format A10
col system_privilege_used format A20
select UNIFIED_AUDIT_POLICIES, DBUSERNAME,
       ACTION_NAME, SYSTEM_PRIVILEGE_USED
from unified_audit_trail
where DBUSERNAME in ('JIM','DEV')
and    UNIFIED_AUDIT_POLICIES like '%AUD_MIXED_POL%'
and    ACTION_NAME not in ('LOGON', 'LOGOFF');

Disabling and Deleting Audit Policies

In this topic, you disable audit policies without dropping them, and then you drop audit policies.

Display the list of enabled audit policies.

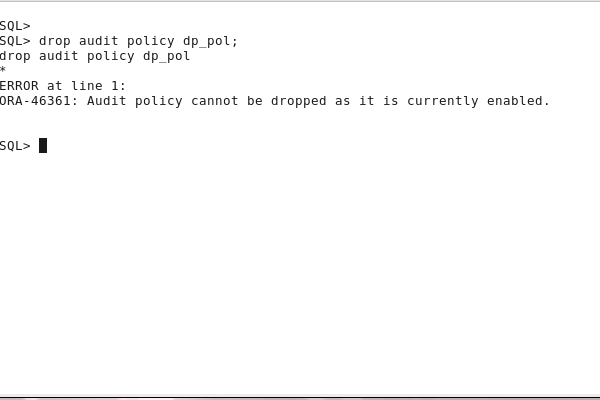

Drop the DP_POL audit policy. You will see that an audit policy can only be dropped after being disabled.

drop audit policy dp_pol;

noaudit policy dp_pol;
drop audit policy dp_pol;
select * from AUDIT_UNIFIED_ENABLED_POLICIES;

Performing Audit Data Cleanup

In this topic, you clean up all audited data from AUDSYS tables stored in SYSAUX tablespace.

You can perform the cleanup manually.

select count(*) from unified_audit_trail;

exec DBMS_AUDIT_MGMT.SET_LAST_ARCHIVE_TIMESTAMP ( -
     AUDIT_TRAIL_TYPE => DBMS_AUDIT_MGMT.AUDIT_TRAIL_UNIFIED, -
     LAST_ARCHIVE_TIME => sysdate)

exec DBMS_AUDIT_MGMT.CLEAN_AUDIT_TRAIL( -
     AUDIT_TRAIL_TYPE        => DBMS_AUDIT_MGMT.AUDIT_TRAIL_UNIFIED, -
     USE_LAST_ARCH_TIMESTAMP => TRUE)

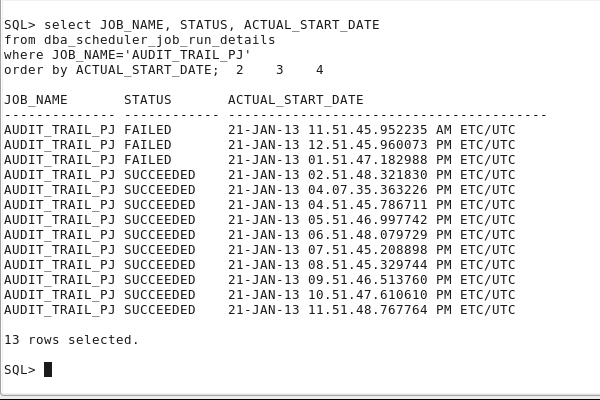

You can also schedule the cleanup.

exec DBMS_AUDIT_MGMT.SET_LAST_ARCHIVE_TIMESTAMP ( -
     AUDIT_TRAIL_TYPE = DBMS_AUDIT_MGMT.AUDIT_TRAIL_UNIFIED, -
     LAST_ARCHIVE_TIME = sysdate)

exec DBMS_AUDIT_MGMT.CREATE_PURGE_JOB (-
     AUDIT_TRAIL_TYPE = DBMS_AUDIT_MGMT.AUDIT_TRAIL_UNIFIED, -
     AUDIT_TRAIL_PURGE_INTERVAL = 1, -
     AUDIT_TRAIL_PURGE_NAME = 'Audit_Trail_PJ', -
     USE_LAST_ARCH_TIMESTAMP = TRUE)

Summary

In this tutorial, you have learned how to:

Use the mixed auditing mode
Enable the unified auditing mode
Audit RMAN operations like backup, restore and recover
Audit Oracle Data Pump operations like export and import
Create audit policies to audit privileges, actions and roles under defined conditions
Use data dictionary views to display the audit policies and the audited data
Disable audit policies
Clean up audit data

Resources

Oracle Security Guide
Oracle Database 12c New Features for Administrators course

Credits

Curriculum Developers: Dominique Jeunot, Jean-Francois Verrier
