Creating and Using a Contexts and Dependency Injection (CDI) Stereotype

Overview

    Purpose

    This tutorial covers the steps to create a Contexts and Dependency Injection (CDI) stereotype and use it in a CDI enabled application.

    Time to Complete

    Approximately 30 minutes.

    Introduction

    CDI is one of several Java EE 6 features that help to integrate the web tier and the enterprise tier of the Java EE platform. CDI is a set of services that, used together, make it easy for developers to use enterprise beans along with JavaServer Faces technology in web applications. CDI also has many broader uses, allowing developers a great deal of flexibility to integrate various kinds of components in a loosely coupled but typesafe way.

    A CDI stereotype allows you to create a annotation that club together several  CDI annotations. For example, if we needed to create several CDI named beans with a scope of session, we would have to use two annotations in each of these beans,
    namely @Named and @SessionScoped. Instead of providing two annotations to each of the beans, you would create a stereotype, and then annotate the beans with it.

    Stereotypes can be particularly useful in large applications where you have a number of beans that perform similar functions.

    Scenario

    In this tutorial, you will work with a simple CustomerApp web application that uses JSF technology and CDI named beans. The application provides screen for entering information for different types of customers. You will create and use a CDI stereotype to incorporate a couple of annotations. You will then apply the stereotype in all the beans instead of specifying the annotations in all the beans.

    Hardware and Software Requirements (Optional)

    The following is a list of hardware and software requirements:

    • JDK 7
    • NetBeans 7.2 Java EE version IDE
    • GlassFish 3.1.2

    Prerequisites

    Before starting this tutorial, you should:

    • Have downloaded and installed JDK7 from this link
    • Have downloaded and installed NetBeans 7.2 Java EE version from this link
    • Have installed GlassFish server that was part of the NetBeans installation
    • Have started NetBeans IDE in your system.
    • Have prior programming knowledge of  JSF and CDI
    • Have downloaded and unzipped the CustomerApp.zip file.
    • Have opened the CustomerApp project in NetBeans.

Explore, Deploy and Run the CustomerApp Project in NetBeans

    To examine the relevant files of the CustomerApp project, perform the following steps:

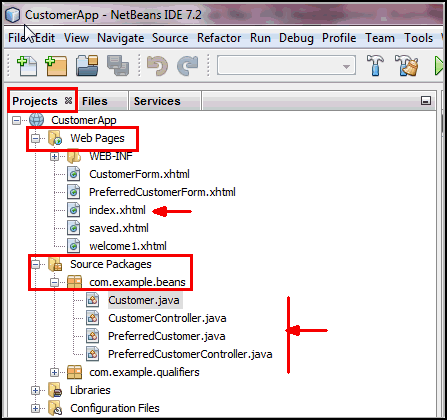

    In the NetBeans Projects tab, expand the CustomerApp project.

    Expand the Web Pages node and the Source Packages > com.example.beans node.

    Under the Web Pages node, you will see all the JSF pages including the home page, index.xhtml.

    Under the Source Packages > com.example.beans node, you will see the CDI named beans.

    Build the CustomerApp project. Deploy it in GlassFish and run it.

    Examine the output in the web browser window.

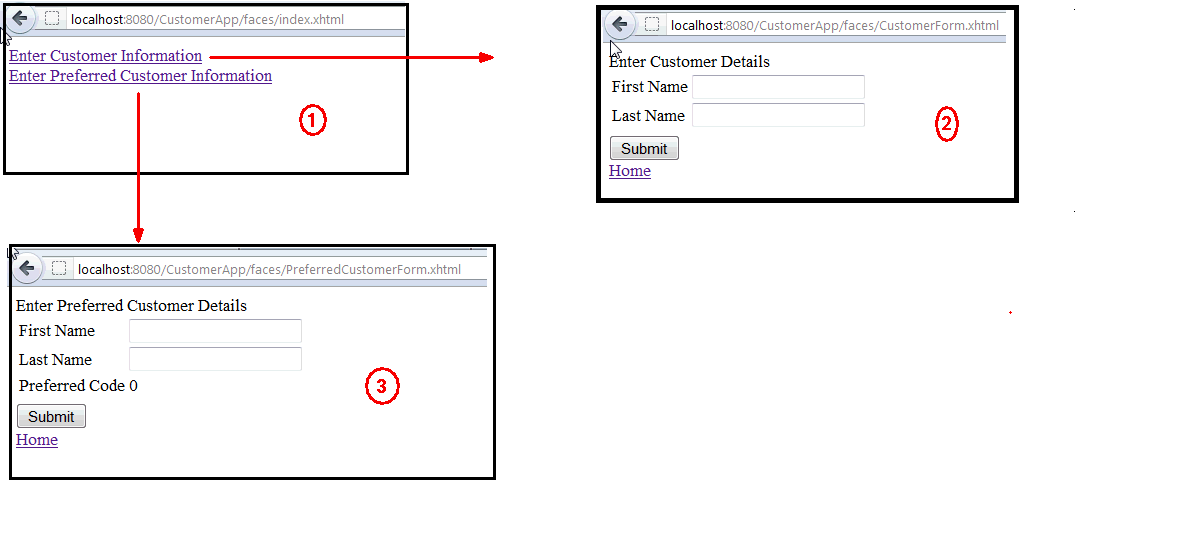

    In the following screenshot, the home page is indicated by the label 1. If you click the first link, you will get a Customer Details form as displayed by the label 2.

    If you click the second link in the home page, you will get a Preferred Customer Details form as displayed by the label 3.

    You can continue to enter data in the two forms one by one and click the Submit button to view the saved results.


    In the Projects window, go to the Source Packages >com.example.beans node and click the four java files to open them in the code editor window. The four java files are Customer.java, CustomerController.java, PreferredCustomer.java and PreferredCustomerController.java.

    Examine the four files and verify that all the four files have @Named and @RequestScoped annotations in them.

    Examine CustomerController.java and PreferredCustomerController.java and verify that both the files have a custom interceptor binding @Logged besides  the  @Named and @RequestScoped annotations.



    Note:  The @Logged custom interceptor binding type is present at com.example.interceptors package. Refer to the Creating and Using Contexts and Dependency Injection (CDI) Interceptors OBE for the steps to create a interceptor binding type.

 Create a Stereotype in CustomerApp

    In this step, you will create a Stereotype that will contain the @RequestScoped, @Named and @Logged annotations. @Logged is an interceptor binding type. Complete the following steps:

    In the Projects window, expand CustomerApop >Source Packages. Right click Source Packages and select New > Java Package.

    In the New Java Package Dialog box, enter the Package Name as com.example.stereotypes and click Finish.

    A new package gets created and displayed under Source Packages node.


    In the Projects window, right click CustomerApp and select New > Other.

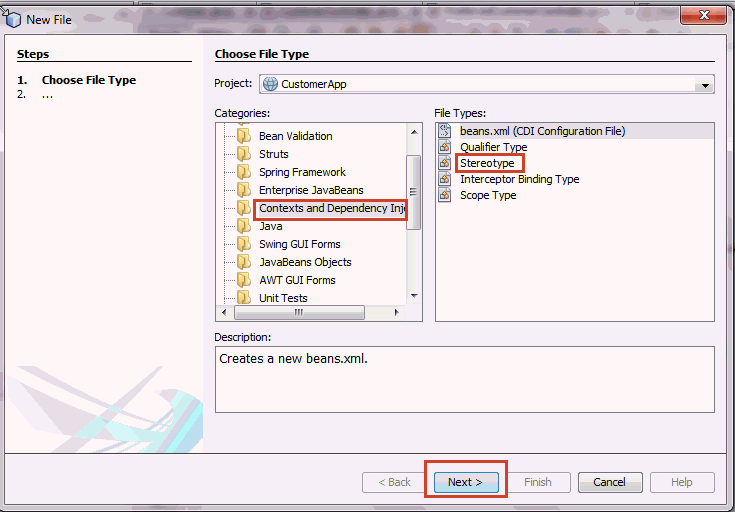

    In the New File dialog box, select Contexts and Dependency Injection in the Categories section and Stereotype in the File Types section.

    Click Next.

    In the New Stereotype dialog box, enter the Class Name as NamedRequestLogged.

    Select com.example.stereotypes as the Package.

    Click Finish.

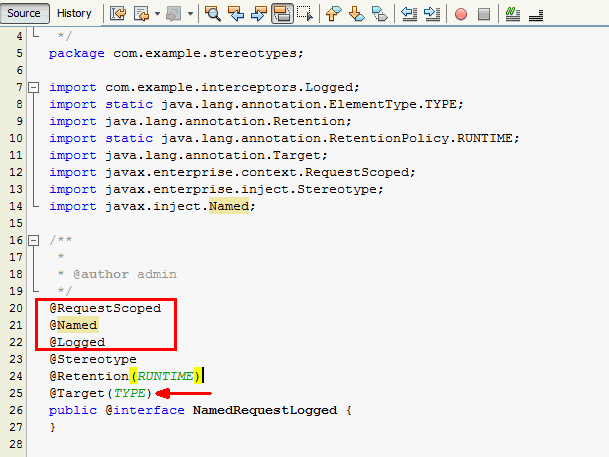

    NamedRequestLogged.java opens in the code editor window. make the following changes in the newly created stereotype.

    Add the @RequestScoped, @Named and @Logged annotations to the stereotype declaration.

    Modify the @Target value to TYPE.

    Add the appropriate import statements and save the file.


    Note:  @Retention indicates how long annotations with the annotated type are to be retained. Annotations are to be recorded in the class file by the compiler and retained by the VM at run time, so they may be read reflectively.
    @Target Indicates the kinds of program element to which an annotation type is applicable. In this example, TYPE indicates that it is applicable to a class, interface or enum declarations.

Use Stereotypes in CustomerApp

    In this step, you will use the NamedRequestLogged stereotype that you have created in the previous step. Complete the following steps:

    Open the CustomerController.java file in the code editor window.

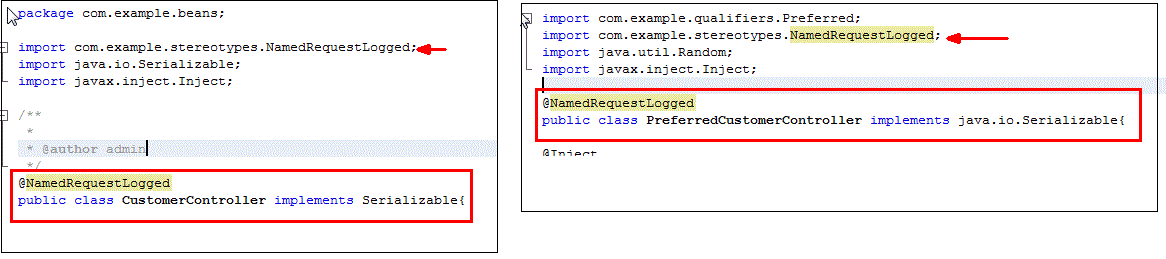

    Replace the three annotations, namely @Named, @RequestScoped and @Logged by a single stereotype @NamedRequestLogged.

    Remove the unused imports and add the required import statement.

    Repeat the previous three steps for the PreferredCustomerController.java file.

    Save and close both the files.

    Note:  Using the @Named in a stereotype guarantees that a default EL naming of the beans will be used.

    CDI makes available a built-in stereotype called Model, which can be used with beans that define the model layer of a model-view-controller application architecture. This stereotype specifies that a bean is both @Named and @RequestScoped. Both Customer.java and PreferredCustomer.java can use the @Model stereotype.

    Open the Customer.java file in the code editor window.

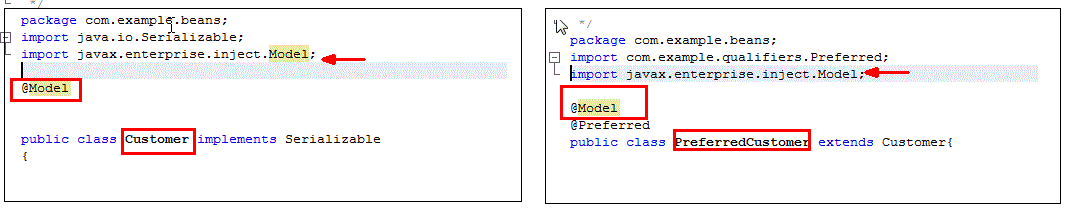

    Replace the two annotations, namely @Named, @RequestScoped by a single built-in stereotype @Model.

    Remove the unused imports and add the required import statement.

    Repeat the previous three steps for the PreferredCustomer.java file.

    Save and close both the files.

Deploy and Test the CustomerApp Application

    To deploy and test the CustomerApp application, complete the following steps:

    Build the CustomerApp project. Deploy it in GlassFish and run it.

    Examine the output in the web browser window.

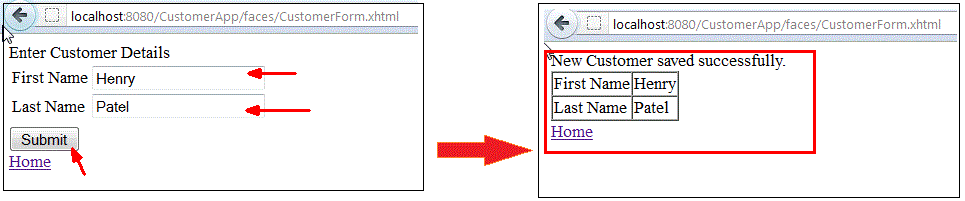

    Click Enter Customer Information link at the home page of CustomerApp application.

    Enter First Name and Last Name in the Customer Details form and click Submit.

    You will get a page displaying a message 'New Customer saved successfully' along with the values of the First Name and Last Name that you had entered in the previous form.


    Click the Home link to o to the home page. Click the Enter Preferred Customer Information link in the home page.

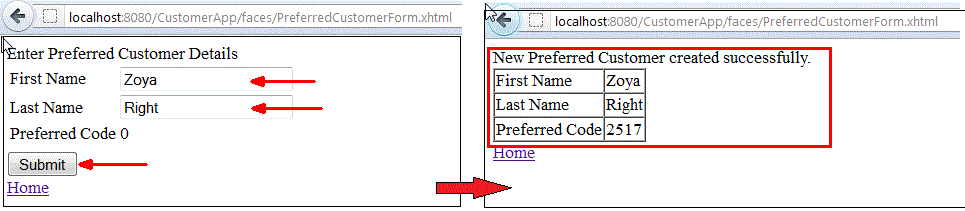

    Enter First Name and Last Name in the Preferred Customer Details form and click the Submit button.

    You will get a page displaying a message 'New Preferred Customer created successfully' along with the values of the First Name and Last Name that you had entered in the previous form. You will also see the value of a Preferred Code generated and displayed in the form.


    CustomerApp runs successfully after you have used CDI stereotypes in managed beans

Summary

    In this tutorial, you have learned how to:

    • Create a CDI Stereotype in a JSF application
    • Add a interceptor binding to stereotype
    • Use the stereotype in a managed bean
    • Use a built-in CDI stereotype in a managed bean

    Resources

      1. Creating and Using Contexts and Dependency Injection (CDI) Events
      2. Creating and Using Contexts and Dependency Injection (CDI) Interceptors
