February Maintenance Pack for 19D

Revision History

This document will continue to evolve as existing sections change and new information is added. All updates appear in the following table:

Date	Feature	Notes
28 FEB 2020		Created initial document.

Overview

This guide outlines the information you need to know about new or improved functionality in this update.

DISCLAIMER

The information contained in this document may include statements about Oracle’s product development plans. Many factors can materially affect Oracle’s product development plans and the nature and timing of future product releases. Accordingly, this Information is provided to you solely for information only, is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described remains at the sole discretion of Oracle.

This information may not be incorporated into any contractual agreement with Oracle or its subsidiaries or affiliates. Oracle specifically disclaims any liability with respect to this information. Refer to the Legal Notices and Terms of Use for further information.

Feature Summary

Manufacturing

Upload Manufacturing Work Definition and Work Definition Operation Attachments Using a SOAP Service

Manufacturers who migrate from or integrate with an external application require an efficient way to associate specific attachments with a work definition. For example, work instructions can be captured as an attachment file, text, or URL to provide key additional information for producing an item or performing a specific operation.

Currently, the tools for uploading or downloading work definitions, such as REST services, file-based data import (FBDI), and Application Development Framework Desktop Integration (ADFdi), do not allow you to include attachments when processing work definitions.

With this update, you can use the ERP Object Attachment SOAP service to perform the automatic, mass upload of attachments for discrete and process manufacturing work definitions. You can specify the input parameters for the payload of this service to upload attachments to existing work definitions at the header or operation levels.

By using a service-based approach to upload manufacturing work definition and work definition operation attachments, the initial data load from an external source system or ongoing updates to work definitions can be streamlined into Oracle Manufacturing Cloud.

Steps to Enable

To get started, refer to the SOAP service definition provided in the Oracle Financials Cloud SOAP Web Services for Financials guide, available from the Oracle Help Center.

• Chapter: Business Object Services
• Section: ERP Object Attachment Service

Here are the specifics for uptaking the ERP Object Attachment SOAP service for the manufacturing business entities, work definition and work definition operation.

Request Payload

Here's a table with request payload information.

Element Name	Type	Description
entityName	String	Valid business entity names are: WORK_DEFINITION, WORK_DEFINITON_OPERATION.
categoryName	String	Document Category Name associated with the business entity.
allowDuplicate	String	Whether duplicate is allowed. Valid values are: Yes, No.
attachmentRows		List of elements, each containing the details of the attachment to upload. The details include the user keys, attachment type, and title.

attachmentRows Attributes for Work Definition Header

Here's a table with attachmentRows Attributes for Work Definition Header information.

Attribute Name	Type	Description
UserKeyA	String	Organization Code.
UserKeyB	String	Item Number.
UserKeyC	String	Work Definition Internal Name.
UserKeyD	String	Keep this key with value #NULL.
UserKeyE	String	Keep this key with value #NULL.
AttachmentType	String	Valid values are: FILE, TEXT, URL.
Title	String	The title of the attachment.
Content	String	The following is an example. Your content may be different. URL: https://www.google.com Text: Use Lathe L123. File: Encode the source data to a Base64 string (Base64 encoding).

attachmentRows Attributes for Work Definition Operation

Here's a table with attachmentRows Attributes for Work Definition Operation information.

Attribute Name	Type	Description
UserKeyA	String	Organization Code.
UserKeyB	String	Item Number.
UserKeyC	String	Work Definition Internal Name.
UserKeyD	String	Version Number.
UserKeyE	String	Operation Sequence Number.
AttachmentType	String	Valid values are: FILE, TEXT, URL.
Title	String	The title of the attachment.
Content	String	The following is an example. Your content may be different. URL: https://www.google.com Text: Use Lathe L123. File: Encode the source data to a Base64 string (Base64 encoding).

Sample Payload for Work Definition Header

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:typ="http://xmlns.oracle.com/apps/financials/commonModules/shared/model/erpIntegrationService/types/" xmlns:erp="http://xmlns.oracle.com/apps/financials/commonModules/shared/model/erpIntegrationService/">

<soapenv:Header/>

<soapenv:Body>

<typ:uploadAttachment>

<typ:entityName>WORK_DEFINITION</typ:entityName>

<typ:categoryName>MISC</typ:categoryName>

<typ:allowDuplicate>Yes</typ:allowDuplicate>

<!--Zero or more repetitions:-->

<typ:attachmentRows>

<!--Optional:-->

<erp:UserKeyA>M1</erp:UserKeyA>

<!--Optional:-->

<erp:UserKeyB>AS54888</erp:UserKeyB>

<!--Optional:-->

<erp:UserKeyC>ORA_MAIN</erp:UserKeyC>

<!--Optional:-->

<erp:UserKeyD>?</erp:UserKeyD>

<!--Optional:-->

<erp:UserKeyE>?</erp:UserKeyE>

<!--Optional:-->

<erp:AttachmentType>TEXT</erp:AttachmentType>

<!--Optional:-->

<erp:Title>File1</erp:Title>

<!--Optional:-->

<erp:Content>Use Lathe L123.</erp:Content>

</typ:attachmentRows>

</typ:uploadAttachment>

</soapenv:Body>

</soapenv:Envelope>

Sample Payload for Work Definition Operation

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:typ="http://xmlns.oracle.com/apps/financials/commonModules/shared/model/erpIntegrationService/types/" xmlns:erp="http://xmlns.oracle.com/apps/financials/commonModules/shared/model/erpIntegrationService/">

<soapenv:Header/>

<soapenv:Body>

<typ:uploadAttachment>

<typ:entityName>WORK_DEFINITION_OPERATION</typ:entityName>

<typ:categoryName>MISC</typ:categoryName>

<typ:allowDuplicate>Yes</typ:allowDuplicate>

<!--Zero or more repetitions:-->

<typ:attachmentRows>

<!--Optional:-->

<erp:UserKeyA>M1</erp:UserKeyA>

<!--Optional:-->

<erp:UserKeyB>AS54888</erp:UserKeyB>

<!--Optional:-->

<erp:UserKeyC>ORA_MAIN</erp:UserKeyC>

<!--Optional:-->

<erp:UserKeyD>1</erp:UserKeyD>

<!--Optional:-->

<erp:UserKeyE>10</erp:UserKeyE>

<!--Optional:-->

<erp:AttachmentType>TEXT</erp:AttachmentType>

<!--Optional:-->

<erp:Title>Att001</erp:Title>

<!--Optional:-->

<erp:Content>Use Lathe L123.</erp:Content>

</typ:attachmentRows>

</typ:uploadAttachment>

</soapenv:Body>

</soapenv:Envelope>

Tips And Considerations

The content for attachment of type FILE must be provided in the Base64 encoding.

Role Information

• Privilege Name and Code:
  • FSCM Load Interface Administration (ORA_FUN_FSCM_LOAD_INTERFACE_ADMIN_DUTY)
  • Manage Work Definitions (WIS_MANAGE_WORK_DEFINITIONS_PRIV)

• Job Role Name and Code:
  • Manufacturing Engineer (ORA_WIS_MANUFACTURING_ENGINEER_JOB)

Update 19D

Revision History

This document will continue to evolve as existing sections change and new information is added. All updates appear in the following table:

Date	Feature	Notes
20 SEP 2019		Created initial document.

Overview

This guide outlines the information you need to know about new or improved functionality in this update, and describes any tasks you might need to perform for the update. Each section includes a brief description of the feature, the steps you need to take to enable or begin using the feature, any tips or considerations that you should keep in mind, and the resources available to help you.

SECURITY AND NEW FEATURES

The Role section of each feature identifies the security privilege and job role required to use the feature. If feature setup is required, then the Application Implementation Consultant job role is required to perform the setup, unless otherwise indicated. (If a feature doesn't include a Role section, then no security changes are required to use the feature.)

If you have created job roles, then you can use this information to add new privileges to those roles as needed.

GIVE US FEEDBACK

We welcome your comments and suggestions to improve the content. Please send us your feedback at oracle_fusion_applications_help_ww_grp@oracle.com.

Optional Uptake of New Features (Opt In)

Oracle Cloud Applications delivers new updates every quarter. This means every three months you'll receive new functionality to help you efficiently and effectively manage your business. Some features are delivered Enabled meaning they are immediately available to end users. Other features are delivered Disabled meaning you have to take action to make available. Features delivered Disabled can be activated for end users in a couple of ways:

Access the Opt In page from the New Features Work Area

1. Click the Navigator, and then click New Features (under the My Enterprise heading)
2. On the New Features page, select the offering that includes new features you’d like to review
3. Click Go to Opt In for any feature you want to opt in
4. On the Edit Features page, select the Enable option for the feature, and then click Done

or...  Access the Opt In page from the Setup and Maintenance Work Area

1. Click the Navigator, and then click Setup and Maintenance
2. On the Setup page, select your offering, and then click Change Feature Opt In
3. On the Opt In page, click the Edit Features icon for any area that includes features you want to opt in
4. On the Edit Features page, select the Enable option for any feature you want to opt in to. If the Enable column includes an Edit icon instead of a check box, then click the icon, select your feature options, and click Save and Close.
5. Click Done.

Opt In Expiration

Occasionally, features delivered Disabled via Opt In may auto enable in a future update. This is known as an Opt In Expiration. If your cloud service has any Opt In Expirations you will see a related tab in this document. Click on that tab to see when the feature was originally delivered Disabled, and when the Opt In will expire, potentially auto enabling the feature. You can also click here to see features with Opt In Expirations across all Oracle Cloud Applications.

Feature Summary

Manufacturing

Include Postprocessing Lead Time in Cumulative Lead Time Calculations

Delays can occur between the end of a manufacturing process and the availability of an end item for shipping, or a component for subsequent assembly. For example, some items must pass quality control inspections, while others take time to cool or cure.

With this update, you can now set up postprocessing lead time for all make items in the item definition. Once you set up the postprocessing lead time, Oracle Manufacturing Cloud will add this postprocessing lead time when calculating cumulative manufacturing lead time and cumulative total lead time, for all the make items.

• For subassemblies, postprocessing lead time starts when the make process is complete and ends when the supply can be consumed to make its parent item.
• For end items, postprocessing lead time starts when the final assembly completes and ends when the item can be shipped.

Watch a Demo

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

Postprocessing lead time should be used to model the lead time of activities performed after manufacturing operations are completed but before it is available for shipping or the next stage of manufacturing.

Key Resources

• Watch Include Post Processing Lead Time in Cumulative Lead Time Calculations Readiness Training

Role Information

This feature is governed by existing privilege and role.

• Privilege Name and Code:
  • Calculate Manufacturing Lead Times (WIS_CALCULATE_MANUFACTURING_LEAD_TIMES_PRIV)

• Job Role Name and Code:
  • Manufacturing Engineer (ORA_WIS_MANUFACTURING_ENGINEER_JOB)

Integrate and Extend Product Genealogy Capabilities Using REST Services

This update provides REST web services that support and simplify integration with external systems for genealogy data. Genealogy data comes from various transactions related to genealogy objects, such as lot and serial-controlled products and materials, and their parent-child relationships. External genealogy data can come from integrations with suppliers, contract manufacturing, outside processing, third party logistics, and warehouse management. Supported genealogy transactions include inventory transactions, work order operation transactions, work order material transactions, and work order output transactions.

Manage Genealogy Relationships Using a REST Service

Use the Genealogy Relationships REST service to do the following:

• Create and remove genealogy relationships
• Get genealogy relationships

With the Genealogy Relationships REST service, you can complete the full genealogy records throughout the product life cycle that is tracked in internal and external systems.

In addition, you can use the Genealogy Relationships REST service in conjunction with the Genealogy Object REST service to import genealogy objects, transactions, and relationships.

Steps to Enable

Review the REST service definition in the REST API guides, available from the Oracle Help Center > your apps service area of interest > REST API. If you're new to Oracle's REST services you may want to begin with the Quick Start section.

Role Information

To use this feature, the following privileges or roles are required:

• Privilege Name and Code:
  • Get Product Genealogy by Service (CSE_GET_PRODUCT_GENEALOGY_BY_SERVICE_PRIV)
  • Manage Product Genealogy by Service (CSE_MANAGE_PRODUCT_GENEALOGY_BY_SERVICE_PRIV)

• Job Role Name and Code:
  • Asset Administrator (ORA_CSE_ASSET_ADMINISTRATOR_JOB)

Manage Genealogy Objects Using a REST Service

Use the Genealogy Objects REST service to do the following:

• Create and update genealogy objects
• Create the genealogy transactions
• Get genealogy objects
• Get genealogy transactions

With the Genealogy Objects REST service, you can complete the full genealogy records throughout the product life cycle that is tracked in internal and external systems.

In addition, you can use the Genealogy Objects REST service in conjunction with the Genealogy Relationships REST service to import genealogy objects, transactions, and relationships.

Steps to Enable

Review the REST service definition in the REST API guides, available from the Oracle Help Center > your apps service area of interest > REST API. If you're new to Oracle's REST services you may want to begin with the Quick Start section.

Role Information

To use this feature, the following privileges or roles are required:

• Privilege Name and Code:
  • Get Product Genealogy by Service (CSE_GET_PRODUCT_GENEALOGY_BY_SERVICE_PRIV)
  • Manage Product Genealogy by Service (CSE_MANAGE_PRODUCT_GENEALOGY_BY_SERVICE_PRIV)

• Job Role Name and Code:
  • Asset Administrator (ORA_CSE_ASSET_ADMINISTRATOR_JOB)

Quality Management

Assign User Roles as Mandatory or Optional Workflow Approvers

Use roles to add multiple users as approvers to your quality workflow quickly and efficiently. You can now add user roles as approvers instead of individual users. When you submit the quality issue or action for approval, the user roles are automatically expanded to reveal the full list of approvers, and duplicate approvers are resolved to a single approver.

With this update, you can also assign a user role as a mandatory or optional approver.

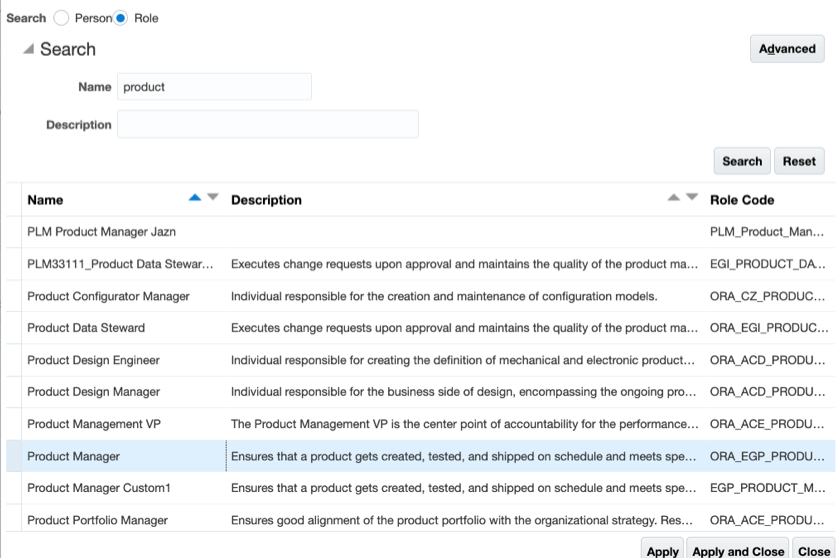

Searching for Roles

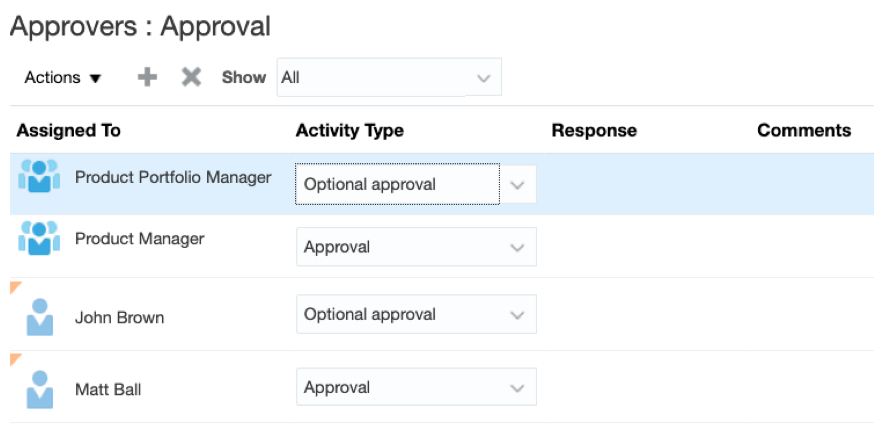

Roles Assigned as Mandatory and Optional Approvers on the Approvers List

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

To assign roles as approvers, the roles must be already created in the Security Console.

Key Resources

• Watch Workflow and Approval Enhancements in Quality Issue and Action Management Readiness Training

Prevent Deletion of Quality Issue or Quality Action Types That Are in Use

Prevent the deletion of quality types that are in use with tighter checks across all issues and actions.  Error messages warn you if the quality issue or action type is currently in use so that you can prevent accidental deletion and inconsistencies across issues and actions.

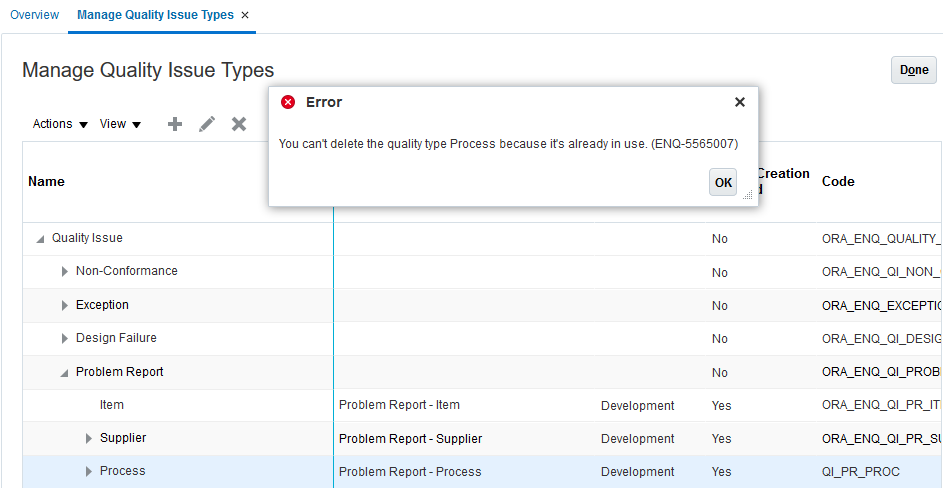

Error Message to Prevent Deletion of  Quality Types in Use

Watch a Demo

Steps to Enable

You don't need to do anything to enable this feature.

Key Resources

• Watch Workflow and Approval Enhancements in Quality Issue and Action Management Readiness Training

Remove Approve and Reject Buttons on Approval of a Quality Issue or Action

Eliminate confusion about whether a user has already approved a quality object or not. With this update, the Approve and Reject buttons are removed from the user interface once a quality issue or quality action has been approved or rejected.

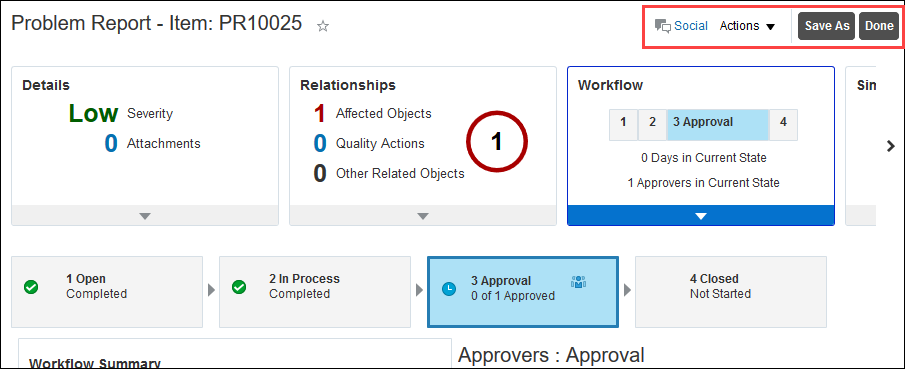

User Interface Without Approve and Reject Buttons

Steps to Enable

You don't need to do anything to enable this feature.

Key Resources

• Watch Workflow and Approval Enhancements in Quality Issue and Action Management Readiness Training

See Meaningful Names Within the Actions List in Application Composer

See descriptive, self-explanatory names within the Actions list in Application Composer when you design quality issue and quality action objects. You can easily identify the purpose of each action in the menu.

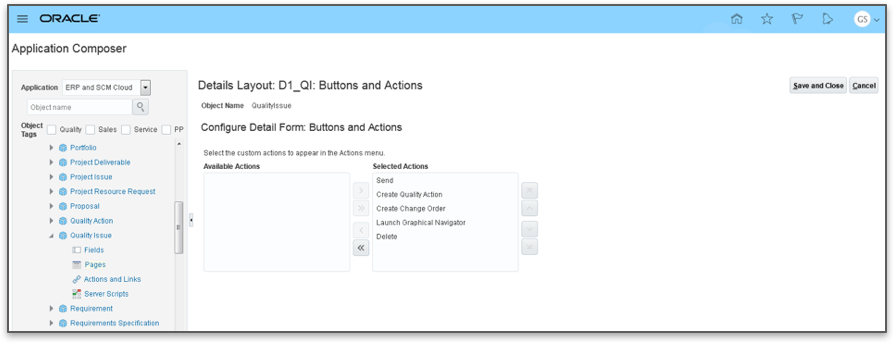

Action Names in Application Composer

Watch a Demo

Steps to Enable

Leverage Application Composer to expose and adjust page layout and attributes. To learn more about extending your application using Applications Composer, visit Oracle Help Center > your apps service area of interest > Books > Configuration and Extension.

Key Resources

• Watch Workflow and Approval Enhancements in Quality Issue and Action Management Readiness Training

View Name, User Name, and Email When You Search for Users

View additional columns such as Name, User Name, and Email in the search results when you add users to the Security tab or as Approvers to a workflow for quality issues and actions. When you search for a role, the role code is also visible in the search results.  You can easily find and add the right users and roles to the Security tab and for workflow approvals.

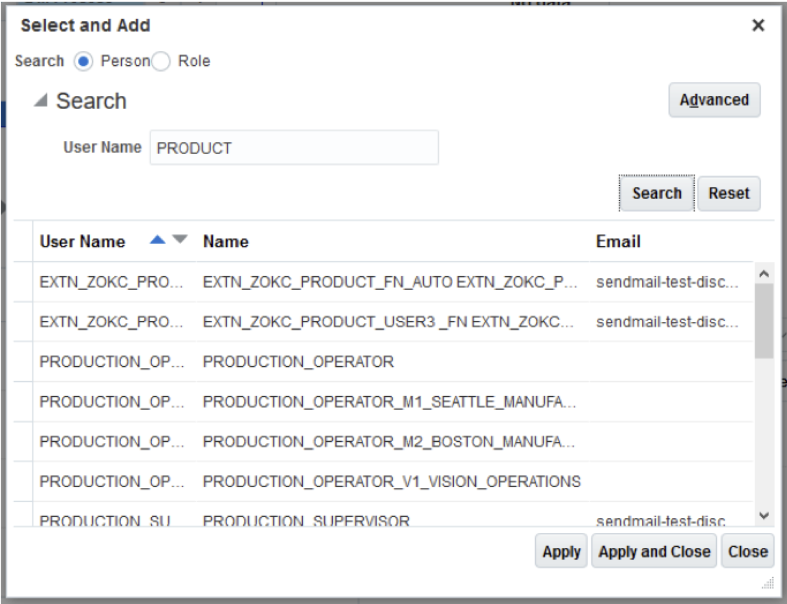

User Search

Steps to Enable

You don't need to do anything to enable this feature.

Key Resources

• Watch Workflow and Approval Enhancements in Quality Issue and Action Management Readiness Training
