Update 22A

Revision History

This document will continue to evolve as existing sections change and new information is added. All updates appear in the following table:

Date	Module	Feature	Notes
16 DEC 2022	Web Services	Additional and Enhanced REST APIs	Updated document. Delivered new feature in update 22A.
31 MAR 2022			Created initial document.

Overview

Oracle Utilities Customer Care and Billing Cloud Service is a customer care and billing system for traditional scalar devices and billing processes. It is designed for utilities of all sizes, supports one to many utility service types, and handles the complexities associated with a utility's business processes.

This guide outlines the information you need to know about new or improved functionality in this update, and describes any tasks you might need to perform for the update. Each section includes a brief description of the feature, the steps you need to take to enable or begin using the feature, any tips or considerations that you should keep in mind, and the resources available to help you.

HAVE AN IDEA?

We’re here and we’re listening. If you have a suggestion on how to make our cloud services even better then go ahead and tell us by submitting a service request. Wherever you see this icon after the feature name it means we delivered one of your ideas.

DISCLAIMER

The information contained in this document may include statements about Oracle’s product development plans. Many factors can materially affect Oracle’s product development plans and the nature and timing of future product releases. Accordingly, this Information is provided to you solely for information only, is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described remains at the sole discretion of Oracle.

This information may not be incorporated into any contractual agreement with Oracle or its subsidiaries or affiliates. Oracle specifically disclaims any liability with respect to this information. Refer to the Legal Notices and Terms of Use for further information.

Feature Summary

Utilities Common

Utilities Testing Accelerator

Redwood User Experience

Oracle's Redwood user experience elevates the application pages of Oracle Utilities Testing Accelerator to a more visually appealing and modern user interface experience. This includes a new compact page header that takes up less vertical space to allow more page content to be displayed, as well as new portal tabs, buttons, background colors, borders, and fonts all updated to match the overall Redwood user experience found in other Oracle applications.

Oracle Redwood provides a consistent user interface experience across Oracle's latest solutions.

Steps to Enable

You don't need to do anything to enable this feature.

Dashboard Refresh

The dynamic filters of the Oracle Utilities Testing Accelerator Dashboard allow you to create customizable reports for analyzing test automation run status. Dynamic filters support time-based views of test runs, enabling you to categorize the runs into product or flow modules and provide insights to determine the health of specific functional areas in the application. The custom reports created by these dynamic filters include a drill-down feature that displays individual data points. This provides the flexibility to perform root cause analysis through visualization. You can use the visualized reports to share the status of the test automation runs with concerned stakeholders of an Oracle Utilities Cloud Service and aid in their decision making.

The dashboard's dynamic filters and visualizations ensure better planning and management of test runs and the ability to ascertain the application's health over time.

Steps to Enable

You don't need to do anything to enable this feature.

Cloud Service Foundation

Support Batch Stream Batch Jobs Submission As a Single Submitter

The scheduler program's Single Submitter option enables you to submit batch jobs in a batch stream as one batch job for all threads. By default, this option creates a single batch job submission record for all threads of the batch control to prevent excessive lock contention on the Batch Control table when processing large numbers of threads.

The Single Submitter option provides the flexibility to submit one batch job for all the batch stream threads instead of submitting one batch job for each thread.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

If your implementation requires managing processing work or records in parallel with a few number of threads, set Single Submitter to "false" and use the scheduler program on the batch job stream definition as one of the initial steps before the steps that refer to the batch control. By doing so, the configured option takes effect prior to batch control or job submissions in the job stream.

Customer Care and Billing

Customer Care and Billing

Credit and Collections

Support for Digital Communication-related Collection Process Events

The application-owned C1COLLEVTNOT (Collection Event Notification) algorithm type enables you to initiate the creation of template-based notifications to be sent to an external system (for example, Oracle Responsys) for communication delivery. C1COLLEVTNOT-based algorithms can be configured on applicable Collection Event Types, which can then be defined in the required Collection Process Templates, enabling you to include digital collection events as part of your collection processes to trigger outbound notifications to encourage customers to pay their outstanding debt (for example, communication via email and SMS).

This algorithm type lowers your collections costs and increases customers’ likelihood of paying off outstanding debt.

Steps to Enable

To enable this feature, refer to the Setting Up Collection Event Types of the Administrative User Guide for more information.

Customer Information

Customer 360 Portal Zone - Financial Activity (Details) Zone Updates

The Financial Activity (Details) zone tabs of the Customer 360 portal provide a more enriched view of a customer with the following updates:

• Enhanced Usage and Billing tab:
  • Cost Graph View:

    • The Bill Summary Cost bar tooltip now includes summary information about cancelled and/or rebilled bill segments that may have occurred after bill completion. Also, the ending balance is no longer displayed.

    • The Ending Balance bar tooltip, for bills based on balance forward accounts, now displays various financial summary information for a bill (such as the previous period’s balance, total payments, total adjustments, total billing corrections, total current billing charges, and ending balance).
  • Table View:
    • Related entries automatically expand by default when changing from the Graph view to the Table view.

• Enhanced Financial History tab:
  • Previous and Next buttons replace the previous page navigation options.
  • Expandable financial event details without having to go to the next page to see further details.

• Enhanced Payment Agreements tab:
  • Indicates if a payment arrangement’s scheduled payment is partially received and remaining amount due. The dates of received payments are also displayed.
  • Indicates if a pay plan’s scheduled payment is partially received and the remaining amount due.

The Customer 360 portal enhancements provide a fuller view of your customer's financial details, resulting in better handling of account maintenance requests and most common inquiries.

Steps to Enable

You don't need to do anything to enable this feature.

Customer Interactions

Template-based Outbound Notifications

You can now initiate template-based outbound notifications to an external system for communication delivery (for example, via email or SMS) and include customer-specific information to provide more personalized interaction. Previously, only message-based notifications were available based on application-owned business objects.

These new application-owned business objects enable you to create Notification Types for template-based notifications:

• C1-NotifTypeTmplSubscription (Template-Based Subscription Notification Type) - Customers must sign up or subscribe to receive these types of notifications

• C1-NotifTypeTmplParentPush (Template-Based Parent Push Notification Type) - Customers do not need to sign up to receive these types of notifications

• C1-NotifTypeTmplIndividualPush (Template-Based Individual Push Notification Type) - Customers do not need to sign up to receive these types of notifications

Notification Types based on the C1-NotifTypeTmplSubscription or C1-NotifTypeTmplIndividualPush business object allows you to:

• Optionally plug in an Override Delivery Information algorithm to override the logic that retrieves active contact preferences or the default contact information for an account. The application-owned C1OVINVGSTDI (Override Invite Guest Delivery Information) algorithm allows you to only use email as the delivery type if required.

• Plug in one or more Template Data algorithms to retrieve information to include in the outbound template-based notification. These application-owned Template Data algorithms are available for use if these meet your implementation-specific requirements:
  • C1GUESTNTFTD (Guest Notification Template Data) - Retrieves guest-related details such as guest name, guest email, and so on
  • C1BILLINFTMP (Bill Information Template Data) - Retrieves bill-related details such as Bill ID, due date, amount due, and so on
  • C1PAYINFTMPD (Payment Information Template Data) - Retrieves payment-related details such as payment amount
  • C1COLLNFTMP (Collection Notification Template Data) - Retrieves collection-related details such as amount due and arrears date

• Define one or more Template Names for each Delivery Type per Language and use on the resulting outbound notifications

These algorithms now support message- and template-based Notification Types:

• C1-BLDNTFPRF (Build Notifications For Notification Preference) - Used on the Notify state of these service task-related business objects:
  • WX-NotifyBillDueTask (Bill Due Notification Task)
  • WX-NotifyBillReadyTask (Bill Ready Notification Task)
  • WX-NotifyLatePayTask (Late Payment Notification Task)
  • WX-NotifyPayReceivedTask (Payment Received Notification Task)

• The Lead Event Completion algorithm based on the C1-LECNTPF (Create Notification Using Notification Preferences) algorithm type. Used on the C1-LeadEvtTypeUseNotifPref (Notify Customer Using Communication Preferences) business object.

• Algorithms based on the C1-DETTOPUP (Determine If Top Up Needed) algorithm type. Used on the Determine if Top Up Needed state of the C1-PrepayBillerTask (Prepay Biller Task) business object.

• Algorithms based on the C1-CHKBSSTAT (Check PPB Bill Segment Status) algorithm type. Used on the Calculating Bill Segment state of the C1-PrepayBillerTask (Prepay Biller Task) business object.

Additionally, a Notification Format filter is available in the Notification Type Search that allows you to search for message- or template-based Notification Types.

NOTE: The application-owned C1-NotificationType business object has been updated to indicate that it is used for message-based notifications. In this release, you can plug in an Override Delivery Information algorithm for subscription and individual push-related message-based Notification Types.

Template-based outbound notifications elevate your customer interactions with more personalized digital communications.

Steps to Enable

To enable this feature, refer to the Setting Up Notification Preference Options section of the Administrative User Guide for more information.

Data Synchronization

Synchronization of Notification Contact Preference Information

Activating or deactivating an account's push- or subscription-based notification’s contact preference information triggers the creation of a synchronization request to initiate the sending of an outbound message to the edge application (for example, Oracle Utilities Network Management System) that requires or used that notification contact preference information. The Edge Application Notification section of the Notification Preferences master configuration allows you to define the Notification Types and External System related configuration of the other edge applications to be notified after activation or deactivation of the appropriate notification contact preference

NOTE: The C1-NCPIL (Notification Preference Sync Initial Load) batch control creates initial Notification Contact Preference synchronization request records that can be used for initiating the initial loading of notification contact preference information into other Edge applications.

This synchronization will help decrease project implementation costs, duration, and risk.

Steps to Enable

To enable this feature, refer to the Other Edge Application Notification section of the Administrative User Guide for more information.

Integration

Oracle Responsys Integration for Transactional Outbound Notifications

The integration to Oracle Responsys enables you to send cloud service initiated transactional notifications and correspondence to customers via email or SMS based on their preferred communication channel(s). This end-to-end solution provides the capability to:

• Define template-based Notification Types for each type of outbound notification or correspondence in the cloud service
• Define algorithms to extract the data required for each type of outbound notification or correspondence in the cloud service
• Configure the corresponding Notification Templates in Oracle Responsys
• Use Notification Hub for notification queues, enrichment, and communication with Oracle Responsys

The Oracle Integration Cloud-based Notification Hub manages the communication between the cloud service and Oracle Responsys.

The integration decreases project implementation costs, duration, risks, and total cost of ownership.

Steps to Enable

To enable this feature, refer to the Configuration Guide related to the integration for more information.

Key Resources

• Refer to the Outbound Notification Integration training.

Payment Processing

Receipt Printing Using Point-of-Sale Printers - Additional Samples

Additional BPA Script and UI Map samples for Payment Event, Payment Quick Add, and Payment Event Quick Add transactions enable you to use additional fields for printing receipts or endorsements when using the sample receipt printer functionality as a starting point. The additional fields include information related to organization, payments, tender, and endorsements.

The new BPA Scripts and UI Maps include the following:

• BPA Scripts
  • C1-PyEvtPrt (Payment Event Print)
  • C1-PyEvQAPrt (Payment Event Quick Add Print)
  • C1-PyQAPrt (Payment Quick Add Print)

• UI Maps
  • C1-PaymentEventPrint (Payment Event Print)
  • C1-PaymentEventQuickAddPrint (Payment Event Quick Add Print)
  • C1-PmtQuickAddPrint (Payment Quick Add Print)

Each BPA Script calls the appropriate sample UI Map to open Print Options. Selecting an option (for example, Endorse, Receipt, or Stub) launches the browser's printer dialog.

In addition, updates to the Point of Sale (POS) Printer Integration master configuration provide the ability to capture the following information used by the BPA Scripts:

• Company Name
• Company Premise
• Payment Receipt and Endorsement Messages

These additional samples reduce the need for implementation-specific extensions.

Steps to Enable

To enable this feature, refer to the Customer Cloud Service Receipt Printing section of the Oracle Utilities Cloud Services Integration Guide for more information.

Tips And Considerations

For upgrading implementations, you can run the C1-UPPSC (Update Point of Sale Integration Config) batch process to update the enhanced Point of Sale (POS) Printer Integration master configuration with the existing Point-of-Sale related configuration from Installation Options.

These existing BPA Scripts and UI Maps are not planned to be enhanced but the descriptions have been updated to indicate for network printer use:

• BPA Scripts
  • C1-PEAddPrt (Payment Event Print - for network printers)
  • C1-PEQAddPrt (Payment Event Quick Add Print - for network printers)
  • C1-PyQAddPrt (Payment Quick Add Print - for network printers)

• UI Maps
  • C1-PayEventAddPrint (Payment Event Print - for network printers)
  • C1-PayEventQuickAddPrint (Payment Event Quick Add Print - for network printers)
  • C1-PaymentQuickAddPrint (Payment Quick Add Print - for network printers)

Rate and Billing

Enhanced Stepped Service Quantity Calculation Rule Type for Prorated Bill Segments

The Override SQ Algorithm plugin spot allows you to specify an algorithm to override a step service quantity calculated by a step rule on rate calculation rules based on the C1-SteppedSQ (Stepped Service Quantity) business object. This may be useful in billing scenarios, involving a tiered rate schedule with a unit rate change, resulting in applicable service quantities not adding up to a tier's upper limit. Additionally, you can define Step Group values in the STEP_GROUP_FLG (Step Group) Lookup to enable combining step rules for evaluation and adjustment as a group.

You can use the application-owned C1-OVRDSTPSQ (Override Step Service Quantity) algorithm in the plugin spot to ensure that the total calculated step service quantities do not exceed the step limit (prorated due to rate version or value break) and the calculated service quantities sum up to the billable service quantity. If the algorithm does not meet your specific requirements, you can configure a custom implementation-specific algorithm for the plugin spot.

NOTE: This feature only applies to Stepped Service Quantity based calculation rules where the Seasonal attribute is set to "No."

This reduces end customer complaints or calls and frees up your call center agents by ensuring service quantities in a prorated bill are consistent at all levels.

Steps to Enable

To enable this feature, refer to the Detailed Description on the C1-OVRDSTPSQ (Override Step Service Quantity) algorithm.

Rate Calculation Rule - Derive Value Algorithm Types

The following Calculation Rule - Derive Value algorithm types are provided for use in various calculation rules:

• C1MDMACRED (MDMA Credits) - Creates an appropriate Characteristic Type and Value to handle credits issued to a customer. Issuance of credits is a result of the customer's meter being read by a third-party service provider.

• C1SEASDAY (Seasonal Days in a Billing Period) - Creates an entry in the service quantity (SQ) array that contains the number of days in the current bill period that fall in a defined season.

• C1CALCDA (Calculate Characteristic Type/ Value if Service Agreement Relationship Types Exist) - Defines the types of parameters supplied to a service quantity rule that creates an appropriate Characteristic Type and Value.

• C1MOMSCRED (Meter Ownership and MSP Credits) - Returns the number of meters that are not owned by the company.

• C1BILLCRED (Bill Credits For Electric Consolidated Billing) - Define the types of parameters supplied to a service quantity rule that creates an appropriate Characteristic Type and Value (only applicable to Oracle Utilities Customer Care and Billing Cloud Service)

These algorithm types will help reduce implementation-specific extensions when migrating from the component-based rating engine to the rules-based rating engine.

Steps to Enable

To enable these features, refer to the Detailed Description on the new Calculation Rule - Derive Value algorithm types.

Web Services

Additional and Enhanced REST APIs

These new REST API Inbound Web Services expose various customer-related entities and data, and provide the capability to create, manage, and view that data:

• C1-Budget (Budget) - View account's budget information.
• C1-CollectionProcess (Collection Process) - Creates, maintains, and views collection process information.
• C1-CutProcess (Cut Process) - Maintains and views cut process information.
• C1-LandlordAgreement (Landlord Agreement) - Maintains and views landlord agreement information.
• C1-OverdueProcess (Overdue Process) - Creates, maintains, and views overdue process information.
• C1-PayPlan (Pay Plan) - Creates, maintains, and views pay plan information.
• C1-SeveranceProcess (Severance Process) - Creates, maintains, and views severance process information.
• C1-WriteOffProcess (Write Off Process) - Creates, maintains, and views write off process information.
• C1-AccountNotificationPreferences (Account Notification Preferences) - Retrieves notification preferences for a collection of accounts and notification types.

These updated REST API Inbound Web Services also expose various customer-related entities and data, and allow you to manage that data:

• C1-Case (Case) - Retrieves a list of cases based on specific search criteria.
• C1-CommunicationsPreferences (Communications Preferences) - Includes new operations for viewing and managing mailing addresses.

You can use these REST Inbound Web Services to decrease project costs and timelines.

Steps to Enable

You don't need to do anything to enable this feature.

Key Resources

• Refer to the Oracle Utilities API documentation.

Miscellaneous

Attachments Zones

The application-owned Attachments zones in the Portal-related tab pages for the following entities enable you to add, change, view, and delete attachments:

• Person
• Account
• Premise
• Service Agreement
• Service Point (only applicable to Oracle Utilities Customer Care and Billing Cloud Service)
• Meter (only applicable to Oracle Utilities Customer Care and Billing Cloud Service)

These zones reduce the need to integrate with a separate system to store attachments.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

If your system has implementation-specific Attachments zones related to these applicable entities:

• Disable the application-owned Attachments zones to continue using your existing implementation-specific zones.
• Disable your implementation-specific Attachments related zones and use the application-owned zones.

Restricting Implementation-Specific Values in Notification Controlled By Lookup

The NTF_CTRL_FLG (Notification Controlled By) Lookup contains specific predefined values that allow a service task, bill route, or quote route to control an outbound notification for a specific Notification Type. The Custom switch is now unchecked so you cannot add implementation-specific values to this lookup.

This restriction reduces the capture of redundant data.

Steps to Enable

You don't need to do anything to enable this feature.

Analytics Visualization

Enhanced Financial Transaction-related Subject Areas and New Sample Visualizations

Aggregate financial transaction-related data for Oracle Utilities Analytics Visualization using the following batch processes:

• C1-FTMA (Aggregate Financial Transactions Monthly) - Populates the Financial Transaction Monthly Aggregate table
• C1-FTGMA (Aggregate Financial Transaction GLs Monthly) - Populates the Financial Transaction GL Monthly Aggregate table

These batch processes improve the performance of financial transaction summary-related visualizations in Oracle Utilities Analytics Visualization.

Steps to Enable

To enable this feature, refer to the Oracle Utilities Analytics Visualization Administrator Guide for more information.

Service Agreement Arrears Subject Area and Sample Visualizations

The monthly Service Agreement Arrears analytics visualization subject area allows you to answer questions such as the following:

• What is the distribution of arrears by various aged buckets (breakdown by age) by Customer Class, Service Type, and Service Agreement Type?
• What is the trend over the past 15 months of arrears for each aged bucket?
• Who are the top 100 customers with the most amount of arrears (for example, greater than 30 days)?

The C1-SASNM (Capture Monthly SA Arrears Snapshot) batch process captures the monthly service agreement arrears snapshot for the previous month.

Steps to Enable

To enable this feature, refer to the Oracle Utilities Analytics Visualization Administrator Guide for more information

Write Off Process Subject Area and Sample Visualizations

The Write Off Process analytics visualization subject area allows you to answer questions such as the following:

• How many active write off processes exist and what is the amount of outstanding debt that initiated these?
• What is the trend in the effectiveness of write off processes collecting outstanding debt over time?
• What is the trend in the number of write off processes being created over time?
• What is the trend in the amount of outstanding debt initiating write off processes over time?
• What is the trend in the amount of outstanding debt to be written off over time?
• What is the trend in the duration of write off processes being completed or cancelled over time (debt written off or debt collected)?

The Write Off Process analytics visualization subject area provides insights into outstanding debt associated with write off processes.

Steps to Enable

To enable this feature, refer to the Oracle Utilities Analytics Visualization Administrator Guide for more information.

Utilities Application Framework

Product Usability

About Box Information Adjusted

The information displayed in the About box now shows the product version, maintenance pack number, and patch level.  For example, the following is displayed if the environment has the 6th maintenance pack for 21B: 21B MP 6 patch 93849302. Previously, the build number (often referred to as the 'sched') was shown.

Your cloud implementation now views the current maintenance pack installed rather then the build number.

Steps to Enable

You don't need to do anything to enable this feature.

Adjust Menu Sequences

The system's menu configuration includes sequence numbers to allow control over the order of menu lines throughout the system. If sequence numbers of one or more entries are the same, the system orders those lines alphabetically. Unless there are special circumstances, the product standard is to use the sequence number 50 for all menu lines that are part of the Main Menu or Admin Menu configuration.

Several Oracle Utilities Application Framework-delivered menu lines have been updated to sequence 50 to align with this product standard. The My Preferences menu entry on the Main Menu has a higher sequence (80) so that its position is always last in that menu.

You can see a more standardized menu configuration to ensure proper sort order.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

This sequence number may be customized by an implementation. If your your organization prefers a different configuration, you can adjust it accordingly.

In addition, the update to the sequence number for these menu lines only occurs if the sequence in your environment for each menu line matches the value previously released by the product.

Finally, note that the menu line's sequence number is an attribute of the menu line's language table. This allows organizations finer control over the menu order depending on the language. The product update described here only applies to the English language row.

Entity Tags

Entity tagging supports grouping of configuration, demo, and test related entities so they can better describe a logical function. Each group is represented by a "tag" and entities may be associated with multiple tags.

A Tags dashboard zone allows the user to add, remove, and review tags for an entity. The zone is secured by an application service so that it is only available to applicable user roles. The Entity Tag portal lists all entities linked to a tag and supports mass actions for associating configuration entities with a tag.

You can tag entities to provide better mechanisms for finding and maintaining information.

Steps to Enable

Make the feature accessible by assigning or updating privileges and/or job roles. Details are provided in the Role section below.

Role And Privileges

System administrators should grant access to the following application services:

• F1-ENTYTAG application service for the Entity Tag maintenance object.
• F1ENTAG application service for the Entity Tag maintenance portal.
• F1ENTAGS application service for the Entity Tag query portal.
• F1-TAGS application service for the Tags dashboard zone.

Field References

A References tab is added to the Field portal to list application components that explicitly reference the field record.

You can review all application references of a field record.

Steps to Enable

You don't need to do anything to enable this feature.

Filter Area On Data Explorer Collapses After Search

The filter area now collapses when searching on data explorer zones in all cases. The Expand Filters button becomes visible, allowing you to adjust your search criteria, if desired.

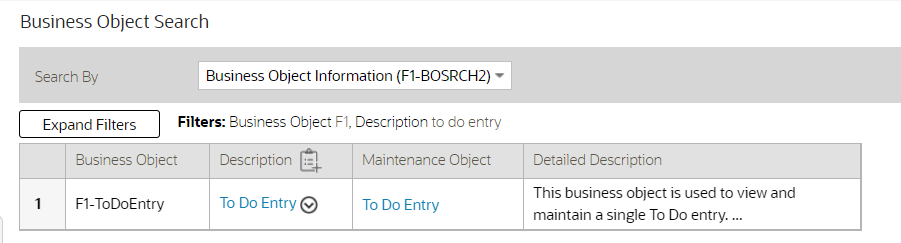

Business Object Search

Previously, this behavior only occurred if the query resulted in more than two records. The behavior is now consistent for all results.

After searching using a data explorer zone, the filter area collapses allowing you to see more information in the results.

Steps to Enable

You don't need to do anything to enable this feature.

Inbound SOAP Web Service Debugging Improvement

If your inbound SOAP web service uses XSL transformation, the debug log now includes the details of the document before and after the XSL transformation.

You now see more information in the debug output for inbound SOAP web services that use XSL transformation.

Steps to Enable

You don't need to do anything to enable this feature.

Menu Application Security Portal

A user may require several application service grants to properly work with the application components associated with a specific menu line. A new Menu Application Security portal is provided to assist with maintaining application security for a user group and the application services associated with a specific menu line. The portal is accessible from a new Menu Links dashboard zone that is available when reviewing the Menu page.

The Application Services Linked and Application Services Unlinked zones now include a filter by entity tag, allowing you to refine the list of application services by logical function.

You can review and adjust the application security a user group has for application components associated with a menu line.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

An upgrade script updates all user groups that currently have access to the existing Menu page application service CILEMNUP to have the same access to the new portal application service F1MENU.

Key Resources

• Refer to the Improved Menu Security training.

New Hot Keys for Navigation

The new hot key Alt+[ allows you to quickly move the cursor focus to the next major page component. You can use Shift+Alt+[ to reverse the navigation order. The major page components include:

• The menu or toolbar area

Menu / Toolbar

• The Dashboard

• The Page Title area

Page Title

• The main Page Area, including the tabs for the current page and the display area of the current page

The new hot key Alt+] allows you to quickly move the cursor focus to the next zone. You can use Shift+Alt+] to move the cursor to the previous zone. For portal-based pages, this key navigates through zones in the portal and through the zones in the Dashboard. For fixed pages, the key applies to navigation of zones within the Dashboard portal.

You can use this keyboard navigation to more easily navigate to different sections of the user interface with fewer keystrokes.

Steps to Enable

You don't need to do anything to enable this feature.

New User Experience

The product provides an updated user experience referred to as Redwood. The new experience includes a compact page header that takes up less vertical space to allow more page content to be displayed, as well as new portal tabs, buttons, background colors, borders, icons, and fonts. Previously, this user experience was only available by turning on a URL parameter. This parameter is no longer supported or necessary, and the experience has been enriched.

The following are highlights from the Redwood user experience:

• Palette and Icons - The color palette and icons reflect a more modern and streamlined user experience.

• Unified Search - There is a single search box to perform comprehensive searches for data relevant to your application, based on search options supplied by your specific product.

• Dashboard Controls - The default location for the dashboard is now on the left. User preferences allow you to configure it on the right, as before. In addition, the state of the dashboard (its width and whether it is open or closed) are captured in the user preferences and remain set until changed again.

• Portal or Zone Configuration - There is advanced configuration for portals and zone layout, including new width options and height options.

• Domain Name Display - Installation Options allow you to define a domain name for an environment. This information is displayed in the toolbar.

You can use the Switch UI View option in the user menu to revert the user experience to the previous one for the current session. This option is only visible if the user has been granted access to the appropriate application service.

Oracle is transitioning all its products to a new consistent user experience, branded the Redwood experience. The Oracle Utilities Application Framework has implemented this experience to provide a more consistent and modern interface with new design elements including consistent color, layout, fonts, behavior and icongraphy.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

Note that to view the underlying HTML for a page, you should use the Inspect option rather than View Source or View Frame Source. With the Redwood user experience, the "view source" options no longer include the underlying HTML source code.

Open API Specification Enhancements

The Open API Specification document generated for an Inbound Web Service complies with up-to-date schema definition standards.

Note that the changes do not impact the request and response schemas used by the web service at run time and therefore should not cause upgrade issues.

The following sections describe the changes introduced in this release:

Schema Reference

The primary changes is to how a schema is referenced using the $ref attribute and how its root node is defined for when XML format is used.

Previously, the $ref definition referenced the "root" element of the request and response schemas using a nested reference within the schema definition. This was needed to ensure that in XML format the same root node was included in the request and response schemas.

"$ref": "#/components/schemas/CREATEPERSON_request/properties/C1-CrePerson"

Schema Definition

"CREATEPERSON_request": {

"type": "object",

"properties": {

"C1-CrePerson": {

"type": "object",

"properties": {

"personId": {

"type": "string",

"maxLength": 10,

"description": "Person ID"

}

This type of nested schema reference is no longer supported. Instead, a designated XML attribute is added to explicitly define the root node.

In this release, the schema reference is changed as follows:

"$ref": "#/components/schemas/CREATEPERSON_request"

Schema Definition

"CREATEPERSON_request": {

"type": "object",

"properties": {

"personId": {

"type": "string",

"maxLength": 10,

"description": "Person ID"

}

}

"xml": {

"name":"C1-CrePerson"

}

Reusing the Schema Definition for the Standard Error Response

Previously, the same error response structure was repeated as a separate schema for each IWS operation. This made the file large for no reason. In this release, a single copy of the error response schema is included in the document to make it smaller and simpler.

Adjusting the "Tags" Attribute Text

The tags attribute is constructed as <Resource Category description> / <IWS description>. The IWS description part was used to include the detailed description of the service if any was defined, but tags should ideally be short and not involve detailed descriptions. In this release, the IWS description part is changed to include only the short description of the service, regardless of any detailed description that may be defined for the service.

You can use the generated Open API Specification to comply with up-to-date schema validation requirements.

Steps to Enable

You don't need to do anything to enable this feature.

User Group Services Management - Filter User Groups by Entity Tag

The User Group Services Management portal provides zones to view the application services linked or unlinked to a chosen user group and the ability to remove or add services.

The Application Services Linked and Application Services Unlinked zones now include a filter by entity tag, allowing you to refine the list of application services by logical function.

This allows you to refine the list of application services by logical function.

Steps to Enable

You don't need to do anything to enable this feature.

Batch Processing

DBMS Scheduler Option for Defining Time Zone

If your implementation is in a time zone that is different from the database time zone, set the new DBMS Scheduler Option set_sessiontz option to true to ensure that the Start Date/Time on the Batch Job Submission record is set to the time based on installation time zone rather than the database time zone.

You may control the time zone used for submitting batch jobs from the DBMS scheduler.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

Note that the Start Date/Time on the Batch Job Submission record is used as a way to delay the job's execution to a future date. It is not used as a timestamp to indicate when the job was created or executed. If the new option is not set or is set to false, there is no affect if your time zone matches the database time zone or if your time zone is after the database time zone. The setting is only relevant if your time zone is earlier than the database time zone.  For those implementations, without this option set, the Batch Jobs are be created with the database time zone, which will cause a delay in the jobs being processed.

DBMS Submission Default Changed to Single Submission

The DBMS scheduler now uses the "single submission" setting as the default. This setting results in the creation of a single Batch Job Submission record for a given job regardless of the number of threads. The resulting records in the Batch Run maintenance object continue to keep track of the multiple threads using the Batch Thread and Batch Instance records. Previously, the default setting was that single submission was turned off.

This setting may be overridden globally or for a specific batch program. Turning off the "single submission" setting results in the creation of a separate Batch Job Submission record for each thread. However, there is no benefit to using this setting. For jobs with a large number of threads, this option results in an unnecessary proliferation of records to manage.

A multi-threaded batch job is submitted by the DBMS scheduler using a single batch job by default. This may provide fewer records to manage.

Steps to Enable

You don't need to do anything to enable this feature.

Implementation Tools

Admin Log Retrieval

A new Advanced Show Log Option allows administrative users to fetch logs of other users. By default, a user can only retrieve their own user logs. The following are examples of when this capability is needed:

• Batch and integration logs are captured by special user codes created for this type of processing. These users typically do not represent a human and therefore would not access logs using "show user log." Instead, someone else would be accessing these logs.

• Customer administrators would like to retrieve logs for an end user for support reasons  An end user might not have technical skills to gather or assess the log, or they might not have the privileges necessary to access the logs for security reasons.

An Administrative (F1SU) access mode has been added to the existing Show User Log application service (F1USERLOG). Only users with access to the administrative access mode can view the logs of other users.

To a user with administrative access, the Advanced Show Log Option is offered as a drop-down button along with the Show User Log option.

Show User Log

Clicking Show User Log in the drop-down list launches a window allowing you to select the user ID for the desired user logs. You can also adjust the number of log entries. If you realize you want your own logs after all, you can simply click the checkbox.

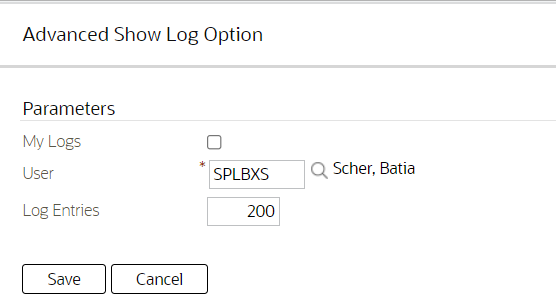

Advanced Show Log Option

A system administrator can view the logs of other user to, for example, provide better support or access special batch and user logs.

Steps to Enable

Make the feature accessible by assigning or updating privileges and/or job roles. Details are provided in the Role section below.

Role And Privileges

System administrators should set/grant users/grant access to the Administrative (F1SU) access mode of the existing Show User Log application service (F1USERLOG).

Explicit Imports in Groovy Scripts

When saving a script, if the system detects that there are classes referenced in the script that are not explicitly defined, it issues a warning and automatically adds import statements for the classes. Previously, you had to opt-in to this functionality using a property. In this release, this is now the standard product behavior.

When the script is executed at run time, the system uses the explicit imports to execute the script. Previously, the system had logic to import all callable classes available to Groovy at run time, which caused issues in certain cases.  Because you may have custom scripts that still do not have the explicit imports, the system continues to fall back on the previous behavior to import all callable classes for scripts that do not compile with their explicit imports.

You should review your existing custom Groovy scripts and update the scripts to explicitly declare the imports.

By defining Groovy Imports explicitly in Groovy scripts, you can eliminate ambiguous class references and improves compilation time.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

The background process F1-CAGVY that reports all scripts that required the automatic import step to successfully compile. You should run this batch program to identify and fix any scripts missing explicit imports.

Improved Portal Zone Height Control

Zone height configuration is simplified and now supports the following options:

• Content (Unlimited Height) - Allows the the height to be determined by content.
• Content (Limited Height) - Allows the height to be determined by content up to a specified maximum limit.
• Fixed Height - Sets the zone at a specific height regardless of content.

You can use height limit options to achieve a more consistent portal layout, especially when a zone is rendered on long or small devices.

When a height option is not explicitly selected, zone height is unlimited and determined by content. However, for a data explorer zone, the results grid area itself (not the entire zone) is limited by the zone parameter "height of report" (which has a default value of 50%).

The following zone height options are deprecated and replaced as follows:

• Content - Zones configured with this option along with a maximum height limit are upgraded to reference the Content (Limited Height) option. If no limit is specified, the Content (Unlimited Height) option is used.

• Full - Zones configured with this option are upgraded to reference the Content (Limited Height) option with a 100% height limit.

• Half - Zones configured with this option are upgraded to reference the Content (Limited Height) option with a 50% height limit.

You can enhance the configuration of portal zones to better and more simply control zone height.

Steps to Enable

You don't need to do anything to enable this feature.

New Base Display Icon Images Supplied

You can use additional SVG icons in contextual insights, trees, and other user interface features that support SVG icons.

Icon	ID	Description
	F1ACTADD	Activities - Add
	F1ARWODL	Arrow - Open - Down - Left
	F1ARWODR	Arrow - Open - Down - Right
	F1ARWOUL	Arrow - Open - Up - Left
	F1ARWOUR	Arrow - Open - Up - Right
	F1ARWSI	Arrows - In
	F1ARWSO	Arrows - Out
	F1ASAVE	Save - Arrows Out
	F1BOX	Cube
	F1CAL	Calendar
	F1CALL	Telephone
	F1CALLA	Telephone - Add
	F1CAREA	Area Chart
	F1CBXOFF	Checkbox - Off
	F1CBXON	Checkbox - On
	F1CDWNR	Caret - Down - Right
	F1CHDOWN	Chevron - Down
	F1CHDWNR	Chevron - Down - Right
	F1CIRCLE	Circle
	F1CLEFT	Caret - Left
	F1CLINE	Line Chart
	F1CLIST	Progress List
	F1CLPBC	Clear List
	F1CONSTD	Construction Design
	F1CPYTMP	Copy From Template
	F1CRAGG	Running Aggregate Chart
	F1CRCLE7	Progress Circle
	F1CREATE	Site - Add
	F1CRIGHT	Caret - Right
	F1CRPAGE	Page - Add
	F1DAREA	Draw Area
	F1DWNLD	Download
	F1EDIT	Edit
	F1EDITIN	Inline Edit
	F1EXACRO	Export Acrobat
	F1FHAND	Free Hand Draw
	F1HEXGN	Polygon - Hexagon
	F1HOUSE	House
	F1HRGS	Waiting Hourglass - Start
	F1LAYERS	Layers
	F1LINEI	Line - Inclined
	F1LINEST	Line - Staggered
	F1LOC	Location
	F1LOCW	Location Pin - Work
	F1LOCWA	Location Pin - Work - Add
	F1MENUE	Expand Menu
	F1MOVE	Move
	F1MSG	Message
	F1MULT	Multiply
	F1NOTIF	Notification
	F1NUMS	Numbers
	F1OVAL	Oval
	F1PINS	Location Pin - Solid
	F1RECT	Rectangle
	F1RFRSH	Refresh
	F1RUNNIG	Running
	F1SCLOSE	Close - Circled - Solid
	F1SFILE	Work Request - File Stage
	F1SHARE	Share
	F1STPED	Close - Circled - 2 Colors
	F1TAG	Tag
	F1TEXT	Text
	F1TRIUP	Triangle
	F1VIEW	View
	F1WRKOA	Gannt Chart - Add
	F1ZOOMIN	Zoom In

Additional icons allow for a richer user experience for displayed information.

Steps to Enable

You don't need to do anything to enable this feature.

Groovy Version 3.0.7 Upgrade

You can stay current with the version of Groovy supported by the product.

The product is using Groovy 3.0.7.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

Groovy introduced a change in behavior in this newer version. It is unknown whether this change in behavior is intentional or a defect.

Here is one example error:

[Static type checking] - Cannot find matching method com.splwg.base.api.datatypes.Date#addDays(java.math.BigInteger).

Please check if the declared type is correct and if the method exists.org.codehaus.groovy.control.MultipleCompilationErrorsException:

startup failed: C1FATYPALMSG: 47: [Static type checking] - Cannot find matching method

com.splwg.base.api.datatypes.Date#addDays(java.math.BigInteger). Please check if the declared type is correct and if the method exists.

@ line 47, column 35.

Date referenceDate = row.getDateTime("SCHED_DTTM").getDate().addDays(row.getInteger("DAYS_ALERT_NBR"));

In the cases that we have, some simple changes can be made in the groovy scripts to resolve the compile issues.

For example:

Date referenceDate = row.getDateTime("SCHED_DTTM").getDate().addDays(row.getInteger("DAYS_ALERT_NBR").intValue());

Width Option for Contextual Insights

A new CSS helper class is available to the ou-insights web component: card-full-width.  Adding class="card-full-width" to the ou-insights web component ensures that the width for a card insight adjusts to the width of the zone that contains it. Card insights that do not set this parameter use a fixed width.

Additional CSS helper class to control the width of a card insight allows better layout possibilities for user interface design.

Steps to Enable

You don't need to do anything to enable this feature.

To Do Management

Improved User Search for Assigning To Do Entries

The search for users provided in the Forward action on the To Do Entry portal now allows you to filter the result list by the user ID and/or user name.

User ID/Name Search Filter

In addition, the results list has been enhanced to display counts of To Do Entries already assigned to this user for the same To Do Type ("Assigned - This Type") and across all To Do Types ("Total Assigned").

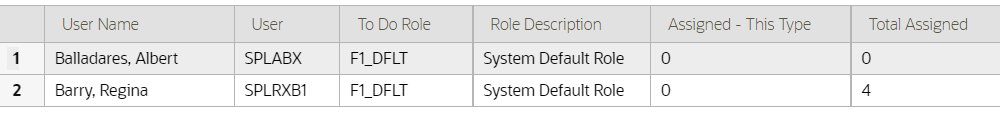

Search Result List with To Do Entry Counts

In addition, the To Do Management portal's Assign action has been enhanced.  If you are a supervisor using this action, you are prompted to choose the User to assign to. Previously, this prompt used a drop-down. In this release, you now use the same enhanced search. This allows you to filter the search by User ID or user name, and it also provides you with information about each user's current work load.

When assigning a To Do Entry, you can now filter the list by User ID and User Name. You can also see the number of To Do Entries each user already has assigned to them.

Steps to Enable

You don't need to do anything to enable this feature.

Data Export

General Data Export - File Size Control

Generalized Data Export (GDE) batch processes produce a single file per thread by default. This may result in files that are too large to manage. An optional batch parameter Records in File has been added to the GDE batch processes to limit the number of records exported in a file. When specified, the batch process closes the current file when the number of exported records reaches the specified limit and a new file is opened for exporting the next set of records. This allows for multiple export files to be created for a single thread.

The F1-GEXPI (Generalized Initial Export Initiator) batch process has this limit set to 500,000 records per file but this value may be removed or adjusted by your implementation as needed.

The F1-GEEXO (Generalized Ongoing Export) batch process has been enhanced to better manage situations where the backlog of queued changes has become too large. In this situation, the next batch takes longer to export, which delays the downstream consuming step of the export files. The import step can only start once the manifest file is ready when the batch completes. In this release, the backlog can be cleared in smaller "chunks", allowing the downstream consuming process to import them as they are made available. To support this, an optional batch parameter Thread Processing Limit has been introduced to limit the number of records exported in a single run. Instead of waiting for the next scheduled batch run to process the next set of remaining entries, a new batch process may be automatically submitted if requested by the Automatic Backlog Clearance batch parameter. The batch process has this limit set to 500,000 records and enables automatic backlog clearance. These parameters may be adjusted by your implementation as needed.

This allows you to  produce smaller Generalized Data Export (GDE) files.

Steps to Enable

You don't need to do anything to enable this feature.

General Data Export - Ongoing Export Enabled On-Premise

The ongoing export feature of the Generalized Data Export functionality is enabled for on-premise installations.

This provides on-premise installations with the ability to continuously export data as it changes.

Steps to Enable

You don't need to do anything to enable this feature.

General Data Export - Thread Allocation Control

By default, each export batch submitted by the F1-GEXPI (Generalized Initial Export Initiator) batch process uses the number threads defined on the maintenance object's specific batch control record. This allows for a more optimal configuration of the number of threads to allocate to a specific batch based on the size of the corresponding maintenance object.

In this release, an optional batch parameter Override Number of Threads is introduced to override this value. When set to "Y" the default value is overridden with the number of threads the initiator batch is submitted with. This allows for a global number of threads allocation that does not require a specific value on each specific export batch control.

Note that this override capability only applies to master and transaction entities. Admin entities are of low volume and therefore should use their default value, which is typically a single thread.

You can fine tune the number of threads allocated to each initial export batch process when submitted via the F1-GEXPI (Generalized Initial Export Initiator) batch process.

Steps to Enable

You don't need to do anything to enable this feature.

Miscellaneous

Oracle Guided Learning Integration

This integration provides a mechanism for customers of the Oracle Guided Learning Cloud Service to define their application identifier (to identify their tenancy) in a configuration parameter. This will automatically enable the learning widget to appear on the screen passing in the user details and the context to allow relevant content to appear.

Oracle Guided Learning Cloud Service Widget

NOTE: This integration is to enable the definition of the application identifier and the display of the widget. No prebuilt content is available at this time. Customers using this facility are free to add their own content as necessary using the Oracle Guided Learning Cloud Service.

NOTE: This integration only allows links to procedures and processes stored within Oracle Guided Learning. It does not support active workflow integration to Oracle Utilities products in this release.

The Oracle Guided Learning cloud service allows utilities to provide access to contextual policies, business processes, and training materials from Oracle Utilities products. This integration allows customers to link their Oracle Guided Learning subscription and enables an on screen widget to enable the integration.

Steps to Enable

Work with your Service Delivery Manager to complete the required configuration.

Application Security

Consolidation of Default Application Services

The product has consolidated the default application services that are required for basic application security.

• F1-DFLTS now serves as the single 'default' application service. All user groups should have access to this application service and all its access modes.

• F1-DFLTAPS was previously used for business services and service scripts as the default application service. Going forward, business services and service scripts should use F1-DFLTS as the default.

• FWLZDEXP was previously used for displaying zones. It is no longer used by base zones. F1-DFLTS is the only application service needed for basic execution of zones.

This consolidation reduces the number of application services required for users to have basic application security.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

An upgrade script will proactively update any references in the metadata to F1-DFLTAPS or FWLZDEXP to F1-DFLTS. Implementations should consider if either of these application services are used directly in code and update those references to use F1-DFLTS or a different appropriate application service.

In addition, an upgrade script ensures that all user groups with access to F1-DFLTAPS now have F1EX access to F1-DFLTS.

In a future release, the application services F1-DFLTAPS and FWLZDEXP will be removed from support.

New Application Service for Master Configuration Maintenance Object

The F1-MASTERCONFIG application service is provided to allow you to secure the maintenance of master configuration records separately from the security for the portal used to view master configuration records. This follows the product's standards. Previously, the same application service applied to both the maintenance object and the portal. This prevented you from more granular security configuration.

This allows for more flexible and granular security configuration.

Steps to Enable

You don't need to do anything to enable this feature.

Tips And Considerations

An upgrade script updates all user groups that currently have access to the existing F1MSTCFG application service to have the same access to the new F1-MASTERCONFIG application service.

In addition, any business object that was referencing the F1MSTCFG application service has been updated to reference F1-MASTERCONFIG.

Note that the existing F1MSTCFG application service has been updated to reference only the Inquire access mode. The access modes for Add, Change, and Delete have been removed since they are not applicable for a portal-based application service.

System Wide

Database Changes

See a preview of the database changes coming for 22A in the Oracle Utilities Cloud Services Database Changes Guide. This guide is also available in PDF.

This includes information about databases changes to tables, indexes, views, columns, and more.

Steps to Enable

You don't need to do anything to enable this feature.

Supported Platforms and Browsers

Oracle Utilities 22A Cloud Services support the following operating system and web browser combinations:

Operating System	Web Browsers
Windows 10	Firefox ESR 91+ Chrome for Enterprise 96+ Microsoft Edge (Chromium-based) 96+
iPad2 iOS 10.x (WACS only)	Safari (selected flows and portals only)

Oracle recommends using only supported client platforms and browsers.

Steps to Enable

Use only supported platforms and browsers.

IMPORTANT Actions and Considerations

REPLACED OR REMOVED FEATURES

From time to time, Oracle replaces existing cloud services with new features, or removes existing features. Replaced features may be put on a path to removal. As a best practice, you should use the newer version of a replaced feature as soon as a newer version is available.

This section identifies the features in this Cloud service that have been replaced or removed.

Product	Removed Feature	Target Removal	Replacement Feature	Replaced In	Additional Information
Oracle Utilities Application Framework	Field Legacy Page Metadata	22A	Portal-based User Interface	21B	Navigation Keys: impFldTabMenu metaDataFieldTableGrid metaDataFieldTableGrid metaDataFieldTablePage metaDataFieldMaint Records in the UI metadata program component tables related to the above navigation keys.
Oracle Utilities Application Framework	Portal Legacy Page Metadata	22A	Portal-based User Interface	21C	Navigation Keys: portalMainPage portalMainPopup portalOptsGrid portalOptsPage portalTabMenu portalZoneGridPage Records in the UI metadata program component tables related to the above navigation keys.
Oracle Utilities Application Framework	Zone Legacy Page Metadata	22A	Portal-based User Interface	21C	Navigation Keys: portalZoneTabMenu portalZoneMainPage portalZoneParameterGrid portalZonePortalGrid portalZonePortalPage Records in the UI metadata program component tables related to the above navigation keys.
Service and Measurement Data Foundation	D1-ADS (Aggregation Dimension Scanner Monitor)	22A	D1-MQTDS (Measurement Quality and Timeliness Dim Scan)	21C	Business Objects D2-MsrmtQDUCAggScanner D2-SubMsrmtQDUCAggScanner Algorithm Types D2-CRE-MQAGG D2-DET-TML Algorithms D2-CRE-MQAGG D2-DET-TML NOTE: D1-ADS is deprecated for Timeliness and Quality Aggregation is still used for other aggregations.

Unless otherwise specified below, these notes are for informational purposes and no action is required.

PRODUCT CHANGES

BI / Analytics Publisher Changes

The name of Oracle BI Publisher has changed to Oracle Analytics Publisher.

Oracle Analytics Publisher is intended for low-volume, operational reporting. Use of Oracle Analytics Publisher for high volume reporting and extracts such as batch bill printing is not supported in Oracle Utilities Cloud Services.

PLANNED REMOVAL

Plan to Remove Switch UI View from Oracle Utilities Application Framework

The Switch UI View provides the ability to toggle between Redwood User Experience and pre-Redwood User Experience during a session. Support for pre-Redwood User Experience will be deprecated in a future release.

Plan to Remove F1-DFLTAPS and FWLZDEXP Application Services from Oracle Utilities Application Framework

With the consolidation of application services, references to the F1-DFLTAPS and FWLZDEXP application services will be removed in a future release. Secured objects referencing these application services within HTML or Schemas must use F1-DFLTS or a different application service that is appropriate for the business rule.

Plan to Remove Workflow and Notification Metadata and Database Tables from Oracle Utilities Application Framework

The Workflow and Notification function provided a configurable process to receive incoming messages (workflow) and exchange messages with an external system (notification). In the interim years, Outbound Message and Inbound Web Service manage external messages, service scripts handle simple incoming messages processing, and service tasks or business objects handle complicated incoming messages processing. The Workflow and Notification metadata and database tables will be deprecated in a future release.

NOTE: Oracle Utilities Application Framework only manages a portion of the Workflow and Notification function. Oracle Utilities Customer Care and Billing mostly supports the function.

Plan to Remove Mobile Application Framework Metadata from Oracle Utilities Application Framework

Metadata related to the Mobile Application Framework will be removed in a future release.

Plan to Remove Key Ring Validation Scripts, Algorithm Types, and Algorithms from Oracle Utilities Application Framework

The following K1-SignatureKeyRing business object validation scripts, algorithm types, and algorithms will be deprecated in a future release:

• Algorithm
  • K1-KRDCKFS
  • K1-KRINCKFS

• Algorithm Type
  • KRDCKFS
  • K1-KRINCKFS

• Message
  • 11009 / 1402

• Plugin Script
  • K1-KRDCKFS
  • K1-KRINCKFS

• Service Script
  • K1-ChkCfgExL

These objects are not applicable to the requirements to expand the use of the Signature Key Ring beyond object file storage and other planned use cases. The algorithms have been removed from the Business Object configuration.

Plan to Remove UI Metadata Related to Converted Pages from Oracle Utilities Application Framework

The UI metadata related to fixed pages that have been converted to portals will be removed in a future release. The tables list the navigation keys related to each maintenance page. The related UI program component data will also be removed. Note that the metadata related to the search pages will not be removed at this time in case these are used on other fixed pages.

Field Maintenance	Portal Maintenance	Zone Maintenance	To Do Entry Maintenance
impFldTabMenu metaDataFieldMainPage metaDataFieldMaint metaDataFieldTableGrid metaDataFieldTablePage Any help navigation keys	portalTabMenu portalMainPage portalMainPopup portalOptsGrid portalOptsPage Any help navigation keys	portalZoneTabMenu portalZoneMainPage portalZoneGridPage portalZoneParameterGrid portalZonePortalGrid portalZonePortalPage Any help navigation keys	toDoEntryCharGrid toDoEntryDrillKeyValuesListGrd toDoEntrySortKeyValuesListGrid todoentrykeyvalue todoentrymain toDoEntryMaint toDoEntryPopupAdd toDoEntryPopupForward toDoEntryPopupSendBack Any help navigation keys

Table Maintenance	Work Calendar Maintenance	Message Maintenance	Time Zone Maintenance
metaDataTableFieldsGrid metaDataTableMainPage metaDataTableCFldsGrid metaDataTableConstPage metaDataTableMaint metaDataTableRefByConstPage metaDataTableFieldPage Any help navigation keys	workCalendarMaint workCalendarMainPage workCalendarHolidayGrid Any help navigation keys	msgMaintDetailsPage msgMaintGrid msgMaintPage msgMaintTabMenu Any help navigation keys	timeZoneMainPage timeZoneTabMenu Any help navigation keys

Plan to Remove Miscellaneous System Data from Oracle Utilities Application Framework

The following metadata is no longer in use and will be removed in a future release:

Object	Data	Description/Comments
Lookup Value	CHAR_ENTITY_FLG / F1SE	Characteristic Entity / Sync Request Inbound Exception
Script	F1-TDMgActSS	To Do Management - Process Actions (Deprecated) / Replaced by F1TDMgActSS
Script	F1AddDebugLg	Add Log for Monitoring Probe (Deprecated) / Replaced by a BS - F1-MONPRBLOG

Plan to Incorporate Application Viewer to Oracle Utilities Applications

Many aspects of the Application Viewer are incorporated into the application, including the data dictionary. The user interfaces for the tables and fields have been enhanced to provide more information at a glance and a view of the links between tables. Information about algorithms, batch controls, and maintenance objects are also visible directly in the application. In a future release, Javadocs and Groovy Javadocs will be viewable within the application at which point the standalone Application Viewer will no longer be delivered.

Plan to Remove XSLT Managed Content Type from Oracle Utilities Application Framework

The Managed Content table entries related to XSL should use the XSLTC managed content type instead of the XSLT managed content type. Support for the XSLT managed content type will be deprecated in a future release.

Plan to Remove REST IWS - Original REST Servlet from Oracle Utilities Application Framework

The original URL supplied for calling Inbound Web Service-based REST services includes the Inbound Web Service name in its makeup. Support for this will continue for backward compatibility purposes, but will be deprecated in a future release. You should adjust your existing integrations to use the currently supported URL.

Plan to Remove Append Setting from Pagination - Oracle Utilities Application Framework

There are several known issues associated with the pagination's Append option. It is recommended that you defer from using this pagination setting.

Plan to Remove Support for Master/Subordinate Servers for Web Service Catalog in Oracle Utilities Application Framework

The Service Catalog Configuration (Master Configuration) enables you to define subordinate servers. Defining subordinate servers is no longer applicable to Oracle Integration Cloud.

Plan to Remove Support for Batch Run Statistics Portal Functionality in Oracle Utilities Application Framework

The Batch Run Statistics portal provides additional information about batch runs, but some functionality on the portal is related to capturing additional information from an external tool. Additional information captured from the external tool is stored in a Fact record. Support for capturing additional information from an external tool will be discontinued in a future release. The captured additional information would still be available to existing customers.

Plan to Remove Configuration Migration Assistant Import Requests from Oracle Utilities Application Framework

The F1-FrameworkAdmin (Framework Admin) and F1-SchemaAdmin (Schema Admin) migration requests are no longer recommended and will not be updated with new administration or control table in a future release.

Plan to Remove Configuration Migration Assistant Import Algorithm from Oracle Utilities Application Framework

The Configuration Migration Assistant Import algorithm plug-in spot will be deprecated in a future release. It is recommended that you review any existing algorithms and create the appropriate Pre-Compare algorithms instead.

Plan to Remove Business Object Read from F1-MAINPROC When Pre-processing Exists

In the original implementation of Configuration Tools, the main framework maintenance BPA (F1-MainProc) does not perform a Read of the business object when a pre-processing script is linked to the business object via options. When F1-MainProc does not perform a Read, the pre-processing script performs the Read of the business object.

In a subsequent release, a business object Read was added to F1-MainProc (with an existing pre-processing script) to resolve a UI Hints issue related to child business objects. Adding a business object Read to F1-MainProc introduced an issue visible only to specific scenarios and a different fix was introduced. The new fix made the business object Read unnecessary in F1-MainProc and many pre-processing scripts are properly performing the business object Read. The business object Read should have been removed from F1-MainProc to prevent multiple reads from being performed. However, pre-processing scripts may have been introduced after the addition of the business object Read to F1-MainProc that do not perform a business object Read in the pre-processing script. As such, the business object Read is still performed as part of the F1-MainProc processing.

When a pre-processing script exists, the business object Read will be removed from the F1-MainProc logic. Review your custom pre-processing scripts that are linked to business object options to ensure that the scripts properly perform reads of your business object.

Plan to Remove Support for Groovy-based Functions from Oracle Utilities Testing Accelerator

Support for Groovy-based plugin functions and upload test-based plugin functions will be deprecated in a future release. Groovy-based functions must be manually migrated to the supported JavaScript functions.

Plan to Remove Several Features from Oracle Utilities Customer Cloud Service

The following features will be deprecated in a future release:

• Message Number 99901 from Message Category 11 (CIS Payment/EFT)
• Endorse Message Installation Message Type and Payment Receipt Message Installation Message Type from Installation Options - Framework
• Printer IP Address and Printer Port from Tender Source

Plan to Remove Cube View from Oracle Utilities Meter Solution Cloud Service

The Cube View will be deprecated in a future release. Visualization tools like Oracle Utilities Analytics Visualization provide more functionality and is easy to maintain.
