Manipulating Database Objects Using Oracle Application Express 4.2

Overview

Purpose

This tutorial shows you how to manipulate database objects using Oracle Application Express.

Time to Complete

Approximately 30 minutes

Introduction

What Is Oracle Application Express?

Oracle Application Express is a hosted declarative development environment for developing and deploying database-centric Web applications. Thanks to built-in features such as user interface themes, navigational controls, form handlers, and flexible reports, Oracle Application Express accelerates the application development process.

What Components Make Up Oracle Application Express?

Oracle Application Express contains four main components:

Application Builder	Used to build database-centric interactive Web applications.
SQL Workshop	Used to access database objects, run SQL statements and SQL scripts.
Team Development	Facilitates the management of the application development process.
Administration	Used to manage services and users and to monitor activity.

Terminology

The following concepts are important to know when working with Oracle Application Express:

Workspace	A workspace is a virtual private database allowing multiple users to work within the same Oracle Application Express installation but keeping their objects, data and applications private.
Application	An application is a collection of pages with branches that connect them. Its attributes include the authentication method, default UI templates, and authorization rules.
Page	A page is the basic building block of an application. When you build an application in Application Builder, you create pages that contain user interface elements, such as tabs, lists, buttons, items, and regions.
Region	Content is displayed in regions, which are logical subsections of a page. Each page can have any number of regions of several different types. These types include: HTML text, SQL Queries, PL/SQL-generated HTML, and charts. Each region is rendered using a region template. Regions are positioned on the page using display points defined in the page template.
Item	An item can be a text field, text area, password, select list, check box, and so on. Item attributes affect the display and behavior of items on a page. For example, these attributes can impact where a label displays, how large an item is, and whether or not the item is displayed next to, or below the previous item. The value of an item is automatically stored into the application's session state, which can be referenced at any point within the user's session.

Architecture

Oracle Application Express installs with your Oracle database and is comprised of data in tables and PL/SQL code.

Oracle Application Express utilizes a Web browser on the user's computer communicating through a Web listener to the Oracle Database. No client software, other than a browser, is required for development, deployment or runtime as Application Express pages are rendered using HTML within the browser. Page requests and submissions are sent to the Application Express engine within the Oracle Database.

When you create or extend an application, Oracle Application Express creates or modifies the meta data stored in its database tables. When the application is run, the Application Express engine then reads the meta data and displays the requested page or processes page submissions.

To provide stateful behavior within an application, Oracle Application Express transparently manages session state in the database. Application developers can get and set session state using simple substitutions as well as standard SQL bind variable syntax.

Apache MOD_PLSQL
One way to access the Oracle Application Express engine is to configure the Oracle HTTP Server (Apache) containing the mod_plsql plug-in . The plugin functions as communication broker between the Web server and the Oracle Application Express objects in the Oracle database. This maps browser requests into database stored procedure calls. Images are stored on the file system and served by Apache. Using Apache allows the web listener to be placed on the same physical machine as the database, or on a separate physical machine.

Oracle Application Express Listener Oracle Application Express is a Java-based Web server. It features file system caching, support for FOP transformations to PDF, offers improved file upload capability, and is certified against Web Logic, Tomcat, and OC4J. The Oracle Application Express architecture requires some form of Web server to proxy requests between a Web browser and the Oracle Application Express engine. The APEX Listener was created to satisfy that need but its use goes beyond that of Application Express configurations. The use of the Oracle APEX listener simplifies the deployment process because there is no Oracle home required as connectivity is provided using an embedded JDBC driver.

Embedded PL/SQL Gateway (EPG)
The embedded PL/SQL gateway runs in the XML DB HTTP server in the Oracle database and includes the core features of mod_plsql, but does not require the Oracle HTTP Server powered by Apache. The EPG stores and serves all files, including images, CSS, and Javascript from the database. The EPG is convenient for smaller configurations. The EPG is not recommended for larger scale production use cases or Internet facing applications.

What is new in Oracle Application Express 4.2?

The following is the summary of the new features in Oracle Application Express 4.2.

Application Builder for Mobile	Oracle Application Express 4.2 provides declarative support for building mobile Web applications. Mobile pages use jQuery Mobile to render content on the vast majority of mobile devices. Each application can include both desktop and mobile user interfaces.
Mobile and Responsive Themes	Oracle Application Express 4.2 includes mobile and responsive themes to support the development of mobile pages, new theme has been introduced which is based on jQuery Mobile. This theme supports mobile page transitions and gestures such as swipe, tap, and pinch. You can also declaratively specify JavaScript and CSS files for use within the mobile templates and pages. Another new theme introduced, Theme 25, incorporates reponsive design principles. Reponsive design automatically adjusts to the screen dimensions. Such themes work well on desktop, tablet and mobile devices.
HTML5 Charts	Oracle Application Express Release 4.2 now includes HTML5 charts. Charts can now be rendered as either HTML5 or Flash, where Flash charts have automatic fallback to HTML5 when Flash is not detected.
HTML5 Item Types	Oracle Application Express has introduced new item types have been introduced including Slider, HTML5 Date Picker, and Yes/No Flip Toggle Switch. Incorporating such HTML5 attributes as sub-types for Email, Phone, and URL together with Placeholders will allow you to improve your end user experience.
Mobile Calendars	Interactive reports now support icon and detail views, calendar views, inline edit, compound filter expressions, email notification, and a new group by functionality. Additionally, each report features enhanced Save options, can be downloaded to searchable HTML, and offers more granular printing capabilities.
Packaged Applications	Oracle Application Express Release 4.2 includes a suite of business productivity applications, easily installed with only a few clicks. These solutions can be readily used as production applications to improve business processes and are fully supported by Oracle. Packaged Applications also include a collection of sample applications which demonstrate some of the major features of Oracle Application Express.
RESTful Web Services*	RESTful Services in Release 4.2 provides stateless access to data and logic, through the use of SQL and PL/SQL. RESTful Services are accessed through the use of Uniform Resource Identifiers (URIs), defined within Oracle Application Express. Data can be easily served in JSON or CSV format, or additional formats by choosing PL/SQL as the source. * This feature requires APEX Listener 2.0 or later.

Prerequisites

Before starting this tutorial, you should:

Install Oracle Database 11g or later.
Install Oracle Application Express Release 4.2.
Download and unzip the apexstart.zip file into your working directory.
Create a workspace and user to perform this tutorial.

Creating a Table from a Spreadsheet

To load the data for this tutorial from a spreadsheet, perform the following steps:

Enter the following URL to log in to Oracle Application Express (change the <hostname> to localhost, your specific hostname or apex.oracle.com).

http://<hostname>:8080/apex

Log into the Application Express Login page using your login credentials. Enter the following credentials and click **Login**.
**Note:** Here, the Workspace, Username and Password used are **obe**.

Workspace: **OBE**
Username: **OBE**
Password: **obe**

To create the table, first you need to load the spreadsheet data. Click the down arrow next to **SQL Workshop** and then select **Utilities > Data Workshop**.

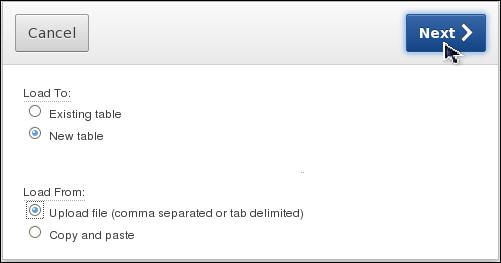

Ensure that the import target (Load To) is set to **New table**. For Load From, select the **Upload file (comma separated or tab delimited)** option. Click **Next >**.

Locate the **tasks.txt** file in the directory where your files are located and click **Open**. Because the data in the text file is tab delimited, enter \t in the Separator field. Click **Next >**.

The Table Information page displays the columns in the table and their formats, as well as the data to be inserted into the table after the table is created. For Table Name, enter **OBE_TASKS**, and click **Next >**.

Using the Primary Key page, you can add a system-generated primary key to your table and populate that column with a new sequence. Review the default values, and click **Load Data**.

After the table is created and the data is loaded, you are left on the Text Data Load Repository page. You can see the file that you just uploaded with 16 rows successfully uploaded.

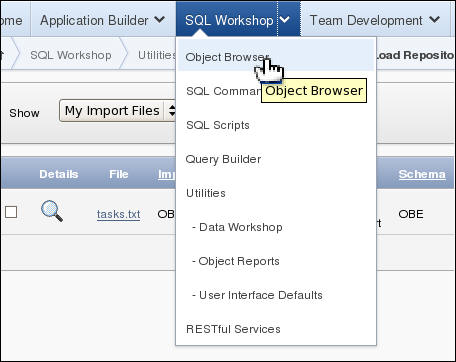

To view your new table, click the down arrow next to **SQL Workshop** tab and select **Object Browser**.

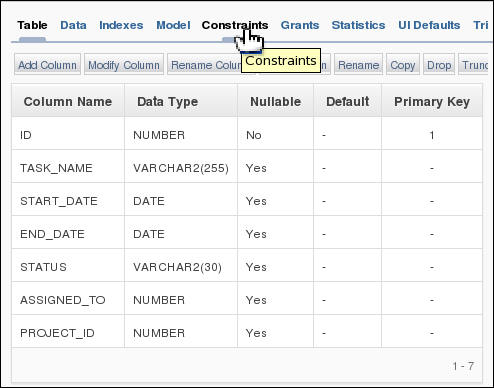

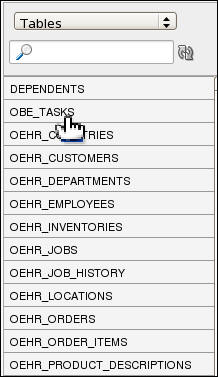

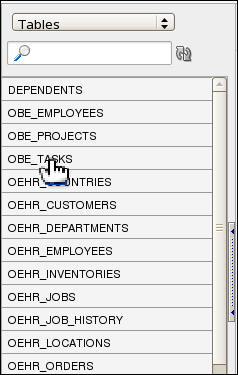

To view the table definition, click the **OBE_TASK**S table under the list of tables in the left navigator.

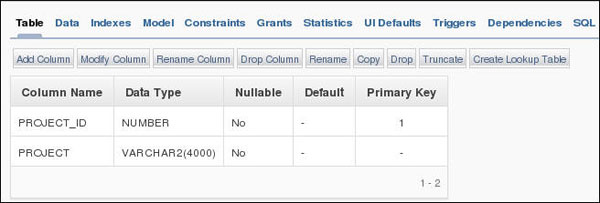

This page displays the table definition. To view the data in the table, click the Data tab.

You see all the data in the table. You can change any of the data in the table from this page, and also add rows to the table.

Adding a Master Table

To make the project name maintainable and to be able to track other information about a project, you can move the Project information into a separate table. Perform the following steps:

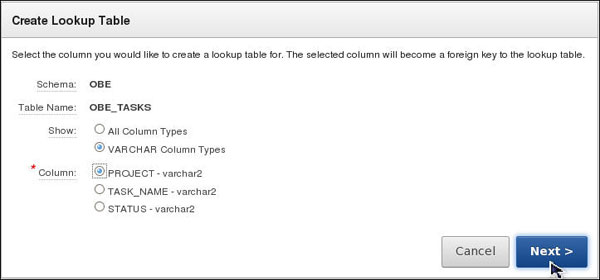

To specify the column on which the master table is to be created, select **PROJECT - varchar2**, and click **Next >** .

Enter the following values, and click **Next >**.

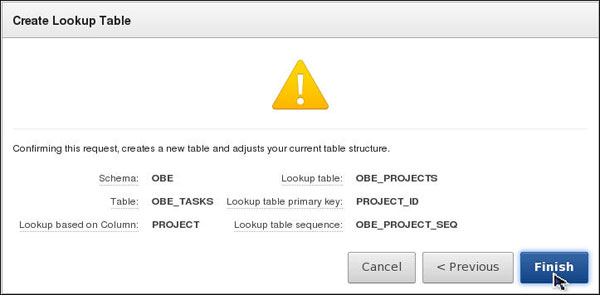

New Table Name: **OBE_PROJECTS**
New Sequence: **OBE_PROJECT_SEQ**

Notice that the new **OBE_PROJECTS** table contains a numeric primary key along with the PROJECT column.

Modifying a Table

Now that you have the two main tables, enhance the OBE_PROJECTS table by adding some additional columns. To do this, perform the following steps:

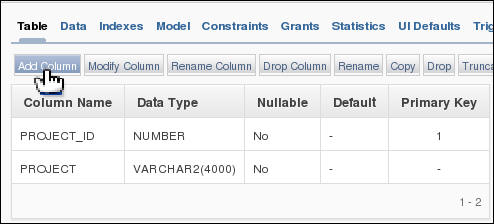

Make sure the OBE_PROJECTS table is selected. You are going to add a column to the table. Click **Add Column**.

Enter the following values, and click **Next >**.

Add Column: **PROJECT_DEADLINE**
Type: **DATE**

You see the modified table definition with the new PROJECT_DEADLINE column added. You want to create one more column for PROJECT_PRIORITY.
Click **Add Column**.

Enter the following values, and click **Next >**.

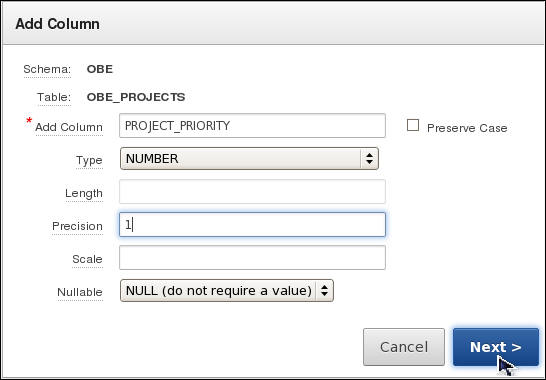

Add Column: **PROJECT_PRIORITY**
Type: **NUMBER**
Precision: 1

The PROJECT_PRIORITY column is added. Click the **Data** tab to view the data.

You see all the projects that were referenced in the OBE_TASKS table. You can change data from here. Click the **Edit** icon ( ) on the left of PROJECT_ID for **Public Website**.

For Project Deadline, enter a date greater than today's date. Enter 1 for Priority. Then click **Apply Changes**.

You see the data that you added. Another way to create database objects and load data is to use a script. Select **SQL Scripts** icon.

Adding a Table Using a Script

You may have noticed that the OBE_TASKS.ASSIGNED_TO column was a number. In this topic, you run a script to create the OBE_EMPLOYEES table and load a list of current employees. Each employee has an EMPLOYEE_ID that corresponds to the numbers found in the OBE_TASKS.ASSIGNED_TO column. Perform the following steps:

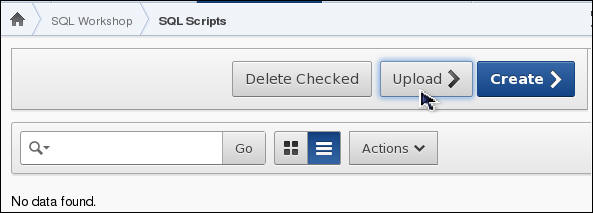

You are in the SQL Scripts page. Click **Upload**.

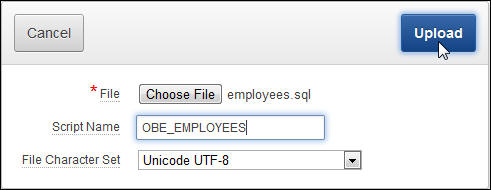

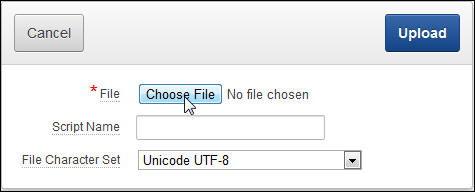

Select **employees.sql** from your working directory and click **Open**. Enter **OBE_EMPLOYEE**S for the Script Name and click **Upload**.

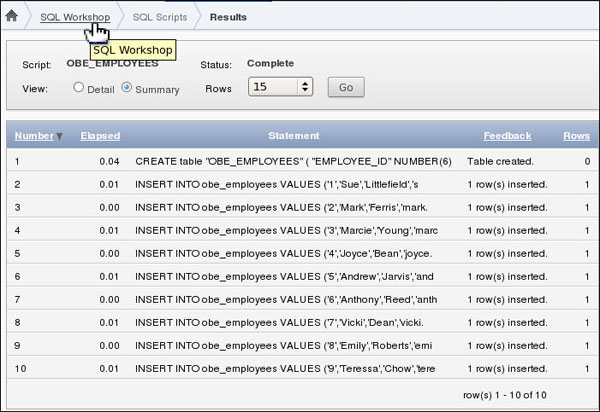

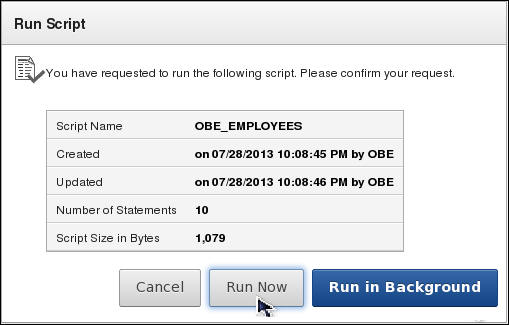

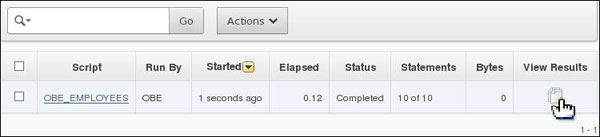

The script was executed. To view the results, click the **View Results** icon.

The OBE_EMPLOYEES table was created and some data was inserted. Click the **SQL Workshop** breadcrumb.

Adding a Constraint

You now have the employee data that is referenced by the OBE_TASKS.ASSIGNED_TO column but need to identify a foreign key between the tables. The foreign key ensures that each ASSIGNED_TO column references a valid Employee. It also ensures that an Employee cannot be deleted who has tasks assigned. Perform the following steps:

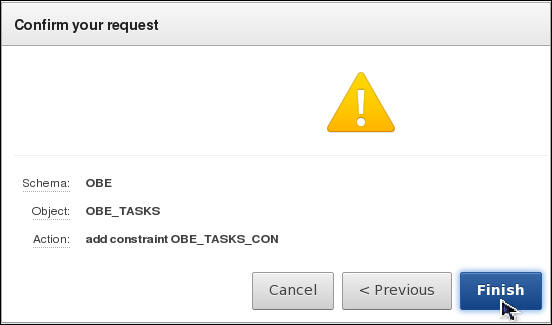

Select **Foreign Key** for the Constraint Type. Select **ASSIGNED_TO** for the Foreign Key Column, select **OBE_EMPLOYEES** table for the Reference Table Name and select EMPLOYEE_ID from the Reference Table Column List. Then click **Next >** .

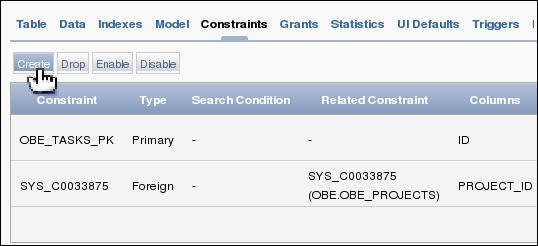

The constraint was created successfully. You want to also create a check constraint on the **PROJECT_PRIORITY** column so that the data is validated when the data is inserted or updated. Select **OBE_PROJECTS** table.

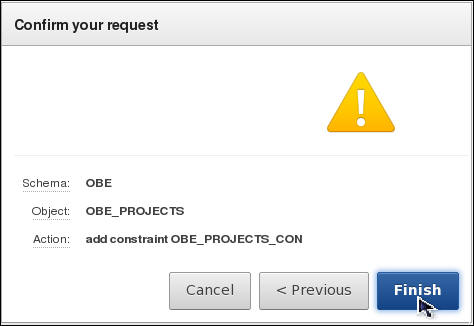

Select **PROJECT_PRIORITY** for the Constraint on Column field and enter in ('1','2','3') for the Constraint Expression. Ensure that Check Constraint Type is selected. Then click Next >.

The constraint was created successfully. Click the **Home** breadcrumb.

Summary

In this tutorial, you have learned how to:

Create a table from a spreadheet
Create a lookup table
Modify a table
Run a script to create a table
Create a constraint in a table
