Templating with JSF 2.0 Facelets

By Deepak Vohra

Published August 2011

Downloads:
Download: Oracle WebLogic Server 11g Rel 1 (10.3.4) Installer

Download: Apache Jakarta Standard 1.1 Taglib

Download: Sample code

Introduction

In JavaServer Faces (JSF) 2.0, Facelets is the default view declaration language (VDL) instead of JavaServer Pages (JSP). With Facelets, you don’t need to configure a view handler as you used to do in JSF 1.2. Facelets is a JSF-centric view technology.

Facelets is based on compositions. A composition defines a JSF UIComponents structure in a Facelets page. A Facelets application may consist of compositions defined in different Facelets pages and run as an application.

Facelets is a templating framework similar to Tiles. The advantage of Facelets over Tiles is that JSF UIComponents are pre-integrated with Facelets, and Facelets does not require a Facelets configuration file, unlike Tiles, which requires a Tiles configuration file.

JSF Validators and Converters may be added to Facelets. Facelets provides a complete expression language (EL) and JavaServer Pages Standard Tag Library (JSTL) support. Templating, re-use, and ease of development are some of the advantages of using Facelets in a Web application.

In this article, we develop a Facelets Web application in Oracle Enterprise Pack for Eclipse 11g and deploy the application to Oracle WebLogic Server 11g. In the Facelets application, an input text UIComponent will be added to an input Facelets page. With JSF navigation, the input Facelets page is navigated to another Facelets page, which displays the JSF data table generated from the SQL query specified in the input Facelets page. We will use Oracle Database 11g Express Edition for the data source. Templating is demonstrated by including graphics for the header and the footer in the input and the output; the graphics have to be specified only once in the template.

Note: The source code for the Facelets Web application developed in this article can be downloaded here.

Overview of Facelets Technology

Before we develop the application, let’s review the Facelets technology. Facelets tags are used with the JSF Core and JSF HTML tag libraries to develop a JSF Facelets application. Some of the Facelets tags are discussed in Table 1.

Table 1. Facelets Tags

Facelets Tag

Description

Attributes

ui:composition

Defines a composition of UIComponents. A composition may consist of multiple UIComponents. Text not within ui:composition tags is not compiled in a Facelets page.

template: Optional attribute that specifies the template to use for adding UIComponents within a composition.

ui:define

Used in a Facelets page to add content with a template.

name: A required attribute; matches the name attribute in ui:insert.

ui:decorate

Similar to ui:composition except that text not within the ui:decorate tags is included in the Facelets page.

template: A required attribute that specifies the template to use for adding UIComponents in ui:decorate tags.

ui:component

Similar to ui:composition except adds a new UIComponent as the root component in the UIComponents structure.

id: If not specified, Facelets assigns an ID.

binding: Binds a UIComponent to a property of a JavaBean.

ui:fragment

A nontrimming tag for ui:component, similar to the ui:decorate tag for ui:composition.

id: If not specified, Facelets assigns an ID.

binding: Binds a UIComponent to a property of a JavaBean.

ui:include

Includes a Facelets page that defines a composition or a component in a Facelets page or the template page.

src: A required attribute that specifies the target Facelets page to include with an EL expression or a string literal.

ui:insert

Used in a template to define the layout of Facelets pages that use the template for defining UIComponents. A template client adds UIComponents to a Facelets page with corresponding ui:define tags. If a Facelets page specifies a template and it does not specify ui:define tags corresponding to ui:insert tags, the default ui:insert tags are used in the Facelets page.

name: An attribute that has a corresponding name attribute in a Facelets page’s ui:define tag for matching a template with a Facelets page.

ui:param

Specifies a variable when a Facelets page is included within a template or a Facelets page.

name: Required attribute that specifies the variable name.

value: Required attribute that specifies the variable’s value as an EL expression or literal.

Facelets pages are XHTML pages by default. A Facelets application consists of the following configuration and templating files.

  • A Facelet Template file, which is an XHTML page
  • Facelet Header and Facelet Footer XHTML pages
  • A JSF configuration file, faces-config.xml
  • Facelet Composition page, which is also an XHTML page

The template file defines the layout in Facelets and consists of <ui:insert/> tags to specify the structure of a Facelets composition that uses the template for defining UIComponents.

The JSF configuration file is the only configuration file required; a Facelets configuration file is not required. A Facelets page is an XHTML page that includes tags in the Facelets namespace.

In the following sections, we create a Facelets application in Oracle Enterprise Pack for Eclipse 11g, Oracle WebLogic Server 11g, and Oracle Database 11g Express Edition.

Prerequisites

The following prerequisites are required:

Setting Up the Environment

First, we need to create a database table in Oracle Database Express Edition.

  1. Install Oracle Database 11g Express Edition.
  2. Use the following SQL script to create user OE and create a table.
CREATE USER OE IDENTIFIED BY OE;
 GRANT CONNECT, RESOURCE to OE;
CREATE TABLE OE.Catalog(CatalogId INTEGER
   PRIMARY KEY, Journal VARCHAR(25), Publisher VARCHAR(25),
    Edition VARCHAR(25), Title Varchar(45), Author Varchar(25));
   INSERT INTO OE.Catalog VALUES('1', 'Oracle Magazine',
    'Oracle Publishing', 'Nov-Dec 2004', 'Database Resource
   Manager', 'Kimberly Floss');
   INSERT INTO OE.Catalog VALUES('2', 'Oracle Magazine',
    'Oracle Publishing', 'Nov-Dec 2004', 'From ADF UIX to JSF',
   'Jonas Jacobi');
   INSERT INTO OE.Catalog VALUES('3', 'Oracle Magazine',
    'Oracle Publishing', 'March-April 2005', 'Starting with
   Oracle ADF ', 'Steve Muench');
  1. Add the Standard 1.1 Taglib filesstandard.jar and jstl.jar to the domain/bin/startWebLogic batch script to set the CLASSPATH variable.
C:\JSTL\jakarta-taglibs-standard-1.1.2\lib\standard.jar;C:\JSTL\jakarta-taglibs-standard-1.1.2\lib\jstl.jar

Configuring JSF 2.0 Support in Oracle WebLogic Server

JSF 2.0 support is not configured in Oracle WebLogic Server 11g by default. To configure JSF 2.0 support, do the following:

  1. Start the Oracle WebLogic Server and its Administration Console.
  2. Select the Deployments node in the wls_base_domain node.
  3. In the Deployment table, click the Install button.

    facelet 1
  4. Select jsf-2.02.war and click Next.

    facelet 2
  5. In Choose targeting style, select Install this deployment as a library. Click Next.
  6. Select the default Optional Settings, and click Next.
  7. Click Finish to complete the JSF 2.0 deployment.
  8. In the configuration screen, click Save to save the configuration.


A deployment configuration for JSF 2.0 is added to Deployments.
facelet 4

The JSF 2.0 library gets configured in the configuration file, C:\Oracle\Middleware\user_projects\domains\wls_base_domain\config\config.xml.

<library>
       <name>jsf#2.0@1.0.0.0_2-0-2</name>
       <target>AdminServer</target>
       <module-type>war</module-type>
       <source-path>C:\Oracle\Middleware\wlserver_10.3\common\deployable-libraries\jsf-2.0.2.war</source-path>
       <deployment-order>100</deployment-order>
       <security-dd-model>DDOnly</security-dd-model>
</library>

Creating a Facelets Project in Oracle Enterprise Pack for Eclipse


Create a Facelets project by performing the following steps:

  1. Create a project using File>New>Dynamic Web Project in Oracle Enterprise Pack for Eclipse 11g.
  2. In Dynamic Web Project Configuration, specify the Project name (Facelets, for example) and create a new Target runtime using New Runtime.
  3. In New Server Runtime Environment Configuration, select Oracle WebLogic Server 11g R1 PatchSet 3, select Create a new local server, and click Next.
  4. Specify the Oracle WebLogic Server home directory. The Java home directory gets configured to JDK 1.6. Click Next.
  5. For the server configuration, select Local as the Server Type, and select the wls_base_domain directory as the Domain Directory. Click Finish
  6. Select 2.5 as the Dynamic web module version.
  7. For Facelets support, we need to add the JSF 2.0 configuration. Click the Modify button in the Configuration section.
  8. In Project Facets, select JavaServer Faces and select 2.0 for the version. Click OK.

    facelet 5
  9. Ensure Configuration is set to <custom>, as shown in the following figure. Click Next.

    facelet 6
  10. For the Java configuration, the default output folder is set to build/classes. Click Next.
  11. For the Web Module configuration, select Facelets for the Context root and select WebContent for the Content directory. Select the Generate web.xml deployment descriptor, and click Next.
  12. To configure a JSF implementation library, select User Library as the Type, and click the Download button.
  13. For Download Library, select the JSF 2.0 (Mojarra 2.0.3-FCS) library, and click Next.

    facelet 7
  14. Accept the Library license and click Finish. A JSF implementation library gets configured.
  15. Click Finish.

    facelet 8

    A Facelets project is created.

    facelet 9
  16. In JSF 2.0, the javax.faces.VIEW_MAPPINGS context-param is not required, and the default suffix for a Facelets page is .xhtml. Add the following context-param to web.xml.
  17.
         <context-param>
                     <param-name>javax.faces.DEFAULT_SUFFIX</param-name>
                     <param-value>.xhtml</param-value>
         </context-param>


    The Faces Servlet is configured by default when the JSF project facet is selected. The web.xml file is shown in the following figure:

    facelet 10


  18. Add the library configuration for the JSF 2.0 library to weblogic.xml.
<wls:library-ref>
               <wls:library-name>jsf</wls:library-name>
               <wls:specification-version>2.0</wls:specification-version>
               <wls:implementation-version>1.0.0.0_2-0-2</wls:implementation-version>
               <wls:exact-match>true</wls:exact-match>
</wls:library-ref>

Creating a Managed Bean

Create a managed bean by performing the following steps:

  1. To create a managed bean for the Facelets application, right-click
    WebContent/WEB-INF/faces-config.xml and select Open With>Faces Config Editor.

  2. facelet 11

  3. Click Add to add a managed bean.

  4. facelet 12

  5. In the New Managed Bean wizard, select Create a new Java class and click Next.
  6. Select Facelets/src for Source folder, select catalog.backing for Package, and select the Java class name for Catalog. Click Next.
  7. For the managed bean’s name, enter catalog and for Scope, select session. Then click Next.
  8. Click Finish. A managed bean is added.

facelet 13



Creating a Facelets Template

Create a Facelets Template by performing the following steps:

  1. First, create a templates directory in the WEB-INF directory.
  2. Next, add an XHTML page for the Facelets template file to the templates directory.
  3. Right-click the WebContent folder and select New>XHTML Page.

  4. facelet 14

  5. In the New XHTML File wizard, set the File name field to BasicTemplate and click Next

  6. facelet 15

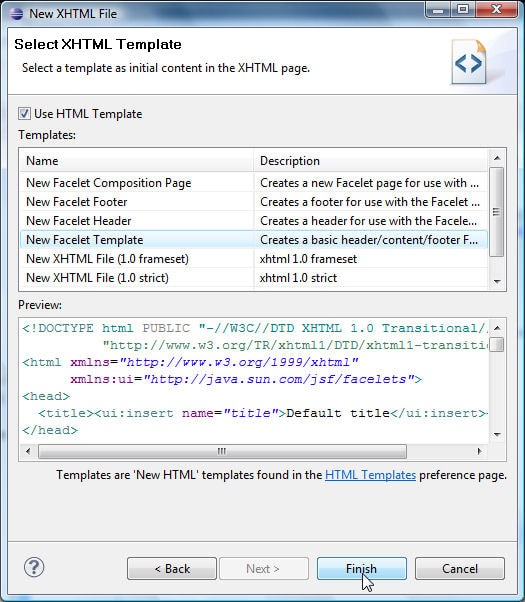

  7. Select New Facelet Template and click Finish.


  8. facelet 16

    BasicTemplate.xhtml with a header, content, and footer is added to the templates directory.

    facelets 17

    The root element of the template is html, which includes the namespace declaration for the Facelets namespace.

  9. To the template, add ui:insert tags enclosed in <div/> tags for the different sections of a Facelets composition: a title, a header, a content section, and a footer.
  10. Specify the relative path to the header.xhtml and footer.xhtml Facelets pages using the ui:include tag. BasicTemplate.xhtml is listed below.
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
             "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
         xmlns:ui="#">
<head>
<title><ui:insert name="title">JSF Facelets</ui:insert></title>
</head>
<body>
<div id="header">
        <ui:insert name="header">
           <ui:include src="/WEB-INF/templates/header.xhtml" />
        </ui:insert>
</div>
<div id="content">
       <ui:insert name="content">
      <!--  include your content file or uncomment the include below and create content.xhtml in this directory -->
         <!-- <div> -->
         <!-- <ui:include src="content.xhtml"/> -->
         <!-- </div> -->
       </ui:insert>
</div>
<div id="footer">
      <ui:insert name="footer">
         <ui:include src="/WEB-INF/templates/footer.xhtml" />
      </ui:insert>
</div>
</body>
</html>

Creating Facelets Pages

Create Facelets pages by performing the following steps:

  1. Similar to what was done for BasicTemplate.xhtml, add XHTML pages for header.xhtml and footer.xhtml and for an input Facelets page (input.xhtml) and an output Facelets page (output.xhtml).
  2. For header.xhtml, select the New Facelet Header template.
  3. For footer.xhtml, select the New Facelet Footer template.
  4. For input.xhtml and output.xhtml, select the New Facelet Composition Page template.
  5. Add the Facelet Composition pages to the WebContent directory.

  6. XHTML pages based on different types of templates are shown in the Facelets application.


    facelet 18

  7. In the header.xhtml page, specify a .jpg file for the header using the h:graphicImage tag. The header.xhtml page is listed below.
  8.
       <?xml version="1.0" encoding="ISO-8859-1" ?>
       <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
       <html xmlns="http://www.w3.org/1999/xhtml"
           xmlns:ui="#"
           xmlns:h="#"
           xmlns:f="#">
       <f:view>
       <h:form>
                   <h:panelGrid columns="1">
                         <h:graphicImage value="FaceletsHeader.jpg" />
                   </h:panelGrid>
             </h:form>
       </f:view>
       </html>


  9. In the footer.xhtml page, specify a .jpg file for the footer using the h:graphicImage tag enclosed in an h:panelGrid tag. The footer.xhtml page is listed below.
  10.
       <?xml version="1.0" encoding="ISO-8859-1" ?>
       <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
       <html xmlns="http://www.w3.org/1999/xhtml"
           xmlns:ui="#"
           xmlns:h="#"
           xmlns:f="#">
       <f:view>
       <h:form>
                   <h:panelGrid columns="1">
                         <h:graphicImage value="FaceletsFooter.jpg" />
                   </h:panelGrid>
             </h:form>
       </f:view>
       </html>
  11. Copy the header and footer .jpg files to the WebContent directory, which is the same directory used for the composition pages, input.xhtml and output.xhtml.

  12. Note: Example FaceletsHeader.jpg and FaceletsFooter.jpg files are included in the source code {PRODUCTION: insert link to Facelets.zip here.} file, but you can use any .jpg files.

  13. Next, define the input.xhtml Facelet Composition page, which has an input field (the h:inputText component) for input text and an h:commandButton for submitting the input in the content section.

The h:commandButton has its binding specified as the commandButton1 component in the managed bean catalog. The action attribute of the command button is set to the catalog.commandButton1_action method in the managed bean.

The Facelets page input.xhtml consists of a ui:composition tag for defining the composition of the Facelets page, and ui:define tags within the ui:composition tag for defining UIComponents for the different sections of the Facelets composition, header, content, and footer.

The template name is specified in the template attribute of the ui:composition tag. The ui:define tags correspond to ui:insert tags in the template. If a ui:define tag is not specified for a corresponding ui:insert tag, the default ui:insert tag in the BasicTemplate.xhtml page is used in the Facelet Composition page. Only the ui:define tag for the content is defined in the input.xhtml page; the header and footer .jpg files specified in the header.xhtml and footer.xhtml and included in BasicTemplate.xhtml with ui:insert and ui:include are used for the header and footer sections.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
       "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
       xmlns:ui="#"
       xmlns:h="#"
       xmlns:f="#">
<ui:composition template="/WEB-INF/templates/BasicTemplate.xhtml">
       <ui:define name="content">
<h:form>
               <h:panelGrid columns="2">
                     <h:outputLabel binding="#{catalog.outputLabel1}" value="SQL Query:" />
                     <h:inputText binding="#{catalog.inputText1}" />
                     <h:commandButton value="Submit" binding="#{catalog.commandButton1}"
                     action="#{catalog.commandButton1_action}" />
               </h:panelGrid>
         </h:form>
       </ui:define>
</ui:composition>
</html>

The output.xhtml Facelets Composition page consists of an h:dataTable UI component in the content section to output the JSF data table for the SQL query in the input.xhtml Facelet Composition page. The ui:define tag for content defines the composition of the Facelets page. The h:dataTable has a binding to the dataTable1 property in the managed bean, and the h:column components have bindings to the column1, column2…column6 properties in the managed bean. The Facelet Composition page output.xhtml file is listed below.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
       "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
       xmlns:ui="#"
       xmlns:h="#"
       xmlns:f="#">
<ui:composition template="/WEB-INF/templates/BasicTemplate.xhtml">
       <ui:define name="content">
           <h:form>
               <h:dataTable  binding="#{catalog.dataTable1}" border="1" rows="5">
                     <h:column binding="#{catalog.column1}"></h:column>
                     <h:column binding="#{catalog.column2}"></h:column>
                     <h:column binding="#{catalog.column3}"></h:column>
                     <h:column binding="#{catalog.column4}"></h:column>
                     <h:column binding="#{catalog.column5}"></h:column>
                     <h:column binding="#{catalog.column6}"></h:column>
               </h:dataTable>
         </h:form>
       </ui:define>
</ui:composition>
</html>



Specifying the Navigation for the Facelets Application

Next, we add navigation to the Facelets application by adding navigation rules to faces-config.xml.

  1. Add a Facelet Composition page, error.xhtml, for navigating to if an error is generated.
  2. Open faces-config.xml and select the Navigation Rule tab.
  3. Drag the input.xhtml and output.xhtml Facelet Composition pages and the error.xhtml page to the Navigation Rule.
  4. To create a navigation rule between two Facelets pages, for example, between input.xhtml and output.xhtml, select Link in the component palette.

    facelet 19

  5. To add a navigation case between Facelets pages, select a link using Select in the component palette.

    facelet 20
  6. To define link properties, right-click a link and select Show View>Properties.

    facelet 21
  7. Specify the desired navigation in the Link>From Outcome field. Specify “success” for the link that goes from input.xhtml to output.xhtml so the navigation goes to output.xhtml if the outcome from input.xhtml is “success.” Specify “failure” for the link that goes from input.xhtml to error.xhtml so the navigation goes to error.xhtml if the outcome is “failure.”

    facelet 22

    The faces-config.xml configuration file with the managed bean and navigation rules is listed below.
    <?xml version="1.0" encoding="UTF-8"?>

    <faces-config
           xmlns="http://www.oracle.com/webfolder/technetwork/jsc/xml/ns/javaee/index.html"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="http://www.oracle.com/webfolder/technetwork/jsc/xml/ns/javaee/index.html http://bit.ly/17U4sqz"
           version="2.0">
             <application>
                   <message-bundle>resources.application</message-bundle>
                   <locale-config>
                         <default-locale>en</default-locale>
                   </locale-config>
             </application>
             <managed-bean>
                   <managed-bean-name>catalog</managed-bean-name>
                   <managed-bean-class>catalog.backing.Catalog</managed-bean-class>
                   <managed-bean-scope>session</managed-bean-scope>
             </managed-bean>
             <navigation-rule>
                   <display-name>input.xhtml</display-name>
                   <from-view-id>/input.xhtml</from-view-id>
                   <navigation-case>
                         <from-outcome>success</from-outcome>
                         <to-view-id>/output.xhtml</to-view-id>
                   </navigation-case>
             </navigation-rule>
             <navigation-rule>
                   <display-name>input.xhtml</display-name>
                   <from-view-id>/input.xhtml</from-view-id>
                   <navigation-case>
                         <from-outcome>failure</from-outcome>
                         <to-view-id>/error.xhtml</to-view-id>
                   </navigation-case>
             </navigation-rule>
    </faces-config>


  8. In Catalog.java, the Java class for the managed bean, add the required import statements for the HTML and UI components. Add an HtmlDataTable variable for a data table and add UIColumn component variables for the data table columns. Also add HTML component variables for a form, input text to specify an SQL query, and a command button to submit the SQL query

    We bound the HTML and UI component variables to the Facelets composition XHTML pages’ JSF components when we constructed the XHTML pages.

  9. private HtmlDataTable dataTable1;
             private UIColumn column1;
             private UIColumn column2;
             private UIColumn column3;
             private UIColumn column4;
             private UIColumn column5;
             private UIColumn column6;

  10. Add accessor methods for the HTML and UI components. Add a method that is invoked when the Submit button is clicked.
    public String commandButton1_action() { }
  11. In the Submit button action method, retrieve the SQL query input in the JSF input text field and run the SQL query to generate a result set.
    rs = stmt.executeQuery((String) inputText1.getValue());
  12. Set the border and cell padding for the data table. Also set the variable that represents a row of data in the data table.
    dataTable1.setBorder(5);
       dataTable1.setCellpadding("1");
       dataTable1.setVar("catalog");
  13. Set the header values for the columns in the data table. The data table has columns corresponding to each of the columns in the database table.

    Column headers are added by creating HtmlOutputText header components and setting the headers on the UIColumn components with the setHeader method. The HtmlOutputText value is set using the setValue method. For example, the column header for the CatalogId column is added as follows.
       HtmlOutputText headerComponent = new HtmlOutputText();
       headerComponent.setValue("CatalogId");
       column1.setHeader(headerComponent);
  14. For each of the columns in the data table, create an HtmlOutputText component, specify a value expression for the HtmlOutputText component, and add the component to the column.

    A ValueExpression object is created by first creating a FacesContext object, subsequently creating an ELContext object and an ExpressionFactory object from the FacesContext, and finally creating a ValueExpression object from the ExpressionFactory object and the ELContext object. Value expression for an HtmlOutputText component is set using the setValueExpression method.
    An HtmlOutputText component is added to a UIColumn component by invoking the getChildren method and subsequently invoking the add method. For example, for the CatalogId column, an HtmlOutputText component is added as follows.
    HtmlOutputText column1Text = new HtmlOutputText();
       FacesContext fCtx = FacesContext.getCurrentInstance();
       ELContext elCtx = fCtx.getELContext();
       ExpressionFactory ef = fCtx.getApplication().getExpressionFactory();
       ValueExpression ve = ef.createValueExpression(elCtx,
                                     "#{catalog.catalogid}", String.class);
       column1Text.setValueExpression("value", ve);
       column1.getChildren().add(column1Text);
  15. Create a ResultSetDataModel object. A ResultSetDatModel object is used to wrap a ResultSet object, which is required to be scrollable.  Set the ResultSet retrieved by the SQL query as the data for the ResultSetDataModel using the setWrappedData method.
    ResultSetDataModel dataModel=new ResultSetDataModel();
       dataModel.setWrappedData(rs);
  16. Bind the data table with the ResultSetDataModel object using the setValue method.
dataTable1.setValue(dataModel);

The managed bean Java class Catalog.java is listed below.

package catalog.backing;
import javax.faces.component.html.HtmlCommandButton;
   import javax.faces.component.html.HtmlDataTable;
   import javax.faces.component.html.HtmlForm;
   import javax.faces.component.html.HtmlInputText;
   import javax.faces.component.html.HtmlOutputLabel;
   import javax.faces.component.UIColumn;
   import javax.faces.component.html.HtmlOutputText;
   import javax.faces.context.FacesContext;
   import javax.el.*;
   import javax.faces.model.ResultSetDataModel;
   import java.sql.*;
public class Catalog {
         private HtmlForm form1;
         private HtmlInputText inputText1;
         private HtmlOutputLabel outputLabel1;
         private HtmlCommandButton commandButton1;
         private HtmlDataTable dataTable1;
         private UIColumn column1;
         private UIColumn column2;
         private UIColumn column3;
         private UIColumn column4;
         private UIColumn column5;
         private UIColumn column6;
         private Statement stmt;
         private Connection connection;
         private ResultSet rs;
      public void setForm1(HtmlForm form1) {
               this.form1 = form1;
         }
      public HtmlForm getForm1() {
               return form1;
         }
      public void setInputText1(HtmlInputText inputText1) {
               this.inputText1 = inputText1;
         }
      public HtmlInputText getInputText1() {
               return inputText1;
         }
      public void setOutputLabel1(HtmlOutputLabel outputLabel1) {
               this.outputLabel1 = outputLabel1;
         }
      public HtmlOutputLabel getOutputLabel1() {
               return outputLabel1;
         }
      public void setCommandButton1(HtmlCommandButton commandButton1) {
               this.commandButton1 = commandButton1;
         }
      public HtmlCommandButton getCommandButton1() {
               return commandButton1;
         }
      public void setDataTable1(HtmlDataTable dataTable1) {
               this.dataTable1 = dataTable1;
         }
      public HtmlDataTable getDataTable1() {
               return dataTable1;
         }
      public void setColumn1(UIColumn column1) {
               this.column1 = column1;
         }
      public UIColumn getColumn1() {
               return column1;
         }
      public void setColumn2(UIColumn column2) {
               this.column2 = column2;
         }
      public UIColumn getColumn2() {
               return column2;
         }
      public void setColumn3(UIColumn column3) {
               this.column3 = column3;
         }
      public UIColumn getColumn3() {
               return column3;
         }
      public void setColumn4(UIColumn column4) {
               this.column4 = column4;
         }
      public UIColumn getColumn4() {
               return column4;
         }
      public void setColumn5(UIColumn column5) {
               this.column5 = column5;
         }
      public UIColumn getColumn5() {
               return column5;
         }
      public void setColumn6(UIColumn column6) {
               this.column6 = column6;
         }
      public UIColumn getColumn6() {
               return column6;
         }
      public String commandButton1_action() {
               // Add event code here...
            try {
                  Class.forName("oracle.jdbc.OracleDriver");
                  String url = "jdbc:oracle:thin:@localhost:1521:XE";
                  connection = DriverManager.getConnection(url, "OE", "OE");
                  stmt = connection.createStatement(
                                 ResultSet.TYPE_SCROLL_INSENSITIVE,
                                 ResultSet.CONCUR_READ_ONLY);
                  rs = stmt.executeQuery((String) inputText1.getValue());
                  HtmlDataTable dataTable1 = new HtmlDataTable();
                     dataTable1.setBorder(5);
                     dataTable1.setCellpadding("1");
                     dataTable1.setVar("journalcatalog");
                     ResultSetDataModel dataModel = new ResultSetDataModel();
                  dataModel.setWrappedData(rs);
                  this.setDataTable1(dataTable1);
                  UIColumn column1 = new UIColumn();
                     UIColumn column2 = new UIColumn();
                     UIColumn column3 = new UIColumn();
                     UIColumn column4 = new UIColumn();
                     UIColumn column5 = new UIColumn();
                     UIColumn column6 = new UIColumn();
                  this.setColumn1(column1);
                     this.setColumn2(column2);
                     this.setColumn3(column3);
                     this.setColumn4(column4);
                     this.setColumn5(column5);
                     this.setColumn6(column6);
                  HtmlOutputText headerComponent = new HtmlOutputText();
                     headerComponent.setValue("CatalogId");
                     column1.setHeader(headerComponent);
                     headerComponent = new HtmlOutputText();
                     headerComponent.setValue("Journal");
                     column2.setHeader(headerComponent);
                     headerComponent = new HtmlOutputText();
                     headerComponent.setValue("Publisher");
                     column3.setHeader(headerComponent);
                     headerComponent = new HtmlOutputText();
                     headerComponent.setValue("Edition");
                     column4.setHeader(headerComponent);
                     headerComponent = new HtmlOutputText();
                     headerComponent.setValue("Title");
                     column5.setHeader(headerComponent);
                     headerComponent = new HtmlOutputText();
                     headerComponent.setValue("Author");
                     column6.setHeader(headerComponent);
                  HtmlOutputText column1Text = new HtmlOutputText();
                  FacesContext fCtx = FacesContext.getCurrentInstance();
                     ELContext elCtx = fCtx.getELContext();
                     ExpressionFactory ef = fCtx.getApplication().getExpressionFactory();
                     ValueExpression ve = ef.createValueExpression(elCtx,
                                 "#{journalcatalog.catalogid}", String.class);
                  column1Text.setValueExpression("value", ve);
                  column1.getChildren().add(column1Text);
                  HtmlOutputText column2Text = new HtmlOutputText();
                  fCtx = FacesContext.getCurrentInstance();
                     elCtx = fCtx.getELContext();
                     ef = fCtx.getApplication().getExpressionFactory();
                     ve = ef.createValueExpression(elCtx, "#{journalcatalog.journal}",
                                 String.class);
                     column2Text.setValueExpression("value", ve);
                  column2.getChildren().add(column2Text);
                     HtmlOutputText column3Text = new HtmlOutputText();
                  fCtx = FacesContext.getCurrentInstance();
                     elCtx = fCtx.getELContext();
                     ef = fCtx.getApplication().getExpressionFactory();
                     ve = ef.createValueExpression(elCtx, "#{journalcatalog.publisher}",
                                 String.class);
                     column3Text.setValueExpression("value", ve);
                  column3.getChildren().add(column3Text);
                     HtmlOutputText column4Text = new HtmlOutputText();
                     fCtx = FacesContext.getCurrentInstance();
                     elCtx = fCtx.getELContext();
                     ef = fCtx.getApplication().getExpressionFactory();
                     ve = ef.createValueExpression(elCtx, "#{journalcatalog.edition}",
                                 String.class);
                     column4Text.setValueExpression("value", ve);
                  column4.getChildren().add(column4Text);
                     HtmlOutputText column5Text = new HtmlOutputText();
                     fCtx = FacesContext.getCurrentInstance();
                     elCtx = fCtx.getELContext();
                     ef = fCtx.getApplication().getExpressionFactory();
                     ve = ef.createValueExpression(elCtx, "#{journalcatalog.title}",
                                 String.class);
                     column5Text.setValueExpression("value", ve);
                  column5.getChildren().add(column5Text);
                     HtmlOutputText column6Text = new HtmlOutputText();
                     fCtx = FacesContext.getCurrentInstance();
                     elCtx = fCtx.getELContext();
                     ef = fCtx.getApplication().getExpressionFactory();
                     ve = ef.createValueExpression(elCtx, "#{journalcatalog.author}",
                                 String.class);
                     column6Text.setValueExpression("value", ve);
                  column6.getChildren().add(column6Text);
                  dataTable1.setValue(dataModel);
            } catch (SQLException e) {
                     System.out.println(e.getMessage());
                     return "failure";
            } catch (ClassNotFoundException e) {
                     System.out.println(e.getMessage());
                     return "failure";
               } finally {
            }
               return "success";
         }
   }

Running the Facelets Application

Next, we need to specify some factory classes for the Facelets application before we run the application.

  1. Add a WEB-INF/classes/META-INF/services directory.
  2. In the services directory, create the following factory files with the corresponding factory implementation classes specified in the factory files.
  • File name: javax.faces.application.ApplicationFactory

      Class name: com.sun.faces.application.ApplicationFactoryImpl

  • File name: javax.faces.context.FacesContextFactory

      Class name: com.sun.faces.context.FacesContextFactoryImpl

  • File name: javax.faces.lifecycle.LifecycleFactory

      Class name: com.sun.faces.lifecycle.LifecycleFactoryImpl

  • File name: javax.faces.render.RenderKitFactory

      Class name: com.sun.faces.renderkit.RenderKitFactoryImpl

The directory structure of the Facelets application is shown in the following figure.

facelet 23

  1. Start the Oracle WebLogic Server if it is not already running.
  2. To run the Facelets application, right-click input.xhtml and select Run As>Run on Server.

facelet 24

  1. Select the server to run the application.
  2. Click Next.
  3. Select default settings and click Next.
  4. Click Finish.

An EAR application is created and deployed to the Oracle WebLogic server.

facelet 25

  1. On the Oracle WebLogic Server, run the input.xhtml Facelet Composition page that we configured earlier for JSF 2.0 using the URL http://localhost:7001/Facelets/faces/input.xhtml.

The three sections of the input Facelets page are the header, content, and the footer. The different sections of the Facelet Composition page correspond to the different ui:define tags in the input.xhtml Facelet Composition page. The header.xhtml and footer.xhtml files from the BasicTemplate.xhtml template get included in the composition.

  1. Specify the SQL query, SELECT * FROM OE.CATALOG, and click Submit.

facelet 26

The output.xhtml Facelet Composition page is displayed with a JSF data table generated by the SQL query.

Templating has been demonstrated by including the same header.xhtml and footer.xhtml in the composition pages. The same header and footer .jpg files are displayed.

facelet 27

See Also

About the Author

Deepak Vohra is a Sun Certified Java Programmer, Sun Certified Web Component Developer, and Oracle Certified Associate.
