Java Connectivity with Autonomous Database (ATP or ADW) using 19c and 18.3 JDBC

Oracle Autonomous Database (ADB) is a family of products with each member of the family‚Ä® optimized by workload. Java applications require Java Key Store (JKS) or Oracle wallets to connect to ADB. The enhancements in JDBC driver in DB 19c and 18.3 make Java connectivity to ADB very simple. Follow the instructions to establish a successful connection to ADB.

    Pre-requisites

    Open all Close all
  • 1. Provision an Autonomous Database (ADB) Instance

    Get access to the Oracle Autonomous Database (ADB). Click on these links to walk through the steps to provision an ADB instance if you have not provisioned an ADB instance already.

    Remember the password that you used for ADMIN user. For this demo purpose, we will be using ADMIN user but, our recommendation is to create other database users either using SQLDeveloper or using SQL Developer web console.

  • 2. Obtain Client Credentials

      After the creation of an Autonomous Database, follow these instructions to download the client credentials from the Oracle Cloud Console. The client credentials (wallet_[dbname].zip) contains required wallet files and tnsnamea.ora that give mutual TLS, providing enhanced security for authentication and encryption.
    • From the Oracle Cloud Console, go to the Autonomous Database Details page of your Oracle Autonomous Database instance.

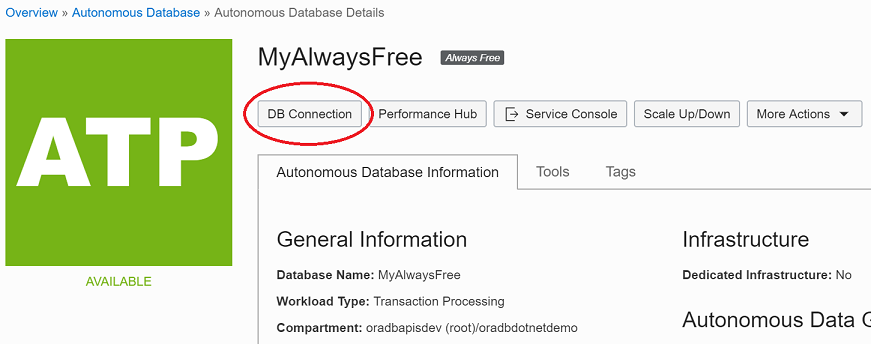

    • Click the DB Connection button. A new window will appear.

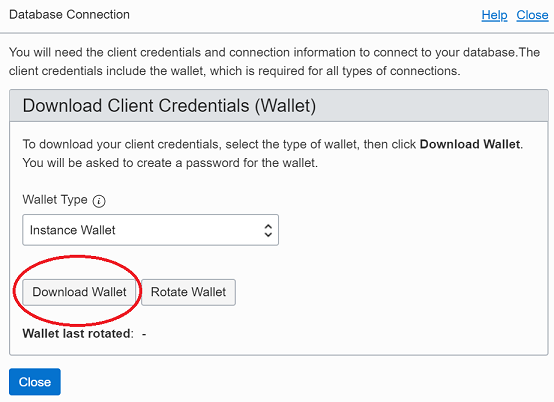

    • Click the Download Wallet button. Leave the 'Wallet Type' to be 'Instance Wallet'.
    • Enter a wallet password in the Password field and confirm the password in the Confirm password field. Then, click the Download button. The password must be at least 8 characters long and include at least 1 letter and either 1 numeric character or 1 special character.
    • Save and unzip the client credentials zip (wallet_[dbname].zip) file to a secure directory. You will need this directory location later on.
    • The contents of the zip file are described below.
      1. tnsnames.ora and sqlnet.ora: Network configuration files storing connect descriptors and SQL*Net client side configuration.
      2. cwallet.ora and ewallet.p12: Auto-open SSO wallet and PKCS12 file. PKCS12 file is protected by the wallet password provided in the UI.
      3. keystore.jks and truststore.jks: JKS Truststore and Keystore that is protected by the wallet passport provided while downloading the wallet.
      4. ojdbc.properties: Contains the wallet related connection property required for JDBC connection. This should be in the same path as tnsnames.ora.
  • 3. Install JDK8 or higher

    Download JDK81 or higher JDK versions
    Note : If you are using JDK11, JDK10, or JDK9 then you don't need anything. If your JDK version is less than JDK8u162 then download the JCE Unlimited Strength Jurisdiction Policy Files. Refer to the README for installation notes.

    1 Use "java -version" to check the JDK version that you have installed. Use "java -jar ojdbc8.jar" to check the JDBC driver version.

  • 4. Download JDBC driver and other Jars

      Download either 19c or 18c JDBC driver from the following download page. ojdbc10-full.tar.gz or ojdbc8-full.tar.gz and ucp.jar

      ojdbc8-full.tar.gz and ojdbc10-full.tar.gz contains oraclepki.jar, osdt_core.jar, and osdt_cert.jar required for connecting to Autonomous database.


      Note: If you are using older JDBC driver 12.2.0.1 or 12.1.0.2 then follow the instructions on this page to connect.

  • 5. Download a sample program from Github

    • Download DataSourceSample.java or UCPSample.java from Github JDBC code samples.
      - Pass TNS alias (e.g., dbname_medium found in tnsnames.ora ) as part of the connection string.
      - Pass TNS_ADMIN property to the place where wallet_dbname.zip is unzipped. TNS_ADMIN specifies the path of the wallet files, ojdbc.properties, and tnsnames.ora

      Example: DB_URL="jdbc:oracle:thin:@dbname_medium?TNS_ADMIN=/users/test/wallet_dbname/"

    • Troubleshooting and Debugging: If you encounter any errors, check out Troubleshooting Tips page for some helpful hints.

    Using JKS

    Open all Close all
  • 1. Pre-requisites

    Make sure to complete all the steps from pre-requisites section.

  • 2. Uncomment JKS related connection properties

      The client credentials required to connect to Oracle Autonomus Database are downloaded as Wallet_dbname.zip.. The zip file contains ojdbc.properties and tnsnames.ora. Uncomment the following JKS related connection properties in ojdbc.properties file.

      # Use the following properties to use JKS, comment out the oracle.net.wallet_location property above
      # and set the correct password for both trustStorePassword and keyStorePassword.
      # It's the password provided while downloading the wallet credentials from the DB Connection tab
      oracle.net.ssl_server_dn_match=true
      javax.net.ssl.trustStore=${TNS_ADMIN}/truststore.jks
      javax.net.ssl.trustStorePassword=**password**
      javax.net.ssl.keyStore=${TNS_ADMIN}/keystore.jks
      javax.net.ssl.keyStorePassword=**password**



      Note: Make sure to comment oracle wallets related property in ojdbc.properties file


      # Connection property for Oracle Wallets
      # oracle.net.wallet_location=(SOURCE=(METHOD=FILE)(METHOD_DATA=(DIRECTORY=${TNS_ADMIN}))



      Note: With 19c JDBC driver, you can use Easy Connect Plus and pass all the connection properties as name-value pair in the connection string. You can open the tnsnames.ora and copy the hostname, servicename, and certificate details to form a connection string.


      Example: jdbc:oracle:thin:@tcps://orclhostname:1522/orclservice?oracle.net.ssl_server_cert_dn=\"CN=test.uscom-east-1.oraclecloud.com,OU=Oracle BMCS US,O=Oracle Corporation,L=Redwood City,ST=California,C=US\"
      &javax.net.ssl.trustStore=/users/test/wallet_dbname/truststore.jks
      &javax.net.ssl.trustStorePassword=**password**
      &javax.net.ssl.keyStore=/users/test/wallet_dbname/keystore.jks
      &javax.net.ssl.keyStorePassword=**password**


  • 3. Build and Run a Sample Java Program

    • Compile the Java program
      Make sure to provide the correct path for the required jars in the classpath.


       javac -classpath ./lib/ojdbc8.jar:./lib/ucp.jar UCPSample.java

    • Run the sample Java program
      Make sure to provide the correct path for the required jars in the classpath.


       java -classpath ./lib/ojdbc8.jar:./lib/ucp.jar:. UCPSample


    Using Oracle Wallets

    Open all Close all
  • 1. Pre-requisites

    • Make sure to complete all the steps from pre-requisites section.

    • You do not need to do anything. The below wallet related property is already pre-loaded in ojdbc.properties.

      oracle.net.wallet_location=(SOURCE=(METHOD=FILE)(METHOD_DATA=(DIRECTORY=${TNS_ADMIN}))

      Note: With 19c JDBC driver, you can use Easy Connect Plus and pass all the connection properties as name-value pair in the connection string. You can open the tnsnames.ora and copy the hostname, servicename, and certificate details to form a connection string etc.,


      Example:.,jdbc:oracle:thin:@tcps://orclhostname:1522/orclservice?wallet_location=/users/test/wallet_dbname
      &oracle.net.ssl_server_cert_dn=\"CN=adwc.uscom-east-1.oraclecloud.com,OU=Oracle BMCS US,O=Oracle Corporation,L=Redwood City,ST=California,C=US\"


  • 2. Build and Run a Sample Java Program

    • Compile the Java program
      Make sure to provide the correct path for the required jars in the classpath.


        javac -classpath ./lib/ojdbc8.jar:./lib/ucp.jar:/lib/oraclepki.jar:./lib/osdt_core.jar:./lib/osdt_cert.jar UCPSample.java

    • Run the sample Java program
      Make sure to provide the correct path for the required jars in the classpath.


        java -classpath ./lib/ojdbc8.jar:./lib/ucp.jar:/lib/oraclepki.jar:./lib/osdt_core.jar:./lib/osdt_cert.jar:. UCPSample


    Tomcat

    Open all Close all
  • 1. Create a sample webapp

  • 2. Create context.xml

    Create a UCP Data source under /TOMCAT_HOME/webapps/UCPCloud/META-INF/context.xml. Make sure to use the TNS alias as the service name and also TNS_ADMIN should point to the path where the client credentials (Wallet_dbname.zip) are located. Sample context.xml is shown below.

    <Context docBase="UCPCloud" path="/UCPCloud"
        reloadable="true" source="org.eclipse.jst.jee.server:samplejdbcpage">

    <Resource name="tomcat/UCP_atp" auth="Container"
       factory="oracle.ucp.jdbc.PoolDataSourceImpl"
       type="oracle.ucp.jdbc.PoolDataSource"
       description="UCP Pool in Tomcat"
       connectionFactoryClassName="oracle.jdbc.pool.OracleDataSource"
       minPoolSize="5"
       maxPoolSize="50"
       initialPoolSize="15"
       user="jdbcuser"
       password="XXXXXXXXXXX"
       url="jdbc:oracle:thin:@jdbctest_medium?TNS_ADMIN=/Users/test/ATPTesting/wallet_JDBCTEST"
    />
    </Context>


  • 3. Start Tomcat and Invoke Servlet

    Start Tomcat server and invoke the servlet at http://lcoalhost:8080/UCPCloud/UCPServlet

    Web Logic Server (WLS) v12.2.1.4

    Open all Close all
  • 1. Create a webapp project

  • 2. Create a Datasource

    • Login to Web Logic Console (http://localhost:7001/console) and create either a UCP Data Source or Active Grid Link Data Source (AGL). Refer to the blog for details.
    • Connection URL should include TNS alias from tnsnames.ora and TNS_ADMIN should point to the location where the wallet zip file is downloaded. jdbc:oracle:thin:@jdbctest_medium?TNS_ADMIN=/Users/test/ATPTesting/wallet_JDBCTEST
    • Click on "Test Configuration" to make sure you are able to connect to ATP successfully.
  • 3. Start WLS and Invoke Servlet

    Start WebLogicServer and invoke the servlet at http://lcoalhost:7001/test-app/UCPServlet
