Doing More with Datalink Multipathing Using Oracle Solaris 11

by Orgad Kimchi with contributions from Nicolas Droux
Published July 2014

How to secure the network and perform typical network management operations for a multitenant cloud environment that uses DLMP aggregations.

Introduction

This article is Part 2 of a two-part series that describes how to use datalink multipathing (DLMP) aggregations.

In this article, we will explore how to perform the following network management operations in an environment that uses DLMP aggregations:

Contents

DLMP aggregation gives a network high availability (HA). To learn how to create a DLMP aggregation and to see the system architecture used in this series, see Part 1.

Protecting the Network Using Link Protection

In the next use case, we are going to combine DLMP aggregation technology with other network technology: link protection.

About Link Protection

With the increasing adoption of virtualization in system configurations, Oracle Solaris Zones can be given exclusive access to a physical or virtual link by the host administrator. This configuration improves network performance by allowing the virtual environment's network traffic to be isolated from the other traffic that is received or sent by the host system. At the same time, this configuration can expose the system and the entire network to the risk of harmful packets that a guest environment might generate.

Link protection aims to prevent the damage that can be caused to the network by potentially malicious traffic. The feature offers protection from the following basic threats:

  • IP, DHCP, and MAC spoofing
  • L2 frame spoofing, such as Bridge Protocol Data Unit (BPDU) attacks

Note: Link protection does not replace the need to deploy a firewall, particularly for configurations with complex filtering requirements.

Link Protection provides flexibility that is needed in a cloud environment, for example, enabling root account access from inside an Oracle Solaris Zone.

Although enabling root account access provides flexibility, it also exposes security risks. For example, the root user can create a spoofing attack by sending outgoing packets with a different source IP or MAC address and packets which aren't of type IPv4, IPv6, or ARP. We can use the link protection in order to prevent such attacks.

Link protection is enabled through four different properties: ip-nospoof, dhcp-nospoof, mac-nospoof, and restricted. The following table describes these properties.

Table 1. Description of Link Protection Properties

Property Name Property Description
ip-nospoof This property requires that any outgoing IP, ARP, or NDP packet must have an address field that matches either a DHCP-configured IP address or one of the addresses listed in the allowed-ips link property.
mac-nospoof This property prevents the root user from changing a zone's MAC address. An outbound packet's source MAC address must match the data link's configured MAC address.
dhcp-nospoof This property prevents client ID/DUID spoofing for DHCP.
restricted This property only allows IPv4, IPv6, and ARP protocols. Using this property prevents a link from generating potentially harmful L2 control frames.

Enable Link Protection

The following example demonstrates how to enable link protection.

From the global zone, enable link protection on vnic1 by running the following command:

root@global_zone:~# dladm set-linkprop -p protection=mac-nospoof,restricted,ip-nospoof vnic1

Next, we will set up a restriction on the IP address of the zone; thus, even the zone's root user can't change the IP address.

Specify IP address 10.0.0.1 as the value for the allowed-ips property for the vnic1 link:

root@global_zone:~# dladm set-linkprop -p allowed-ips=10.0.0.1 vnic1

Verify the link protection property values, as shown in Listing 1:



root@global_zone:~# dladm show-linkprop -p protection,allowed-ips vnic1
LINK PROPERTY PERM VALUE DEFAULT POSSIBLE
vnic1 protection rw mac-nospoof, -- mac-nospoof,
restricted, restricted,
ip-nospoof ip-nospoof,
dhcp-nospoof
vnic1 allowed-ips rw 10.0.0.1 -- --

Listing 1

In Listing 1, we can see that 10.0.0.1 is set as the allowed IP address.

(Optional) When a zone's VNIC is configured using anet, as was demonstrated in the "Create the First Zone (zone1)" section of Part 1, its link protection is configured with the link-protection anet property, which is set to mac-nospoof by default. Using anet also allows you to specify the IP address in the zone's configuration (through the allowed-address property) and then specify that that address be configured automatically at zone boot time (by setting the configure-allowed-address property). This is another advantage of using anet with zonecfg. Listing 2 shows an example of setting up a zone using anet properties:



root@global_zone:~# zonecfg -z zone1
Use 'create' to begin configuring a new zone.
zonecfg:zone1> create
create: Using system default template 'SYSdefault'
zonecfg:zone1> set zonepath=/zones/zone1
zonecfg:zone1> set autoboot=true
zonecfg:zone1> select anet linkname=net0
zonecfg:zone1:net> set lower-link=aggr0
zonecfg:zone1:net> set allowed-address=10.0.0.1/24
zonecfg:zone1:net> set configure-allowed-address=true
zonecfg:zone1:net> end
zonecfg:zone1> verify
zonecfg:zone1> commit
zonecfg:zone1> exit

Listing 2

As we see in Listing 2, we can set protection property values on the fly without the need to reboot the zone; this is useful in production environments, which usually have stringent uptime requirements. In addition, this functionality provides the flexibility that is needed in order to change the security level of the environment. Another benefit is that it encapsulates the IP networking configuration in the zone configuration, which makes migrating a zone between physical machines much easier.

Test Link Protection

Let's test the link protection by trying to change the zone's IP address.

First, log in to the zone:

root@global_zone:~# zlogin zone1

Now, let's remove the IP interface:

root@zone1:~# ipadm delete-ip vnic1

Next, create a new IP interface:

root@zone1:~# ipadm create-ip vnic1

Now try to assign a new IP address (10.0.0.10), as shown in Listing 3:



root@zone1:~# ipadm create-addr -a local=10.0.0.10/24 vnic1/v4
ipadm: cannot create address: Permission denied

Listing 3

As we can see in Listing 3, the root user can't change the zone's IP address!

Let's try to change the IP address to the allowed IP address (10.0.0.1):

root@zone1:~# ipadm create-addr -a local=10.0.0.1/24 vnic1/v4

Verify the IP address change, as shown in Listing 4:



root@zone1:~# ipadm show-addr vnic1
ADDROBJ           TYPE     STATE        ADDR
vnic1/v4          inherited ok          10.0.0.1/24

Listing 4

We can see in Listing 4 that we were able to change the IP address.

(Optional) Disable Link Protection

We can disable the link protection from the global zone:

root@global_zone:~# dladm reset-linkprop -p protection,allowed-ips vnic1

Note: We don't need to reboot the zone in order to disable this property.

Verify the removal of link protection, as shown in Listing 5:



root@global_zone:~# dladm show-linkprop -p protection,allowed-ips vnic1
vnic1 LINK PROPERTY PERM VALUE DEFAULT POSSIBLE
vnic1 protection rw -- -- mac-nospoof,
restricted,
ip-nospoof,
dhcp-nospoof
vnic1 allowed-ips rw -- -- --

Listing 5

As we can see in Listing 5, we don't have a restriction on the allowed-ips property.

Things to Remember

  • We can use the link protection to add more security to the network infrastructure.
  • Link protection has four different modes: ip-nospoof, dhcp-nospoof, mac-nospoof, and restricted.
  • You can add link protection on top of a VNIC.
  • You can add link protection using the dladm set-linkprop command.
  • You can reset link protection to the default mode using the dladm reset-linkprop command.
  • You can show the link protection status using the dladm show-linkprop command.
  • Link protection can be changed on the fly.

Enabling Network Resource Management

In every cloud infrastructure, resource management becomes prerequisite in order to manage the environment's performance and meet guaranteed network service-level agreements (SLAs).

The following examples will show how we can enable network resource management.

About Network Resource Management

Oracle Solaris 11 comes with built-in SLA features allowing VNICs and traffic flows to be configured with a bandwidth limit and/or priority.

When we combine DLMP aggregation and bandwidth limits and flows, we can benefit from network high availability (HA) in addition to advanced network resource management.

Set Bandwidth Limits

Bandwidth controls can be configured on a VNIC from the global zone to limit the network traffic sent from and received by a zone through its VNIC.

We can limit the throughput of a VNIC using the maxbw property of the VNIC, as shown in Figure 1. Our interface for doing this is the already-familiar dladm command.

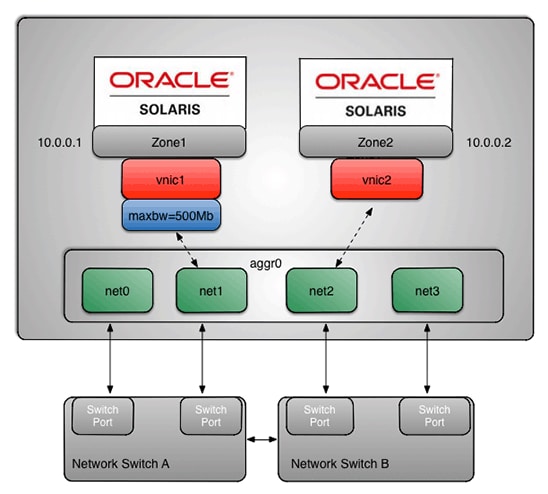

Figure 1. Setting Up Bandwidth Limits

Figure 1. Setting bandwidth limits

For example, the following command sets the maximum throughput of vnic1 to 500 Mb/sec, effectively giving it a portion of the physical data link (network port net0) connection.

root@global_zone:~# dladm set-linkprop -p maxbw=500M vnic1

Verify the change, as shown in Listing 6:



root@global_zone:~# dladm show-linkprop -p maxbw vnic1
LINK     PROPERTY            PERM VALUE        DEFAULT      POSSIBLE
vnic1    maxbw               rw     500        --           --

Listing 6

In Listing 6, we can see that the VNIC maximum throughput is set to 500 Mb/sec.

(Optional) A similar maxbw property can be set on anet using the zonecfg command:



root@global_zone:~# zonecfg -z zone1
zonecfg:zone1> select anet linkname=net0
zonecfg:zone1:anet> set maxbw=500M
zonecfg:zone1:anet> end
zonecfg:zone1> verify
zonecfg:zone1> commit
zonecfg:zone1> exit

Note: With maxbw configured on the VNIC, edge virtual bridging (EVB) can be used to push the enforcement of that bandwidth into the adjacent physical network switch. For more information about EVB, see "Edge Virtual Bridging in Oracle Solaris."

If you need fine-grained network bandwidth control, Oracle Solaris 11 provides the capability to set up a flow, which is a sophisticated quality of service (QoS) mechanism. Flows allow us to limit the network bandwidth for a specific network port on specific network interface.

Note: You can combine bandwidth control on a data link and its flows simultaneously.

Use Flows for Bandwidth Control

We can implement flows on top of the DLMP aggregations that we already created (aggr0). This is useful in order to mitigate Denial of Service (DOS) attacks against a web server. We can minimize the attack impact on the rest of the infrastructure by limiting a zone's HTTPS network maximum bandwidth to 100 Mb/sec.

In the following example, we limit the Secure Sockets Layer (SSL) traffic to 100 Mbits on the vnic1 network interface, as shown in Figure 2.

Figure 2. Setting Up a Flow for Bandwidth Control

Figure 2. Setting up a flow for bandwidth control

First, let's create the flow from zone1 using the flowadm command:

root@zone1:~# flowadm add-flow -l vnic1 -a transport=TCP,local_port=443 https-flow

Set the flow's bandwidth limitation to 100 Mb/sec.

root@zone1:~# flowadm set-flowprop -p maxbw=100M https-flow

Verify the flow creation:



root@zone1:~# flowadm show-flow
FLOW        LINK     PROTO LADDR             LPORT RADDR             RPORT DSFLD
https-flow  vnic1    tcp   --                443   --                --    --

Then validate the bandwidth limit, as shown in Listing 7:



root@zone1:~# flowadm show-flowprop https-flow
FLOW         PROPERTY        PERM VALUE          DEFAULT        POSSIBLE
https-flow   maxbw           rw     100          --             --
https-flow   priority        rw   medium         medium         low,medium,high
https-flow   hwflow          r-   off            --             on,off

Listing 7

In Listing 7, we can see that the flow's bandwidth limit is 100 Mbits.

Note that in the example above, the flow was created on the VNIC from the non-global zone, so the flow is part of the zone configuration and will be migrated along with the zone. Such flows are reinstantiated automatically when a zone boots.

Use Flows for Observability

Another useful feature of the flow technology is the ability to monitor our flow's network-performance statistics using the flowstat command. This feature is useful for troubleshooting network performance issues.

Let's rerun the iperf network-performance tool we used in "Testing the HA Capability" section of Part 1, but this time the server will listen on port 443 (the same port on which the flow has been set up).

First, start the iperf server on zone1:

Note: You might need to stop the previous iperf server; you can stop it by pressing Ctrl-C.



root@zone1:~# iperf -s -l 128k -p 443
------------------------------------------------------------
Server listening on TCP port 443
TCP window size:   125 KByte (default)
------------------------------------------------------------

Next, from zone3, start the iperf client (the loader):



root@zone3:~# iperf -c zone1 -l 128k -P 4 -i 1 -p 443 -t 360
------------------------------------------------------------
Client connecting to zone1, TCP port 443
TCP window size: 48.0 KByte (default)
------------------------------------------------------------
[  7] local 10.0.0.3 port 53777 connected with 10.0.0.1 port 443
[  4] local 10.0.0.3 port 58403 connected with 10.0.0.1 port 443
[  6] local 10.0.0.3 port 59851 connected with 10.0.0.1 port 443
[  5] local 10.0.0.3 port 42292 connected with 10.0.0.1 port 443
[ ID] Interval       Transfer     Bandwidth
[  7]  0.0- 1.0 sec  5.88 MBytes  49.3 Mbits/sec
[ ID] Interval       Transfer     Bandwidth
[  6]  0.0- 1.0 sec  7.12 MBytes  59.8 Mbits/sec
...

Open another terminal and then, from the global zone, start the network flow observation, as shown in Listing 8:



root@global_zone:~# flowstat -i 1
           FLOW    IPKTS   RBYTES   IDROPS    OPKTS   OBYTES   ODROPS
zone1/https-flow    5.18M    7.51G  240.06K    2.63M  175.30M        0
zone1/https-flow    9.43K   13.62M      416    1.30K   87.00K        0
zone1/https-flow    9.46K   13.35M      300    2.93K  195.31K        0
zone1/https-flow   10.01K   13.65M      460    4.89K  325.77K        0
zone1/https-flow    8.75K   12.00M      425    4.50K  300.27K        0
zone1/https-flow    9.70K   13.50M      459    4.99K  332.64K        0
zone1/https-flow    8.03K   11.13M      371    4.17K  278.80K        0
zone1/https-flow   10.17K   14.12M      485    5.21K  347.46K        0
zone1/https-flow    9.13K   12.50M      416    4.66K  310.23K        00
^C

Listing 8

Note: To stop the flowstat command, press Ctrl-C.

In Listing 8, you can see the network statistics for the flow that we created earlier (zone1/https-flow). In addition, you can see that the bandwidth is limited to approximately 13 MB/sec (100 Mb/sec).

The flow capability allows us to change the bandwidth limit dynamically, for example, if we want to increase the bandwidth in order to fulfill the demand for this web server. This capability is very important in a cloud environment in order to provide an elastic network infrastructure.

Let's change the bandwidth limit to 200 Mb/sec:

root@zone1:~# flowadm set-flowprop -p maxbw=200M https-flow

Verify the bandwidth change, as shown in Listing 9:



root@zone1:~# flowadm show-flowprop https-flow
FLOW         PROPERTY        PERM VALUE          DEFAULT        POSSIBLE
https-flow   maxbw           rw     200          --             --
https-flow   priority        rw   medium         medium         low,medium,high
https-flow   hwflow          r-   off            --             on,off

Listing 9

In Listing 9, we can see that it's 200 Mb/sec now.

Let's return to the terminal where the flowstat command is running, as shown in Listing 10.



root@global_zone:~# flowstat -i 1
FLOW IPKTS RBYTES IDROPS OPKTS OBYTES ODROPS
zone1/https-flow   25.14K   33.00M      550   12.67K  839.20K        0
zone1/https-flow   18.29K   24.88M      580    9.23K  611.16K        0
zone1/https-flow   21.39K   28.62M      647   10.86K  721.25K        0
zone1/https-flow   18.22K   24.75M      531    9.24K  613.42K        0
zone1/https-flow   19.14K   25.75M      654    9.72K  646.39K        0
zone1/https-flow   17.55K   23.42M      504    8.88K  588.76K        0
zone1/https-flow   20.44K   27.76M      656   10.33K  684.23K        0
zone1/https-flow   18.64K   25.07M      567    9.51K  632.57K        0
^C

Listing 10

Note: To stop the flowstat command, press Ctrl-C.

In Listing 10, we can see that the bandwidth has been changed to approximately 25 MB/sec, which equals 200 Mb/sec.

We can monitor from the global zone both the zones and their associated flows!

(Optional) Remove a Flow

Once you finish your network measurements, you can remove the flow:

Note: You don't need to reboot the zone in order to remove the flow; this is very useful in production environments when you need to be able to troubleshoot network performance issues without severely impacting the environment.

From zone1, list the current flows:



root@zone1:~# flowadm show-flow
FLOW        LINK     PROTO LADDR             LPORT RADDR             RPORT DSFLD
https-flow  vnic1    tcp   --                443   --                --    --

Remove the https-flow flow:

root@zone1:~# flowadm remove-flow https-flow

Verify the flow removal, as shown in Listing 11:

root@zone1:~# flowadm show-flow

Listing 11

If the flow has been removed, the command will return to the prompt without any output. In Listing 11, we can see that we no longer have the https-flow flow.

Things to Remember

  • Bandwidth control can be configured on a VNIC from the global zone to limit the network traffic sent from and received by a zone through its VNIC.
  • You can combine bandwidth control on a data link and its flows.
  • Flows allow us to limit the network bandwidth for a specific network port or IP address on a specific data link.
  • You can add flows on top of a VNIC, and each VNIC can have many flows.
  • You can add flows using the flowadm add-flow command and remove them using the flowadm remove-flow command.
  • You can change the flow properties using the flowadm set-flowprop command.
  • You can see what flows are configured using the flowadm show-flow command.
  • You can set up flows from the global zone or from a non-global zone.
  • You can change flow properties, such as bandwidth, on the fly.
  • You can monitor flows using flowstat; in addition, you can monitor all the flows from the global zone.

Improving the Availability of an NFS Server with DLMP

A new feature introduced in Oracle Solaris 11 supports setting up an NFS server inside a non-global zone. Using this capability, you can build an NFS server for each tenant in a cloud environment in order to provide secure, shared storage between the zones, as shown in Figure 3.

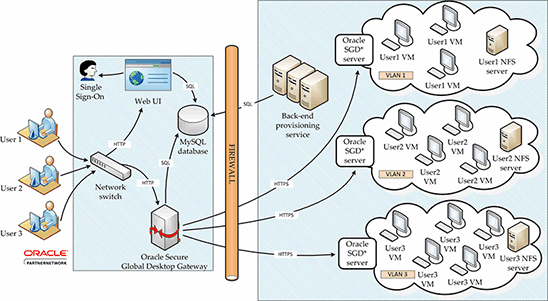

Figure 3. Providing Secure, Shared Storage Between Zones

Figure 3. Providing secure, shared storage between zones

Figure 4 shows how the DLMP aggregation provides redundancy to other network services, such as an NFS server.

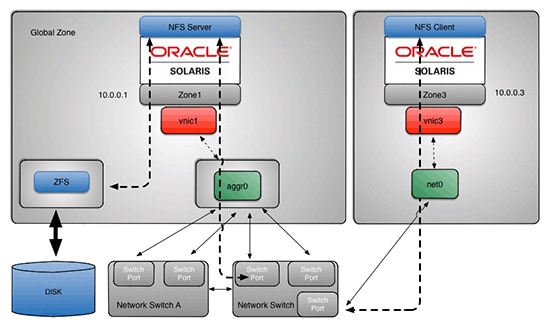

Figure 4. Improving the Availability of an NFS Server with DLMP

Figure 4. Improving the availability of an NFS server with DLMP

Create a ZFS File System and Share it Using NFS

Using the command shown in Listing 12, we will create a ZFS file system and share it using NFS:



root@zone1# zfs create -o encryption=on -o dedup=on -o compression=on -o mountpoint=/data -o sharenfs=on rpool/data
Enter passphrase for 'rpool/data':
Enter again:

Listing 12

Note: You need to provide the passphrase; it must be at least eight characters.

The command in Listing 12 used the following options:

  • -o encryption=on enables encryption.
  • -o dedup=on enables deduplication.
  • -o compression=on enables compression.
  • -o mountpoint=/data specifies the location of the mount point.
  • -o sharenfs=on specifies that the ZFS file system should be shared via NFS.

In Listing 12, we can see that by using a single command, we can create a ZFS file system with encryption, compression, and deduplication and share it using NFS.

Let's verify that the NFS share was created, as shown in Listing 13:



root@zone1# share
rpool_data      /data   nfs     sec=sys,rw

Listing 13

In Listing 13, we can see that the NFS share has been created.

ZFS can share file systems such as NFS and SMB (Server Message Block). For more examples of using ZFS to share file systems, see zfs_share(1M).

Now, let's mount this file system from the client (zone3).

First, verify that we can access the NFS share by listing the NFS shares on zone1:



root@zone3# showmount -e zone1
export list for zone1:
/data (everyone)

Now, mount the NFS file system, as shown in Listing 14:

root@zone3# mount zone1:/data /mnt

Listing 14

After running the command shown in Listing 14, the NFS server will benefit from the network HA that DLMP provides without the need to set up anything on the NFS server.

As we saw in this use example, the Oracle Solaris11 operating system provides virtualization technologies for every layer, such as storage virtualization using ZFS and network virtualization and operating system virtualization using Oracle Solaris Zones.

Things to Remember

  • DLMP can provide redundancy to other technologies such as NFS.
  • Using a single command, we can create a ZFS file system with encryption, compression, and deduplication and share it using NFS.
  • ZFS can share file systems as NFS and SMB, see zfs_share(1M).
  • You can see the NFS server shares by using the share command.
  • You can use the showmount -e command to list the shared file systems on a remote NFS server.

Detecting Failures in DLMP Aggregation

In DLMP aggregation, failure detection is a method for detecting the failure of the aggregated ports. A port is considered to have failed when it cannot send or receive traffic. A port might fail because of the following reasons:

  • There is damage to the cable (for example, a cut).
  • A switch port goes down.
  • There is a failure in the upstream network path.
  • There is a defective physical NIC.

About Failure Detection

DLMP aggregation performs failure detection on the aggregated ports to ensure the continuous ability of the network to send and receive traffic. When a port fails, the clients associated with that port—for example, a configured IP stack or VNICs—are failed over to one of the remaining active ports. Failed aggregated ports remain unusable until they are repaired. The remaining active ports continue to function while any existing ports are deployed as needed. After a failed port recovers from a failure, clients from the other active ports can be associated with it.

DLMP aggregation supports both link-based and probe-based failure detection.

  • Link-based failure detection can only detect a failure between the host and the switch it is directly connected to, for example, when the cable is cut or the switch port is down. Therefore, it can detect only failures caused by the loss of direct connection between the data link and the first-hop switch. Link-based failure detection is enabled by default when a DLMP aggregation is created.
  • Probe-based failure detection detects failures between an end host and the configured targets by sending and receiving probe packets. Therefore, it overcomes the known limitations of link-based failure detection, and it can detect more failure conditions than link-based failure detection alone. For example, a NIC might be malfunctioning or damaged to the point where it reports an incorrect link state.

    Probe-based failure detection is performed by using the combination of two types of probes—Internet Control Message Protocol (ICMP) probes (which are Layer 3 probes) and transitive (Layer 2) probes—which work together to determine the health of the aggregated physical data links.

ICMP probes are used to check the health of a port by sending probe packets to probe targets. The IP address of the probe target and local IP address to be used for sending these packets are automatically configured, when possible. One or more probe targets and source addresses can also be configured explicitly, if needed. Note that the target IP address must be on the same subnet as the specified source IP address. Note also that local IP addresses configured for DLMP probing can continue to carry regular traffic. Therefore, you do not need to reserve IP addresses for exclusive use by DLMP.

Transitive probing is performed between the aggregated ports using the exchange of layer-2 transitive probes. These probes allow the aggregation to determine the health of all aggregated ports while avoiding the configuration of a separate local IP probe address for each one of them.

Note: Probe-based failure detection is performed in the global zone when VNICs over an aggregation are created in the global zone and are assigned to non-global zones. The probing is, therefore, centralized and does not need to be configured in the zones themselves—unlike with IPMP, which needs to be configured in each zone.

Configure Probe-Based Failure Detection for a DLMP Aggregation

In the following example, we will set up ICMP probing for aggregation aggr0.

First, set the probe targets for aggr0:

root@global_zone:~# dladm set-linkprop -p probe-ip=+ aggr0

Note: Since the source IP address is not specified, any of the IP addresses configured on the aggregation aggr0 and its VNICs will be used as the source IP addresses of ICMP probes. Note that the IP addresses of VNICs that are configured in a non-global zone will not be used for probing by the global zone.

Set the failure detection time to 5 seconds:

root@global_zone:~# dladm set-linkprop -p probe-fdt=5 aggr0

Note: The default failure detection time is 10 seconds.

Display the properties that we have set:



root@global_zone:~# dladm show-linkprop -p probe-ip,probe-fdt aggr0
LINK     PROPERTY        PERM VALUE        EFFECTIVE    DEFAULT   POSSIBLE
aggr0    probe-ip        rw   +            +            --        --
aggr0    probe-fdt       rw   5            5            10        1-600

The example in Listing 15 displays statistics for the probes for our DLMP aggregation. Using the probe type -P option, you can provide a comma-separated list of arguments (t for transitive probe, i for ICMP probe, and all for both ICMP and transitive probes).



root@global_zone:~# dlstat show-aggr -n -P t,i aggr0

    TIME     AGGR     PORT          LOCAL         TARGET  PROBE  NETRTT     RTT
   0.06s    aggr0     net3           net3           net2   t528      --      --
   0.06s    aggr0     net3           net3           net2   t528 13.59ms 14.55ms
   0.17s    aggr0     net1           net1           net0   t528      --      --
   0.17s    aggr0     net1           net1           net0   t528  8.99ms  9.78ms
   0.22s    aggr0     net2           net2           net1   t528      --      --
   0.22s    aggr0     net2           net2           net1   t528  8.44ms  9.36ms
   0.27s    aggr0     net2           net2           net0   t528      --      --
   0.27s    aggr0     net2           net2           net0   t528  8.31ms  9.14ms
...

Listing 15

The following items are shown in the output of Listing 15:

  • TIME: Time at which the probe was sent in seconds. This time is relative to the time when you issue the dlstat command. If the probe is sent before you issue the dlstat command, the time is negative.
  • AGGR: The name of the aggregation for which the probe was sent.
  • PORT: The name of the port for which the probe was sent.
  • LOCAL: For ICMP probes, the source IP address of the probes. For transitive probes, the port name from which the transitive probe originated.
  • TARGET: For ICMP probes, the destination IP address of the probes. For transitive probes, the port name of the probe that is targeted.
  • PROBE: Identifier number representing the probe. The prefix t is for transitive probes and the prefix i is for ICMP probes.
  • NETRTT: Network round-trip-time for the probe. This value is the time period between sending the probe and receiving the acknowledgment from the DLMP aggregation.
  • RTT: Total round-trip-time for the probe. This value is the time period between sending the probe and completing the process of acknowledgment by the DLMP aggregation.

For more examples of setting up probe-based failure detection, see "Configuring High Availability by Using Link Aggregations."

Conclusion

In this article, we explored how we can leverage built-in Oracle Solaris 11 technologies to implement and monitor network high availability for a multitenant cloud infrastructure. We have seen examples of how we can combine datalink multipathing with other networking technologies, such as link protection, to deliver increased benefits. Specifically, we coupled the use of network security with QoS achieved by setting limits on bandwidth consumption via bandwidth control, and we used traffic flows for network resource management.

See Also

Also see these additional publications by this author:

And here are additional Oracle Solaris 11 resources:

About the Authors

Orgad Kimchi is a principal software engineer on the ISV Engineering team at Oracle (formerly Sun Microsystems). For 6 years he has specialized in virtualization of big data and cloud computing technologies.

Nicolas Droux is the chief architect for Solaris Kernel Networking at Oracle. His specialties have developed from his more than 20 years' experience working on operating systems kernel, networking, virtualization, security, I/O, performance, HPC, and cloud architectures.

Revision 1.0, 07/09/2014
