Using the Oracle HCTS GUI

To start the Oracle HCTS GUI, type the following Oracle HCTS command.

# /usr/bin/hcts

On the TM system, if you are prompted to select a mode for the machine, click the Test Manager button. If you want Oracle HCTS to automatically prepare the TM network environment, click the Automatic Network Configuration. Otherwise click the Manual Network Configuration.

If you want the TM machine to behave as a DHCP server when doing certification, click DHCP Server Setup checkbox after selecting the Automatic Network Configuration. Click the OK button.

On the SUT system, if you are prompted to select a mode for the machine, click System Under Test then click the OK button.

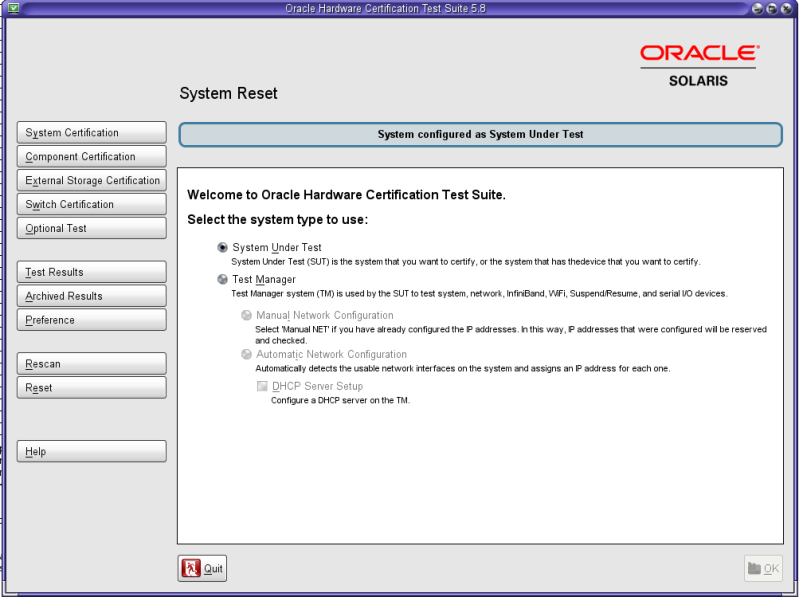

Figure 1  Reset Oracle HCTS
