To Certify External Storage on Test Server Using GUI

  1. Start the Oracle HCTS GUI on Test Server.
  2. When prompted to select a mode for the machine, select System Under Test then click the OK button.
  3. Click on the External Storage Certification button on the left panel of main window.

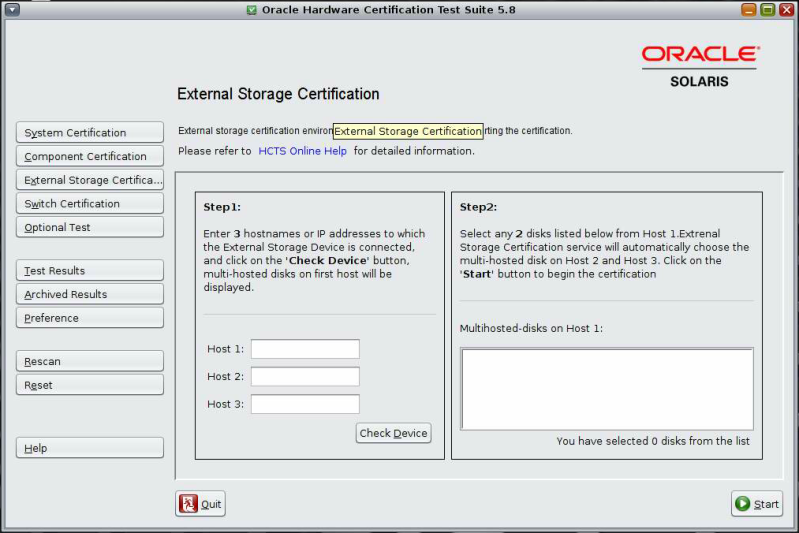

    image:The image shows the screen shot of External Storage
                                Certification on GUI. You can use this screen to certify external
                                storage devices.
  4. Type in the hostnames or IP addresses of three machines respectively in text fields.
  5. Click Check Devices button.

    External disks found by HCTS will be displayed on the right text areas.

  6. Select any two disks from the list.
  7. Click the Start button.
